Žalias kryžminis lazeris 4x360° Nivel System CL5G su stovu ir jutikliu

Trumpai apie prekę

Prekė: Žalias kryžminis lazeris 4x360° Nivel System CL5G su stovu ir jutikliu. Kategorija: Lazeriniai lygiai.

• Gamintojas: Nivel System
• Modelis: CL5G-set-SJJM1EX-CLS-5-LS24

INCLUDED: CL5G cross laser, floor disc laser disc 2pcs. , multi-adapter, laser adapter, battery 8000mAh 1pcs, charger with cable, trunk, cls-5 sensor, years ls-24, tripod sjj-ex.

Description of the Nivel System cross laser

• Nivel System CL5G – 4-plane green laser with electronic compensator and drops
• Nivel System CL5G is a modern multi-purpose cross laser with a well-visible green laser beam (wavelength 515nm).
• This is the first Nivel System cross laser to allow electronic tilting of planes in 2 axes. This means that you can work with drops, just like with rotary lasers.

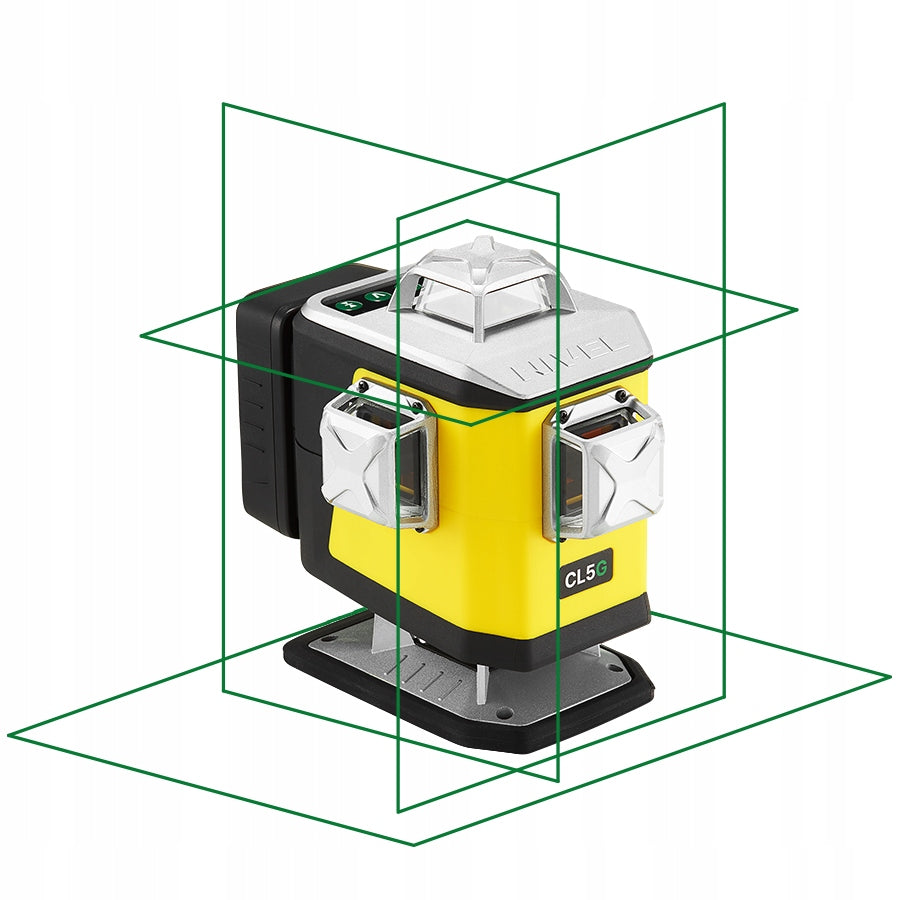

• The multilaser sets 4 ideal reference lines (2 vertically and 2 horizontally), each in the 360° range. The equipment allows you to determine a horizontal laser line at a height of 20 mm. This enables e.g. Planting plinths or laying tiles from the very floor. Classic cross lasers do not offer such possibilities.
• The laser offers very high accuracy of work (±1,5mm/10m) and is used in construction and industry for all construction and finishing works - wherever the highest accuracy is required. Electronic compensator ensures quick leveling of equipment.
• Eliminates the so-called. beam swings when vibrating the terrain, which dampens vibrations more effectively than a classic magnetic compensator. Locking the compensator makes the instrument can be tilted and use oblique lines. The built-in 1/4” thread allows for secure and stable attachment of the instrument to a tripod, adapter, or laser shelf.
• The equipment has been very well protected against dust and water, this is confirmed by the degree of protection IP54. The heads are protected with metal bodies and the fast ones have an anti-reflective filter - the laser beam does not reflect from them or create laser glows. The corners of the device have rubber protectors, which prevents abrasions and provides a more secure laser grip.

Technical data

• Laser beam: green laser (515 nm), class 2
• Accuracy: ± 1,5 mm/10 m
• Working range: 30 m (70 m with sensor)
• Space inclination: ±4° (X, Y)
• Self-leveling range: ±4°
• Generated planes: 2 x horizontally (360°), 2 x vertically (360°)
• Tripod mount: 1/4″, 5/8”
• Power Supply: 3,7V (Li-ion, 8000 mAh)
• Resistance class: IP54
• Working temperature range: -10°C to +50°C
• Dimensions: 165 x 100 x 158 mm
• Weight: 1,08 kg

Key information

• Accuracy and reliability – a clear green laser beam (515nm) guarantees comfortable operation in all conditions, the equipment allows you to work with an accuracy of ±1,5 mm/10 m
• Manual drops – in two axes (± 4%)
• Even greater range – pulse function allows you to work with a laser sensor outside buildings over long distances
• Precise beam display – bright green laser beam and high-quality optics generate lines that are highly visible
• Versatility and multitasking – four laser planes (360°)
• Fast and effective leveling – the innovative electronic vibration compensation system ensures quick preparation of the device for work, the laser stably determines the beam, even on an unstable base, and when locked allows you to work with oblique beams
• Intuitive operation – easy and quick to use control panel
• Adapter and laser lift – secure attachment even in difficult conditions on the construction site, additionally the possibility of setting at a given height, the laser lift allows precise adjustment of the lower laser beam
• Cost-effective power supply – 8000mAh lithium-ion battery
• Damage resistant, durable equipment – rubber elements of the laser housing protect it from damage due to impacts and shocks, degree of protection against dust and water – IP54

Easy and fast measurements, Bluetooth communication

• The CL5G multilaser levels itself when turned on and is immediately ready to go. The generated green laser beam is very visible, displayed on the wall creates a reference line for horizontal and/or vertical work.
• Each laser is equipped with Bluetooth wireless communication. For this purpose, we have developed a dedicated Nivel CL application for iOS and Android mobile devices. The app is available on the App Store and Google Play platforms.

Universal application

• The equipment allows you to work with both horizontal and vertical beams. 4 planes can be displayed separately or simultaneously and tilted (in two axes)

Reliable on construction site

• The equipment has a degree of protection against dust and water - IP54. In addition, the corners of the laser body have been reinforced with rubber, thanks to which the equipment is durable and will work in difficult conditions. In addition, the four-plane CL5G cross lasers (green beam) have gained new equipment supporting finishing works: laying floor tiles.
• The standard equipment of the laser set has been supplemented with floor laser discs. Shields are placed on the floor, tiles or terracotta. The precise graduation informs about the level or deviation from the laser line generated by the CL5G laser. No level or additional measuring tools are needed - the work can be done on the basis of the standard set supplied with the laser.

Convenient operation

• CL5G has an intuitive control panel. Function management, including precise beam fitting, is done quickly and efficiently.
• The whole is complemented by a compact housing, thanks to which the laser is handy, easy to install on the construction site and during transport. The battery can be charged during use, without interrupting operation.

Application

• Finishing works – vertical, level, bevels
• Laying glaze, terracotta
• Work with cardboard-gypsum
• Construction works – wooden, steel, concrete
• Masonry works – internal and external (foundations, walls, stairs, screeds, formwork)
• Installation works – determination of wire lines, transfer of points
• Carpentry works – furniture, buildings
• Land equation – levelling

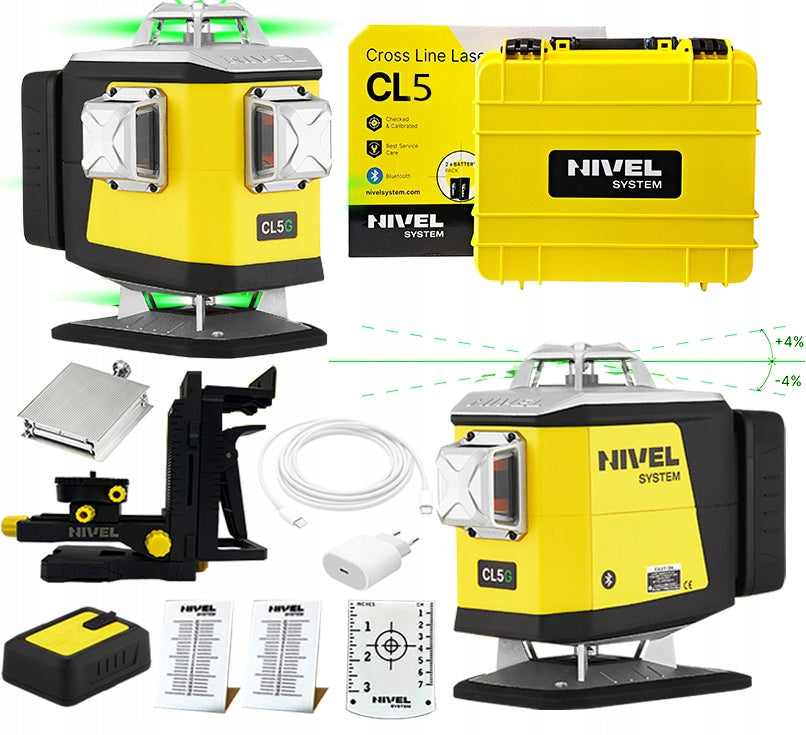

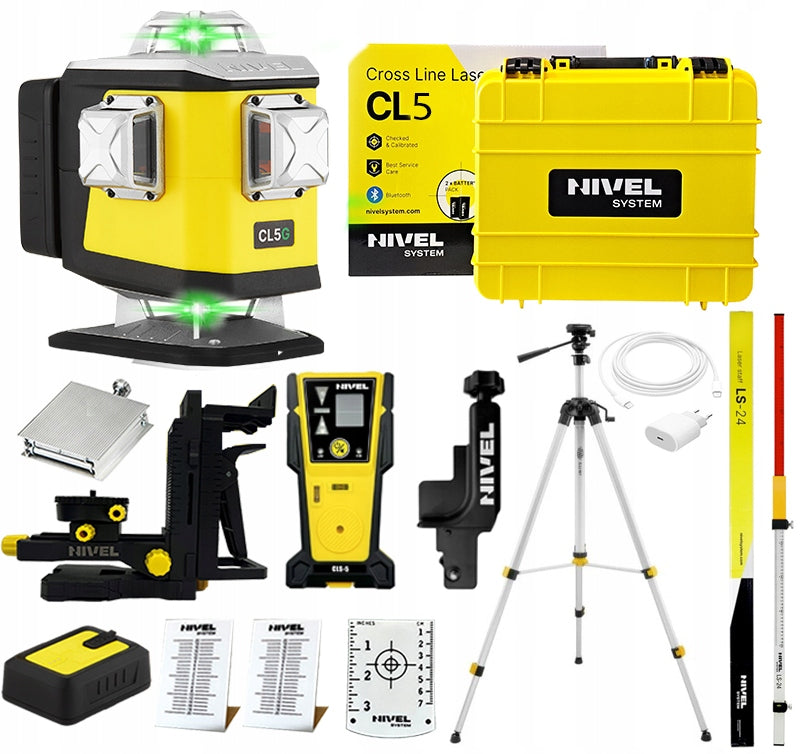

In delivery

• Cross laser 4x 360° green beam with drops Nivel System CL5G
• Laser disc
• Floor discs 2pcs.
• Multi-adapter
• Laser adapter
• Li-ion battery (8000mAh) 1pc.
• Charger with cable
• Transport case
• Sensor cls-5
• Patch ls-24
• sjj-ex tripod

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Nivel System
Parametry	Maximum working range	70 m
Parametry	Manufacturer code	CL5G-set-SJJM1EX-CLS-5-LS24
Parametry	EAN (GTIN)	5908263352650
