WiFi stebėjimo kamerų rinkinys, 4 kameros, 5Mpx, juodos, su DVS įrašymo įrenginiu

Trumpai apie prekę

Prekė: WiFi stebėjimo kamerų rinkinys, 4 kameros, 5Mpx, juodos, su DVS įrašymo įrenginiu. Kategorija: Rinkiniai.

• Gamintojas: DVS
• Modelis: Zewnętrzny zestaw do monitoringu domu kamery WiFi

💡 Why is it worth buying from us?

By buying from us, you gain not only proven equipment, but also professional support at every stage of the purchase. Thanks to this, you can easily choose the right solution, start devices faster and more convenient to use them every day.

🏢 We are one of the largest Polish companies specializing in the distribution and sale of monitoring systems, alarm systems and consumer electronics.

📘 We prepare our own detailed operating instructions for all our products, so that it will be easier for you to go through the independent process of commissioning and configuration of devices.

📱 The products we sell work on mobile applications without cumbersome advertising.

🛠 We have a technical support department that will be able to help you with most technical problems by phone or e-mail.

✅ By choosing our offer, you gain not only the product, but also experience, help and comfort of purchase.

⭐ The most important features of the set

✅ 4 external Wi-Fi DVS horn cameras in black

✅ 5 Mpx resolution – detailed image 2560 × 1944 px

✅ Human detection – more effective detection of important events

✅ IR night mode up to 20 m – monitoring also after dark

✅ Built-in microphone and speaker – audio recording and two-way communication

ℹ The hard drive is not included – a compatible drive must be mounted to record in the recorder.

✅ Remote viewing via CamHiPro app

✅ Wi-Fi or wired connection via RJ45

✅ 8-channel DVS-NVR0801-E8 recorder – support for up to 8 horn and rotary cameras, white or black, with a resolution of up to 8 Mpx

⚡ What else?

✅ IP66 resistance – possibility of mounting cameras outside

✅ H.265 and H.265+ compression – less disk space consumption

✅ Motion detection in 4 areas – the ability to select monitored zones

✅ Privacy masks – obscuring selected parts of the image

✅ ROI function – higher image quality in the most important areas

✅ DWDR, BLC and HLC – image enhancement in difficult lighting

✅ 3D DNR – noise reduction, especially after dark

✅ microSD slot up to 256 GB in each camera

✅ ONVIF and RTSP support – greater compatibility with network devices

✅ Recording schedule and automatic overwriting of recordings

✅ Remote access for up to 64 users

⚡ Who is this set for?

The DVS Wi-Fi monitoring kit will work where remote viewing, local recording and easier installation are needed without conducting network cables to each camera.

Ideal for:

▶ houses and properties – entrance, driveway, garden, garage, gate and gate

▶ companies and offices – control of entrances, corridors, facilities and workplaces

▶ shops and service premises – monitoring of the sales room, cash register and entrance

▶ warehouses and workshops – supervision over property, deliveries and facilities

▶ plots and cottages – remote viewing in absence

▶ construction sites and economic facilities – monitoring of places where network cables are difficult to operate

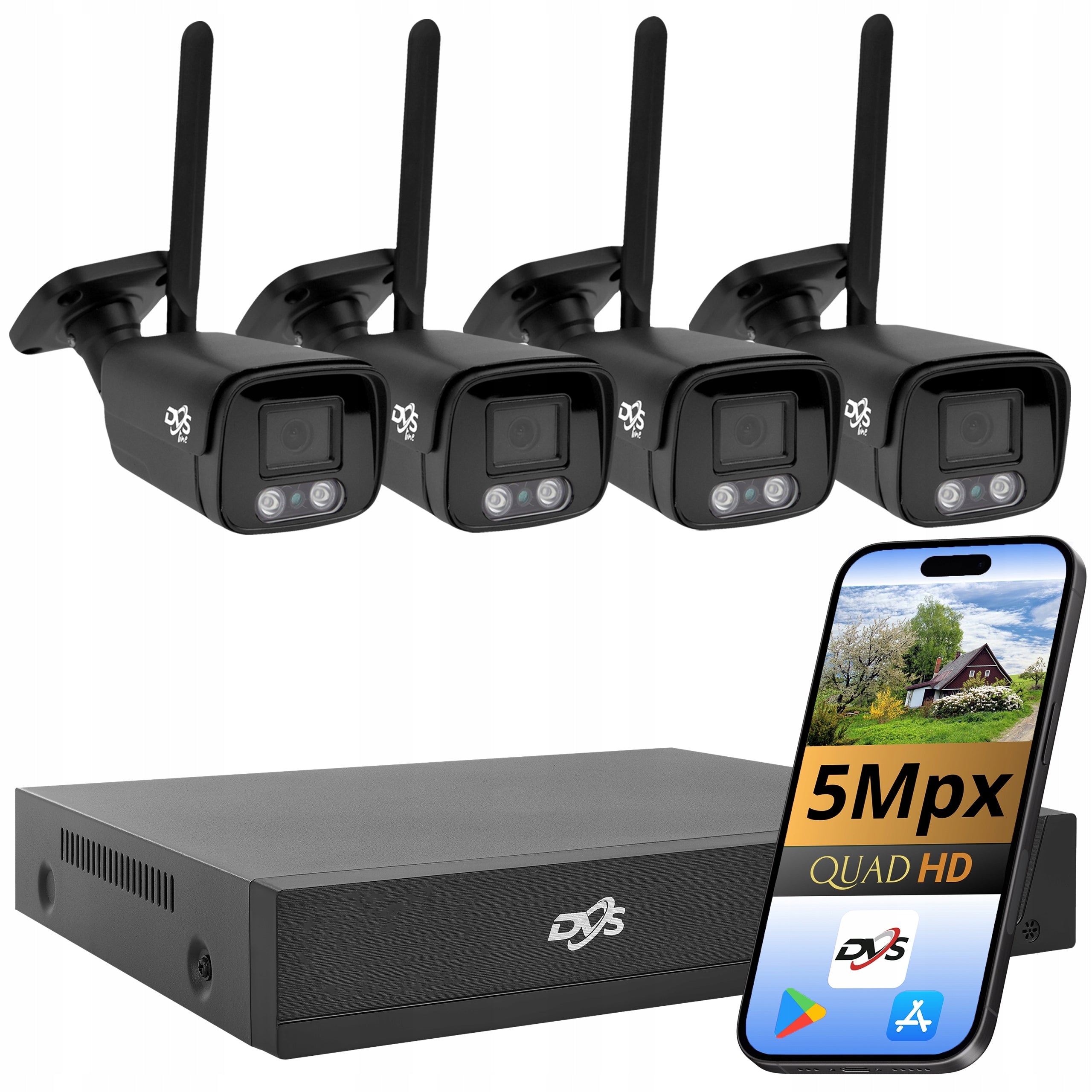

⚡ The set includes

✅ 1x DVS-NVR0801-E8 network recorder – 8-channel IP recorder with image support up to 8 Mpx, H.265+ compression and HDMI and VGA outputs; supplied with a set of accessories

✅ 4x Wi-Fi camera DVS-MP5036ET-IRWS – 5 Mpx outdoor horn camera with human detection, IR night mode, microphone, speaker and IP66 protection class; each camera with a set of mounting and power accessories

⚡ WiFi monitoring without signal cables

The cameras can be connected to your local router over Wi-Fi. The recorder is connected via LAN cable to the same router or switch. Thanks to this, the devices are located in one network and the recorder can receive images from cameras.

Wireless connection

Cameras transmit images to the network over Wi-Fi. Only 12 V power supply must be supplied to each camera. This solution is useful in places where full network cabling cannot be performed.

Wired connection

Each camera also has an RJ45 connector, so it can be connected with a network cable to a router or switch. This solution can be used with weak or unstable Wi-Fi coverage. The cameras still require a separate 12V power supply – they do not support PoE power.

⚡ 5 Mpx image – clearer recordings and more details

DVS-MP5036ET-IRWS cameras capture images at a resolution of 2560 × 1944 px at 15 fps. /s. Thanks to this, the recordings retain good detail when monitoring the entrance, driveway, garden, garage or area around the building.

✅ More visible details – a more accurate picture of people, vehicles and surroundings

✅ Better analysis of events – easier to check the course of the situation on the recording

✅ Digital approximation of the image – the possibility of enlarging a selected fragment of material

✅ 3,6 mm lens – universal field of observation for monitoring properties and buildings

✅ Viewing angle about 86° – wide view while maintaining the readability of the most important elements of the frame

⚡ Human detection and event notifications

The cameras recognize the presence of a human in the monitored area. Once properly configured, they can start recording and send a notification to the CamHiPro app.

✅ Detection of people – the camera reacts to the appearance of a human in the frame

✅ Notifications in the application – quick information about the detected event

✅ Automatic recording – recording of material after alarm occurs

✅ 4 motion detection areas – the ability to indicate the most important parts of the image, such as the gate, gate or driveway

⚡ Remote access from your phone via the CamHiPro app

After connecting the DVR to the Internet, you can support monitoring from your phone or tablet using the CamHiPro app. The application allows you to view images from cameras, receive notifications and view saved recordings – regardless of where you are.

✅ Live preview – quick check of images from all cameras

✅ Event notifications – information when motion or human is detected

✅ Access to recordings – viewing materials stored on the media configured in the system

✅ Two-way audio – listening to the surroundings and talking through the selected camera

✅ Photos and recordings – saving selected materials on a mobile device

✅ Android and iOS support – access from phones and tablets with the most popular systems

⚡ Local preview on your monitor or TV

You can connect the recorder directly to your monitor or TV. Thanks to this, you can check the image from the cameras without using the phone, play back the saved materials and configure the settings of the entire system.

✅ Live image preview – display images from all cameras on one screen

✅ Recording playback – searching for saved materials by date and time

✅ System configuration – setting the recording schedule, detection and camera parameters

✅ HDMI output – connecting a monitor or TV with a high-definition image

✅ VGA output – possibility to connect an older monitor

✅ 2 USB ports – connecting a mouse to support a menu or USB stick to export recordings

✅ Audio output – connecting external speakers

✅ RJ45 LAN port – connection of the recorder with a router or switch

⚡ Night monitoring with infrared illumination

The cameras are equipped with an IR infrared heater and a mechanical ICR filter, so they can conduct observation even after dark. In total darkness, they capture a clear, black and white image with a range of illumination up to 20 m.

✅ IR illumination – monitoring even in the absence of light

✅ Night range up to 20 m – observation of the entrance, driveway and the area around the building

✅ Mechanical ICR filter – automatic camera switching between day and night mode

✅ Sensitivity 0,01 lx – better visibility in low light

✅ Clear black and white image – discreet observation without the use of visible light

⚡ Microphone and speaker – two-way audio communication

Each camera has a built-in microphone and speaker, thanks to which monitoring captures not only the image, but also the sound from the observed place. You can also use the CamHiPro app to reach someone near the camera.

✅ Listening to the surroundings – checking what is happening in the monitored place

✅ Two-way conversation – communication via camera from the phone

✅ Video recording with sound – more information during event analysis

The function will work, among others, when entering the property, gate, driveway, warehouse, workshop or when receiving courier deliveries.

⚡ Metal housing and IP66 resistance

The cameras have solid metal tube housings adapted for outdoor installation. IP66 protection class provides protection against dust, moisture and precipitation.

✅ Metal housing – greater durability and resistance to external conditions

✅ IP66 protection class – protection against dust, rain and snow

✅ Operating temperature from -40°C to +60°C – stable operation during frosts and high temperatures

Cameras are perfect for monitoring your home, driveway, garden, garage, warehouse or business premises. During installation, the RJ45 network connector and power connection should be additionally protected against moisture.

⚡ IP recorder DVS-NVR0801-E8 – the center of the entire system

The DVS-NVR0801-E8 recorder is responsible for receiving images from cameras, recording recordings and managing the operation of the entire monitoring system. It allows you to conveniently view live, play back content and configure the recording method.

The H.265+ compression reduces the amount of space occupied by recordings while maintaining good image quality. The recorder allows you to set a recording schedule, automatically overwrite the oldest materials and search for recordings by date and time.

The device supports IP cameras with a resolution of up to 8 Mpx 4K Ultra HD, allowing you to capture high-detail images. This facilitates the subsequent analysis of events and digital approximation of selected fragments of the recording.

The recorder has a durable metal housing and works with compatible ONVIF-compliant network cameras.

⚙ Technical specification of DVS-MP5036ET-IRWS camera

Resolution: 5 Mpx, 2560 × 1944 px

Lens: 3,6 mm, 86° viewing angle

Type: Outdoor Wi-Fi IP Tube Camera

Color and housing: black, metal

Night mode: IR up to 20 m, ICR filter

Detection: movement and human silhouette

Audio: built-in microphone and speaker

Memory card: microSD up to 256 GB

Connectivity: Wi-Fi and RJ45 10/100 Mbps

Compression: H.265

Image Features: DWDR, BLC, HLC, 3D DNR, AGC, AWB

App: CamHi/CamHiPro, Android and iOS

Protection class: IP66

Operating temperature: -40°C to +60°C

Power supply: 12 V DC, power supply included

Dimensions: 185 × 65 × 60 mm

Connectors: 12V DC power supply, RJ45 LAN and RESET button.

⚙ DVS-NVR0801-E8 specification

Maximum supported resolution: 4K Ultra HD 3840 × 2160p (8 Mpx)

Maximum number of cameras supported: 8

Bitrate: 80 Mbps

Number of disks supported: 1

Image compression: H.265+

Outputs: DC 12 V (1x), HDMI (1x), VGA (1x), USB (2x), audio out (1x), LAN (1x)

Network Connector: RJ45 10M/100M

Mobile application: CamHiPro

Maximum number of remote users: 64

Protocol support: ONVIF 2.04

Power supply: DC 12 V, 2 A

Dimensions: 255 × 230 × 45 mm

Operating temperature: -10°C to +45°C

Weight: 1200 g

Housing Type: Metal

Connections:

DC 12 V SOCKET – power connection

HDMI – monitor / display connection

VGA – monitor / display connection

2x USB – connecting a mouse or pendrive

AUDIO – connecting speakers

LAN – Internet connection / switch

⭕ FREQUENTLY ASKED QUESTIONS ⭕

1. Can the monitoring kit be started on its own?

Yes. Cameras should be connected to power, recorder to router, and then configure devices according to the instructions. Remote access can be activated in the CamHiPro app.

2. What is the distance between the cameras and the Wi-Fi router?

It depends on the quality and coverage of your local Wi-Fi network. The stability of the connection is affected, among others, by the distance, number and thickness of walls, radio interference and the place of installation of the router. Before installing the cameras, we recommend configuring them and checking the quality of the connection at the planned installation sites.

3. Can Wi-Fi coverage be increased?

Yes. In case of weak signal, you can use a repeater, an additional access point or Wi-Fi Mesh system. The camera can also be connected to the network wired via RJ45 connector.

4. What happens when the Internet stops working?

Remote viewing through the app may then be unavailable. The system can still operate on the local network and record recordings, provided that the devices have power, are properly connected and have a configured recording location.

5. How to connect the DVR to the Internet?

The recorder should be connected with a network cable to a router or switch that has access to the Internet. If a wired connection is not possible, an additional access point can be used to act as a wireless network bridge.

6. Can I watch the camera image on my phone?

Yes. After connecting the recorder to the Internet and adding it to the CamHiPro application, you can use live preview, view recordings and receive event notifications.

7. Where are the recordings saved?

Recordings can be stored on a disk mounted in the recorder. The cameras also support microSD card recording. The exact way of writing depends on the configuration and variant of the set.

8. How to display the image from the DVR?

The recorder can be connected to a monitor or TV via HDMI or VGA. When you start, the system menu and the first configuration wizard will appear on the screen.

9. Can the DVR be connected via HDMI cable to the laptop?

Usually not. HDMI and VGA connectors in laptops are most often image outputs, not inputs. Use a monitor or TV to operate the DVR locally.

10. Can the cameras be mounted outside?

Yes. The cameras have enclosures with IP66 protection class and are designed for outdoor use. During installation, power connectors and network connections should be additionally protected against moisture.
