Wi-Fi tinklo plokštė ASUS PCE-AXE5400, Wi-Fi 6E, 5400 Mb/s, 2 vnt.

Trumpai apie prekę

Prekė: Wi-Fi tinklo plokštė ASUS PCE-AXE5400, Wi-Fi 6E, 5400 Mb/s, 2 vnt.. Kategorija: Wi-Fi tinklo adapteriai.

• Gamintojas: ASUS
• Modelis: PCE-AXE5400

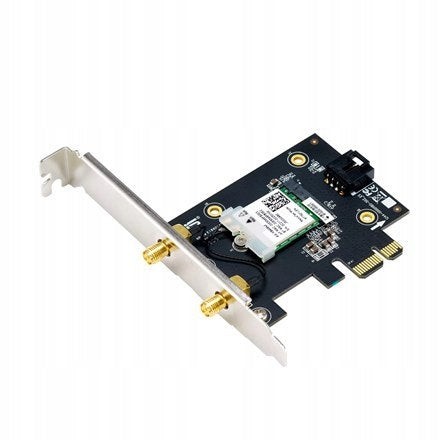

Internal network card Asus

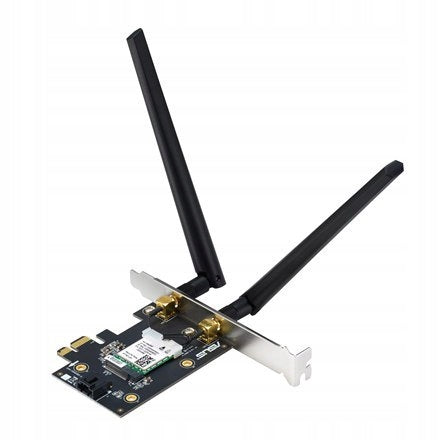

Wi-Fi 6E PCI-E card with 2 external antennas. Support 6 GHz, 160 MHz, Bluetooth 5.2, WPA3 network security technology, as well as OFDMA and MU-MIMO technologies

• Complete ASUS WiFi 6E solution - optimized capabilities and performance
• Latest 6 GHz band - less load on network connectivity and reduced interference in Wi-Fi transmissions
• Latest Bluetooth 5.2 standard - better signal range, higher transmission rate and less interference
• Ultra-fast Wi-Fi 6 and Wi-Fi 6E standards - 4,6 times faster speed, improved connection performance and enhanced network security
• Thanks to external antennas, dead zones in range are reduced - adjustable antennas allow easy positioning for the best possible signal reception.

Leader in Wi-Fi 6E connectivity

ASUS provides a complete solution to support the latest Wi-Fi 6E standard, from routers to wireless PCIe cards. With carefully designed technical solutions and supporting software, the complete Wi-Fi 6E solution from ASUS provides optimized capabilities and performance.

*PCE-AXE5400 only supports PCI-Express x1 standard, please install the card in the PCI-e x1 slot on the motherboard.

Least loaded Wi-Fi bandwidth

ASUS PCE-AXE5400 is a PCIe Wi-Fi 6E card that allows you to connect your computer to your Wi-Fi 6E router via a dedicated 6 GHz band. As a result, the computer does not compete for access to bandwidth with devices that do not support Wi-Fi 6E. The 6 GHz band provides up to seven additional 160 MHz channels, providing greater bandwidth and better connection flexibility, as well as reducing network congestion.

Equip your desktop computer with ultra-fast Wi-Fi 6E

With support for 6E 6 GHz Wi-Fi technology and wide 160 MHz channels, the PCE-AXE5400 provides up to 4,6 times faster* wireless transmission compared to Wi-Fi 5 devices, making it ideal for bandwidth-intensive tasks.

*Comparison is based on the results of PCIe 2x2 160 MHz Wi-Fi 6E card compared to PCIe 2x2 80 MHz WiFi 5 card.

Lower latency. Fast Wi-Fi connectivity.

PCE-AXE5400 adds extremely useful OFDMA and MU-MIMO features to your computer. Thanks to these technologies, the computer no longer has to wait in line for wireless bandwidth along with other connected devices when transferring data to the router, and instead it is possible to transfer data from each device simultaneously. As a result, the user enjoys higher performance and lower latency for maximum #GameReady WI-FI performance.

*Requires Wi-Fi 6 and MU-MIMO enabled router.

Quick retrofitting with Bluetooth connectivity

Install the PCE-AXE5400 card on your computer to instantly equip it with the latest Bluetooth 5.2 technology and enjoy up to twice the transfer speed and four times the range compared to Bluetooth 4.2. In addition, interference is reduced compared to Bluetooth 5.0. Your computer gets fast and stable connections to all wireless peripherals.

Increased network security with WPA3 support

PCE-AXE5400 uses the WPA3 Wi-Fi network security protocol, which provides your computer with an additional level of protection against external attacks, and you with mental comfort when using the network.

• Type: WiFi
• Interface: PCIe
• I/O ports: None
• Band: 2,4 GHz,5 GHz,6 GHz
• Standards: 802.11a,802.11b,802.11g,802.11n,802.11ax,802.11ac
• Number of antennas : 2
• Antenna: External detachable
• Supported operating systems: Windows 10,Windows 11
• Accessories included:

  - WLAN card ASUS PCE-AXE59BT

  - Low profile bracket

  - Motherboard USB cable

  - Warranty card

  - 2 x antenna

  - Quick Start Guide

• Weight: 49.7 g
• Other parameters: Bluetooth: 5.2 Data transfer rate:

  - 802.11a: max. 54 Mb/s

  - 802.11b: max. 11 Mb/s

  - 802.11g: max. 54 Mb/s

  - 802.11n: max. 300 Mb/s

  - 802.11ac (1024QAM): max. 1733 Mb/s

  - 802.11ax (2,4 GHz): max. 574 Mb/s

  - 802.11ax (5 GHz): max. 2402 Mb/s

  - Wi-Fi 6E (802.11ax) (6 GHz): up to 2402 Mb/s

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	ASUS
Parametry	Interface	PCI-E
Parametry	Card type	internal
Parametry	Antenna	external removable
Parametry	Maximum transmission speed	5400 MB/s
Parametry	Product weight with unit packaging	0.09 kg
Parametry	EAN (GTIN)	4711081764830
Parametry	Manufacturer code	PCE-AXE5400
Parametry	Certificates of conformity	CE
Parametry	Wireless operation standard	802.11a,802.11g,802.11b,802.11n (Wi-Fi 4),802.11ac (Wi-Fi 5),802.11ax (Wi-Fi 6)
Parametry	Band	2,4 GHz,5 GHz
