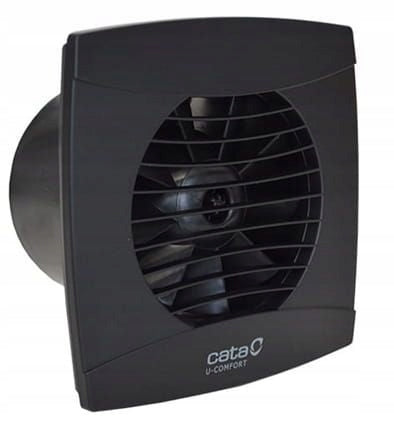

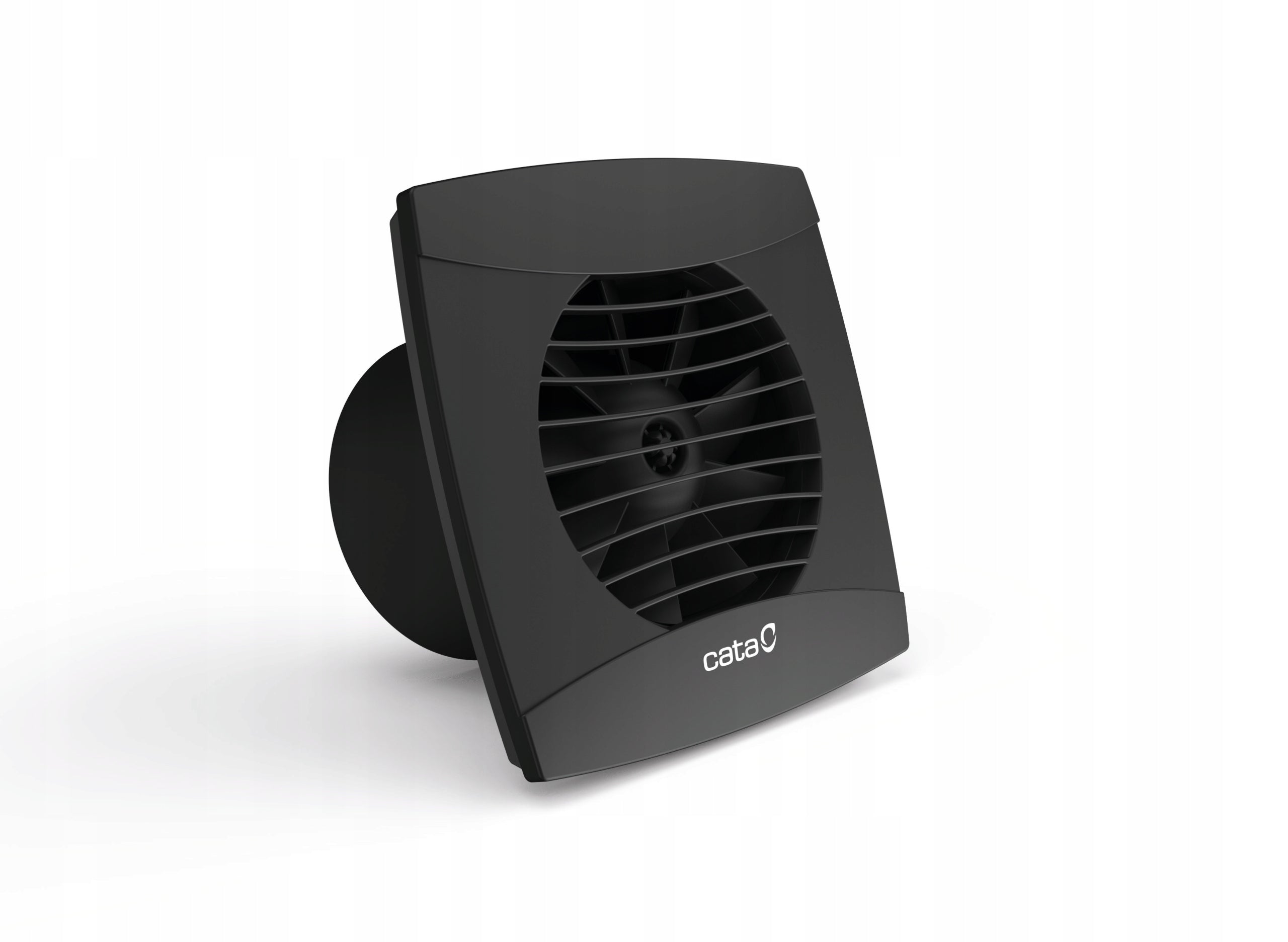

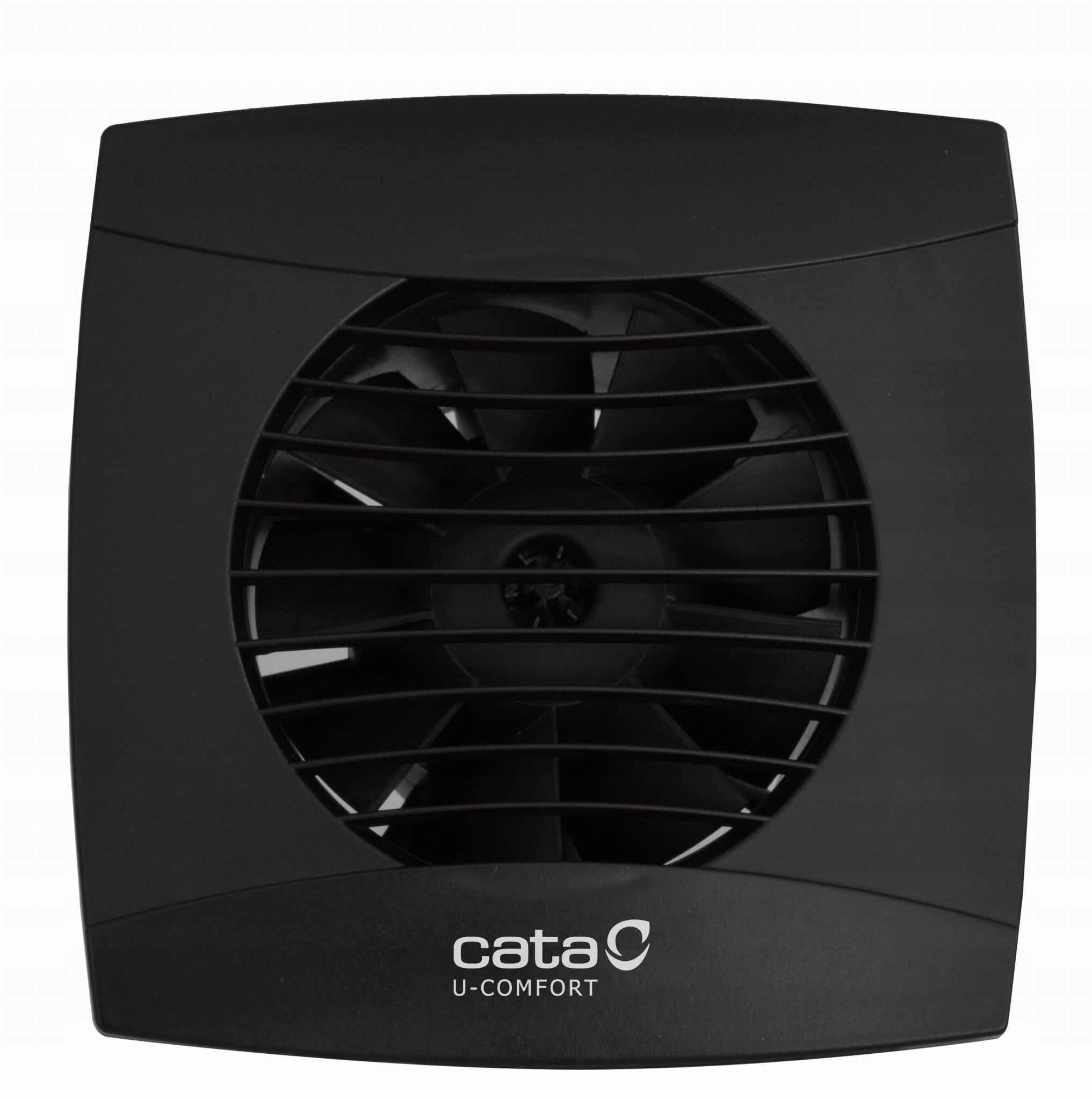

Vonios ventiliatorius CATA UC12 su laikmačiu, juodas

Trumpai apie prekę

Prekė: Vonios ventiliatorius CATA UC12 su laikmačiu, juodas. Kategorija: Namų ventiliatoriai.

• Gamintojas: Cata
• Modelis: CATA UC12

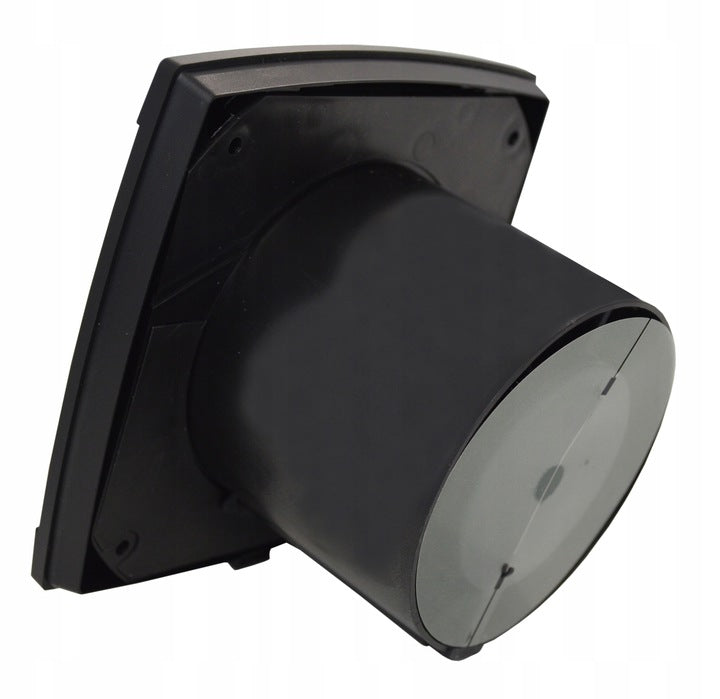

Bathroom fan UC12 TIMER (black, Timer-time delay function) UC12 TIMER fan (black, Timer-time delay function) Bathroom fan with built-in timer function with the ability to work with time delay. Time delay - Timer ✅The timer function allows you to delay turning off the fan in the range of 1 to 20 minutes after turning off the switch from the light. Check valve included ✅Check valve included-prevents the phenomenon of air reversing from ventilation ducts to the room BATHROOM FAN CATA UC12 STANDARD-technical data:✅SILENT OPERATION - 26dB ✅Diameter 120 mm ✅Thermal switch ✅Built-in TIMER (time switch that can be set from 1 to 20 minutes) ✅FLAT FRONT ✅High efficiency -205 m3/h. ✅Very low power consumption -12 W ✅Black color ✅ABS housing - resistant to yellowing ✅Axial rotor mounted on ball bearings with specially profiled blades ✅Protection rating IP44,insulation class B ✅Fan equipped with ball bearings,thanks to which it is characterized by a long service life,higher efficiency and the possibility of mounting in any position -on the wall or ceiling. ✅220-240 V 50/60 Hz ✅Weight 0,8 kg

Electrical connection diagram for the UC-12 model:

• L - constant phase (voltage cable)
• N - neutral
• SL - intermittent phase (wire from voltage guided to the switch from the light source or other charge)

Important: In order for the fan to work properly, 3 wires (two phases and neutral) must be connected correctly.
