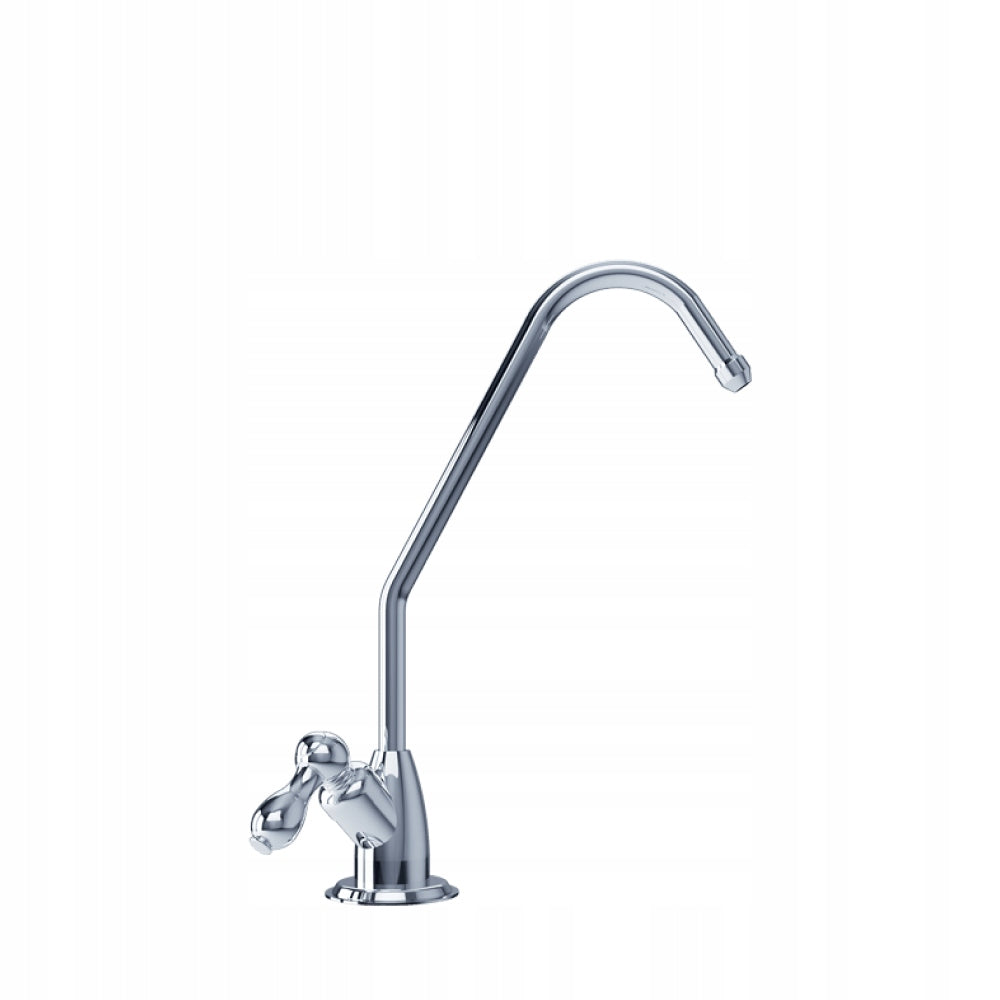

Virtuvinis osmoso filtro maišytuvas

Trumpai apie prekę

Prekė: Virtuvinis osmoso filtro maišytuvas. Kategorija: Atvirkštinio osmoso sistemos.

• Gamintojas: MyAqua
• Modelis: MA-B101C

The spout is compatible with most filters on the market.

Faucet for water filter - purpose

The thematic spout can be used for all types of water filters with drainage in the form of a 1/4" (6mm) hose, i.e.:

• reverse osmosis filter
• under-sink filter with ultrafiltration / microfiltration

The spout has one valve and allows you to connect one hose with drinking water

Spout AQUAPHOR - advantages

• Original AQUAPHOR product
• Aesthetic modern design
• Simple installation
• high quality valve

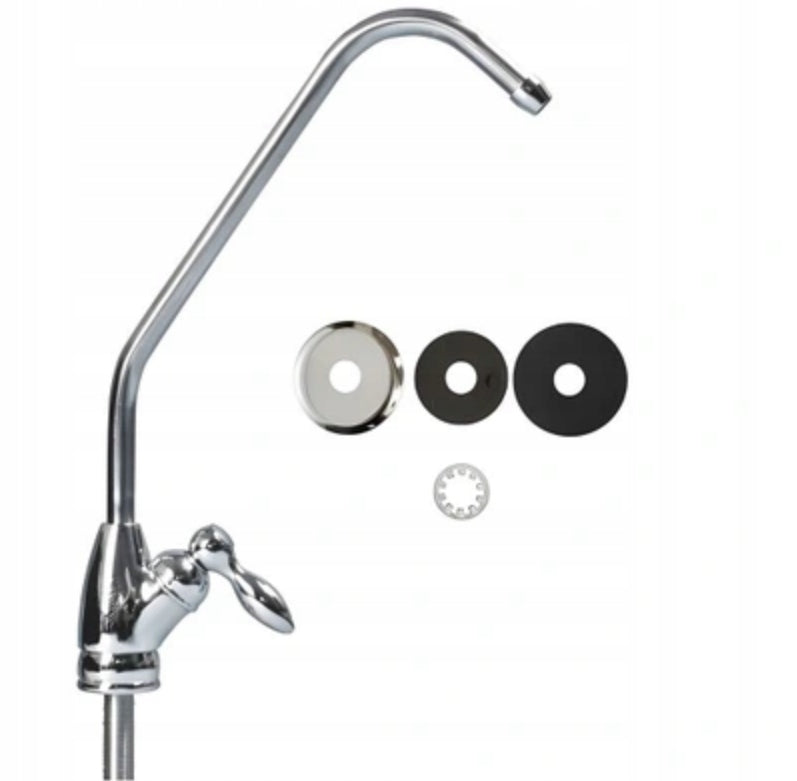

Set Composition:

• AQUAPHOR F0122 single-valve spout
• mounting accessories (pad, gaskets, mounting nut)
• masking rosette
• Quick Connect screw-in quick coupler for 6 mm (1/4") hose
• additional nut for alternative attachment of 6 mm hose with barrel

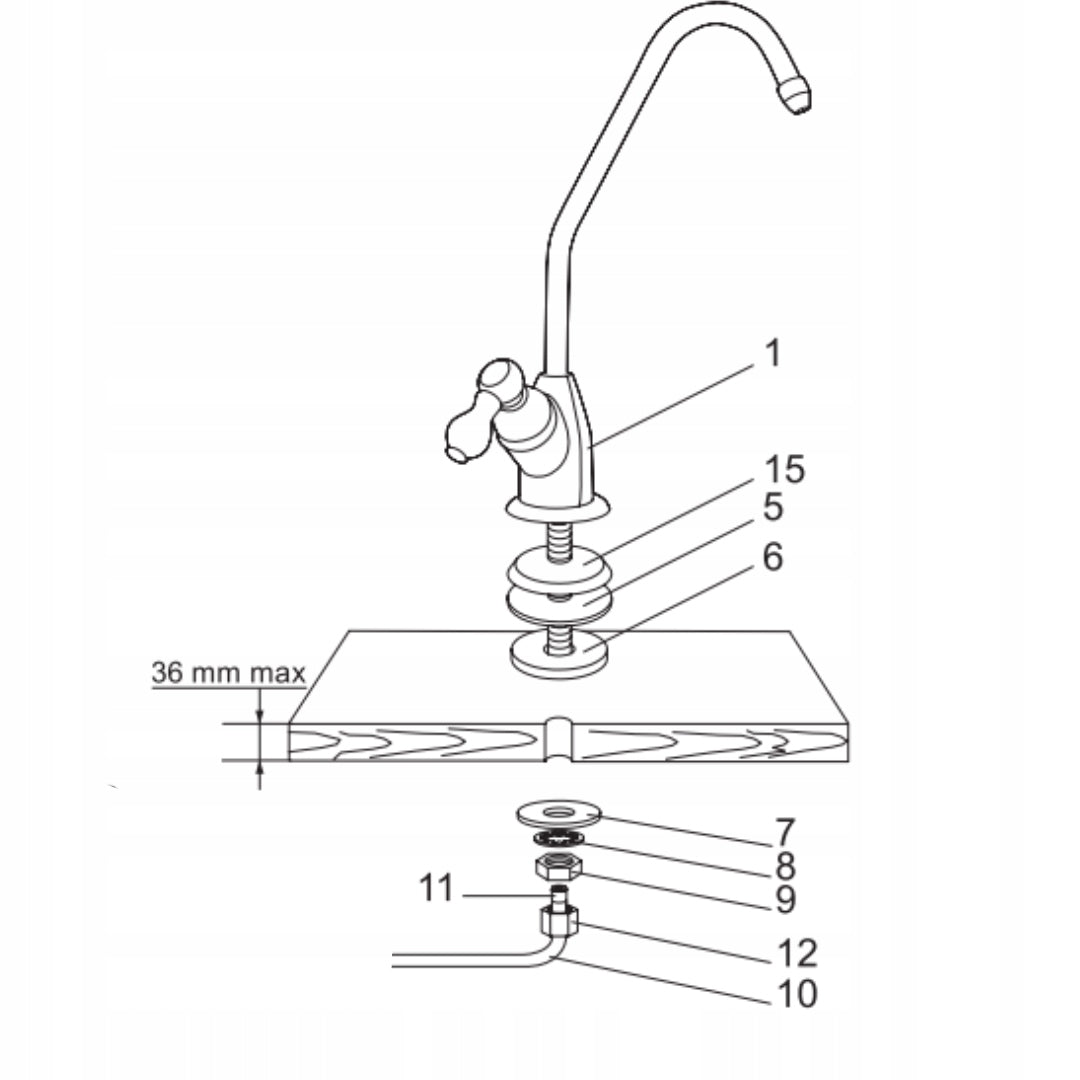

Assembly instructions

In the desired place, in the kitchen counter, drill a hole of 12 mm. Remove the mounting nut (12) from the threaded spout stub. Put a chrome masking rosette (15), a rubber gasket (5) and a plastic washer on the threaded spout connector and place the threaded spout connector in the hole.

On the underside of the table top, put a rubber washer (7) and a metal safety washer (8) on the spout connector and tighten the mounting nut (9). Slide the hose (10) with the pressed sleeve/barrel (11) inside the spout stub and twist the nut (12) to the resistance.

For hoses without barrel / bushing, use the QC replacement fitting attached to the spout without the need to install a nut (12)

Check the strength of the hose attachment.

Battery dimensions:

Height (from the tabletop to the highest point): 21 cm

Width (from axis to water spout): 13 cm

Mounting hole diameter: 12 mm

Max tabletop thickness: 36 mm
