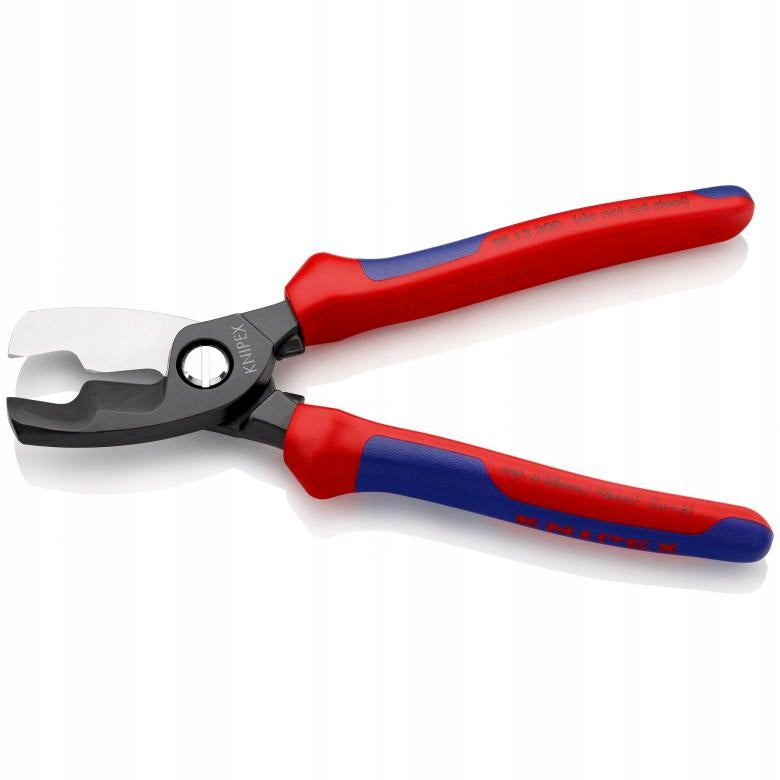

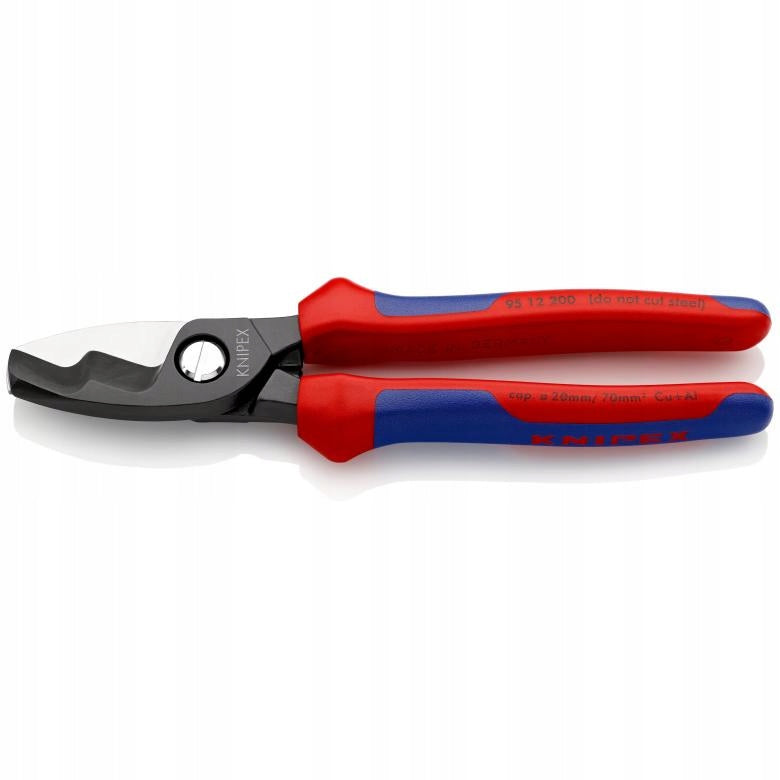

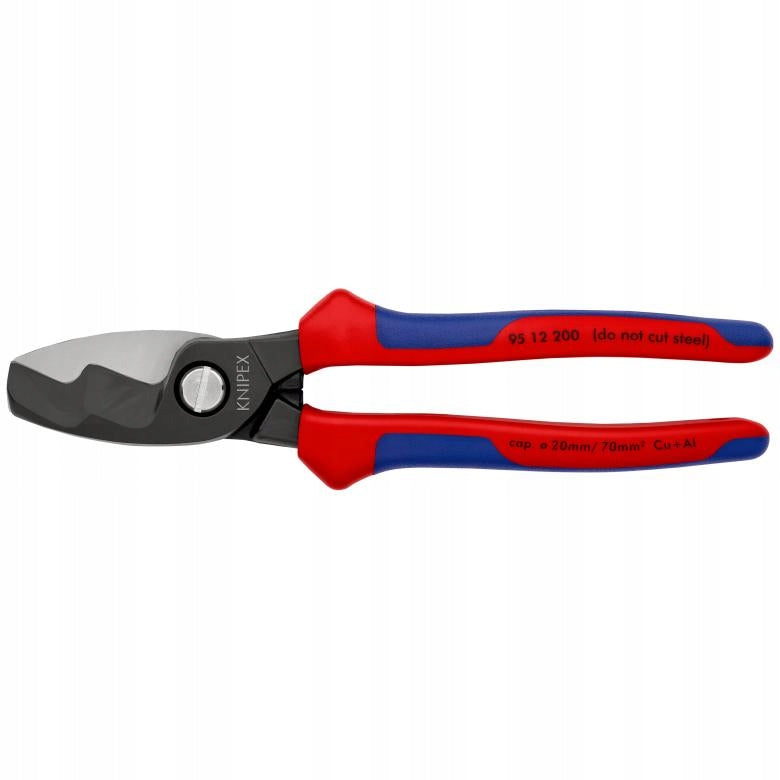

Vielos kirpimo žirklės KNIPEX 95 12 200 Cu Al KNIPEXTEND

Trumpai apie prekę

Prekė: Vielos kirpimo žirklės KNIPEX 95 12 200 Cu Al KNIPEXTEND. Kategorija: Replės, žirklės, žnyplės.

• Gamintojas: Knipex
• Modelis: 95 12 200
• Ilgis: 200 mm

Cu Al WIRE CABLE SHEARS

WITH DOUBLE CUTTING EDGE

KNIPEX 95 12 200 200 MM

Technical specification:

• handle: insulated with multi-component handles
• Pliers: oxidized
• Weight: 324 g
• Length: 200 mm
• dimensions: 200 x 55 x 21 mm
• cutting range of copper cable, multi-core: ? 20 mm
• cutting range of copper cable, multi-core: 70 mm?
• AWG: 2/0

Product description:

• for cutting single and multi-wire copper and aluminium cables
• Cuts smoothly and neatly effortlessly
• not suitable for steel wire and hard drawn copper wires
• hardened cutting edges with precision grinding
• By dividing the cutting process into pre-cutting (insulation cover in the front of the cut) and final cutting (conductor in the rear cutting zone), cables up to 20 mm in diameter can be cut with one hand
• low effort thanks to favourable gears and special cutting edge geometry
• Crush protection prevents crushing
• adjustable screw connector, self-locking
• special tool steel of special quality, forged, oil-hardened

• professional and convenient cutting of cables with large cross-sections
• double cutting edge Knipex 95 12 200 is unique in two respects: in the front profile of the cutting edge, the insulation jacket is pre-cut for larger cable diameters
• metal wires are then cut in the rear cutting profile, and this division of work on the cutting edge makes it easier for the user to work
• pre-cut in the front profile provides a comfortable grip position for the hand even at large cross-sections
• Due to the design, it cannot be used to cut steel wire or hard drawn copper wires
• Compared to conventional side pliers, Knipex 95 12 200 cable pliers require only about one-third of the force due to their extremely sharp cutting edges
• This energy saving during operation is a significant relief for the installer, especially when cable pliers are used continuously, for example in domestic installations
• thanks to the scissor principle and precision-ground cutting edges, a clean, technically excellent cutting result is achieved after cutting the cable
• This result is an ideal prerequisite for subsequent stages of work after laying the cable

• Knipex 95 12 200: ideal for electrical installations
• These cable pliers save the installer's manual force and protect the cable insulation, preventing crushing
• due to the favorable ratio, it requires relatively little effort
• The precision-acting screw connection also contributes to comfortable work with these cable shears
• The screw connection is self-locking and can be adjusted as needed
• insulated multi-component handles provide users with additional protection against electric shock when working with live parts

• Knipex quality – VDE tested cable pliers with double cutting edge
• Knipex Double Blade Cable Pliers is an Electrical Installation Tool
• for all those who use tools intensively and professionally on a daily basis, expect quality that enables simple and safe work and tools that will last many years of intensive use
• Our tools are forged from high quality materials, processed with high precision on modern machines and tempered with careful multi-stage heat treatment
• Each pair of Knipex pliers is over 130 years of specialist know-how
