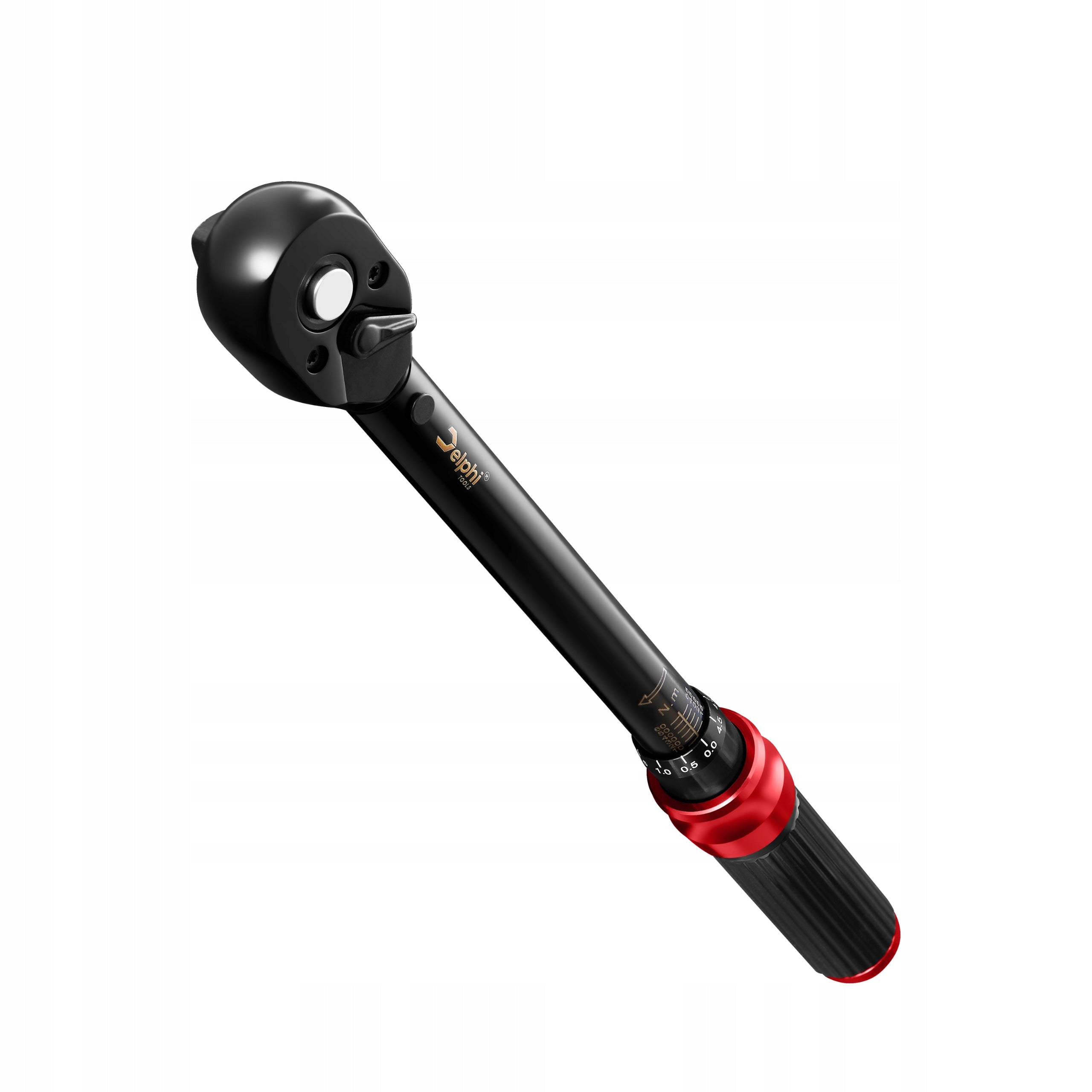

Veržliaraktis 3/8 10–60 Nm CrMO & CrV su užraktu, kalibravimo sertifikatas

Trumpai apie prekę

Prekė: Veržliaraktis 3/8 10–60 Nm CrMO & CrV su užraktu, kalibravimo sertifikatas. Kategorija: Raktai.

• Gamintojas: Delphi tools
• Modelis: Klucz Dynamometryczny z Kalibracją 10-60Nm

➡️Torque Range 10-60 Nm - allows for precise tightening of screw connections.

➡️Ratchet Mechanism with 72 Teeth - enables smooth operation even in tight and hard-to-reach places.

➡️Torque Lock Function - prevents accidental value changes during use.

➡️Durable Construction - made from chrome-vanadium steel, ensuring resistance to wear and corrosion.

➡️Bi-directional Operation - can be used in both directions (left/right), increasing the tool's versatility.

➡️Ergonomic Handle - non-slip finish provides comfort and safety during work.

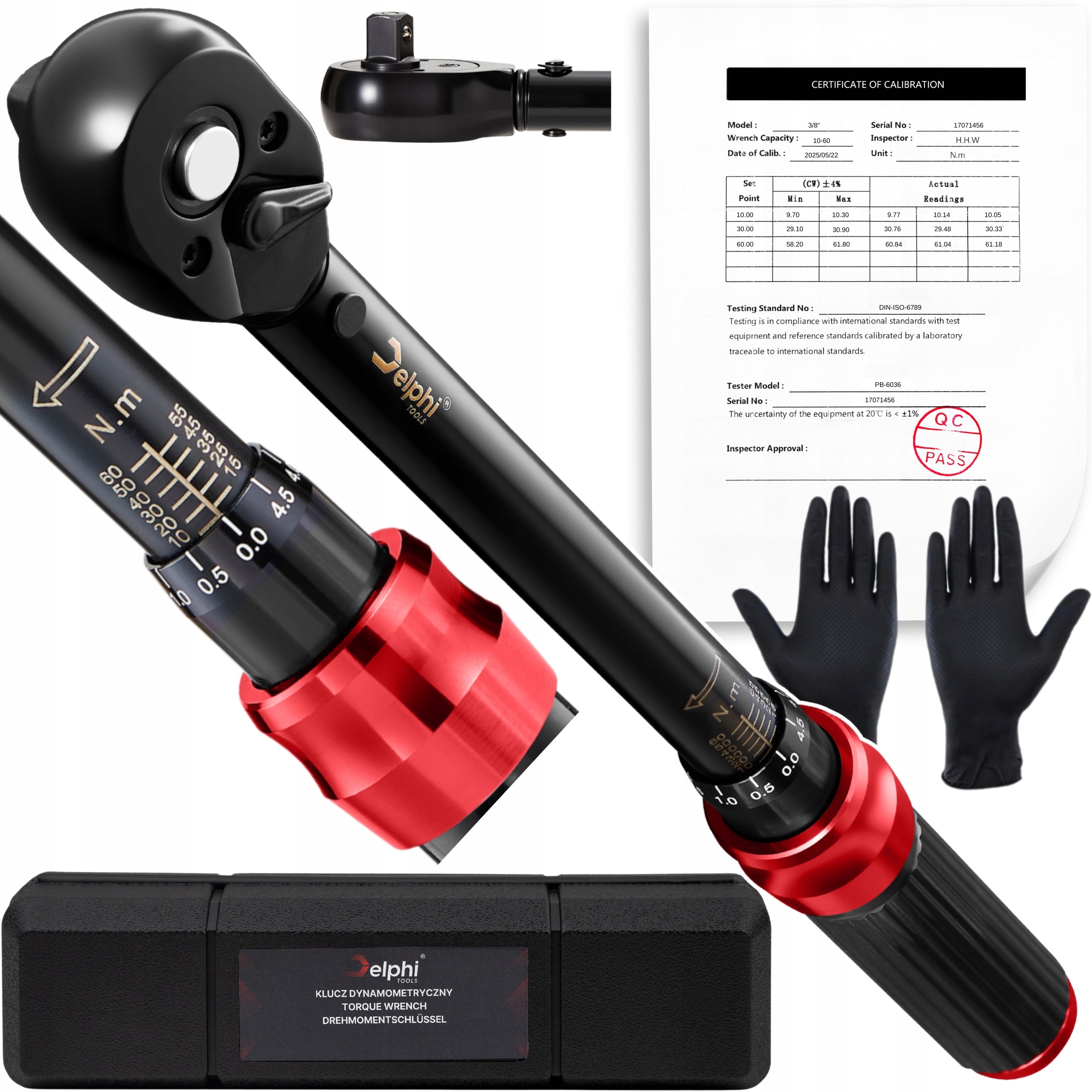

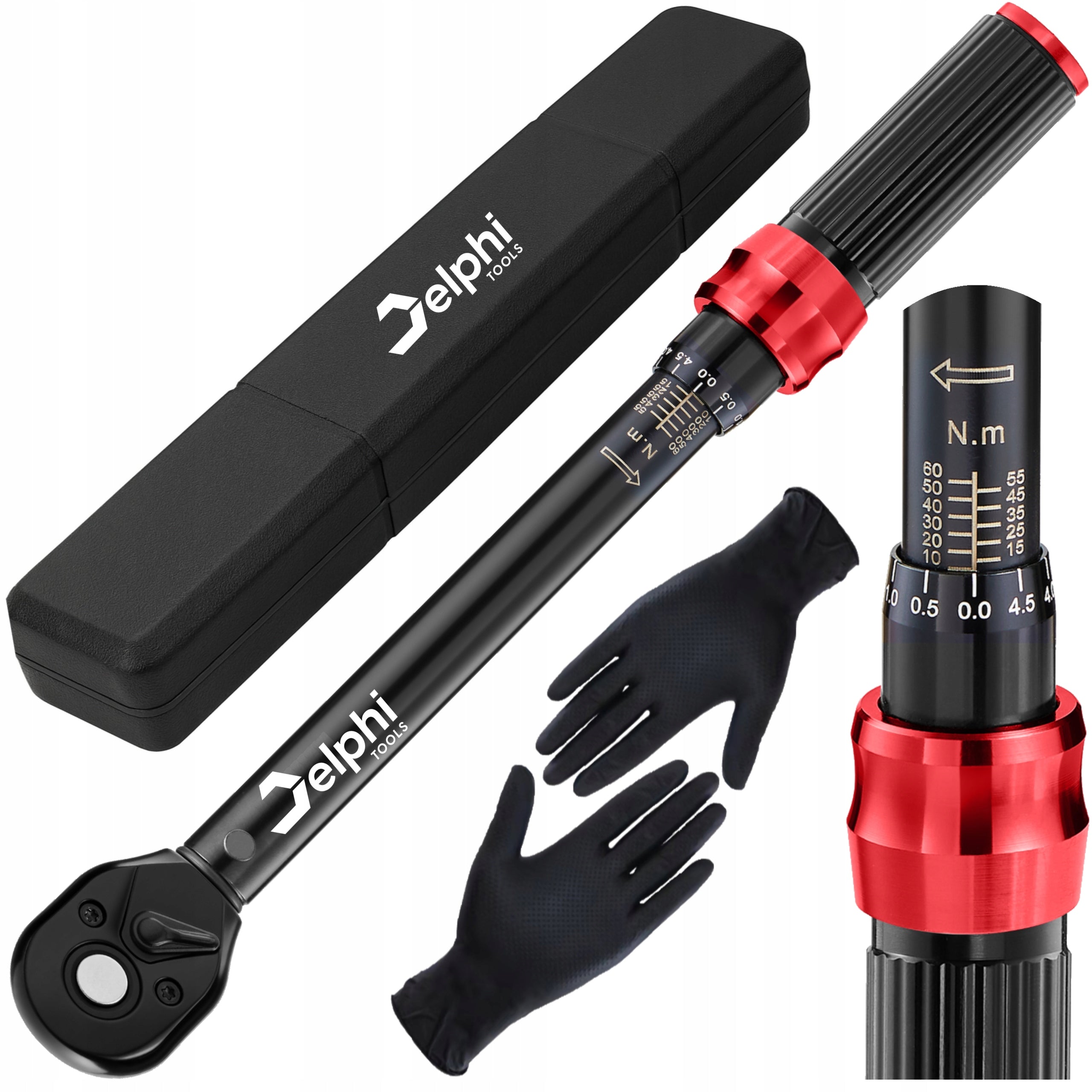

✳ Set includes:

• 1x Torque wrench 3/8" Delphi Tools
• 1x Certificate of Calibration
• 1x Nitrile Gloves
• 1x Plastic Case

✳ Specification:

• Type: torque wrench
• Drive: 3/8 inch
• Scope of operation: 10 to 60 Nm
• Length: 31 cm
• Accuracy: ±3%
• Ratchet pitch: 72 teeth
• Ratchet mechanism: two-way with lock
• Material: CrV steel (chromium vanadium) + CrMo (chromium molybdenum)
• Setting scale: laser engraved
• Settings lock system: prevents accidental adjustment of the torque value

✳ CERTIFIED CALIBRATION

NORM: DIN ISO 6789

The Delphi key meets the international standard, which guarantees:

• Accuracy
• Repeatability
• Compliance with standards
• Security
• Tool life

✳ CrMO CHROMIUM-MOLYBDENUM STEEL

Exceptional strength, resistance to high temperatures and corrosion.

✳️Scale in Newton-meters (Nm)

Examples of use for the Delphi Torque Wrench:

• Bicycle wheel mounting bolts:

  - torque: 10-20 Nm

• Spark plugs in motorcycles and cars:

  - torque: 20-30 Nm

• Valve cover or oil pan bolts:

  - torque: 8-25 Nm

• Brake caliper mounting (bicycle / motorcycle):

  - torque: 25-40 Nm

• Motorcycle suspension component mounting:

  - torque: 30-50 Nm

• Bolts in aluminum components (e.g., manifolds):

  - torque: 15-25 Nm

• Engine accessory mounting (e.g., alternator, compressor):

  - torque: 30-60 Nm

✳ CALIBRATION CERTIFICATE

For the Delphi torque wrench, a document was issued confirming that the measuring instrument has been tested and calibrated to specific standards. This is crucial both for ensuring measurement accuracy and compliance with regulatory requirements and quality standards, in accordance with DIN ISO 6789.

✳ NUMBER OF TEETH: 72

• Smaller rotation angle: Rattle with 72 teeth has a rotation angle of only 5 degrees.
• Precision and control: A larger number of teeth provides more precise operation and better control over the tool, which is beneficial for more delicate tasks.
• Working fluidity: Rattles with more teeth often work smoother and quieter than those with fewer teeth.

Precision and Quality:

• Torque wrench with a tolerance of ±3% is precise enough for many applications where minor differences at the time of tightening do not have a critical impact on the functioning of the connection.
• Using the tool according to the instructions and avoiding exceeding the maximum torque values helps maintain its precision.

Gallery

Delphi Tools is a brand created for people involved in DIY both in their free time and on a daily basis. We focus on comfort in the use of equipment, which in addition to interesting design is characterized by high durability. For many years, we have been trying to provide you with tools that will facilitate repairs and save time, and also meet the highest quality standards and exceed the expectations of users.
