Vejos robotas NAC RLM800NG, 18 cm pjovimo plotis

Trumpai apie prekę

Prekė: Vejos robotas NAC RLM800NG, 18 cm pjovimo plotis. Kategorija: Robotinės vejapjovės.

• Gamintojas: NAC
• Modelis: 2161

This extremely easy to install and use device is designed for lawns up to 800 m2.

The set is ready to work. All you need to do is do the following:

• install the charging station on as flat, dry terrain as possible, without electromagnetic interference.

• attach the signal cable to the ground, using the mounting pins included in the kit, creating a working area for the robot.

Convenience and safety are provided by the set of sensors that the robot has been equipped with:

• tilt sensor
• collision sensor
• rain sensor
• Emergency stop switch
• self-charging

Technical parameters:

• maximum working time on a single charge: 60-90 min
• cutting width: 18 cm
• cutting height: from 20 to 60 mm
• adjustment of cutting height by means of a knob

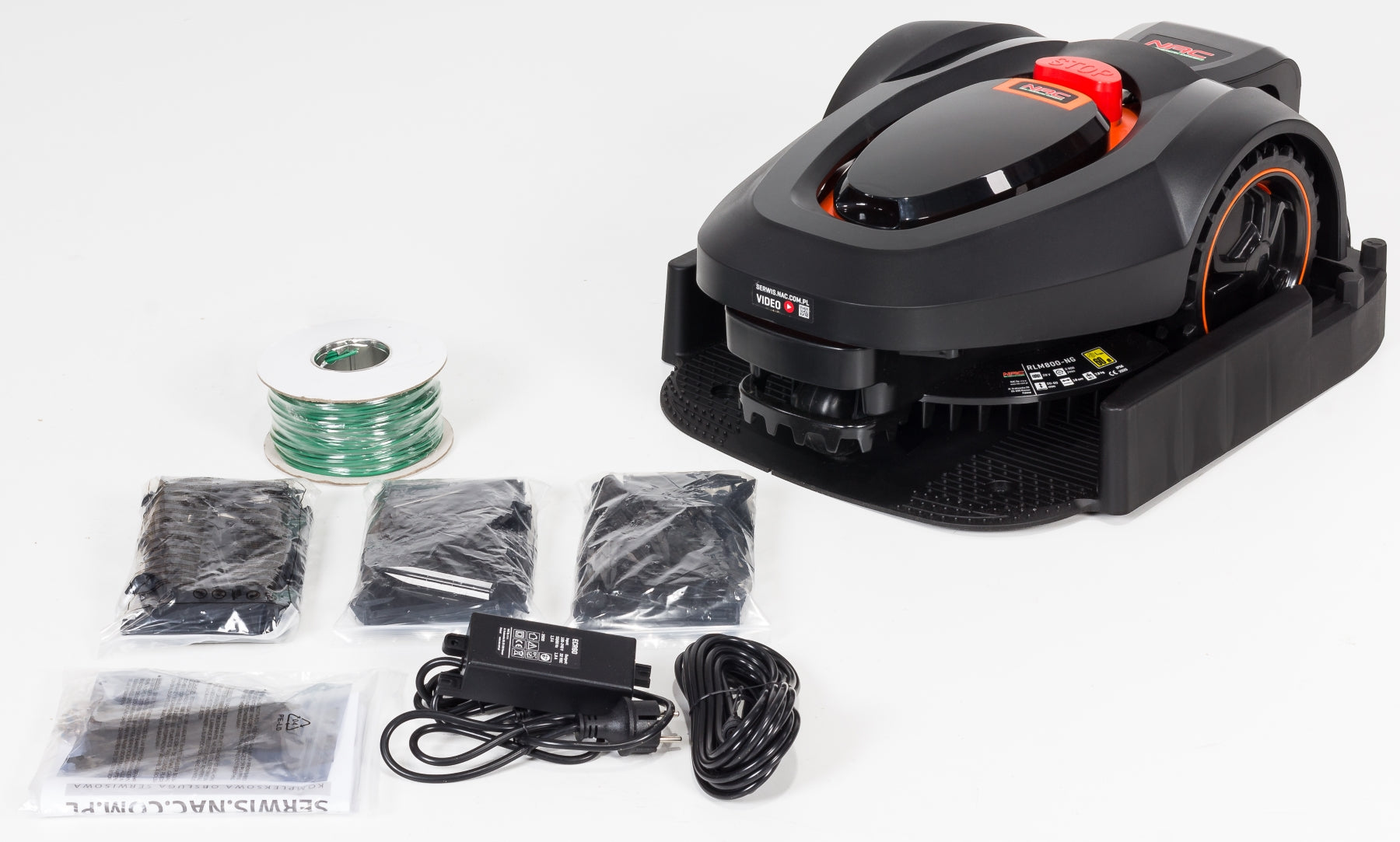

The set includes:

• lawn mowing robot
• docking station
• Battery charger
• 6 pins for fixing the charging station
• screws for fixing the docking station 4 pcs.
• link for marking the working area 100 mb.
• stakes for fixing the cable 150 pcs.
• Link Connections: 4 Pack
• strip (ruler) for measuring distance (to be cut out of cardboard)
• spare knives (6 pcs. )
• instruction manual for use and assembly in Polish
• warranty card

The NAC RLM800-NG mowing robot is equipped with two modern induction electric motors – one for each drive wheel. These engines are quieter and much less emergency than commutator engines.

Mowing can be done both during the day and at night.

The mowing robot works efficiently and energy-efficiently. Unlike many standard lawn mowers, the mowing robot cuts grass with very sharp blades to prevent the tips from drying out.

The machine is equipped with a patented 3in1 cutting system (cutting, mulching, grinding), the cut grass tips are small enough that their raking is unnecessary and the remains of mowing fertilize the lawn.

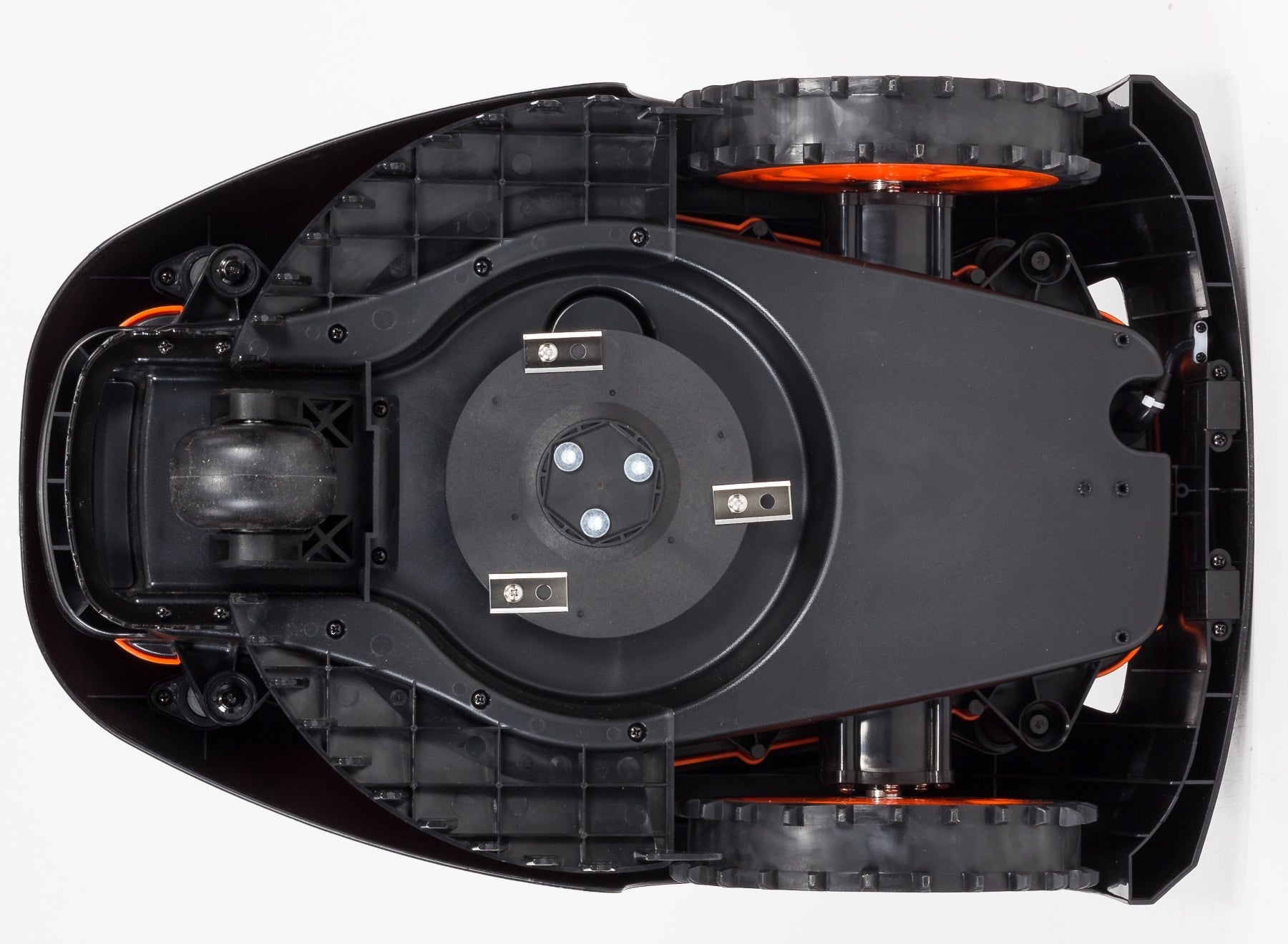

3 separate cutting knives provide a cutting width of 18 cm. The knives are made of high quality stainless steel.

The mowing robot mows about 50 m² per hour, the expected mowing time of 200 m² is about 4 hours.

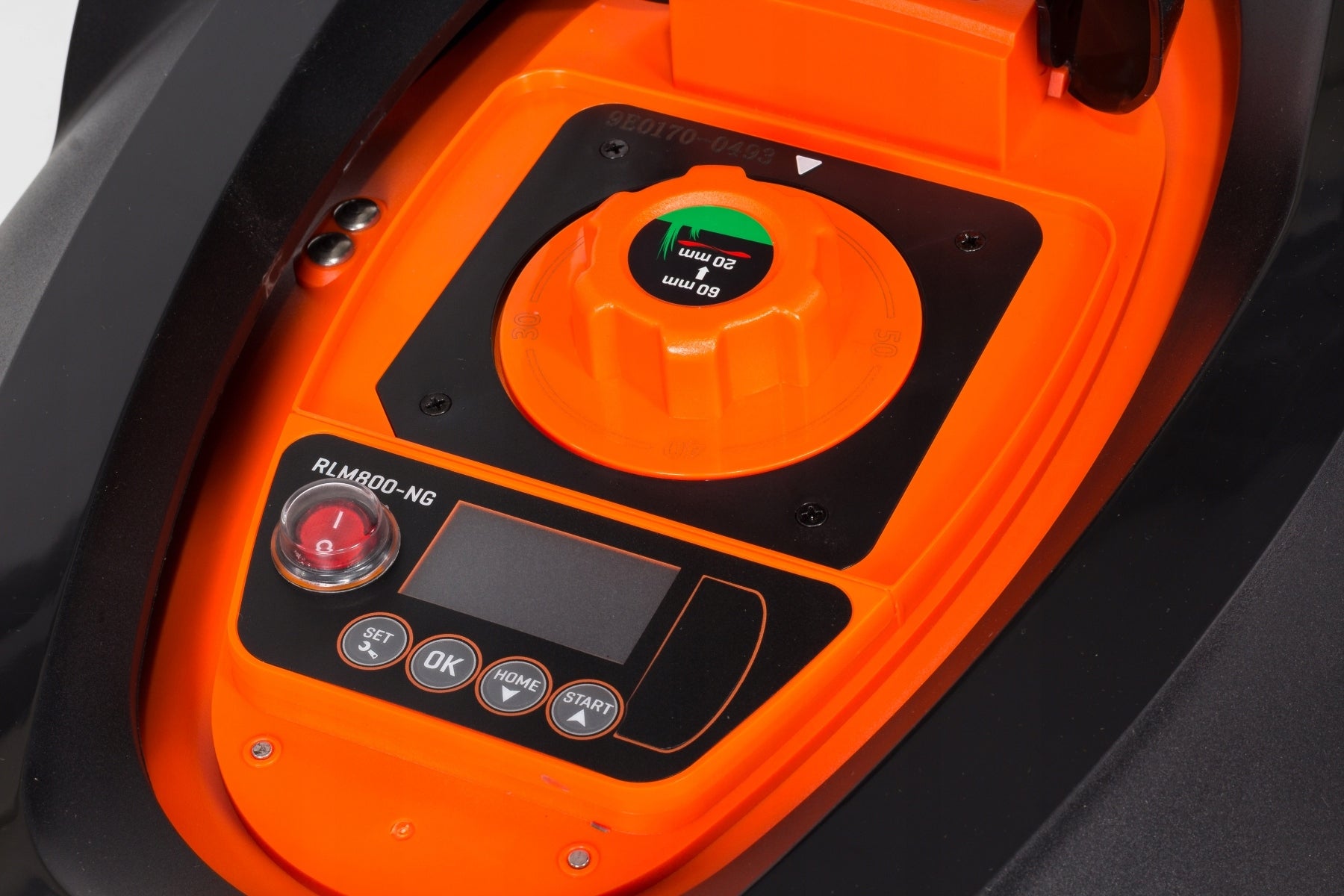

Adjustment of cutting height is possible using the knob on the control panel, which is located on the upper housing. Height adjustment range from 20 to 60 mm.

On the panel there are also the necessary buttons for programming and controlling the robot.

Manual mode

After pressing the START button, the robot will start mowing. To stop the robot at any time, press the STOP button.

Automatic mode

Set the surface and start time of mowing. There is only one setting for the start time of the robot.

The robot will automatically start work every other day at the set time.

After pressing the START button, the mowing robot will leave the docking station and start mowing the grass.

If the battery level drops to 20%, the robot will return to the docking station for recharging. After charging, the robot starts working again until the entire lawn is mowed. He then returns to the docking station waiting for the next work cycle.

The robot cycle is designed in such a way that regardless of the mowed surface it takes 48 hours, including time to work, load and rest.

To stop the robot at any time you need to press STOP. This button is placed so that turning off the robot is very simple and almost instantaneous. The robot also stops when it is lifted, as well as when it is knocked over.

The wheels of the mowing robot have a high tread, which provides excellent adhesion to the ground.

The robot is equipped with a rain sensor to prevent the robot from working in adverse weather conditions. When the rain sensor comes into contact with water drops, the robot will return to the docking station.

Slope sensor – if during mowing the slope of the area on which the robot works exceeds 20°, the robot will return to the charging station. The robot will start automatically during the next mowing session.

Obstacle encounter sensor – when a robot encounters an obstacle that has not been marked with a link to mark the work area, it changes direction of travel to avoid the obstacle. If the robot does not find a way around the obstacle, it stops and shuts down completely. In this case, you need to restart the robot.

TECHNICAL PARAMETERS:

• brushless motor
• Battery voltage: 28 V
• Battery Capacity: 2 Ah
• Battery Type: Lithium-Ion
• Battery charging time: 45 min
• maximum working time on a single charge: 60-90 min
• cutting width: 18 cm
• cutting height: from 20 to 60 mm
• adjustment of cutting height by means of a knob
• maximum mowing area: 800 m 2
• Rotation speed: 2900rpm / min
• Number of cutting knives: 3
• maximum slope of the terrain degrees 20°
• measured sound power level LWA: 60 dB
• IP protection: IP56
• robot weight + battery: 7,9kg + 0,382kg

Charger:

• Power supply voltage and frequency: 100-240 VAC, 50/60 Hz
• Rated power: 60 W
• Charging voltage: 32 V DC
• maximum charging current: 1,8 A
• class of electrical protection: II

The set includes:

• lawn mowing robot
• docking station
• Battery charger
• 6 pins for fixing the charging station
• screws for fixing the docking station 4 pcs.
• link for marking the working area 100 mb.
• stakes for fixing the cable 150 pcs.
• Link Connections: 4 Pack
• strip (ruler) for measuring distance (to be cut out of cardboard)
• spare knives (6 pcs. )
• instruction manual for use and assembly in Polish
• warranty card

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	NAC
Parametry	Series	RLM
Parametry	Mowing width	18 cm
Parametry	Mowing height adjustment range	2.00–6.00 cm
Parametry	Mowing performance	800 m²
Parametry	Average working time	45 min
Parametry	Manufacturer code	2161
Parametry	Product weight with unit packaging	8.3 kg
Parametry	Batteries included	yes
Parametry	Certificates of conformity	CE
Parametry	Model	2161
Parametry	Additional information	rain sensor,PIN code
