Vejos robotas DCK Tools E500, pjovimo plotis 18 cm

Trumpai apie prekę

Prekė: Vejos robotas DCK Tools E500, pjovimo plotis 18 cm. Kategorija: Robotinės vejapjovės.

• Gamintojas: DCK Tools
• Modelis: E500

DCK Garden is a global brand that produces the highest quality garden care equipment.

The innovative DCK Terraina wireless mowing robot is fully autonomous, setting a new era in lawn care.

• Without GPS transmitters and antennas
• No virtual border wires dug in
• Without RTK station

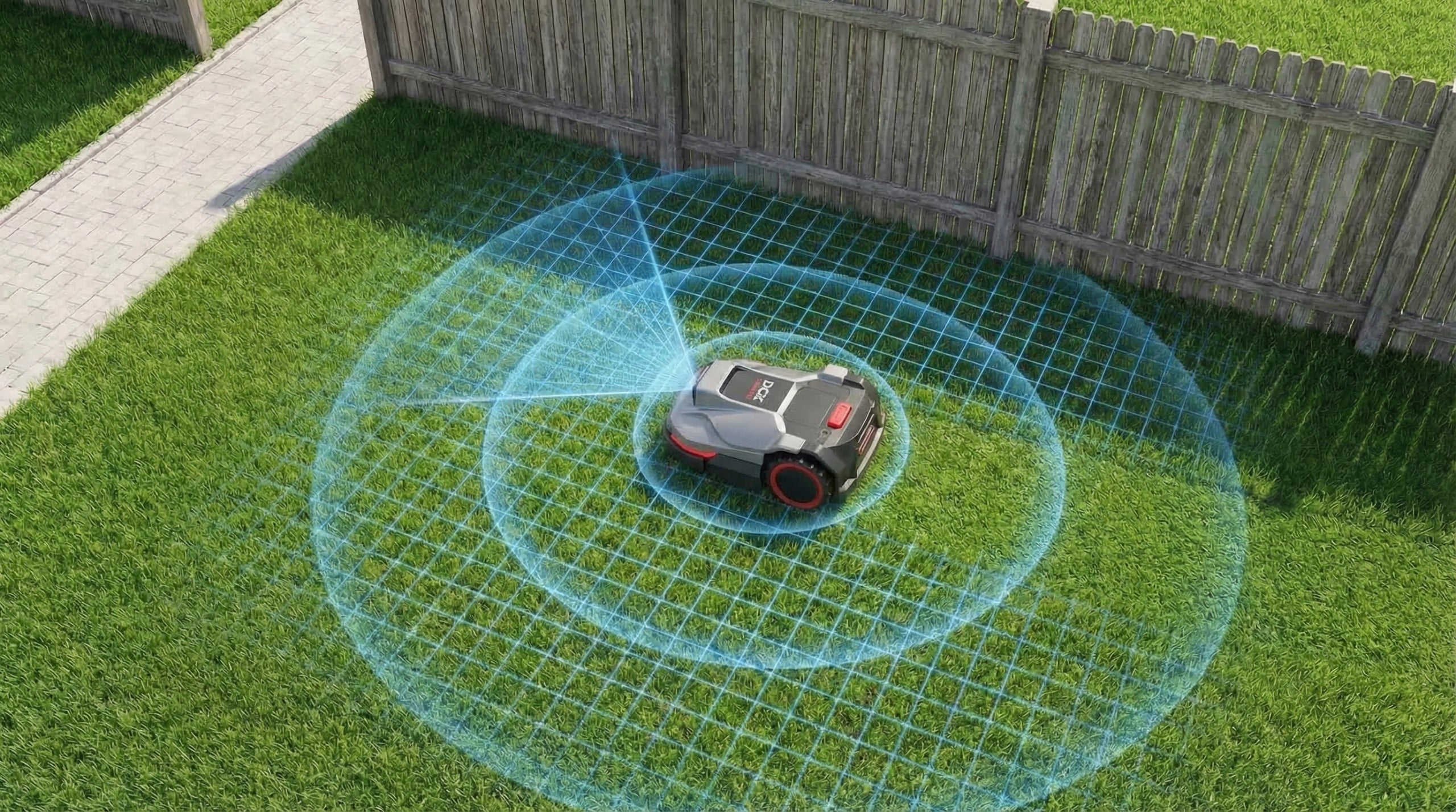

With FLASH, LiDAR independently maps (recognizes) the garden; precisely navigates and safely avoids obstacles.

Quick deployment in 3 steps:

• Space station placement - docking base: Choose a flat place with access to electricity and set up a charging station.
• Digital Mapping: Using the app on your smartphone, guide the robot along the boundaries of your lawn to create a 3D map of your garden.
• Ready: Set the schedule and cutting height in the app. The robot will start working on its own and return to the base when the energy level drops.

• No border wires: Instead of time-consuming laying and burying cables, mowing limits are set virtually in the mobile application.
• Systematic, not random mowing: With FLASH LiDAR navigation, the robot plans parallel work paths. This eliminates the problem of "uncut areas" and reduces the total time needed to trim the lawn. Intelligent route planning (reduction of working time by approx. 30% compared to random robots).
• Intelligent obstacle avoidance as standard: Built-in laser sensors allow the robot to see and avoid toys, garden furniture or trees without having to purchase additional external modules (such as ACS).

• Stable operation in the shade of trees and at buildings: The robot is not dependent solely on GPS/RTK satellite signal. Laser scanning of the terrain allows it to maintain precision even under dense trees or close to high walls of the house.
• Precise edge finishing: Edge Cutting allows you to cut grass very close to the edges and walls, which significantly reduces the need for a trimmer later.
• DCK Terraina E500 meets the biggest problem of users of old type robots – lack of predictability. With FLASH LiDAR, the device "knows" where it is and what it has already mowed, eliminating the need for daily user interventions.

Professional, fully autonomous mowing robot designed for the care of large lawns up to 500 m². The TERRAINA E500 operates without a limiting cable (border cable), which allows for immediate start-up without digging in the garden. With its advanced laser navigation, the robot can handle complex terrain with precision, avoiding obstacles.

Thanks to the advanced TERRAINA application, lawn care management becomes completely effortless. The system allows you to create precise work schedules that you can fully adapt to your daily schedule or specific garden needs. Importantly, TERRAINA robots allow you to set separate mowing days and hours for each of the defined zones

Technical data:

• Maximum mowing area: 500 m²
• Navigation system: FLASH LiDAR
• Obstacle detection: FLASH LIDAR + physical bumper
• Cutting capacity: 100m²/h
• Cutting capacity on a single charge: 100 m²
• Cutting width: 180 mm
• Cutting height 30 – 80 mm (adjustable in application)
• Number of knives on the disc: 3 pieces
• Maximum slope: 45% (24°)
• Number of supported zones: 6 zones
• Battery: 18 V / 4 Ah (Li-Ion)
• Connectivity: Wi-Fi / Bluetooth / 4G (built-in module)
• Security: PIN, Alarm, GPS module (anti-theft)
• Degree of protection: IPX5 (water jet washing resistance)
• Noise level: < 54 dB(A)
• Weight: 13 kg
• Working time on a single charge: 60 min
• Battery charging time to full: 100 min
• The battery is ok. 2000 charge cycles – long battery life up to 4 years.

Why choose this model?

• No border cable: You do not need to install the cable in the ground.
• FLASH LiDAR technology: The robot uses laser terrain scanning (LiDAR).
• Intelligent obstacle avoidance: The FLASH LIDAR system recognizes objects on the lawn and safely avoids them at a distance of 10 cm.
• Organized workflow: The device does not move chaotically. It mows grass at the waist, which guarantees an even appearance of the lawn and reduces working time compared to ordinary robots.
• Manage 8 zones: You can divide your garden into eight independent areas by setting different mowing parameters or schedules for each.

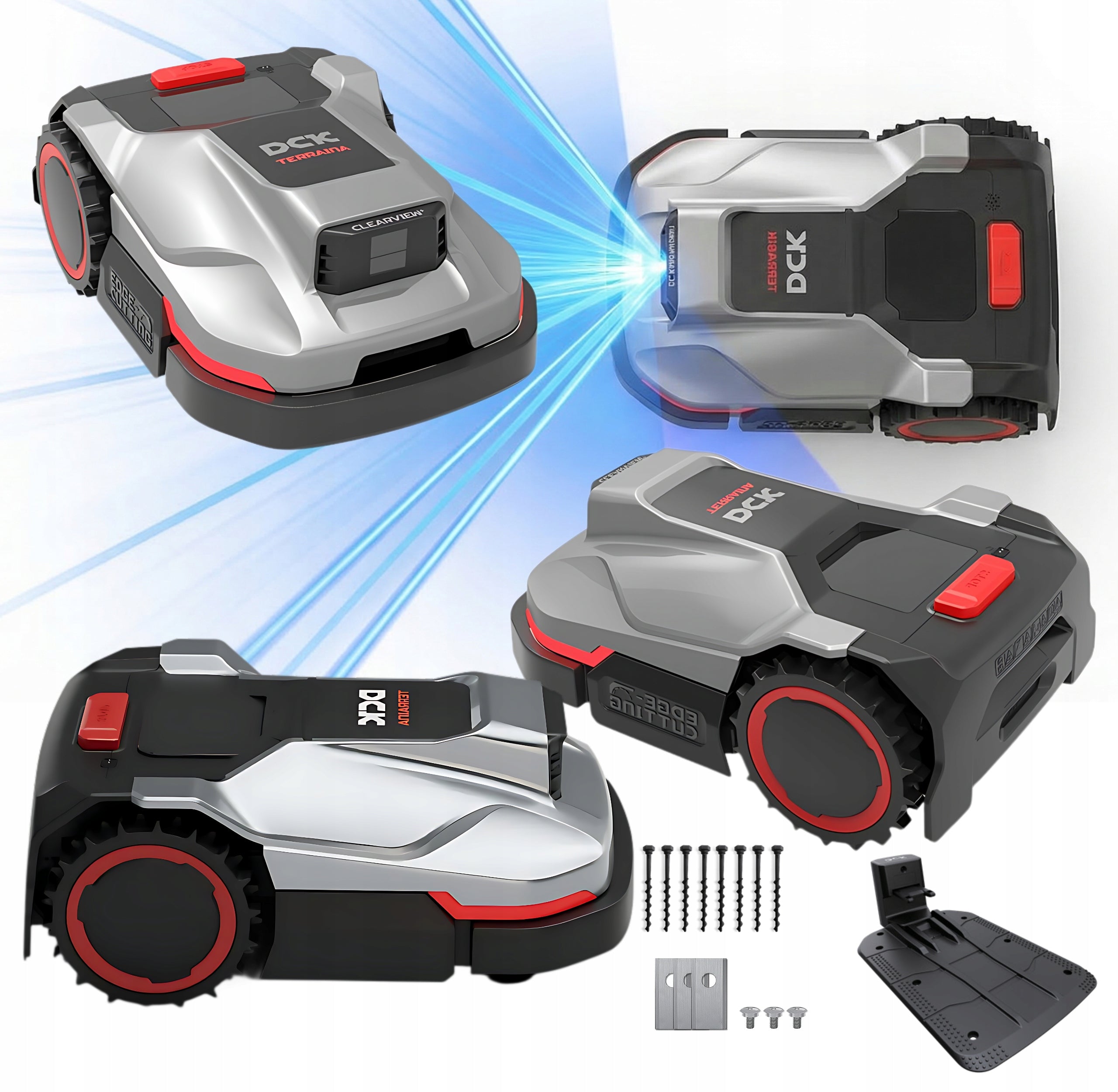

What you will find in the set:

• DCK TERRAINA E500 mowing robot
• Charging station with mounting plate
• Power supply and power cord
• Set of spare cutting knives (9 pcs. ) with screws
• Mounting screws for station (anchors)
• Allen Wrench
• User manual in Polish
• Option: garage

Key features of the robot:

• Cutting height adjustment: 30-80mm
• Mowing schedule
• Virtual borders
• Zone management
• Possibility to set height and mowing direction and schedule for a specific zone
• Tile to prevent blocking at work on high lawns.
• Any problems that arise during the work of the robot will be sent to the application.
• The robot communicates in Polish. Application in Polish

Modern technology:

• FLASH LiDAR technology allows you to map your lawn without the need to install RTK or boundary lines, everything is done from the application level.
• Collision sensor built into the front of the device.

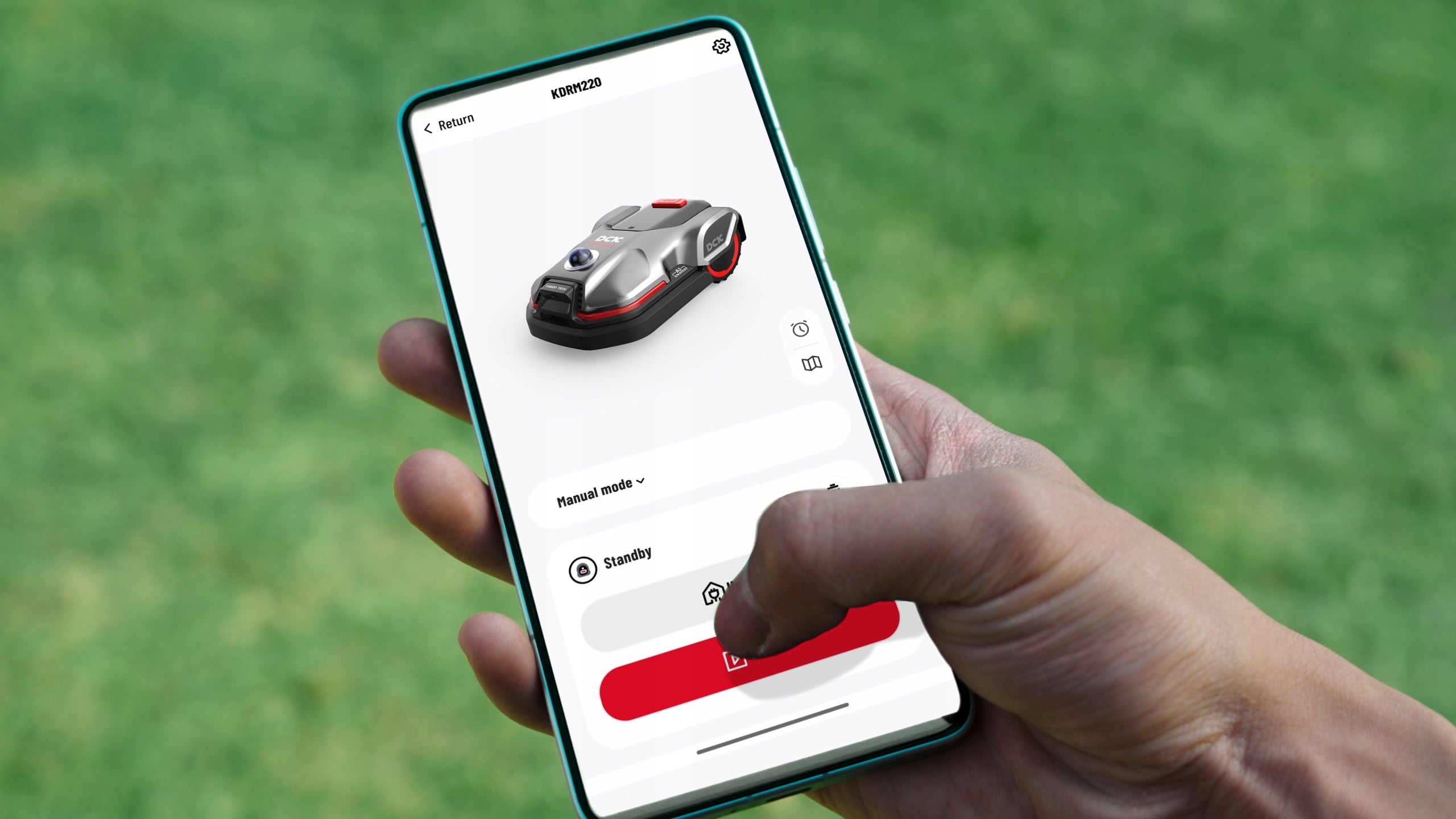

• With the TERRAINA app you can: Create a mowing schedule, edit a garden map, select operating modes, personalize mowing patterns, monitor progress in real time

TERRAINA Connect App is an application that will allow you to set mowing zones - from grass height to the days of the week in which a given area will be mowed. The advanced WIFI chip and Bluetooth allows you to control the robot anytime, anywhere.

TERRAINA has been designed in such a way as to always choose the optimal path back to the charging dock. The robot also has a rain sensor, thanks to which the return to the base takes place immediately after detecting a change in weather.

To operate the robot, install the TERRAINA application available on Google Play (Android) and AppStore (IOS)

Service and technical support:

Ottensten Poland Sp. z o.o. as the general distributor of DCK for the Polish market, has its own warranty and post-warranty service.

• Warranty and post-warranty service
• After-sales support
• Quick repair and diagnosis of problems.
• Remote help in installing the device in your garden!

📊 Technical data

• 📐 Maximum mowing area: 500 m²
• 🧭 Navigation system: FLASH LiDAR (without border cable)
• 🚧 Obstacle detection: FLASH LiDAR + physical bumper
• ⚡ Cutting capacity: 100 m²/h
• 🔋 Performance on a single charge: 100 m²
• ✂ Cutting width: 180 mm
• 📏 Cutting height: 30 – 80 mm (electronic adjustment in the application)
• Number of knives on the disc: 3 pcs
• ⛰ Maximum slope: 45% (24°)
• 🗺 Number of supported zones: 6
• 🔌 Battery: 18 V / 4 Ah (Li-Ion)
• 📡 Connectivity: Wi-Fi / Bluetooth / 4G (built-in module)

🔋 Battery

• 🔋 Type: lithium-ion 4 Ah
• ⚡ Voltage: 18 V
• ⏱ Estimated working time: 60 min
• 🔌 Estimated loading time: 100 min
• ♻ Lifespan: up to 2000 cycles charging (up to 4 years of operation)

🤖 Technologies

• 🌧 Rain sensor
• 🔄 Automatic return to base
• 📱 Mobile application
• 📶 Wi-Fi
• 🔵 Bluetooth
• 📡 4G
• 🖥 LCD Display
• 📡 FLASH LiDAR
• 🔐 PIN code, alarm, GPS module – anti-theft system

🏗 Construction

• ⚖ Weight: 13,1 kg
• 💧 Waterproof: IPX5
• 🔊 Volume: < 54 dB
• Height: 26,8 cm
• Width: 44 cm
• Length: 64,9 cm

📦 Contents of the pack

• 🤖 DCK TERRAINA E500 robotic mower
• 🔌 Charging station with mounting plate
• 🔋 Power adapter and power cord
• ✂ Set of spare knives (9 pcs. ) with screws
• 🔩 Mounting screws for station (anchors)
• 🔧 Allen key
• 📖 User manual in Polish

FAQ - Frequently Asked Questions

1. Do I need to bury the limiting wire around the lawn?

✅ No, the TERRAINA S/E series is completely cableless (Wire-Free). The limits of the robot’s work are determined virtually using a mobile application, guiding the device along the edge of the lawn during the first configuration.

2. Does the robot need a GPS signal or RTK base station to navigate?

✅ No, these robots are not dependent on GPS satellite signals or external RTK transmitters, which often fail under trees or near buildings. The device uses proprietary 3D LiDAR SLAM and Vision Fusion (VSLAM) technology, thanks to which it “sees” the environment and creates dense 3D point clouds for precise positioning.

3. How does a robot deal with obstacles such as toys or animals?

✅ The robots are equipped with an intelligent OA MASTER system that combines data from LiDAR, AI cameras and collision sensors. This allows you to detect and bypass objects as high as 3 cm without having to hit them.

4. What happens when it starts to rain?

✅ The DCK TERRAINA mowing robot (both S and E series) is equipped with an intelligent rain sensor that allows it to react autonomously to changing weather conditions. When the device detects precipitation, it automatically stops working and returns to the charging station

5. Can I wash the robot with water from a garden hose?

✅ The robot has a protection class of IPX5, which means that it is resistant to strong water jets and can safely stay outside during a downpour. Thanks to this, the bottom of the mower can also be washed directly with a garden hose

6. What is the maximum area that the S series can handle?

✅ The KDRM210 (S 1000) is designed for lawns up to 1000 m², while the KDRM220 (S 2000) will handle an area up to 2000 m². The maximum mowing capacity is about 200 m²/h. The E500 and E800 series models are designed for lawns up to 500m2 and 800m2. Maximum mowing capacity is approximately 100m²/h

7. How does a robot cope with hills in the garden?

✅ The TERRAINA S/E series has a rear-wheel drive with high grip, which allows you to efficiently overcome slopes of up to 45% (24°). Intelligent algorithms prevent wheels from rolling or bubbling on inclines.

8. Is the robot protected against theft?

✅ Yes, the device has a multi-level protection system: lock with PIN code, tracker GPS to the location of the device and association with a unique user account, which prevents its use by an unauthorized person.

9. How many zones can I divide my garden into?

✅ The S/E series robots allow you to manage up to 14 separate mowing zones. For each zone, you can set an individual work schedule, cutting height and preferred driving patterns (e.g. parallel mowing).

10. Is there a robot camera preview on your phone?

✅ Yes, the application has a function in which we can connect to the camera to see exactly where our robot is located.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	DCK Tools
Parametry	Series	E500
Parametry	Mowing width	18 cm
Parametry	Mowing height adjustment range	3–8 cm
Parametry	Mowing performance	500 m²
Parametry	Average working time	60 min
Parametry	Manufacturer code	KDRM305
Parametry	Product weight with unit packaging	13 kg
Parametry	Batteries included	yes
Parametry	Certificates of conformity	CE
Parametry	Product width	44 cm
Parametry	Model	E500
Parametry	Additional information	rain sensor,shock sensor,remote bluetooth controller,controlled via smartphone,PIN code
