Vartų ritinėlių vežimėlis stumdomiems vartams 80x80, sustiprinti guoliai

Trumpai apie prekę

Prekė: Vartų ritinėlių vežimėlis stumdomiems vartams 80x80, sustiprinti guoliai. Kategorija: Vežimėliai ir ritinėliai.

• Gamintojas: BS Stamet
• Modelis: ZL.WBR.5B.80x5.S52

Trolley with 25% larger bearing 6304.

• bearing 6304 in place of commonly used 6204
• Bearing 6304 has 25% higher load capacity

Comparative parameters of bearings

• 6304 - (dynamic load capacity) - 16,9 kN
• 6204 - (dynamic load capacity) - 13,4 kN

🔔PLUS + roll rolled into "so-called hundred" tight fit + precision seated bearing with Seger (as in classic machines - car parts ) ... This is NOT a bearing falling loosely and crimped on the edges of the roller

🔔PLUS + Sealier for dirt bearings 2RS

⏳ Details for those interested in technical parameters below , requires patient reading 2-3 minutes 😀

1. Roll made super-precisely on "so-called. " a hundred according to the old classic method of planting bearings.

CNC boring in the standard "under bearing" (0,01 mm accuracy).

Bearing precisely planted (we press them with a press, on the so-called. 'hundred') and fastened to Seger's settlement ring. This solution eliminates the unfavorable phenomenon of the bearing turning in the roller when it is fitted loosely and crimped.

The bearing in our roller adheres over the entire width of 15 mm of the outer ring of the bearing to the inner surface of the roller, not only with a crease on the surface of 1-1,5 mm.

From our roller you can detach the Seger and remove the bearing, from the crimped no.

2. Our roller has an enlarged width of 22 mm, which gives a larger contact area between the roller and the gate rail.

3. We designed and rolled the roller to accommodate a bearing with a larger size of 6304 and a 25% higher than standard load capacity. Only available with us.

6 . Bearing in roll with 2RS seal - black butyl seal rubber - elastomer as in Simmering, not type ZZ - bearing ball cover plate .

Additional features in the EXTRA trolley:

• enlarged 250 mm platform for greater stability
• washers under the nuts - seems like a small detail, but others don't use them even though it's basic for fasteners
• socket with additional guide rollers
• end cap for the gate

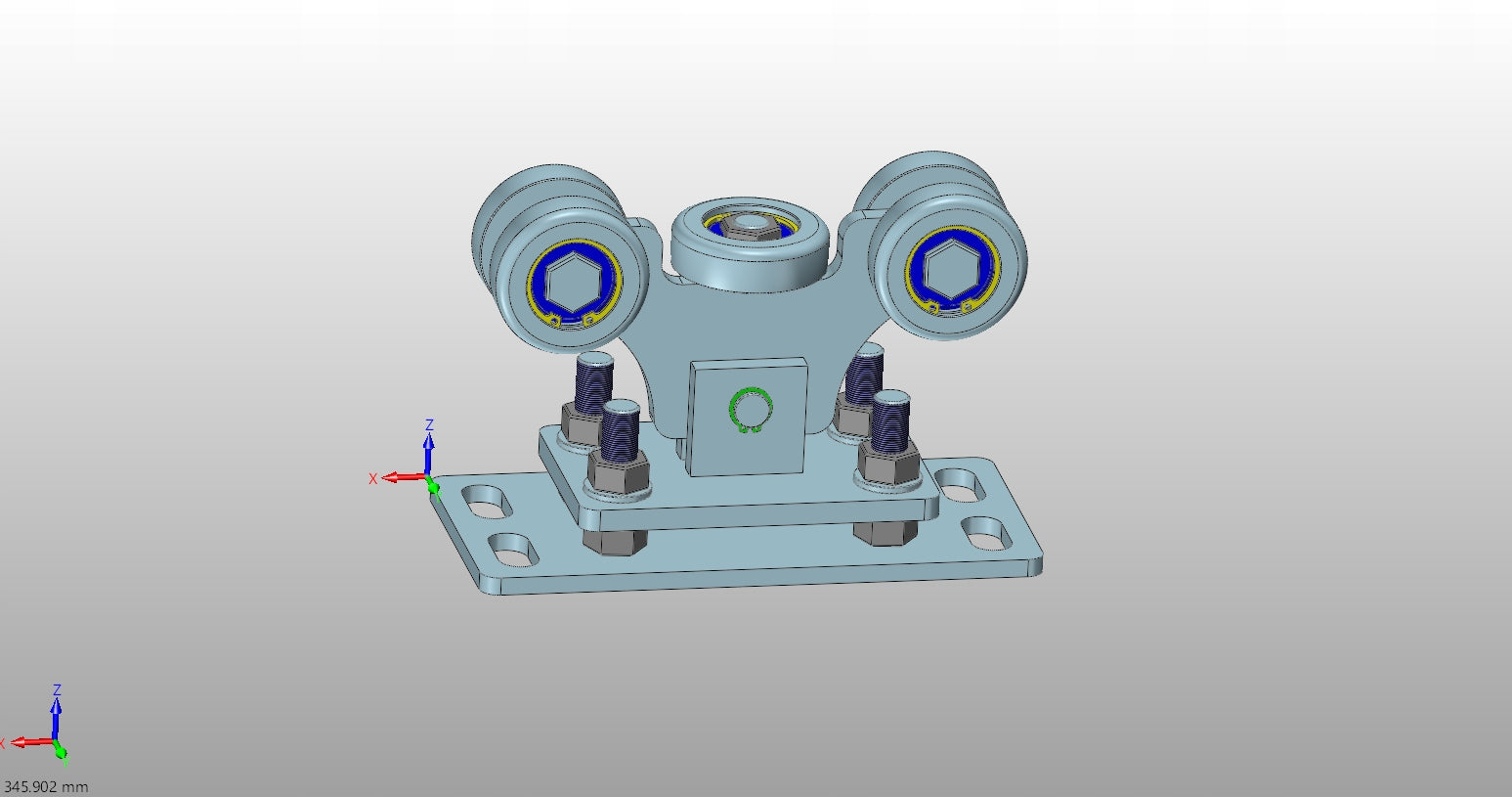

• Trolleys designed using CAD/CAM software with a calculation module for acting forces and loads

.... details below

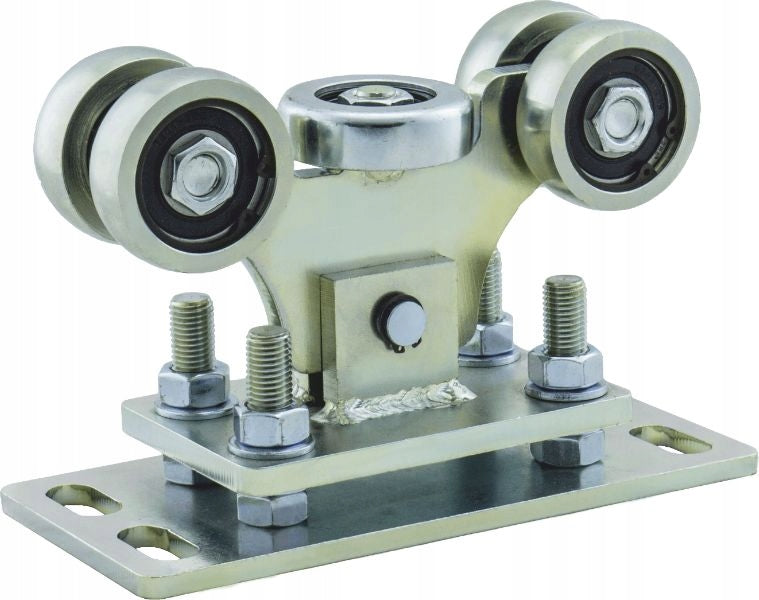

5-Roller Trolley Set for Sliding Gate on 80x80x5 mm Profile

Symbol: ZL.WBR.5B.80x5.S52

Set weight: 20.6 kg

Set intended for:

• Gate weight: up to 800 kg
• Entrance opening: 4-7 m

Enlarged platform 250, for more stable - wider mounting, not basic 180 mm.

For those interested, the European platform standard 10 years ago was a dimension of 210 or 250 mm in larger trolleys, the size of 180 mm was "imposed after cheapness" by Chinese products from Chinese importers.

On explicit request, described in the Notes to Order, we can assemble on platforms 180 if the trolley is to fit the already existing pin spacing (replacement of the old set).

Platform with washer under nuts - like a trifle, and we give washers only us, only with us.

The washer under the nut is the standard of fastening products technique - the washer is obvious to everyone under the screw nut, ensures proper pressure and no loosening.

2x trolley WBR.5B.80x5.S52

• Gate weight: up to 800 kg
• Entry light: 4-7 m
• Rollers: 68,5 mm × 22 mm, steel, in the shape of a perfect arc
• Platform: adjustable, 250 × 120
• Roller bearing: 6304 2RS, fastened with Seger ring
• Coating: galvanized zinc

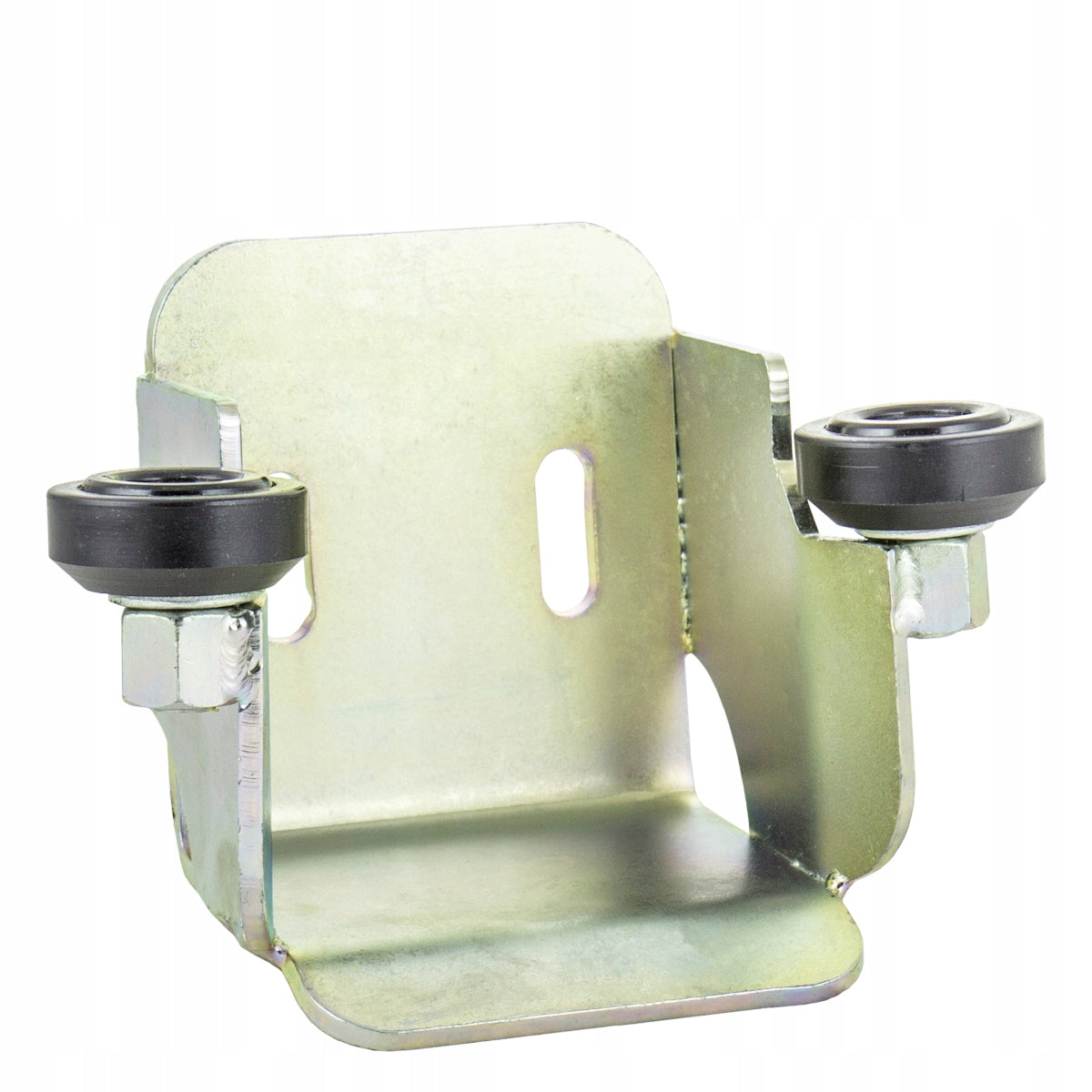

Overrun socket with rollers.

• gate leaf guidance rollers
• water drainage holes
• galvanic coating

Remember! Mount the socket and roller so that the roller clearly enters the socket (slightly lifting the gate). Thanks to this, the trolleys are relieved when the gate is closed. We know from practice that the gates are closed 99% of the time, at 99% of customers. By relieving the trolleys, you extend their life!

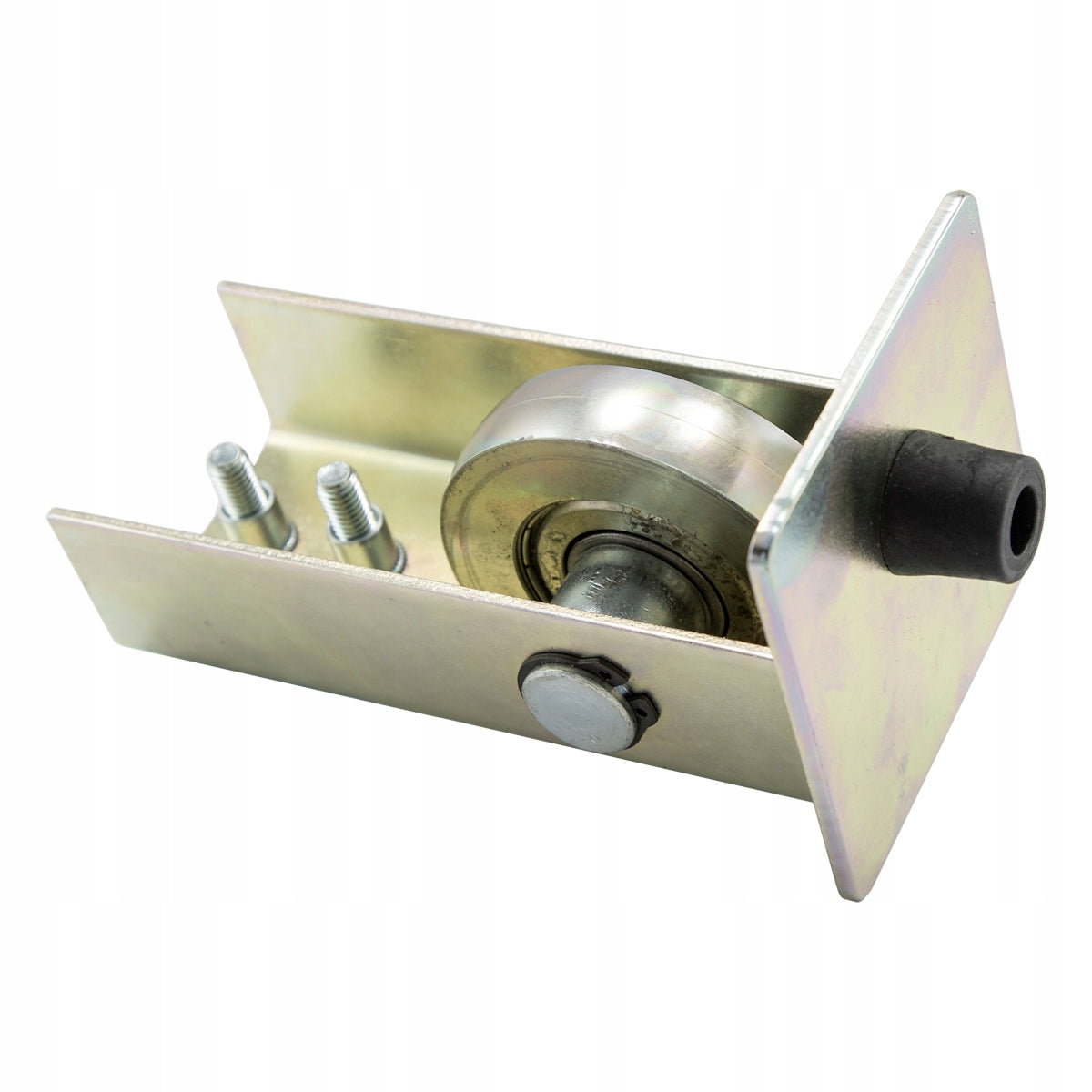

Overrun roller with cap and fender, mounted in the running rail.

Its task is to support the weight of the gate in the "locked gate" state.

Thanks to the fender, the gate stops without additional noise, and the force of "impact" is reduced.

This is our production inrun roller, in which the roller is mounted on a pin fastened with a Seger ring (not crimped, without protection, as in most rollers on the market). This eliminates the risk of the pin breaking. This gives you the ability to disassemble and replace the roll itself in case of problems.

Mounting screws "enter" into a rivet nut with a long thread (10 mm, not like the competition thread only in a 3-4 mm plate), which ensures the stability of the mounting connection.

Strong weld of the end cap protects against its detachment.

Top gripper

Free, to choose from (indicate in the comments):

• 40 mm (we include this one when none is given in the notes)
• 60 mm

The gripper stabilizes the gate frame at the top of the post. Especially useful for modern full gates

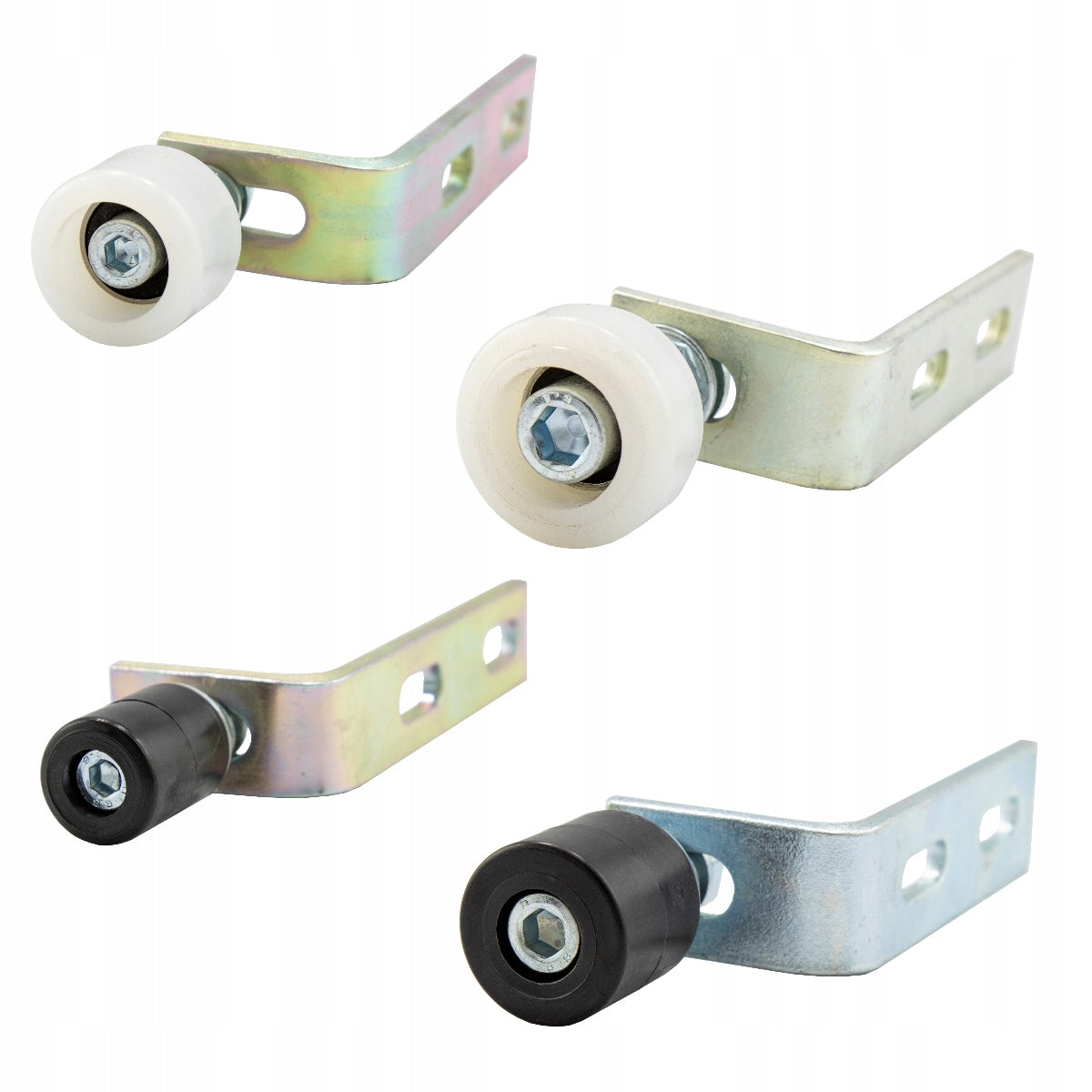

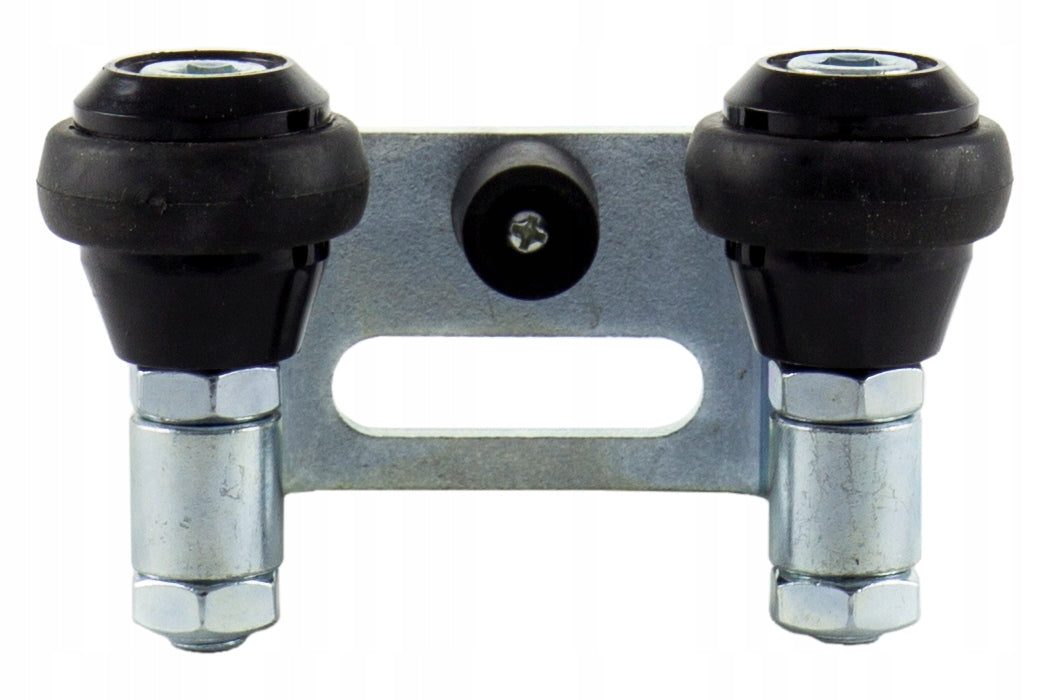

Top roller with angle

Free to choose from (indicate in the comments)

• 33 mm bearing to 40/40/3 catheter (we attach this one when no other is given in the notes)
• 43 mm bearing for 50/50/3 catheter
• 25 mm every 30/30/2 catheter
• 35 mm for 40/40/2 catheter

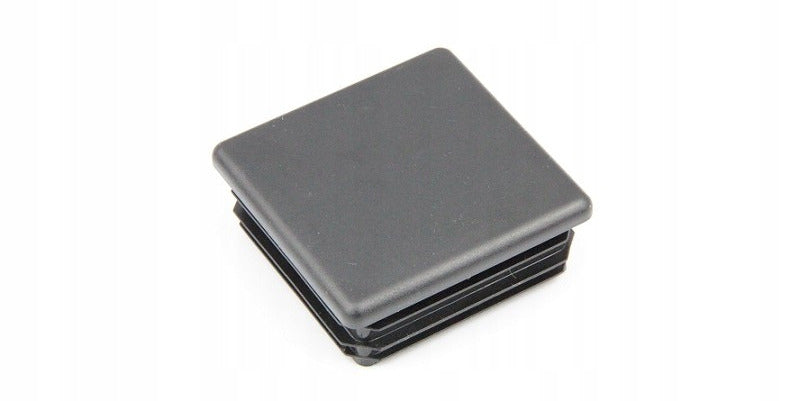

Plastic cap

To be mounted on the other end of the rail - from the lawn side. It protects against dirt and snow, which after getting into the rail and freezing, can adversely affect the smooth operation of the gate.

Real Polish product

made in Poland from the level of a piece of rod and sheet metal

... we are a Polish manufacturer not "polish brand" of imported products.

IMPORTANT NOTE

PROFILE IS MEASURED ON THE OUTSIDE

THIS IS A RAIL TYPE 80mm x 80mm ... THICKNESS OF THE CUTTER WILL PASS 5mm, RARELY OTHER NP 4 mm

Please check exactly what are the dimensions of your rail (profile). These dimensions are determined by specifying the width of the profile on the outside and the wall thickness (the best caliper)

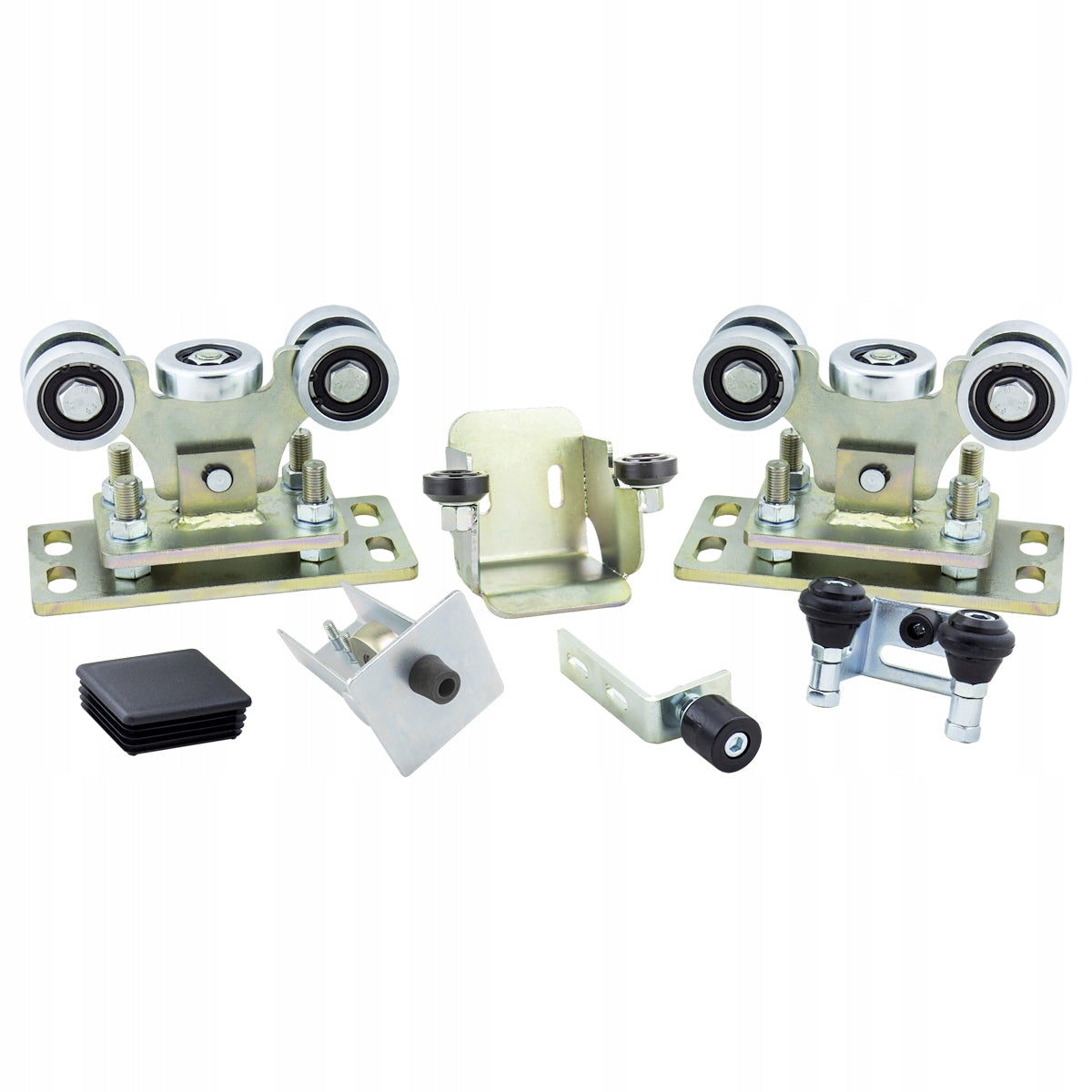

The set includes:

• 2 x 5-Roll Adjustable Swing Cart
• 1 x Overrun socket with rollers
• 1 x Overrun Roller
• 1 x guide roller with angle (to choose from. All options at the end of the advertisement)
• top handle (to choose)
• plastic cap

Weight of the set 20,6 kg

Purpose of the set:

• Gate weight: up to 800 kg
• Entry light: 4-7 m

Specifications
