Vartų automatikos komplektas NICE WINGO WG3524 24V, tinka vartams iki 7 m, su 4 ERA FLOR pulteliais, ELDC lempa ir WiFi

Trumpai apie prekę

Prekė: Vartų automatikos komplektas NICE WINGO WG3524 24V, tinka vartams iki 7 m, su 4 ERA FLOR pulteliais, ELDC lempa ir WiFi. Kategorija: Kietieji diskai.

• Gamintojas: Nice
• Modelis: WG3524_EEE_4FL_ELDC

The WINGO WG3524 set is a ready-made automation set with accessories designed for 2-wing gates with a wing length of up to 3,5 m and a weight of up to 200 kg.

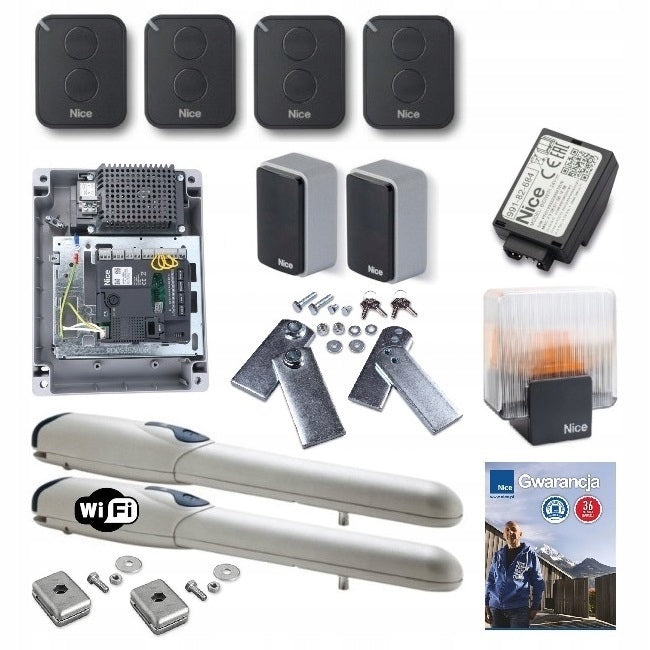

THE SET INCLUDES:

• 2 x Electromechanical actuator WG3524 24V with limit switch at opening
• Control panel MC424LR10 with integrated radio receiver (in housing)
• NICE BIDI WIFI module
• 4 x Era Flor FLO2RE 2-channel remote control with variable code, 433,92MHz
• Set of EPM photocells (receiver + transmitter), range up to 30 m
• 12/24V ELDC signal lamp with built-in 433,92MHz antenna
• Mounting accessories
• 2 x Metal key to unlock the drive (in case of power failure)
• Installation, use and maintenance instructions

The Wingo WG3524 has a number of advantages:

• Reliable and quiet thanks to the use of a patented system of internal components and fewer moving parts.
• Durability thanks to the metal bronze pull screw nut.
• Specific connection wires thanks to glands (protection and sealing of the cable entrance, protection against breaking and twisting of cables).
• Easy installation - After installing the actuator, all electrical connections can be made from above.
• Limit limiter when opening as standard and the possibility of adding a limiter on closing (PLA13, to be purchased separately).
• Full compatibility assembly in case of replacement with older versions of Wingo WG4000 and WG4010 230V (provided that the control panel is also replaced and accessories are adapted).
• Always working - Thanks to the PS124 emergency battery (optional, to be purchased separately), the actuator will open and close the gate even in the absence of power.

The Moonclever MC424LR10 control panel is an upgraded electronics that replaces the older version of the MC424.

MOST IMPORTANT FEATURES AND FUNCTIONS:

• During programming, it automatically remembers the end positions of the gate
• Only 3 programming buttons and LEDs indicate enabled functions
• Adjustable operating mode, opening and pause time, force, wing relaxation, shift at closing
• Built-in multi-system radio with memory for up to 100 remote controls
• SM radio connector (SMXI, SMXIS, OXI, OXIBD)
• Possibility to connect the O-View programmer with the IBT4N adapter
• Partial opening function of the gate or one wing (gate function)
• "Stand-by" function to save emergency battery energy
• "Phototest" function to increase automation security
• Programmable AUX input

SPECIFICATIONS of the WINGO WG3524 actuator:

• Power supply for control panel: 230V
• Motor power supply: 24V
• Power consumption: 85 W
• Current: 3.5 A
• Degree of protection: IP 44
• Pulling force: 1500 N
• Stroke: 460 mm
• Speed: 0,012 m/s
• Operating temperature: -20°C to +50°C
• Dimensions (Sz x W x Head): 920 x 95 x 98 mm
• Actuator weight: 6 kg

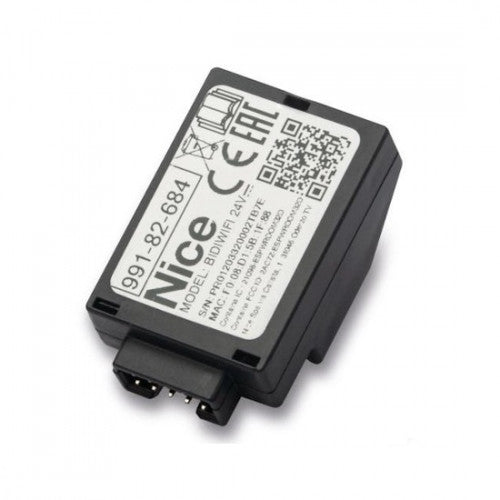

BiDi WIFI is a special module designed for programming and configuration and control of home automation systems from NICE. The module allows you to wirelessly connect to the control panel and set the parameters of its operation using a computer or an application on a smartphone.

FEATURES AND FUNCTIONS OF BIDI WIFI:

• The automation user using the MyNice mobile application can control and monitor his gateway both locally and while away from home. It can also grant limited access to it to a trusted installer – for remote diagnosis.
• Handy: fits in your pocket, you can always have it with you to facilitate Nice automation setup procedures.
• Compatible with all Nice actuators for entry gates and garage doors with Bus-T4 connector.
• Automatic generation of Wi-Fi networks with BiDi-WiFi interface connected. Configurable automation with the MyNice Pro app, even from your own vehicle.
• The in-app search function allows you to quickly find the parameter that the installer wants to program to complete the installation.
• Dedicated management in the cloud. Facilitated planning of services and inspections through geolocation. Thanks to this, you can quickly respond to the customer’s needs.
• Nice technology allows you to update the software in real time and allows you to view the instructions for easy access to the instructions during installation.

The MyNice Pro app allows Nice installers to work with automation directly from their smartphone via the multifunctional Pro-View or BiDi-WiFi interface.

With MyNice Pro you can:

• Configure automation in a simple and intuitive way by following the programming procedure and guide, and set and manage all configuration parameters of automation systems
• Manage accessories - for example, transmitters
• View diagnostics, remotely manage programming, and provide remote assistance
• Save the last backup of the control panel configuration in Nice Cloud, archive the backup log on your device and recall the saved information at any time
• Have immediate access to technical documentation
• Create, geolocate and manage installation remotely on an intuitive dashboard, attach installation photos
• Automatically recognize the automation system, update the control panel software and download the user manual

• possibility of reprogramming the I/O function of the control panel or function parameters before shipment
• possibility of preconfiguration (preconfiguration) of the set, e.g. installation of the radio receiver and programming of the remote control(s)
• the ability to create a personalized set by matching the radio path to already used remote controls
• telephone technical support of a licensed installer

By buying from us, you can be sure that you will receive a fully original product from a certified distributor and installer, and only such a purchase gives you the opportunity to complain and repair directly from the Manufacturer (you can check our authorization on the NICE website).

Nice to as part of the Italian Nice Group. Founded in 1993, Italian company Nice is now the international leader in the Home Automation, Home Security and Smart Home sectors, offering a wide range of integrated solutions for the automation of entrance gates, garage doors, sun visors, parking systems, wireless alarm systems and security systems for home and industry.
