Varstomų vartų pavara Elektrobim ETM-01

Trumpai apie prekę

Prekė: Varstomų vartų pavara Elektrobim ETM-01. Kategorija: Kietieji diskai.

• Gamintojas: Elektrobim
• Modelis: Napęd do bramy skrzydłowej ETM-01 Fortis

⭐ Quiet and quick opening of the gate in a few seconds

⭐ Set for narrow metal posts

⭐ Wing support up to 2,5m and 300kg weight

⭐ New, improved version of the software!

⭐ Matching mounting brackets

⭐ 24V safe actuators

⭐ Functions e.g. soft start/stop, auto-closing, gate

⭐ Quick, self-assembly with video instructions

⭐ Manufacturer technical support with 15 years of experience

⭐ No need to install a fender in the middle of the gate

Automation of the gate is an incredible comfort. All you have to do is click the button in the remote control and the ETM set will open the gate for us in a few moments. No more freezing or soaking when manually opening the gate. The ETM-01 Fortis automation set by Elektorobim is designed for double-leaf gates, whose wing does not exceed 2,5 meters in length and weight 300 kg. The drive is designed for gates mounted on metal posts. If the wings are lighter, the machine provides a large supply of power, thanks to which the set will overcome wind gusts and guarantee a secure start of the wings on cold winter mornings.

It is known that in order for you to fully enjoy the automatic opening of your gate, the system must first of all be reliable. When you drive up to your property, you want to be sure that every time the gate will work – this is the primary purpose of assembling this product. For many years of correct operation of the gate, you need a machine of solid quality, made of proven materials and thoroughly tested for durability and resistance to weather conditions.

It is worth noting that the ETM drive can be mounted on its own. Yeah, alone. You can easily do this after reading the clear and readable instructions in Polish. And if you don’t understand something, our technicians will be happy to answer all your questions. You will certainly be proud of the work done and the money saved (the average installation price is about PLN 1,000). The assembly process will be much faster and simpler after getting acquainted with video guides Elektrobim online.

⭐ In the attachment to the auction we have attached instructions to make you see how easy it is (tab "Additional information").

⭐ Buying ETM-01 Fortis you get access to the assembly point calculator completely free!

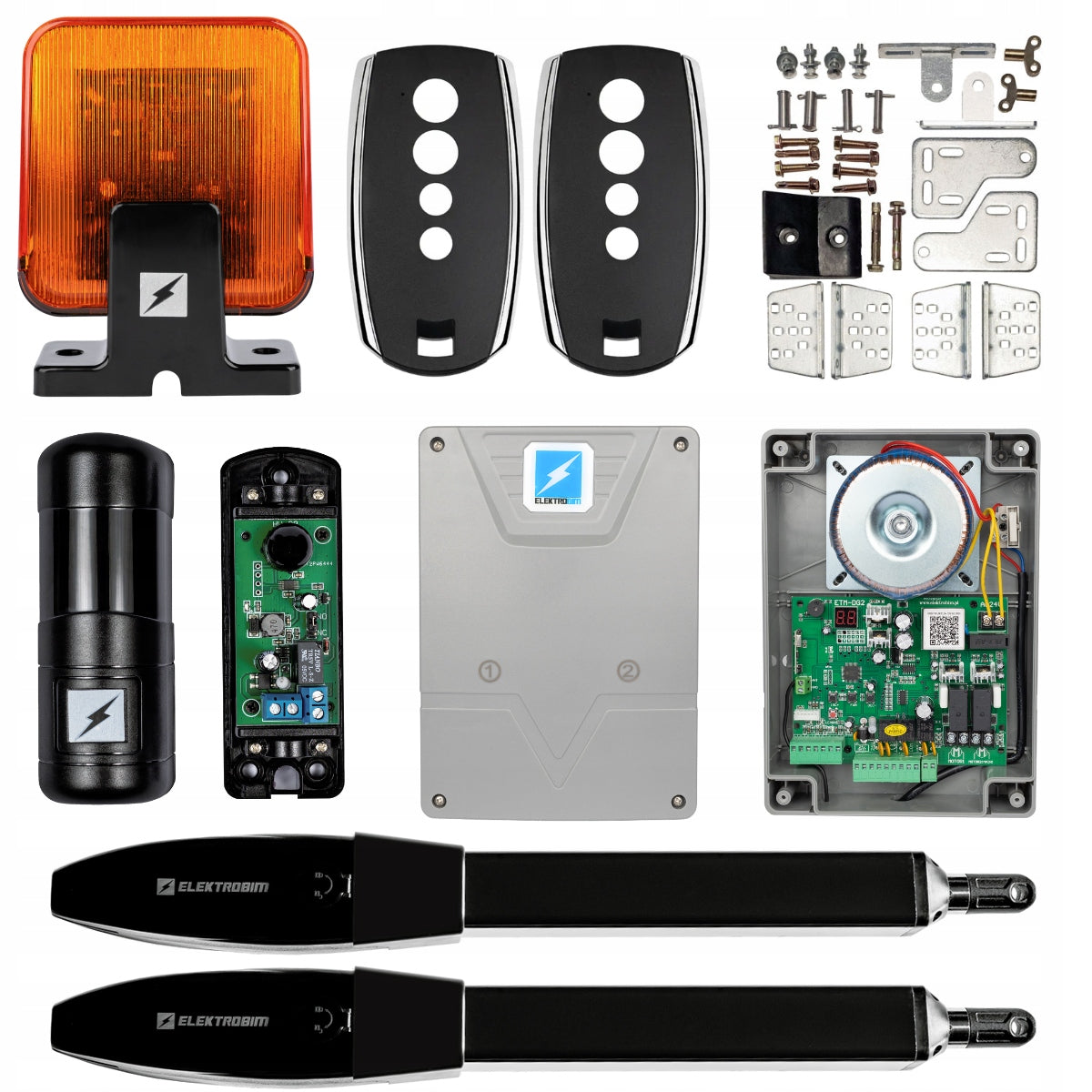

An overview photo of the sample assembly, elements of the set are described later in the paragraph.

It is natural that in order for you to enjoy the automatic opening of your gate, it must first simply work. When you drive up to your property, you want to be sure that every time the gate will work – this is the primary purpose of this product. For many years of correct operation of the gate, you need a machine of solid quality, with proven materials and thoroughly tested for service life and resistance to weather conditions. This is what Elektrobim drives are characterized by.

ETM-01 Fortis:

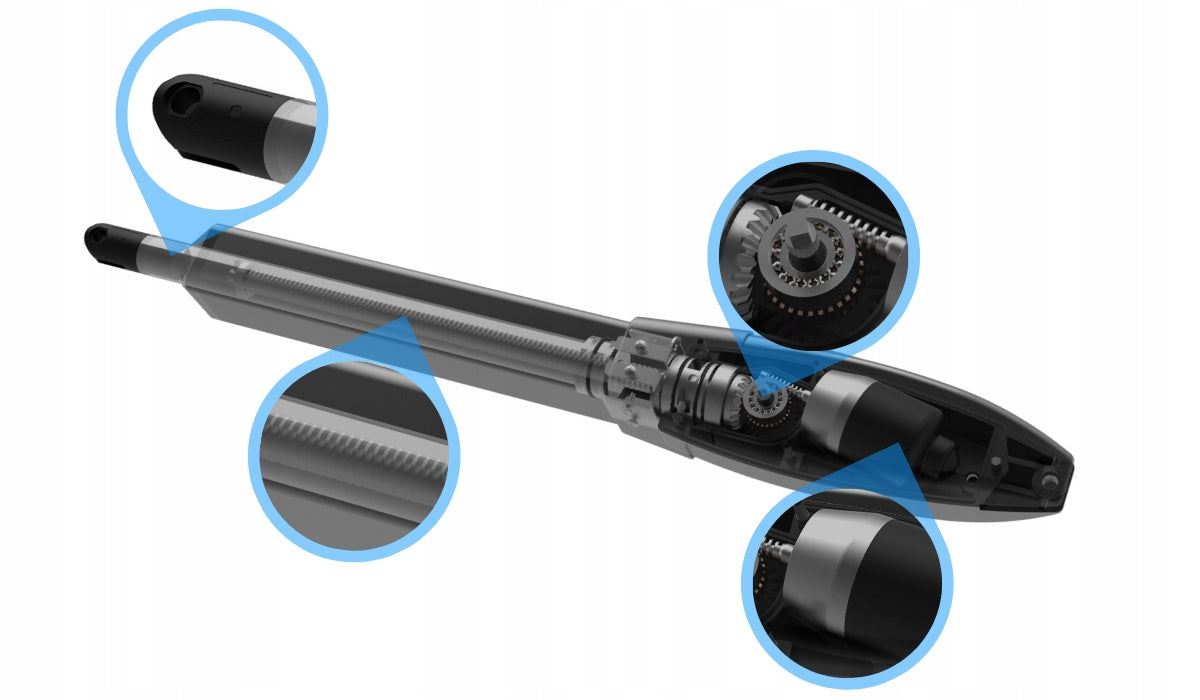

The ETM-01 Fortis electric actuator is an excellent choice for almost any type of gate. Its slim design blends in perfectly with the environment without spoiling the aesthetics. High quality materials will make the machine resistant to adverse weather conditions. Installation of the actuator is extremely easy, thanks to the included, precisely matched mounts. In addition, the device has an unlock function, which turns out to be invaluable during a power failure. The Metal worm gear ensures that a well-installed actuator will last for years to come. The motor powered by a completely safe 24V voltage makes your gate 100% safe for the user.

The scope of work is determined by means of an overload switch, i.e. After reaching some point (bumper), the control panel disconnects the power supply.

• Actuator designed with metal posts in mind.
• The set is equipped with a solid, universal and very flexible in terms of mounting options. This makes it ideal for double-leaf gates in virtually any configuration.

ETM control panel:

• Soft start and release of actuator rotation before closing guarantees smooth and impeccable opening of the gate without tugging the wings.
• The automatic closing function (adjustable time to auto-closing) allows you to program the time after which the gate will close itself.
• Cooperation with many types of gates, including with tab closure. This allows you to set the time before one of the wings.
• Only one actuator (e.g. to open the gates or only one gate leaf), if we do not need to open the entire gate at a given moment, because, for example, we go somewhere by motorbike or bicycle.
• Indication of the operating status of the device with LEDs, which helps in the configuration of the device.
• Touch buttons to open the gate on the control panel to make it easier to open the gate if we do not have a remote control on hand (if they are not used, they can be detached).
• Possibility of connecting emergency powered (24V), which will ensure uninterrupted operation of the device.
• External control of the machine operation. Need to open the drive from the garage with a button? No problem. We can also easily connect an external receiver to the ETM board or control the machine using the button on the videophone and intercom, combination keyboard. Thanks to this, you can connect an external radio receiver to the device and control it with remote controls from different manufacturers.

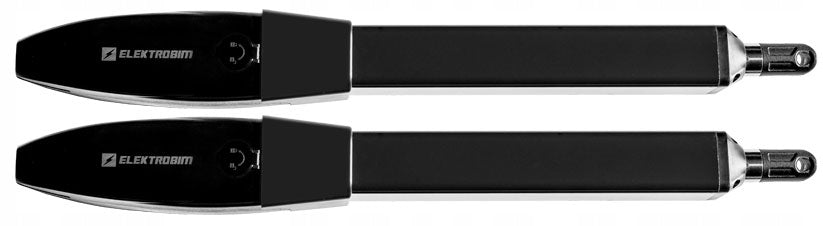

Actuators for swing gate ETM-01 Fortis

Two actuators for automation of double-leaf gate.

✅ Powered by safe 24V DC voltage.

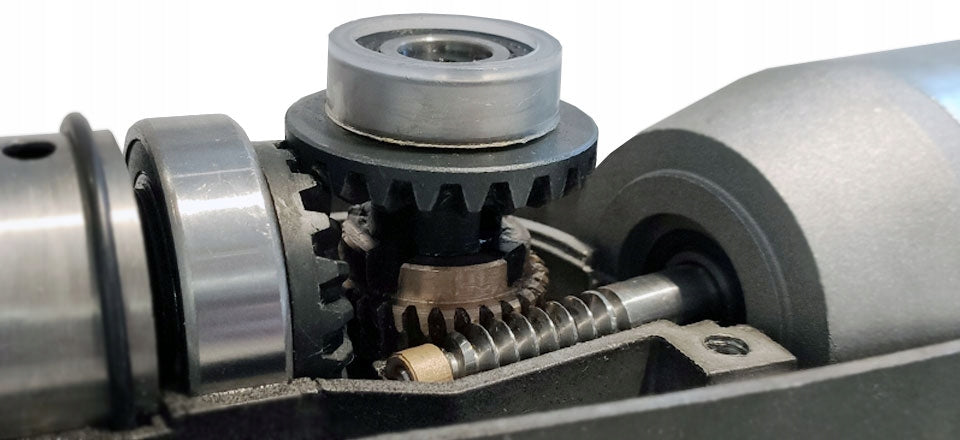

✅ Heavy-duty worm gear with metal modes.

✅ Simple and self-assembly in one afternoon.

✅ Fast piston rod extension 24 mm/s.

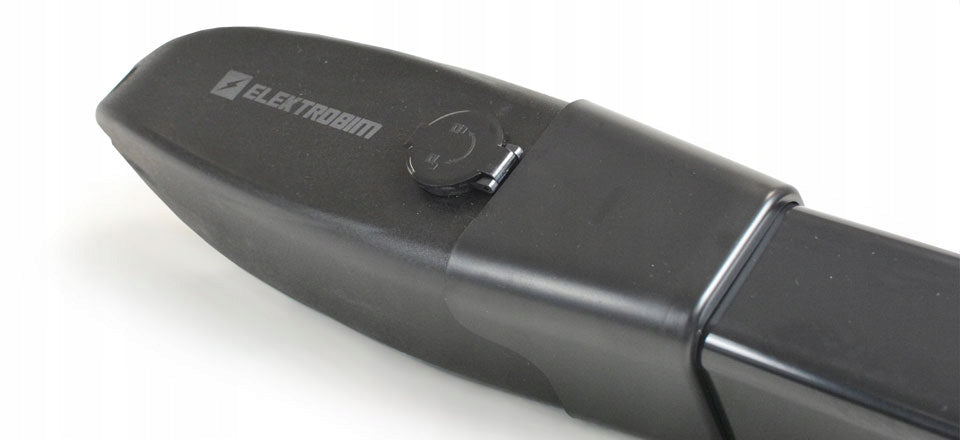

✅ Emergency unlock in case of power outage

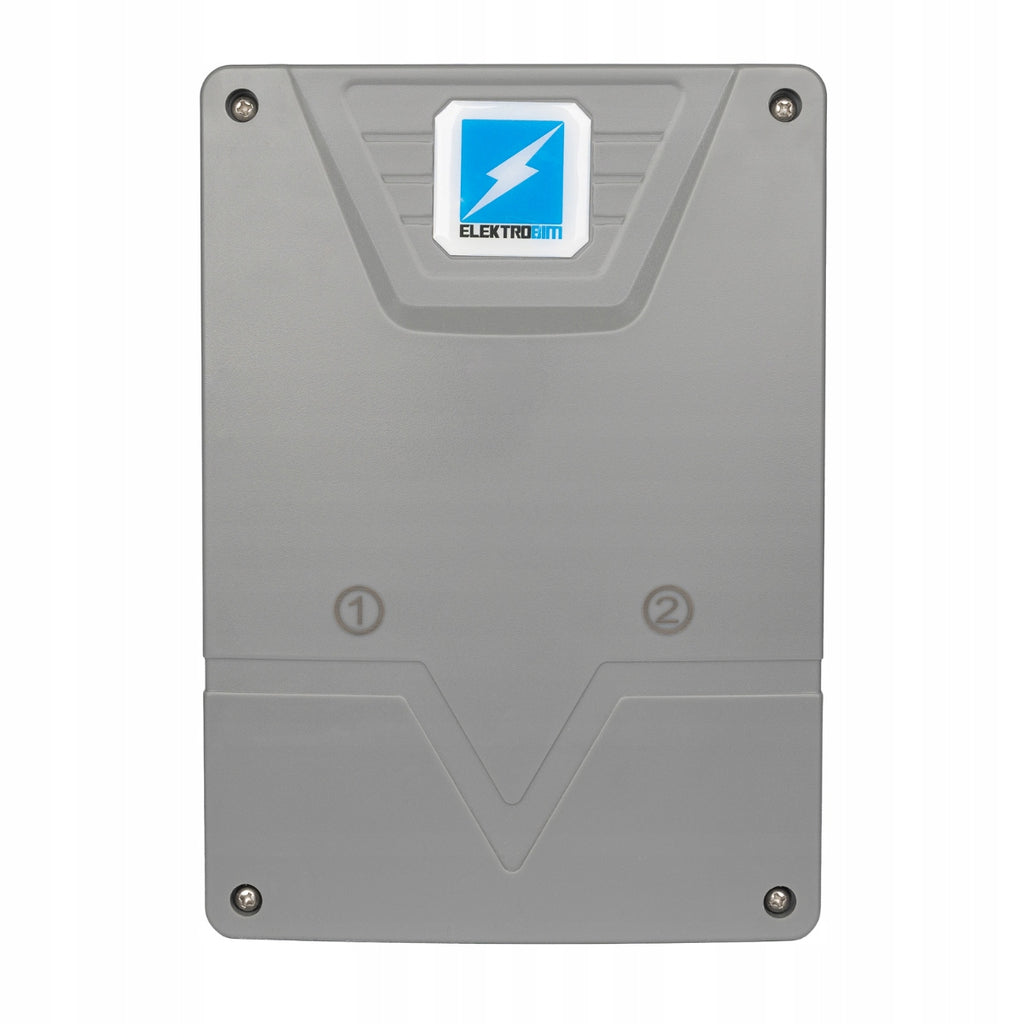

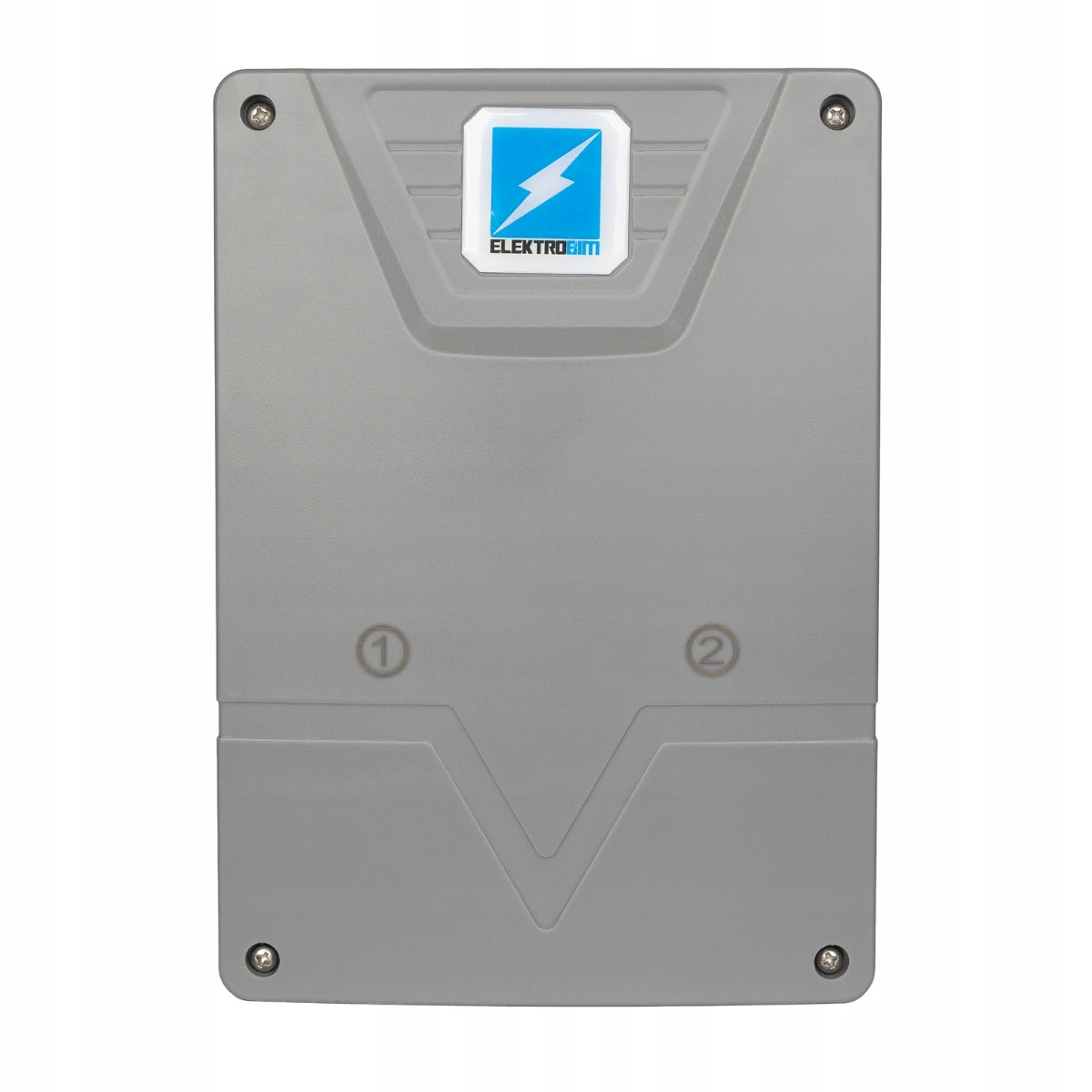

Control panel ETM-DG2

The control panel is the "brain" of the set, controlling the operation of actuators and accessories.

✅ Control panel equipped with the latest software: smoother operation of actuators, control panel status messages, modified auto-closing function.

✅ Ensure the safety of your journey with a range of safety features.

✅ The soft start and drive stop function will ensure smooth operation and less wear on the mechanical components of the gate.

✅ Programmable digital inputs for connecting external control devices i.e. switches, WiFi or GSM modules.

✅ Do not be afraid to connect and configure the control panel. It is very simple and intuitive. our video tutorials will certainly help.

✅ Possibility to upload more than 100 Elektrobim pilots.

✅ Touch sensors on the housing will allow you to start the drive if you do not have a remote control at hand. If you don’t use them, you can turn them off.

Two PS-10 ELEKTROBIM 4-channel remote controls

The remote controls will allow you to open and close the gate remotely.

✅ The remote controls operate at a frequency of 433.92MHZ.

✅ Small size - the remote will not interfere with your pocket.

✅ Operating range up to 100m. With the ANT-01 antenna, it can be controlled even from 200m.

✅ The improved version compared to the older PS-02 offers longer battery life, better range and greater durability.

✅ Ability to program 4 different functions for each of the buttons in the remote control or 4 different devices Elektrobim.

Attention! The real range of the remote control depends on many factors, such as the state of battery charge, interference in the form of terrain obstacles, e.g. masonry, car and transmitting devices at the same or different frequencies.

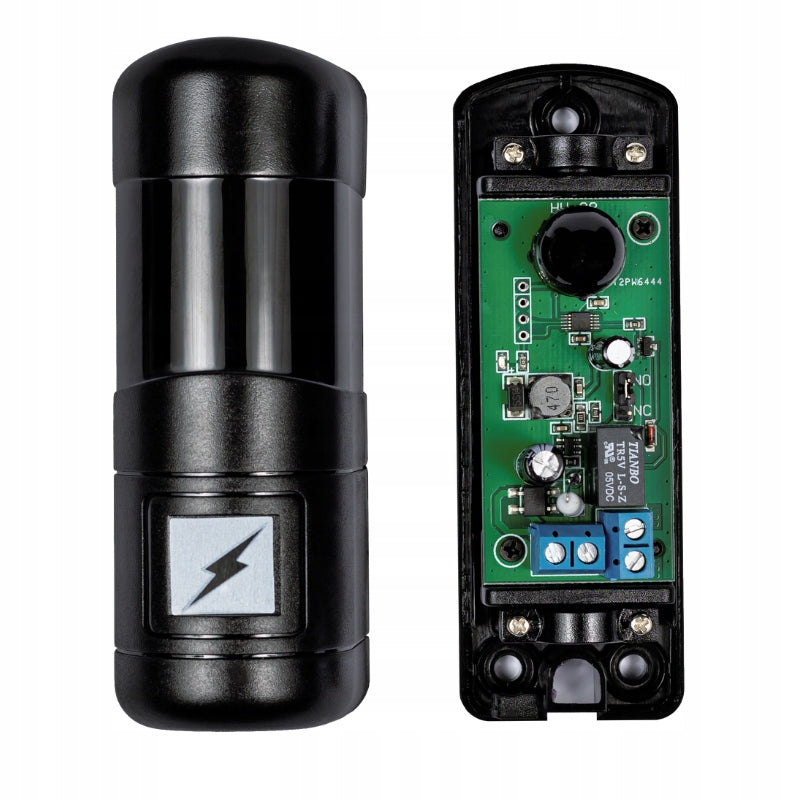

Rotary photocells FK-02 with 180° adjustment

Photocells are a must-have for any automation kit. They protect against physical contact of the gate with a potential obstacle.

✅ Receiving and transmitting photocell with the possibility of rotating electronics.

✅ 180° electronics adjustment allows for convenient installation of photocells on the side or front of the post. You do not need any additional angles for this.

✅ Can be installed up to 12m away.

LED signal lamp

An element warning about the operation of automation, especially useful after dark when it is dark at the gate.

✅ Universal power supply 12-265V AC/DC.

✅ Very bright LEDs visible even during the day.

✅ Mounting on the side or top of the post.

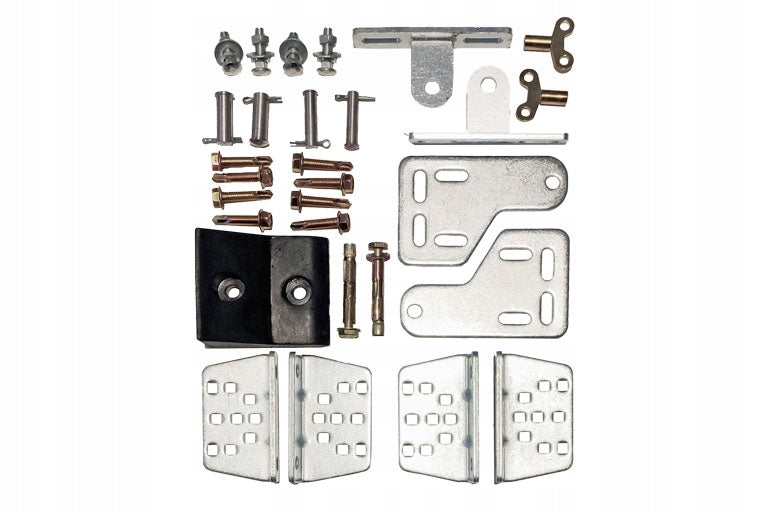

Sets mounting kit

✅ 4 galvanized mounting brackets for narrow metal posts. They are adapted to posts with a minimum width of 8cm. Thanks to this, you do not have to cut anything and lose on aesthetics.

✅ Mounting brackets for the gate leaf - much more durable than bent or folding handles. Includes 2 pieces.

✅ 8 solid self-drilling screws for secure mounting of post holders.

✅ 2 keys to emergency unlock the actuator from the mounts in case of power outage.

✅ Rubber fender - an optional element of the set, which is mounted in the middle of the gate passage.

✅ 2 pins for actuator and 4 screws for twisting fixings.

Dimensions of the actuator

• Total length in the assembly state: 700mm
• Arm extension: 300mm

Other actuator data

• Engine power: 24VDC 60W
• Pull-out speed: 24mm/s
• Weight: ~3.2kg
• Hinge depth: up to 10cm
• Max. length of opening sash: 2.5m
• Max. Wing opening weight: 300kg
• Max. wing filling: 75%
• Protection class: IP55

Control panel

• Driver power supply: 230VAC +/- 15%
• Actuator supply voltage: 12VDC/24VDC
• Remote control frequency: 433.92 MHz
• Max. Remote control range: 100 meters
• Possibility to connect an emergency battery: 24V 5Ah
• Protection class: IP55
• Operating temperature: -25°C ~ +65°C
