Varstomų vartų komplektas FORCE GT500 LS, iki 10 m, 1000 kg, su galiniais ribotuvais

Kaina:
€478,65
Sandėlys:
Yra sandėlyje

Trumpai apie prekę

Prekė: Varstomų vartų komplektas FORCE GT500 LS, iki 10 m, 1000 kg, su galiniais ribotuvais. Kategorija: Kietieji diskai.

  • Gamintojas: Force
  • Modelis: GT500 LS
  • Įtampa: 230 V

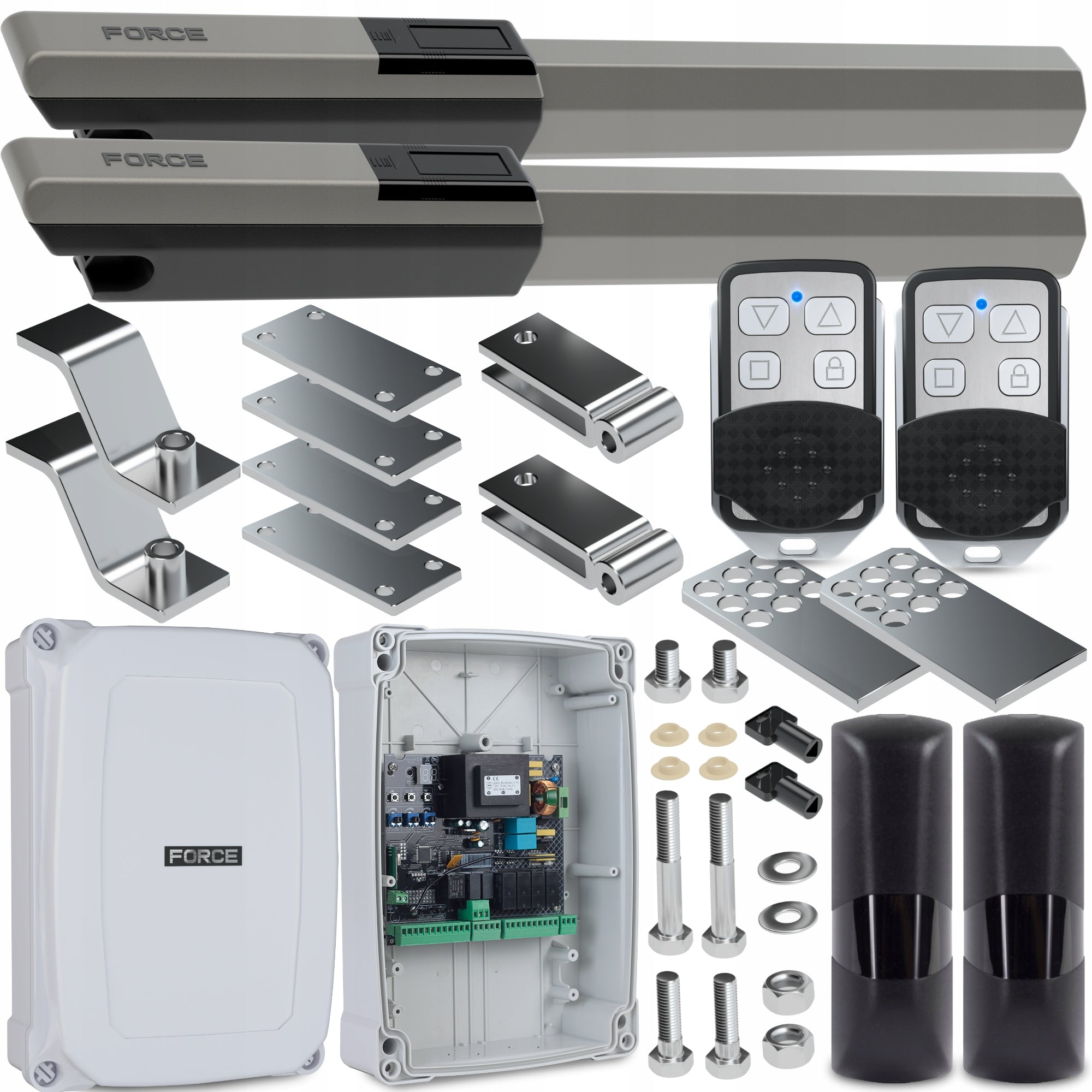

COMPOSITION OF THE SET:

  • 2x FORCE GT500 LS actuator in built-in limit switches
  • Control panel
  • Housing for the control panel
  • Pair of 180 degree rotating photocells (1pcs transmitting, 1pcs receiving) FORCE 180
  • 2x 433 MHz 4-channel remote controls
  • Mounting brackets for gate posts and wings
  • Emergency decoupling key 2 pcs.
  • Instructions for mounting actuators and programming the control panel in Polish
  • Technical support during assembly - telephone

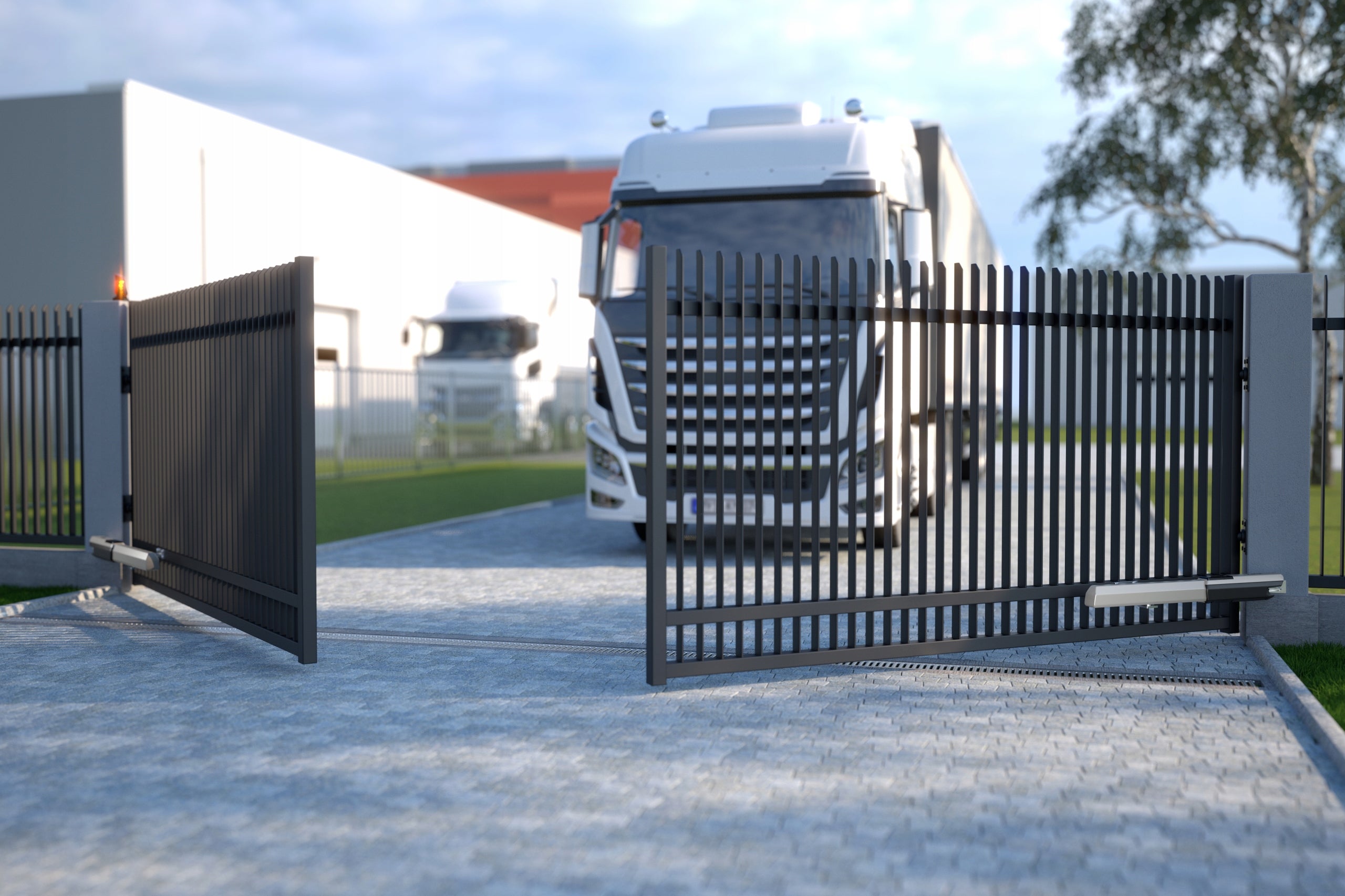

  • IDEAL SOLUTION FOR HOME AND INDUSTRIAL GATES - FORCE GT 500 LS actuator is characterized by high quality and durability, as well as much larger sizes than typical swing gate actuators. This model has a solid and massive stress-resistant housing and a powerful motor, which makes it ideal for automating a gate with a wing length of up to 5 m. (two wings together 10 m). FORCE GT 500 LS actuators have a 150W motor and a thrust of 3000 N!!! Which makes this model the strongest on the market in its price class.
  • EASY INSTALLATION AND RELIABLE OPERATION Due to its design and method of attaching actuators to the gate (from the front), the FORCE GT500 LS drive is quick and easy to install, without the need for expensive adaptation modifications. The great advantage of GT500 LS actuators are built-in actuator wing movement limiters on opening and closing. Thanks to this, you do not need to mount fenders / stops to the ground, which are designed to stop the wings in extreme positions. Often, the installation of such fenders can be troublesome and time-consuming, especially when the lower part of the gate is at a considerable distance from the ground, such a high fender would be impractical and often visually undesirable. However, with the FORCE GT500 LS, you can quickly and easily set where you want the gate to stop at the opening and closing without mounting anything to the ground. With the FORCE GT500 LS, you can install it quickly, easily and aesthetically.
  • SAFETY Crush protection is provided by an electronic module installed on the control panel board, which directly controls the thrust of the drive. In the event of a failure, the unlocking mechanism allows you to unlock the gate wings and operate manually.
  • MINIMUM OPERATING COSTS, HIGH RELIABILITY The cost of operating the FORCE GT500 LS electromechanical drive is definitely minimal. The device works reliably in all weather conditions, in the range of external temperatures from-20°C to +55°C.

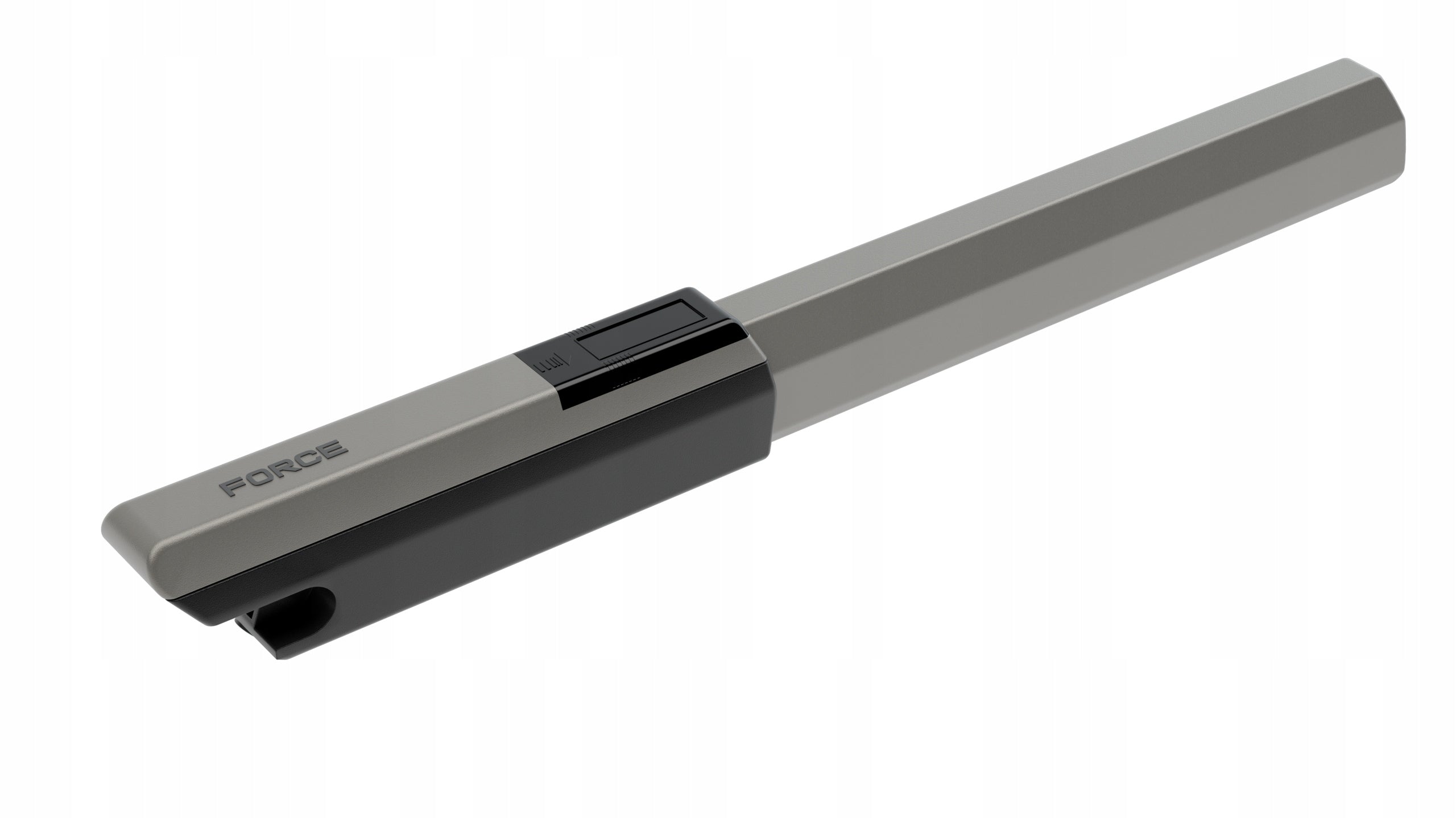

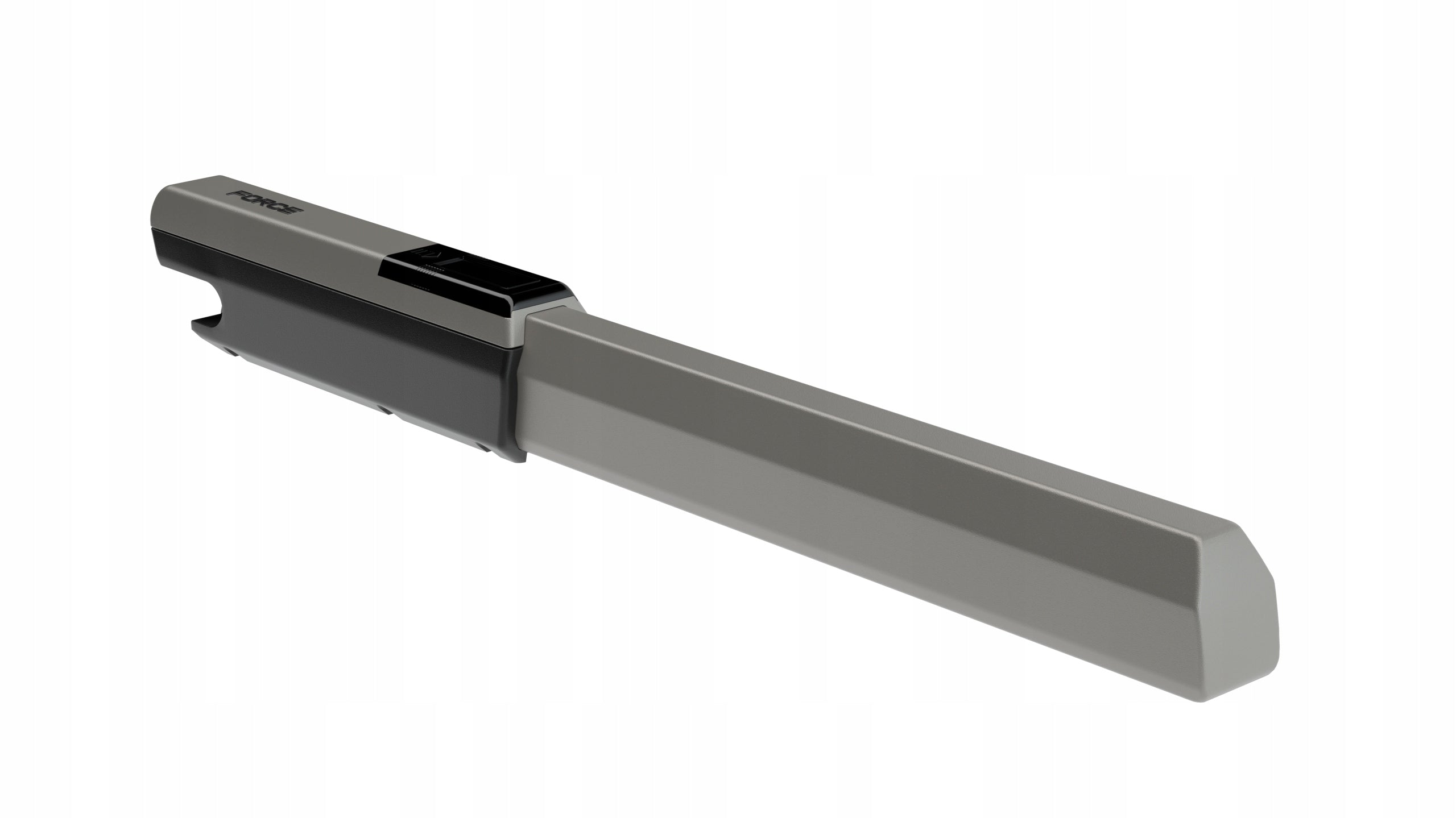

TECHNICAL DATA OF ACTUATORS:

  • Power Supply: 230V
  • Motor power supply: 230V
  • Power Consumption: 150 W
  • Power Consumption: 1,2A
  • Stem extension speed: 1,5 cm/s
  • Maximum thrust: 3000 N!!!
  • Operating temperature range: -20°C / +55°C
  • Thermal protection: 140°C
  • Degree of protection: IP54
  • Weight: 11 kg
  • Built-in limit switches in the actuator for opening and closing (does not require screwing the fenders/stoppers to the ground)

The massive power transmission unit is placed in a massive and robust housing. The whole guarantees, through the use of high-quality materials and precise execution, reliable force transmission and longevity of the system.

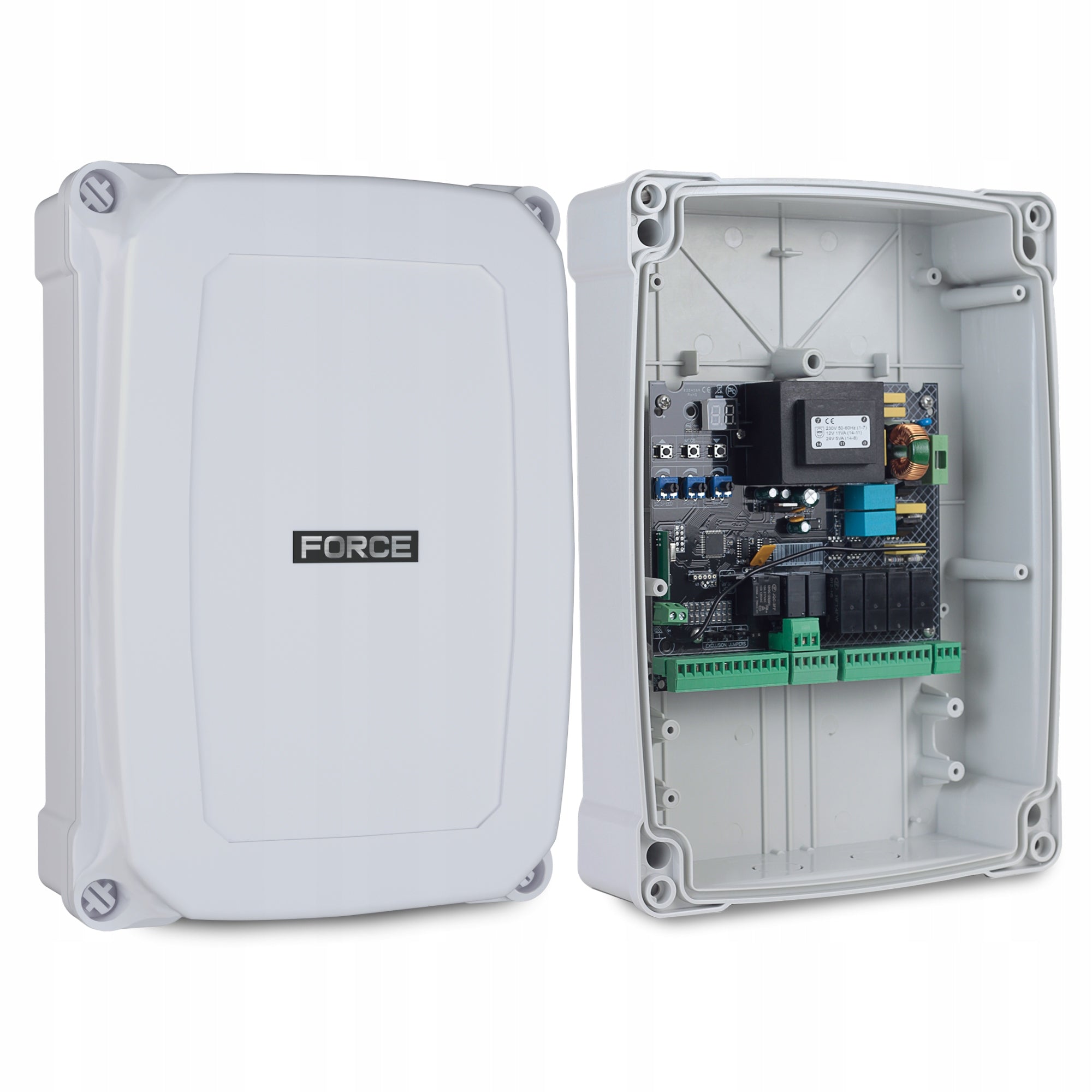

CONTROL PANEL

  • force adjustment separately for each actuator (8 levels)
  • braking of the gate wings (gentle termination of the gate movement)
  • operation of limit switches for opening and closing
  • automatic closing function after passing the vehicle
  • built-in radio that supports the work of remote controls
  • very simple programming
  • second wing delay function
  • support for complete and partial opening of the gate (gate function)
  • entrance to the signal lamp
  • possibility of controlling the gate entrance N.O. (with intercoms, button from home, mobile phone)

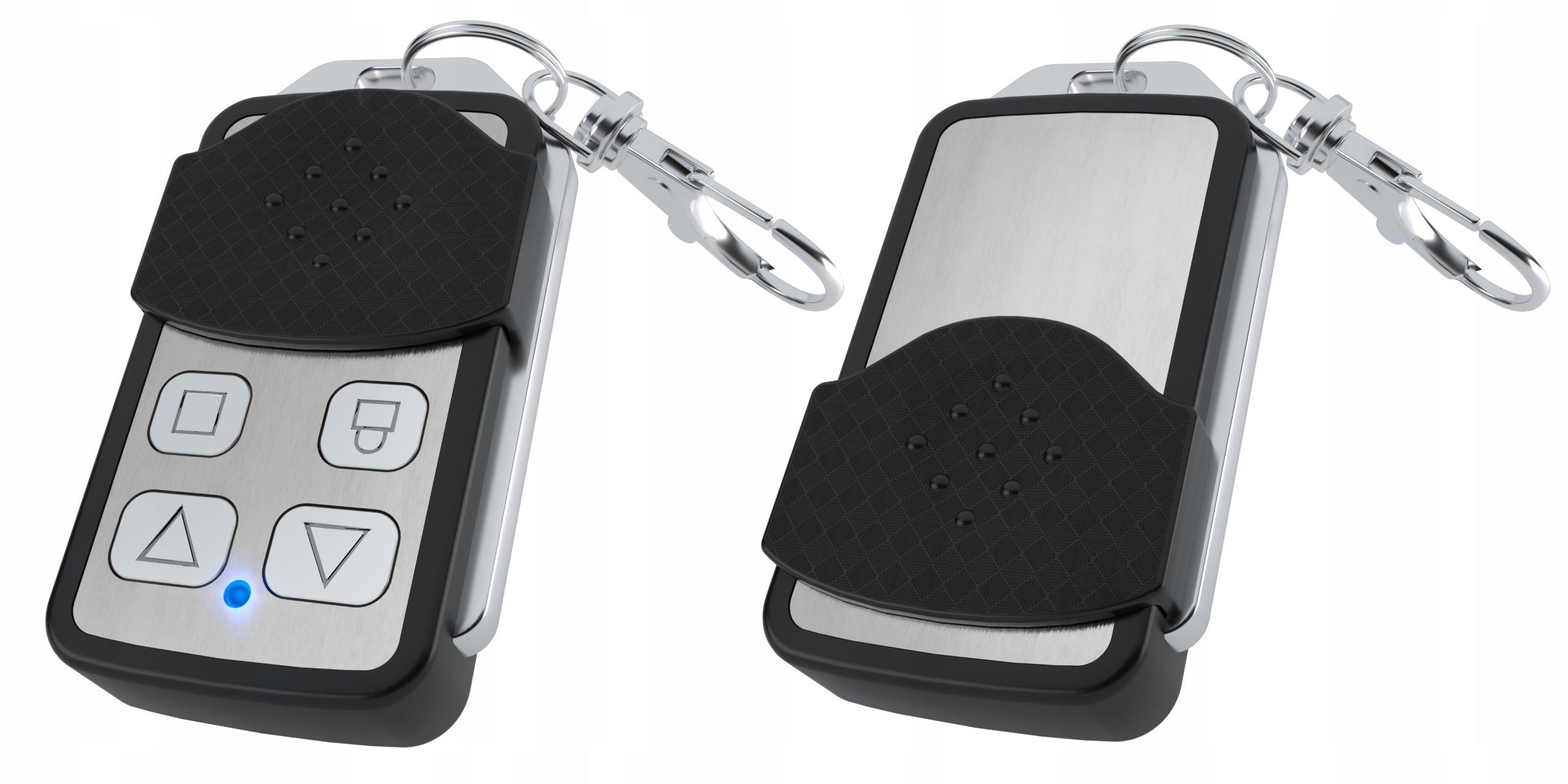

2 x 4-channel gate remote control in metal housing

Remote control for 4-channel gate, with dynamically randomly variable code with a frequency of 433.92 MHz. Gate remotes will help you manage your home automation. Each gate remote has its own identity code – so that the remotes can be copied to the remote control. The remote controls are compatible with FORCE 760/2000/Best 600/ GT400LS / GT500 / V400 / SW200 drives are not compatible with other 433,92 MHz gate remotes.

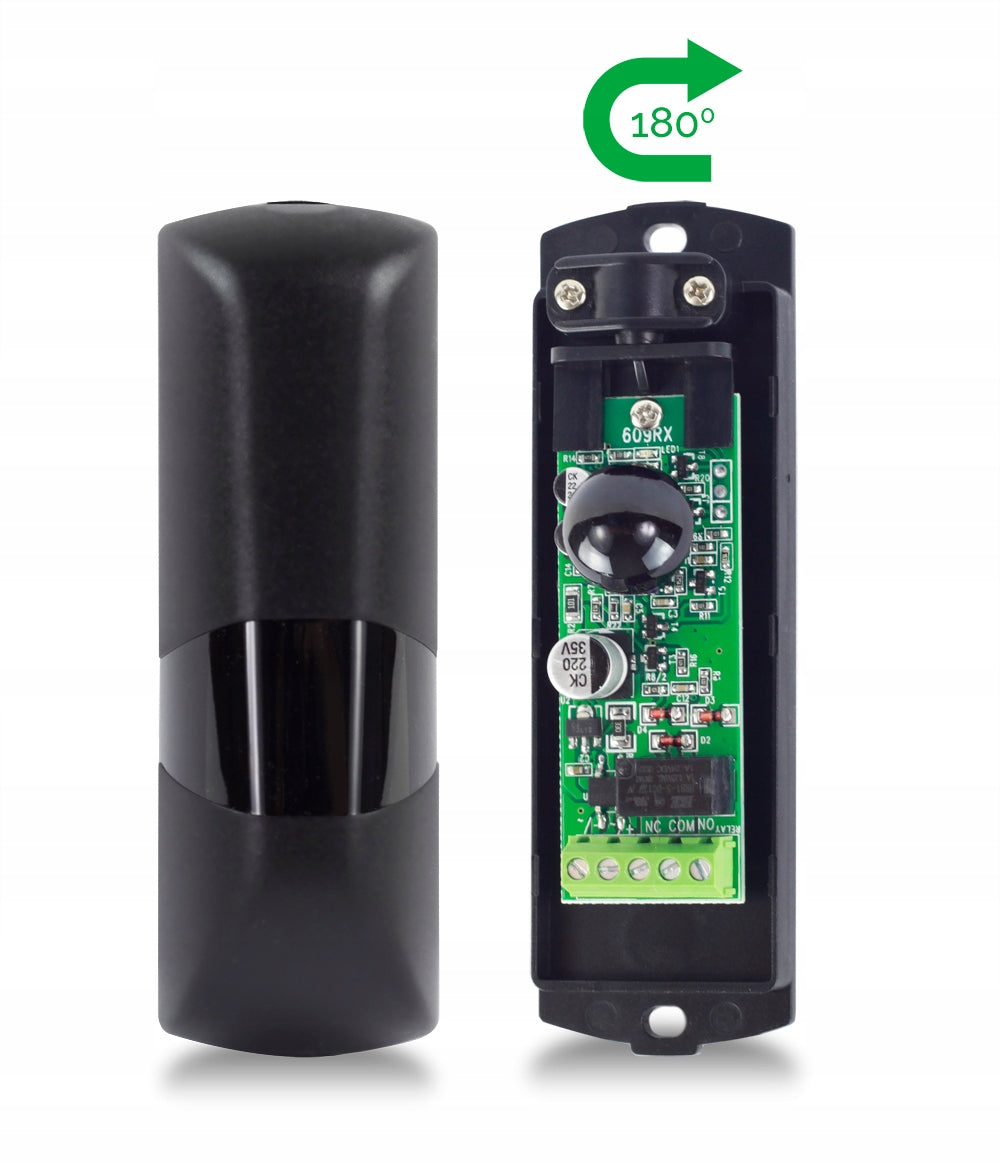

Rotary photocells FORCE 180

180 degree viewing angle (adjustable)

Technical specification:

  • Dimensions: 108mm x 35mm x 30mm
  • Power Supply: 12-24V DC/AC
  • Range: max 15 meters
  • Current Consumption: RX 15Ma - TX 30mA
  • Relay: 1A max 36V
  • Frequency: 1,92Khz
  • Wavelength: 940nm
  • Operating temperature: -20 to +55°C
  • Viewing angle: 180 degrees (adjustable)
  • Operation: from all angles (vertical and level)
  • Weight: 105g
  • Pins for mounting included

Convenient to install, because on narrow metal posts you can mount them on the planes of the post from the outside (from the side of the road) and only turn the electronics element 90 degrees towards the second photocell so that the photocells "see" each other.

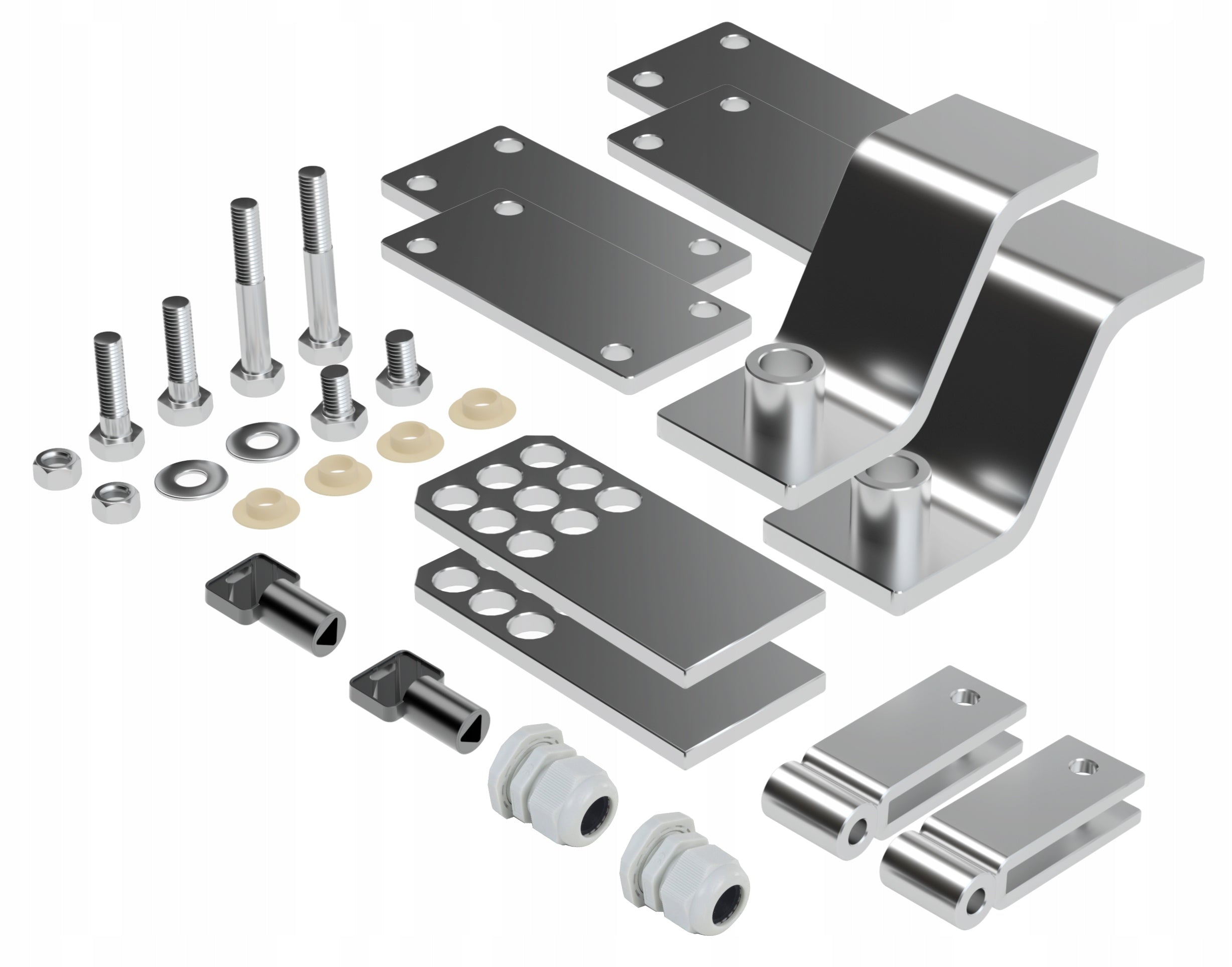

MOUNTING BRACKETS AND ACCESSORIES

  • handles for fixing actuators, set of handles for fixing on posts and gate wings
  • galvanized
  • Unlocking keys in case of power outage
  • 2x Gland for sealing the entrance of wires to the control panel housing
  • Assembly instructions in Polish

MOUNTING DIMENSIONS OF ACTUATORS GT 500 LS

Recommended installation dimensions:

maximum dimensions in mm to:

A: to 200 B: to 200 C: < 120 E: 920

Angle opening of the gate wings up to 120 degrees.

  • Just loosen the screw and moving it at the same time move the magnetic switch to the left or right, in this way we adjust where the gate leaf is to stop. After obtaining the appropriate place to stop the wing, tighten the screw. It's done. Limit switch set.

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Brand Force
Parametry Drive type for double-leaf gates
Parametry Maximum wing weight 500 kg
Parametry Maximum wing length 5 m
Parametry Maximum number of cycles per day 120
Parametry Supply voltage 230 V
Parametry Maximum opening angle 120°
Parametry Engine power 150 W
Parametry Manufacturer code GT500 LS
Parametry Set contents control unit,photocells,unlock key,magnetic limit switches,mounting elements,drive,remote control,warning light
Parametry Additional features automatic closing function,obstacle detection function,gate function,key switch opening function,mobile application control function,controlled from video intercom,controlled from intercom
