Variklių valdiklis Motoron M3H550, 3 kanalai, DC

Trumpai apie prekę

Prekė: Variklių valdiklis Motoron M3H550, 3 kanalai, DC. Kategorija: Priedai.

• Gamintojas: Pololu
• Modelis: Pololu 5071

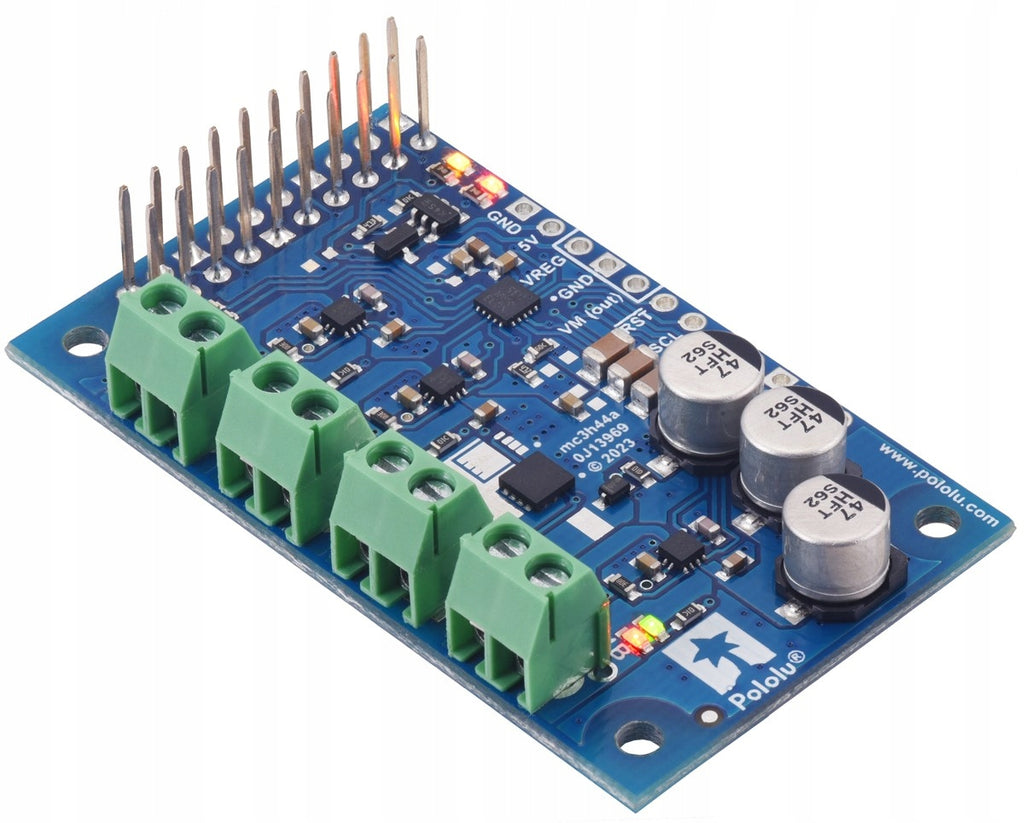

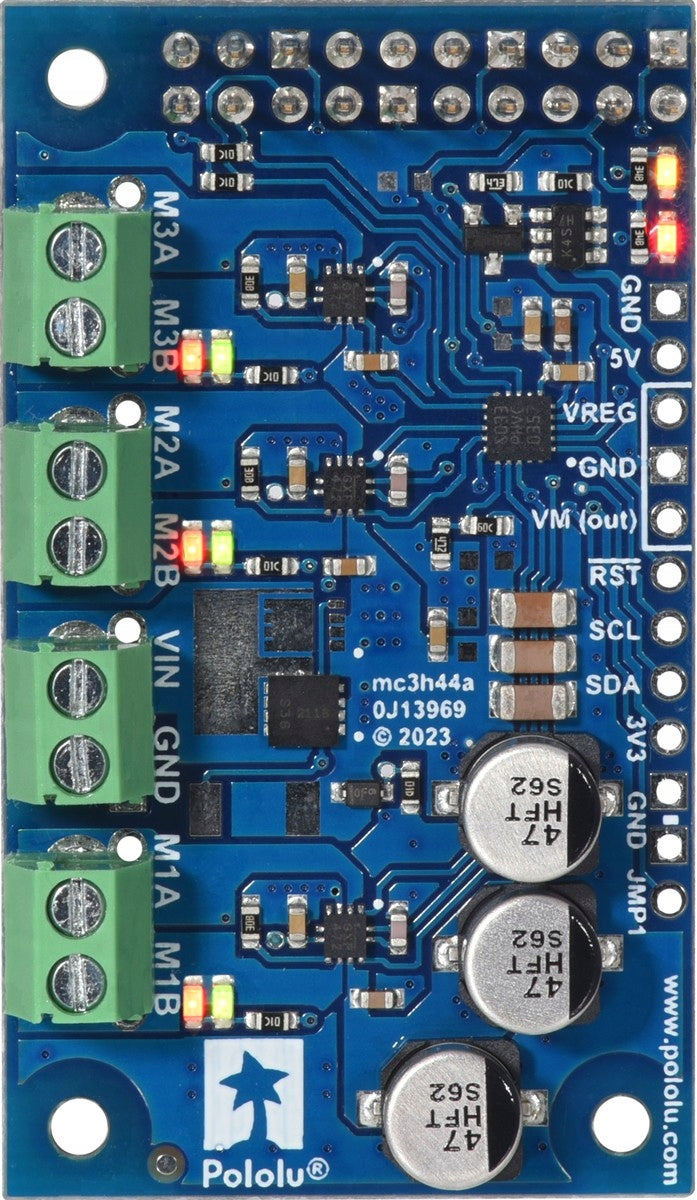

Motoron M3H550 Triple Motor Controller - 3-Channel DC Motor Driver for Raspberry Pi (soldered connectors)

Description

DC motor controller dedicated to minicomputers Raspberry Pi. It allows you to control the movement of three drives using the I2C interface. It can work with motors with a supply voltage of 1,8 to 22 V and has a capacity of up to 1,7 A per motor (continuous operation). The controller has built-in protection in case of loss of communication with RPi and the ability to configure the response if an error occurs. The user can set the maximum acceleration and starting speed of the engine, and the HAT design allows you to connect the controllers together. On the manufacturer’s website there is an instruction manual and a library with sample programs.

Properties

• Operating voltage range: from 1,8 V to 22 V
• Maximum output current per motor: 1,7 A continuous, 5 A instantaneous
• Logical part voltage range: 2,8 V to 5,5 V
• Control Interface: I2C
• I2C clock frequency: up to 400 kHz
• Ability to control CRC
• Configurable motion parameters:
• Maximum acceleration/delay
• Initial speed
• Delayed change of direction
• PWM frequency: eight options available from 1 kHz to 80 kHz
• Security in case of loss of communication
• Configurable automatic error response
• Motor supply voltage measurement (VIN)
• Possibility to power Raspberry Pi directly or via external stabilizer (not included)
• Two status LEDs
• Engine direction LEDs

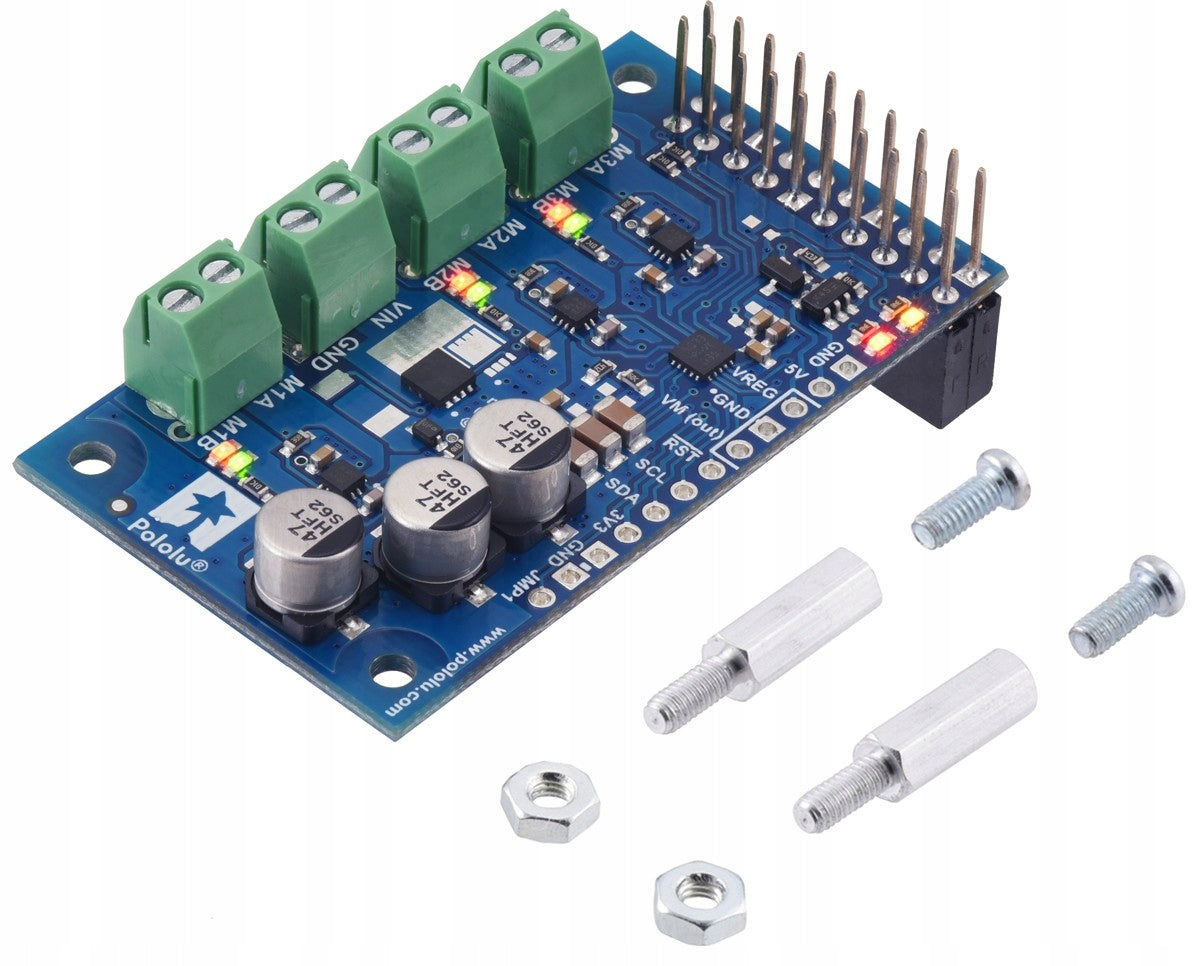

Comes with

• Motoron M3H550 Triple Motor Controller Module
• 2 x distance
• 2 x screw with nut

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	Pololu 5071
Parametry	Manufacturer	Pololu
Parametry	Kind	Expansion board
Parametry	EAN (GTIN)	5902186316911
