Varikliai BetaFPV 0802 28000KV (2026) 4 vnt. Air75 II Champion

Trumpai apie prekę

Prekė: Varikliai BetaFPV 0802 28000KV (2026) 4 vnt. Air75 II Champion. Kategorija: Dronai ir multikopteriai.

• Gamintojas: BetaFPV
• Modelis: 01050026_1

⬇ See more ⬇

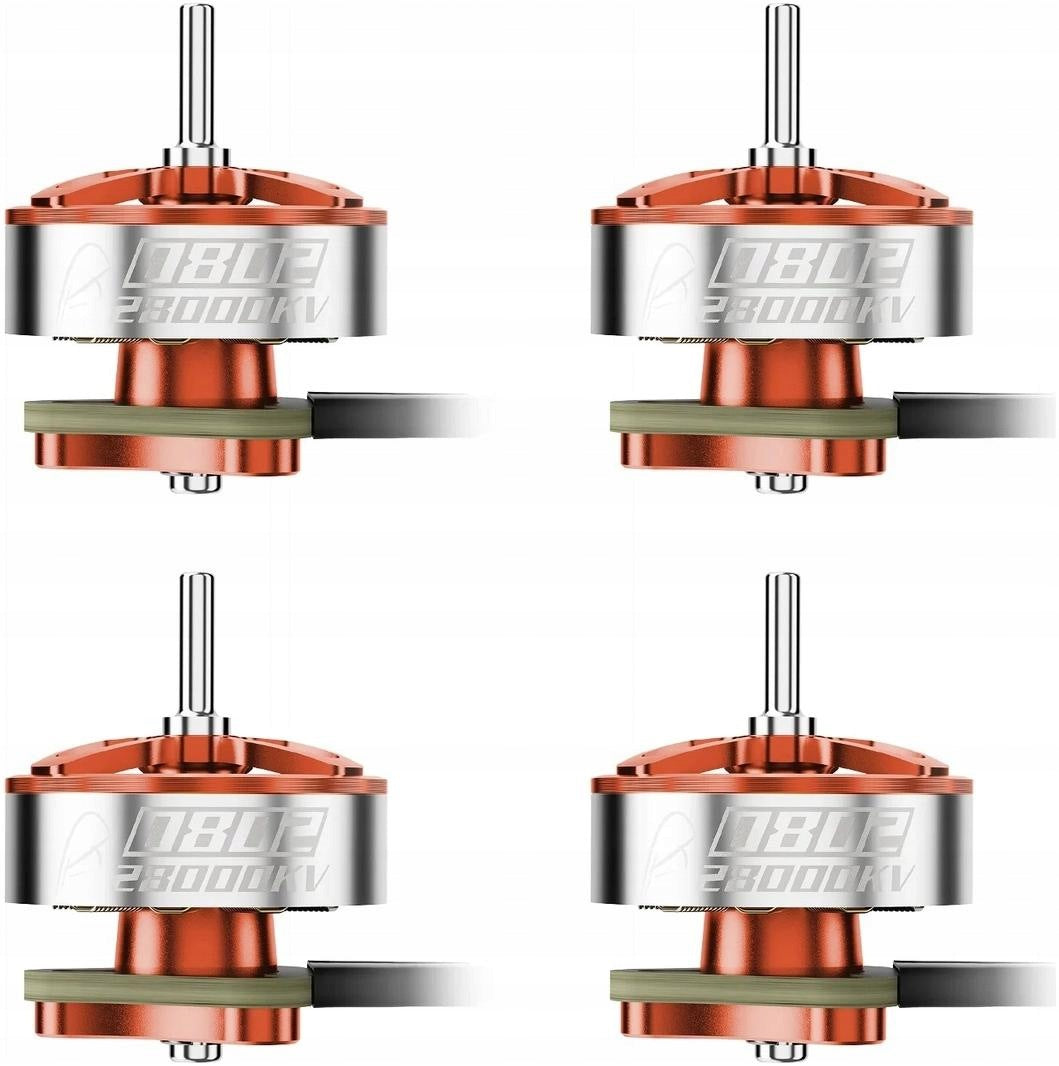

Brushless motors BetaFPV 0802 28000KV (2026 edition) – Set of 4

The set of four BetaFPV brushless motors from the 0802 series (2026 edition) in the uncompromising Champion 28000KV version is the absolute highest drive shelf for FPV microdrones powered by 1S cells. Designed specifically for the racing geometry of the Air75 II drone, these engines offer powerful power drastically beyond standard solutions. It is an ideal choice for professional pilots and indoor/outdoor track enthusiasts, for whom the priority is aggressive, immediate response to the movement of the gas handle and maximum speed.

The most important advantages

• Extreme Champion Edition (28000KV): Optimized for aggressive racing flight. It offers a gigantic maximum power of up to 34,3 W and support for current up to 9 A, which guarantees instant exit from corners and unrefined acceleration.
• Advanced stator core 0,10 mm: The use of ultra-thin stator magnetic sheets keeps eddy currents to a minimum. Despite such high revs, the motor maintains exemplary electrical efficiency, reduces energy losses and does not overheat under full load.
• Racing double ball bearings: Unlike standard sleeve versions, the Champion variant received precise double ball bearings. This drastically increases the life of the drive, ensures an impeccable working culture and eliminates bell clearance even after hundreds of packets.
• Reinforced construction (Crash-Proof): Both the aluminum rotor and the steel shaft have been mechanically reinforced to easily withstand the force of impacts against obstacles during tight turns on the race track.

Plug-and-Play installation

The motors have flexible power cables with a thickness of 30AWG and an optimal length of 35 mm, which are factory terminated with the popular JST1.25 (3-pin) microplug. This allows you to quickly replace the damaged drive in the field without having to take a soldering iron with you.

Technical specification

• Manufacturer: BetaFPV
• Model / Size: 0802 (2026 Edition)
• KV value: 28000KV (Champion / Racing version)
• Power supply (rated voltage): 4,2V (1S LiPo/LiHV)
• Maximum continuous power: 34,3 W
• Maximum current consumed: 9,0 A
• Bearing Type: Double Ball Bearings (Dual Ball Bearings)
• Shaft diameter: 1,0 mm
• Length of external shaft: 4,0 mm
• Wires: 30AWG / length 35 mm
• Connector: JST1.25 (3-pin)
• Mounting holes: 3 × M1.4 arranged on a circumference of Ø6,6 mm (EQS)

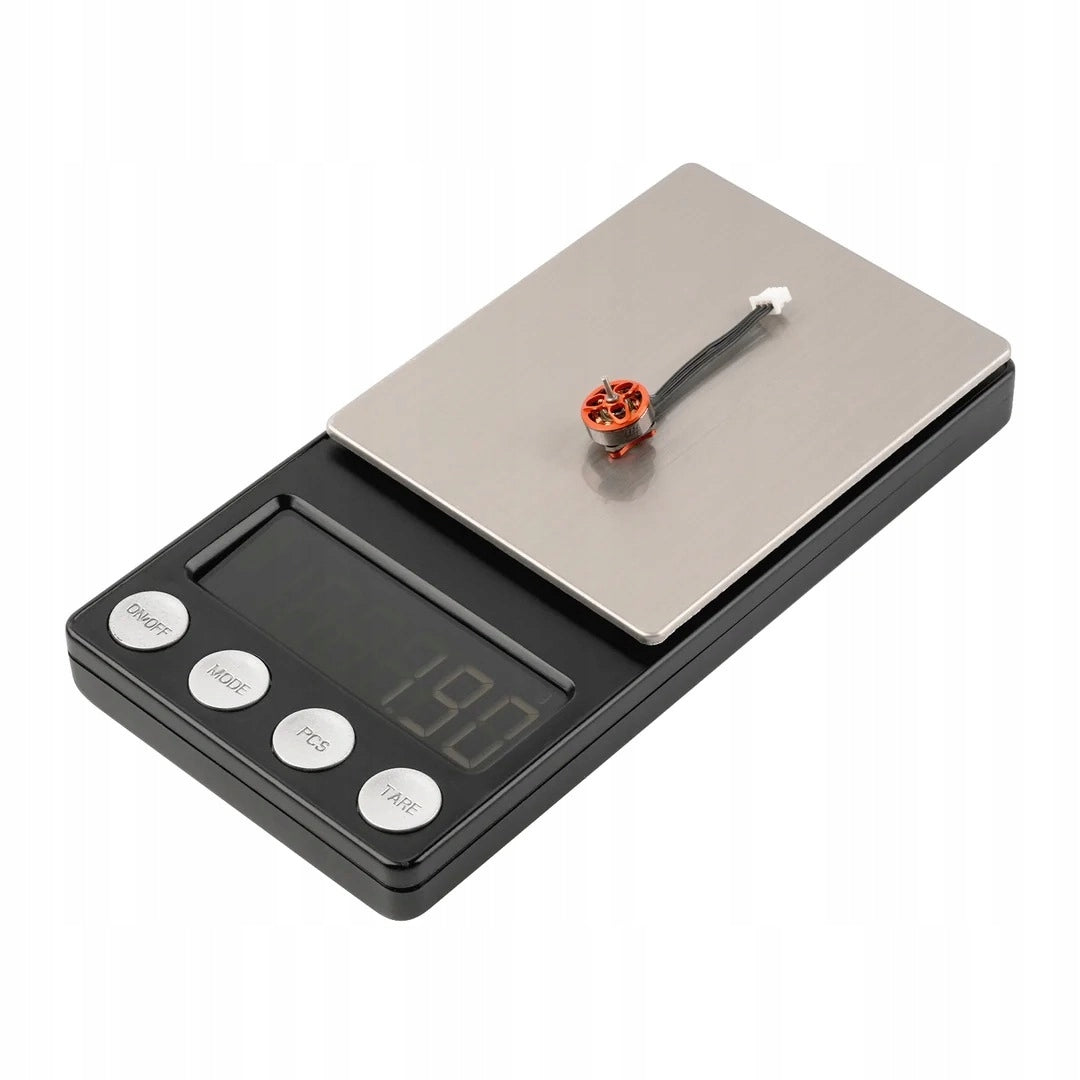

• Weight: approx. 1,95 g (single motor with cable)

Composition of the set

• Brushless motor BetaFPV 0802 28000KV (2026) Champion × 4 pcs.
• Mounting screws M1.4×3 × 12 pcs.
