Varikliai BetaFPV 0702 25000KV (2026) Air65 II Freestyle, 4 vnt.

Trumpai apie prekę

Prekė: Varikliai BetaFPV 0702 25000KV (2026) Air65 II Freestyle, 4 vnt.. Kategorija: Dronai ir multikopteriai.

• Gamintojas: BetaFPV
• Modelis: 01050025_3

⬇ See more ⬇

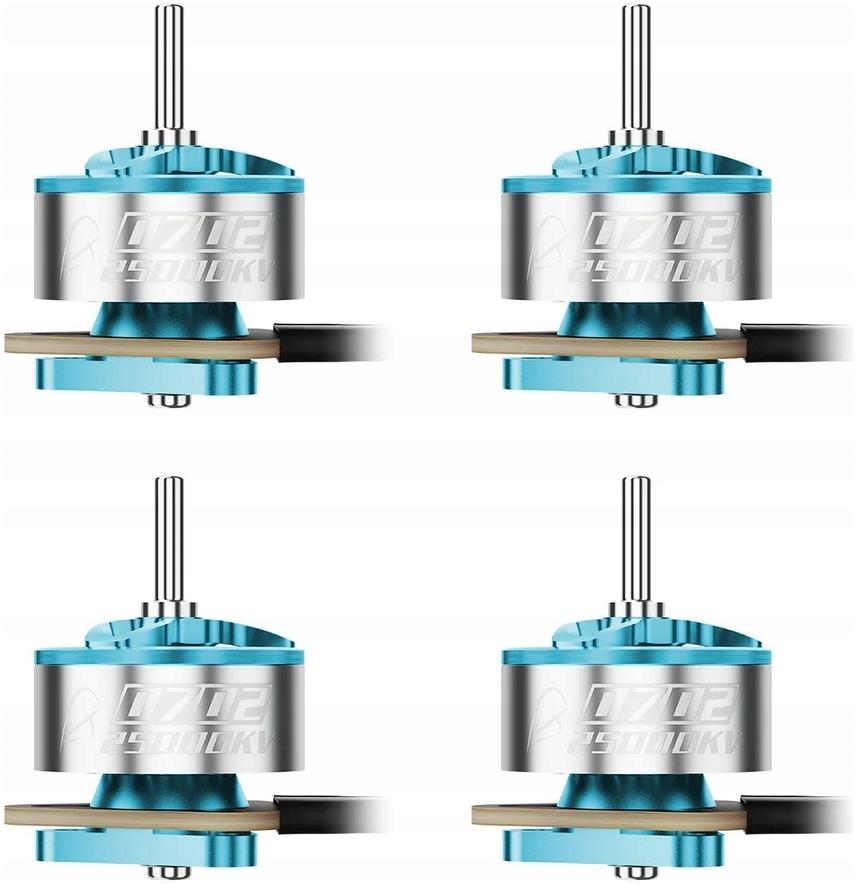

Brushless motors BetaFPV 0702 25000KV (2026 edition) – Set of 4

The set of four brushless motors BetaFPV from the 0702 series (2026 edition) in the Freestyle 25000KV version is one of the lightest and most advanced drives for single-cell (1S) FPV micro-drones. Designed specifically for the feather geometry of the Air65 II drone, these engines offer perfectly linear operating characteristics. It is an excellent choice for pilots who are looking for surgical precision in the lower range of rotation, smoothness of maneuvers and maximum reduction of own weight of the Tiny Whoop drone.

The most important advantages

• Ultra-thin 0,10 mm stator core: The advanced design uses magnetic sheets with a thickness of only 0,10 mm. This dramatically reduces energy losses caused by eddy currents, resulting in higher electrical efficiency, less heating, and longer flight times.

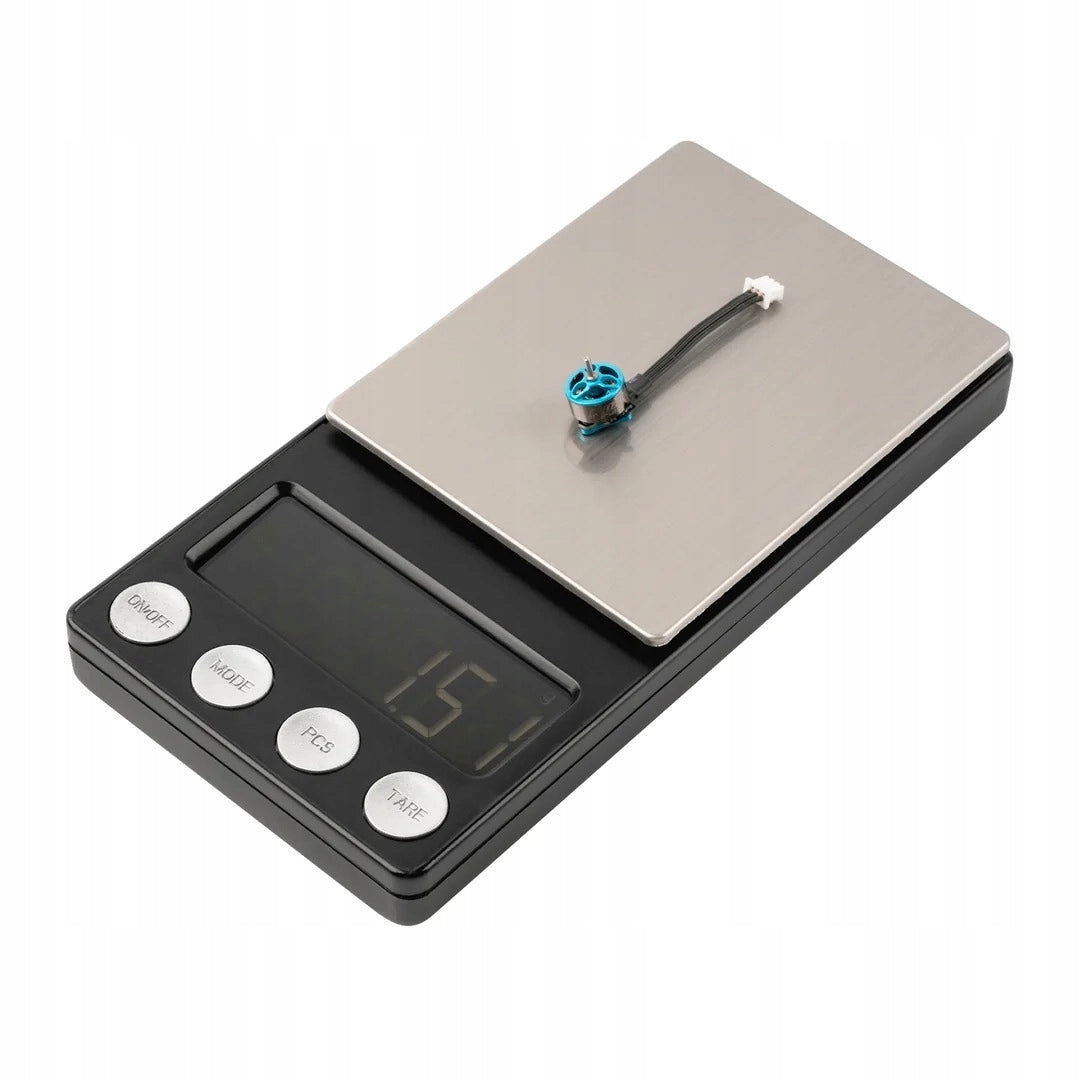

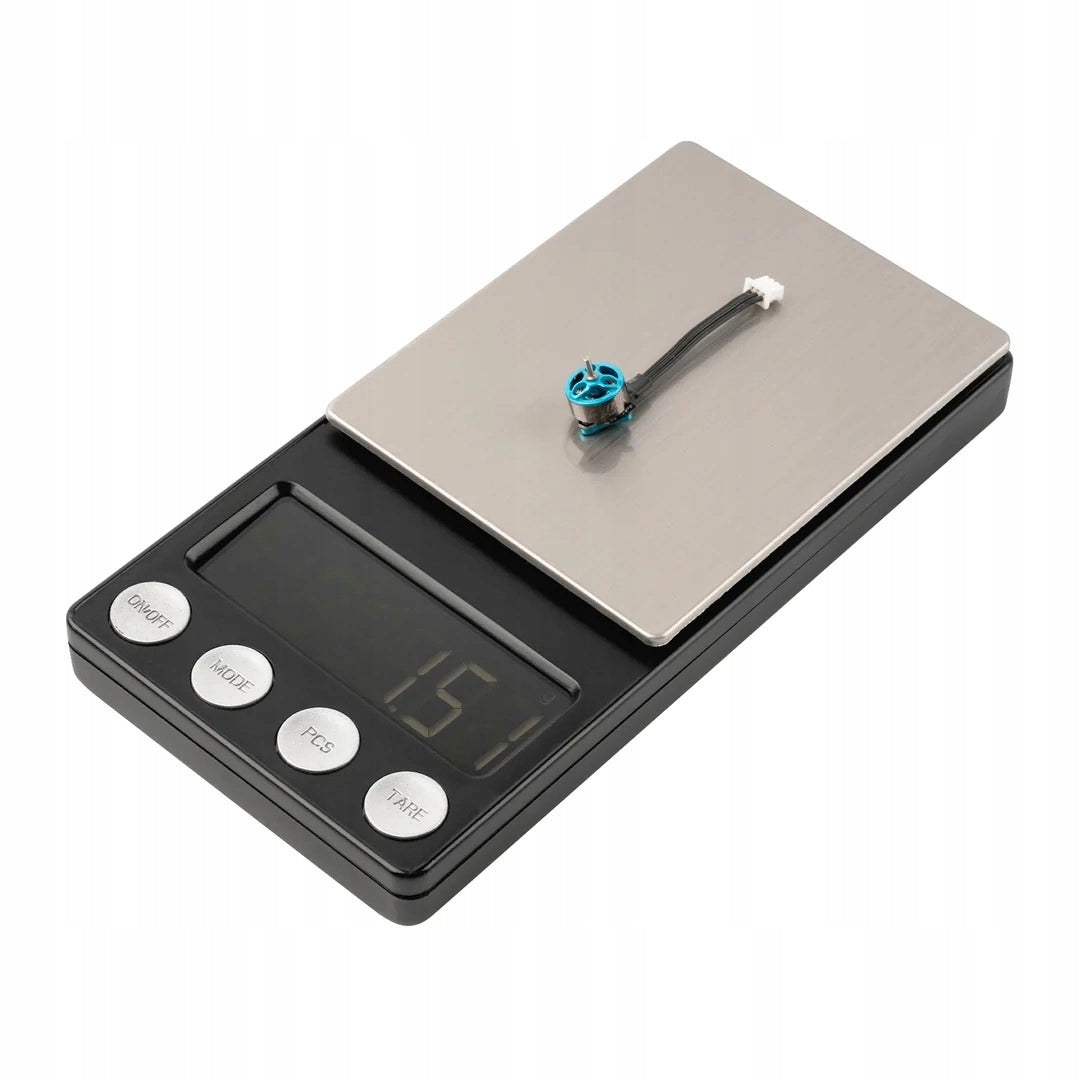

• Feather weight of micro-drive: A single engine weighs only 1,50 g. In the world of micro-drones, every fraction of a gram determines agility, and such a low weight drastically reduces the inertia of the model during sudden relapses.
• Optimized for freestyle (25000KV): KV value selected for smooth power output and exemplary control at low and medium throttle values. This facilitates precise technical flying in tight spaces.
• Crash-resistant design: The improved construction of the aluminum rotor and steel shaft guarantees much greater resistance to mechanical deformation during hard landings on hard surfaces.

Installation without the use of a soldering iron

Each motor is equipped with flexible wires with a cross section of 30AWG and a length of 35 mm, which are factory terminated with a miniature JST1.25 (3-pin) plug. This allows for express installation in plug-and-play technology and immediate replacement of the damaged component in the field.

Technical specification

• Manufacturer: BetaFPV
• Model / Size: 0702 (2026 Edition)
• KV value: 25000KV (Freestyle version)
• Power supply (rated voltage): 4,2V (1S LiPo/LiHV)
• Maximum continuous power: 15,01 W
• Maximum current consumed: 3,86 A
• Bearing Type: Durable Brass Plain Sleeves
• Shaft diameter: 1,0 mm
• Length of external shaft: 3,4 mm
• Wires: 30AWG / length 35 mm
• Connector: JST1.25 (3-pin)
• Mounting holes: 3 × M1.4 arranged on a circumference of Ø6,6 mm (EQS)
• Weight: approx. 1,50 g (single motor with cable)

Composition of the set

• Brushless motor BetaFPV 0702 25000KV (2026) Freestyle × 4 pcs.
• Mounting screws M1.4×3 × 12 pcs.
