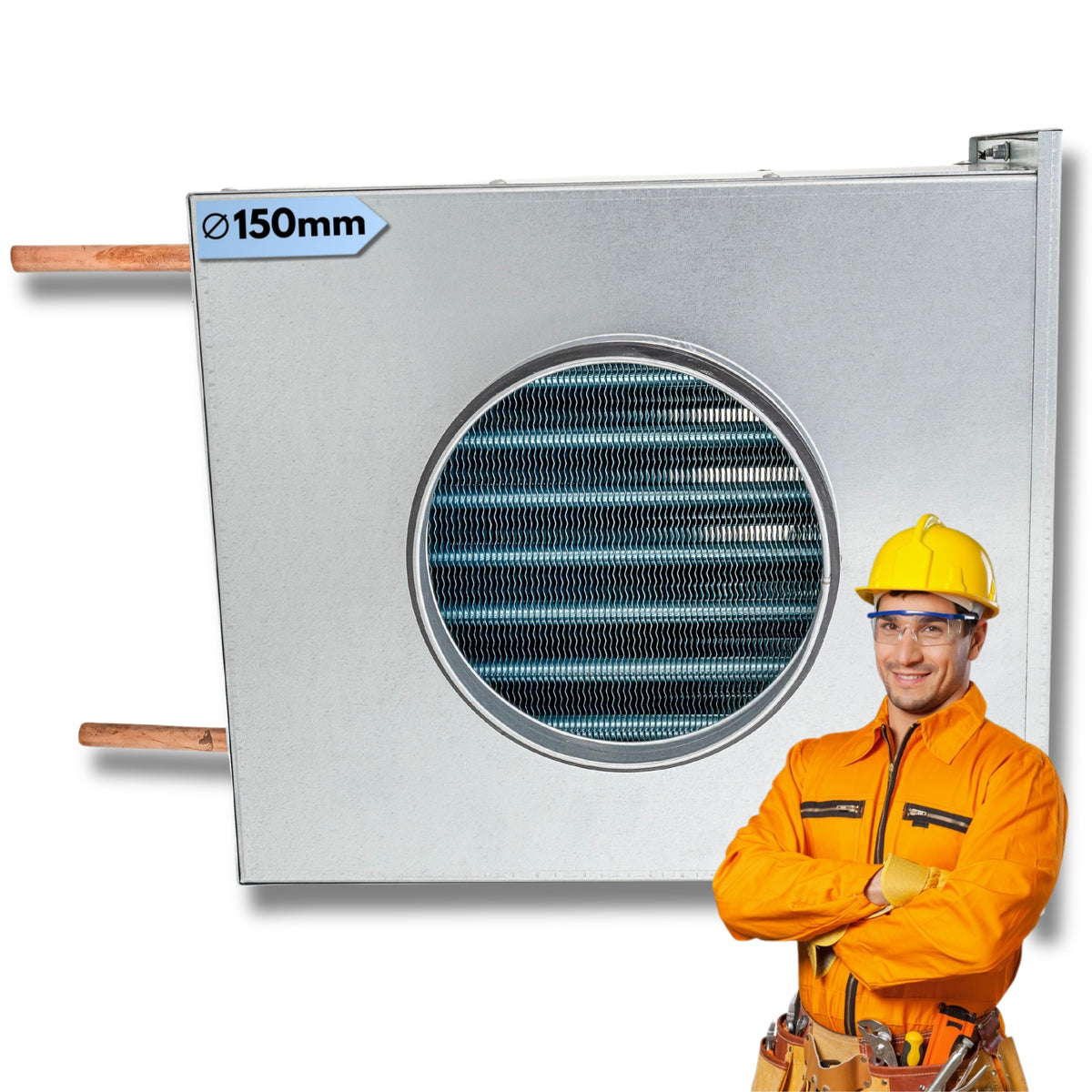

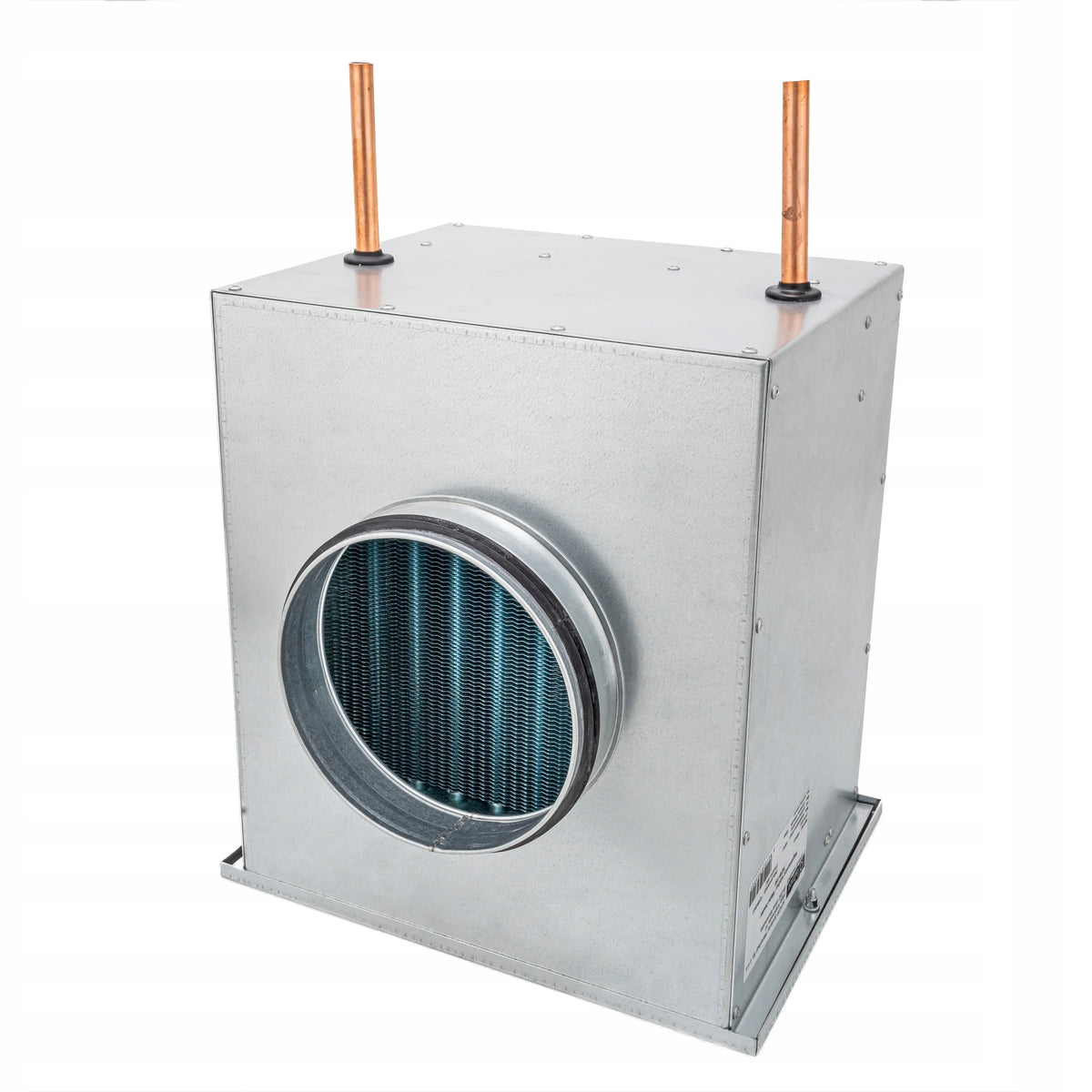

Vandens šildytuvas kanaliniam rekuperatoriui, Ø150 mm

Trumpai apie prekę

Prekė: Vandens šildytuvas kanaliniam rekuperatoriui, Ø150 mm. Kategorija: Oro šildytuvai.

• Gamintojas: Alnor
• Modelis: Nagrzewnica Wodna fi 150 Rekuperacja Ogrzewanie

Heater | Water Heating | Recuperation

DISCOVER THE BENEFITS OF HDW HEATER:

✅ HIGHLY EFFICIENT: Heats the air in ventilation and recuperation systems, providing heat where it is needed most.

✅ UNIVERSAL APPLICATION: Ideal for heating workshops, technical rooms and in combination with a fan.

✅ EASY INSTALLATION: Can be installed in any direction of air flow, with easy access to the exchanger for inspection and cleaning.

✅ HIGH QUALITY WORKMANSHIP: Made of the finest materials, ensures long-lasting and reliable operation.

APPLICATION OF HDW HEATER:

⏩ Air heating in ventilation systems.

⏩ Additional air heating in recuperation systems.

⏩ Heating workshop, technical rooms in combination with a fan.

❗ Find out where to use the water heater

⚡ TECHNICAL SPECIFICATION:

• Air Intake Diameter d: 150 mm
• Diameter of Water Stubs d1: 12 mm
• Material: Galvanized steel sheet housing
• Max Temperature: +150°C
• Max Pressure: 10 bar
• Heating Factor: Water

❓ SEE HOW TO INSTALL AN HDW WATER HEATER

• Ventilation channel vertical or horizontal (Provide air venting of the system)
• Any direction of air flow (Inlet / Outlet)
• The heater is closed with a lid, which allows control and cleaning of the exchanger.
• When installing Conex connectors, use 2 keys to properly counter and tighten the internal Oring

❗ PAY ATTENTION to how to correctly place the heater

❗ ACCURATE Specifications - CHECK Download

Specifications
