Vandens minkštinimo stotis LOGIQ SUPREME 35 visiems namams, UP-FLOW DLFR

Trumpai apie prekę

Prekė: Vandens minkštinimo stotis LOGIQ SUPREME 35 visiems namams, UP-FLOW DLFR. Kategorija: Filtrai ir vandens minkštikliai.

• Gamintojas: Supreme
• Modelis: LOGIQ SUPREME 35
• Talpa: 35 l

⭐⭐⭐⭐⭐

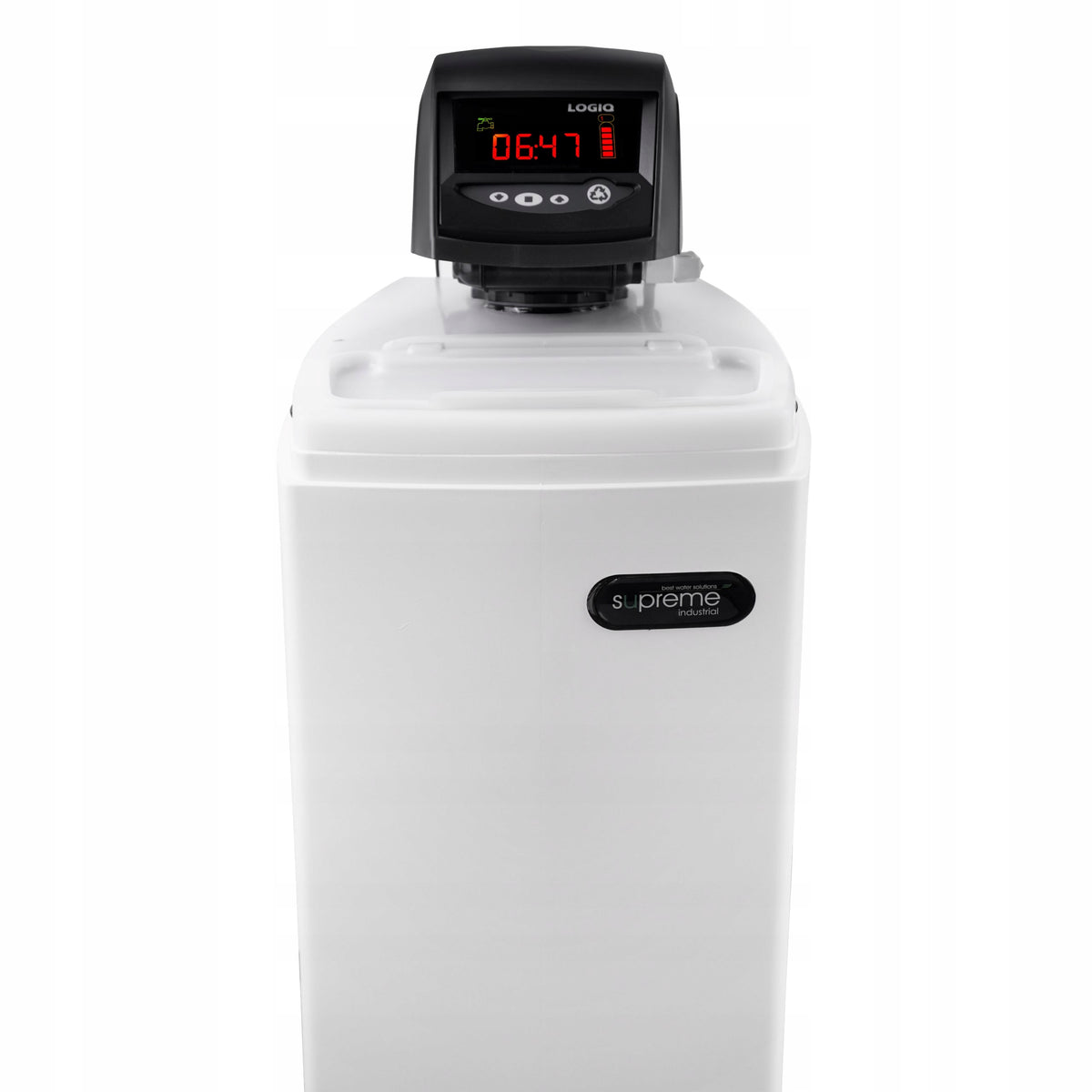

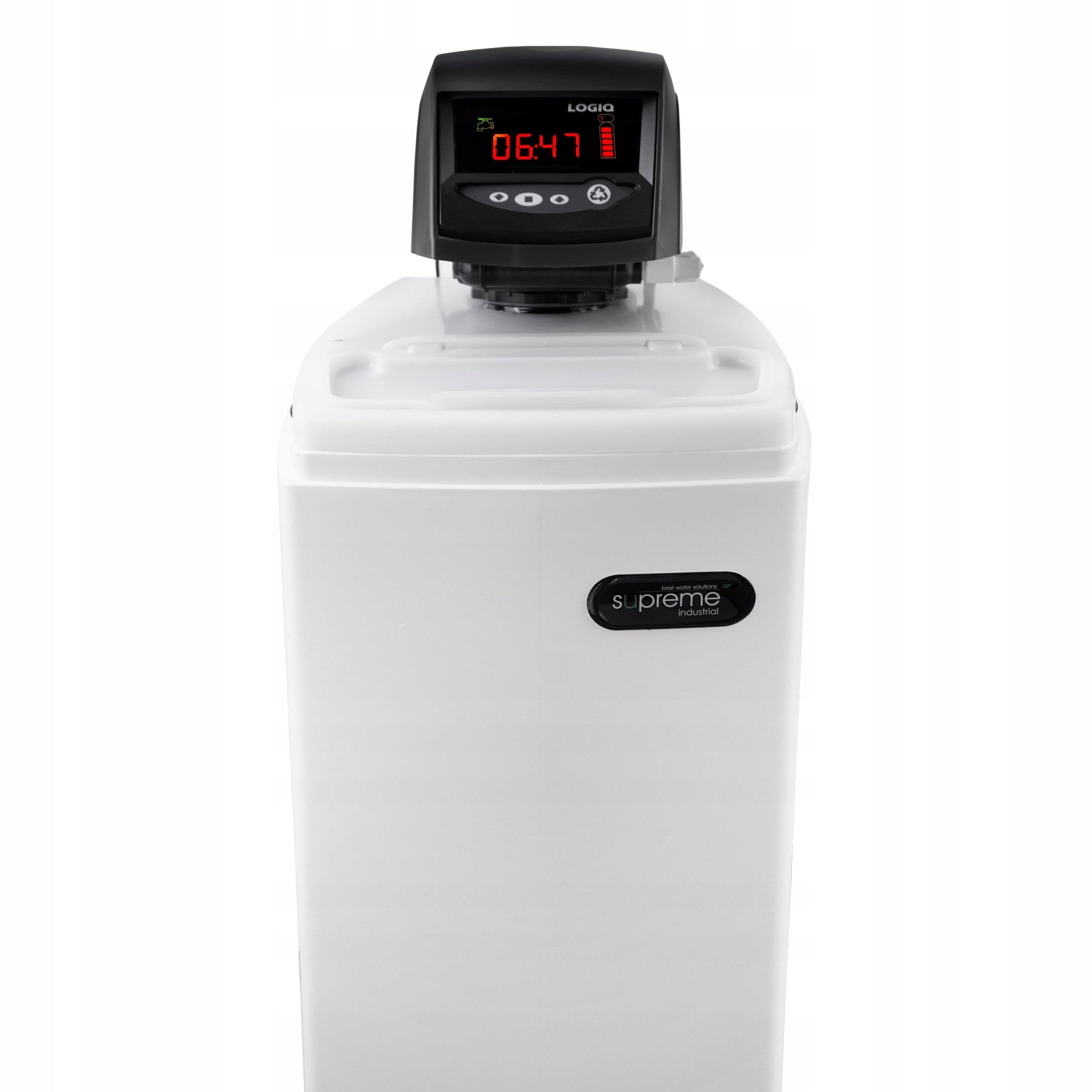

Water Softener SUPREME LOGIQ 35

It is an innovative water softener that combines the highest quality, economy and efficiency. Equipped with 35 litres of Lewatit monospheric resin, a compact Pentair housing and an advanced PERFORMA LOGIX 269 controller, it offers the best performance with minimal water and salt consumption. This makes it an ideal choice for demanding users who demand reliability and efficiency.

✅ Water and salt savings

✅ Long-term operation without failure

✅ Hygiene and safety

✅ Advanced additional features

✅ PENTAIR app

✅ Starter package included ⌛

✅ Characteristics

✔ Efficiency and savings

SUPREME LOGIQ 35 uses advanced UP-FLOW regeneration technology that minimizes water and salt consumption while providing excellent water softening. Thanks to the variable reserve function, regeneration is proportional to actual consumption, which increases savings.

✔ Highest quality components

The softener is equipped with Bayer's Lewatit monospheric resin, which is characterized by high durability and efficiency. The STRUCTURAL PENTAIR pressure cylinder guarantees long-lasting and trouble-free operation of the entire system.

✔ Hygiene functions

The device operates in dry tank mode, which eliminates the problem of salt clumping and increases hygiene. The possibility of installing a chlorator additionally ensures disinfection of the deposit, which is especially important with water from your own intake.

✔ Double rinsing system

Thanks to the DOUBLE FAST RESIN function, the SUPREME LOGIQ 35K quickly and efficiently flushes the resin, which allows for optimal use of the deposit and longer its life.

✔ Advanced driver

The PERFORMA LOGIX 269 PENTAIR controller offers many intelligent functions, such as SIMPLY START, TIME CONTROL, SALT ALERT or NOVARAM, which automate the operation of the softener and guarantee trouble-free operation even in the event of power outages.

✅ Brass water connection

The latest version of the SUPREME LOGIQ softener is equipped with the highest quality brass water connections that provide:

✔ Corrosion resistance

Brass is resistant to corrosion and rust compared to other materials. This can contribute to a longer lifespan of the water connection system.

✔ Durability

Brass is a material with high mechanical strength, which means it is resistant to mechanical damage and wear. Such durability may be important for water systems that undergo regular duty cycles and pressure changes.

✔ Security and ease of installation

Brass connections provide a durable connection to the water system, unlike plastic threads, they prevent the threads from breaking or twisting.

✔ Low toxicity

Brass is a material of low toxic risk, which is important for systems that supply water for consumption. Brass is safe for health and does not release harmful substances into the water.

✅ Savings and efficient operation thanks to additional functions

✔ SIMPLY START

The function allows you to quickly start the softener. The device automatically adapts to operating conditions after entering basic parameters, which facilitates configuration.

✔ TIME CONTROL

TIME CONTROL allows you to program the regeneration time, adapting it to the needs of the user. This ensures optimal management of the device.

✔ SALT ALERT

Possibility to activate the salt alarm (in the case of chlorator installation), which informs the user about the need to control the salt level and possible replenishment.

✔ NOVARAM

NOVARAM saves device settings in the event of a power outage, eliminating the need for reconfiguration.

✔ SUPER HYGIENIST

SUPER HYGIENIC prepares the salt solution just before regeneration, preventing salt clumping and ensuring a high level of hygiene.

These features make the SUPREME LOGIQ 35 economical, safe and convenient to use.

✅ UP-FLOW regeneration and DLFR system

The modern UP-FLOW regeneration system, deflector (DLFR) and variable reserve function minimize salt and water consumption in the regeneration cycle. The PERFORMA LOGIX 269 smart valve monitors water flow and performs proportional regeneration based on consumption from the last 4 weeks. The device operates in dry tank mode, which further increases hygiene and efficiency.

✅ LEWATIT S1567 monospheric resin

The SUPREME-LOGIQ system uses one of the best LEWATIT S1567 monospheric resins on the market with high ion exchange capacity. It can be used in homes, institutions, and industries, wherever water quality and hardness are crucial.

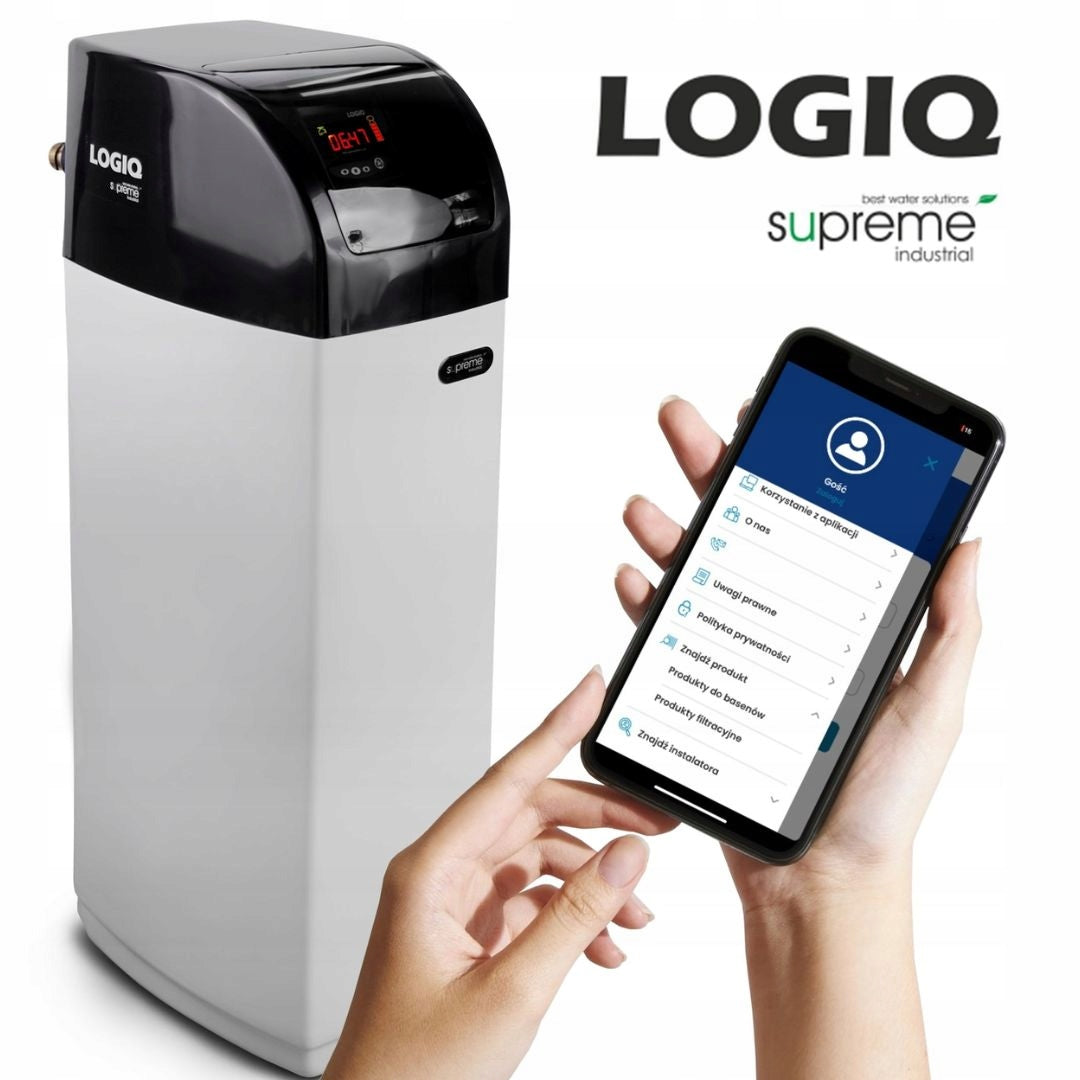

✅ Mobile application PENTAIR SCAN

Registration of the product in the PENTAIR SCAN application allows access to the latest technical information about PENTAIR products, including instructional videos. The PENTAIR SCAN application is a tool that significantly facilitates the management and maintenance of water softeners of the SUPREME-LOGIQ series, offering users convenient and quick access to key information and instructions.

⌛ The use of water softener such as SUPREME LOGIQ 35 brings a number of benefits for you and your home:

1 Protection of household appliances

Soft water prevents limescale build-up in appliances such as washing machines, dishwashers, boilers or coffee machines. Thanks to this, the equipment lasts longer and more efficiently, and also consumes less energy.

2 Reducing the use of detergents

Soft water increases the effectiveness of cleaning agents, which allows you to use smaller amounts of washing powders, dishwashing liquids or soaps. As a result, you reduce your home chemistry expenses.

3 Improved skin and hair condition

The soft water is gentler on your skin and hair, so they can look healthier. It can also help to reduce skin problems, such as dryness or irritation.

4 Increased comfort of water use

Soft water is more pleasant to the touch and leaves no residue on fittings, shower cabins or dishes. It is easier to keep your home clean without streaks or deposits.

5 Energy savings

The lack of limescale deposits in water installations and on the heaters of devices means that the heating efficiency does not decrease, which reduces energy bills.

6 Longer lifespan of water installations

Soft water protects pipes and other components of water installations from limescale deposition, which prevents their clogging and corrosion, and thus extends their service life.

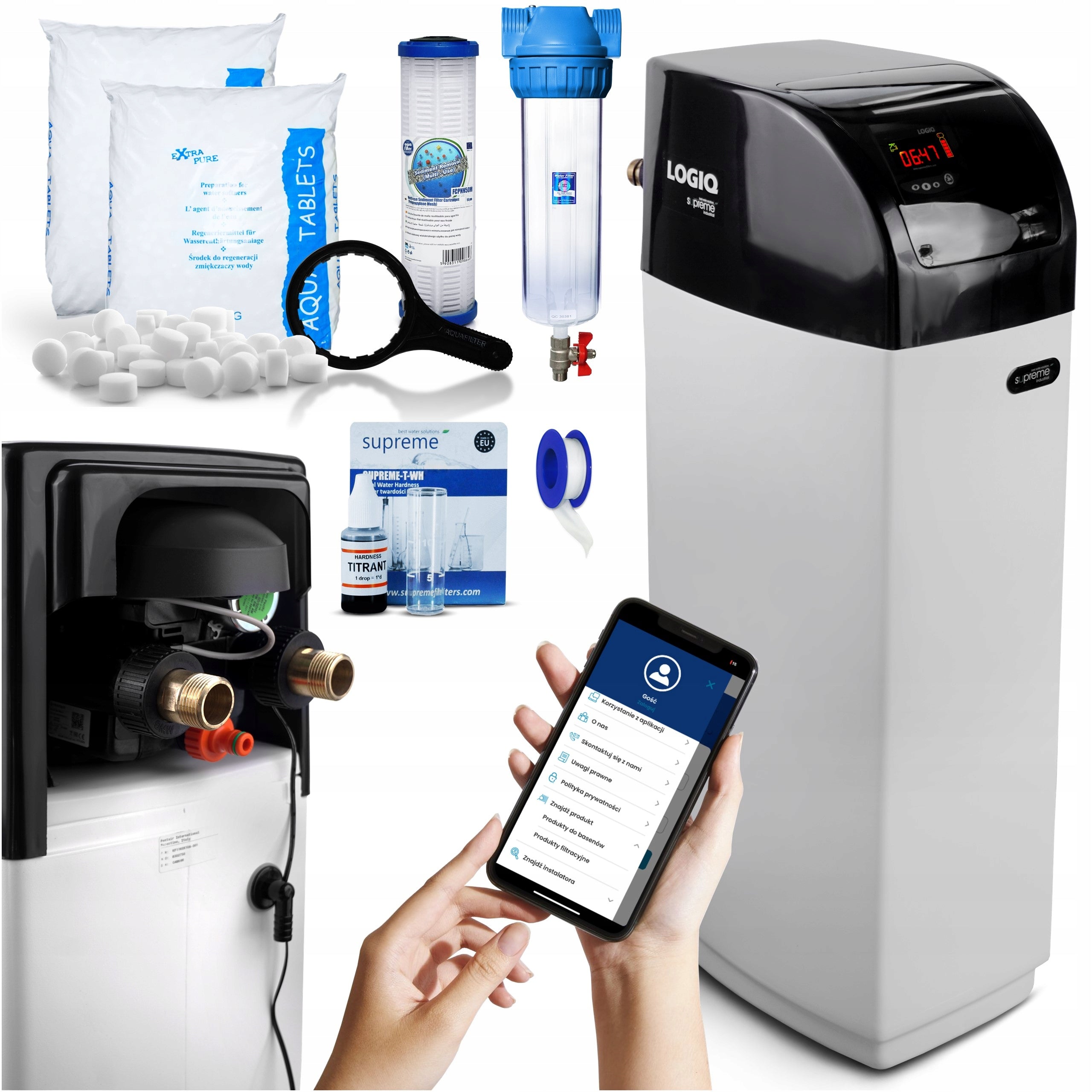

✅ Starter package:

✔ Pre-filter with FHPR-3V_R drain valve and reusable mesh insert.

A set mounted in front of the softener to improve water quality and thus protect the deposit contained in the softener.

Filter equipped with drain valve, allowing to flush the sludge from the filter without having to remove the cartridge.

Efficient reusable mechanical cartridge included. Nylon mesh captures contaminants such as sand, silt, suspensions, etc., preventing them from entering the further part of the water system. The cartridge practically does not cause pressure drops.

The possibility of rinsing the cartridge is an extremely economical solution compared to disposable mechanical filters, which should be replaced even every month and cause greater pressure drops.

Includes housing wrench, mounting plate and Teflon tape.

✔ 50 kg salt tablets AQUA TABLETS

Dedicated to water softeners. Free of mechanical impurities and odor. Specially developed formula prevents their clumping which is often the case with salt tablets from other manufacturers.

✔ Water hardness tester SUPREME

The droplet tester allows to accurately check the hardness of the water, providing a complete set for the test, including reagents, a test tube and an instruction manual.

✅ Technical parameters

• Bottle size (inches): 10 X 35
• Bed volume: 35 litres
• Maximum flow rate (m3/h): 3,5
• Amount of soft water between rege. at 15 OdH hardness (250 mg/l): 7,7 m3*
• Working pressure min./max.: 1,38 bar / 8,20 bar
• Working temperature of water min./max.: 1°C - 38°C
• Ambient temperature min./max.: 1°C - 49°C
• Electrical connector: 220-240V - 12V AC 50/60Hz
• Maximum power consumption: 8W
• Hydraulic connector inlet/outlet: external thread. 1” BSP
• BY-PASS valve: yes
• Raw water mixing: yes
• Recovery type (recommended): volumetric with the possibility of temporary operation and variable reserve function
• Recovery system: countercurrent UP-FLOW
• Type of deposit: special monospheric ion exchange resin
• Dry tank function: yes
• Possibility of installing a chlorator: yes
• Memory retention: 8 hours
• Washing water consumption for regeneration (at 3 bar): 137 litres
• Nominal interchangeable capacity: 115 m³x°d
• Salt consumption for regeneration*: 4,5 kg
• Type of regenerator: Tableted salt
• System dimensions (H x W x head) (mm): 1110 x 300 x 465
• System dimensions including workaround (H x W x head) (mm): 1110 x 300 x 560
• Inlet/outlet height (mm): 980
• Inlet/outlet height including bypass (mm): 980
