Vandens minkštiklis PURE 20+ 20L su by-pass ir LEWATIT MONOSPHERE

Trumpai apie prekę

Prekė: Vandens minkštiklis PURE 20+ 20L su by-pass ir LEWATIT MONOSPHERE. Kategorija: Vandens filtrai ir minkštikliai.

• Gamintojas: Polaqua
• Modelis: PURE 20
• Talpa: 20 l

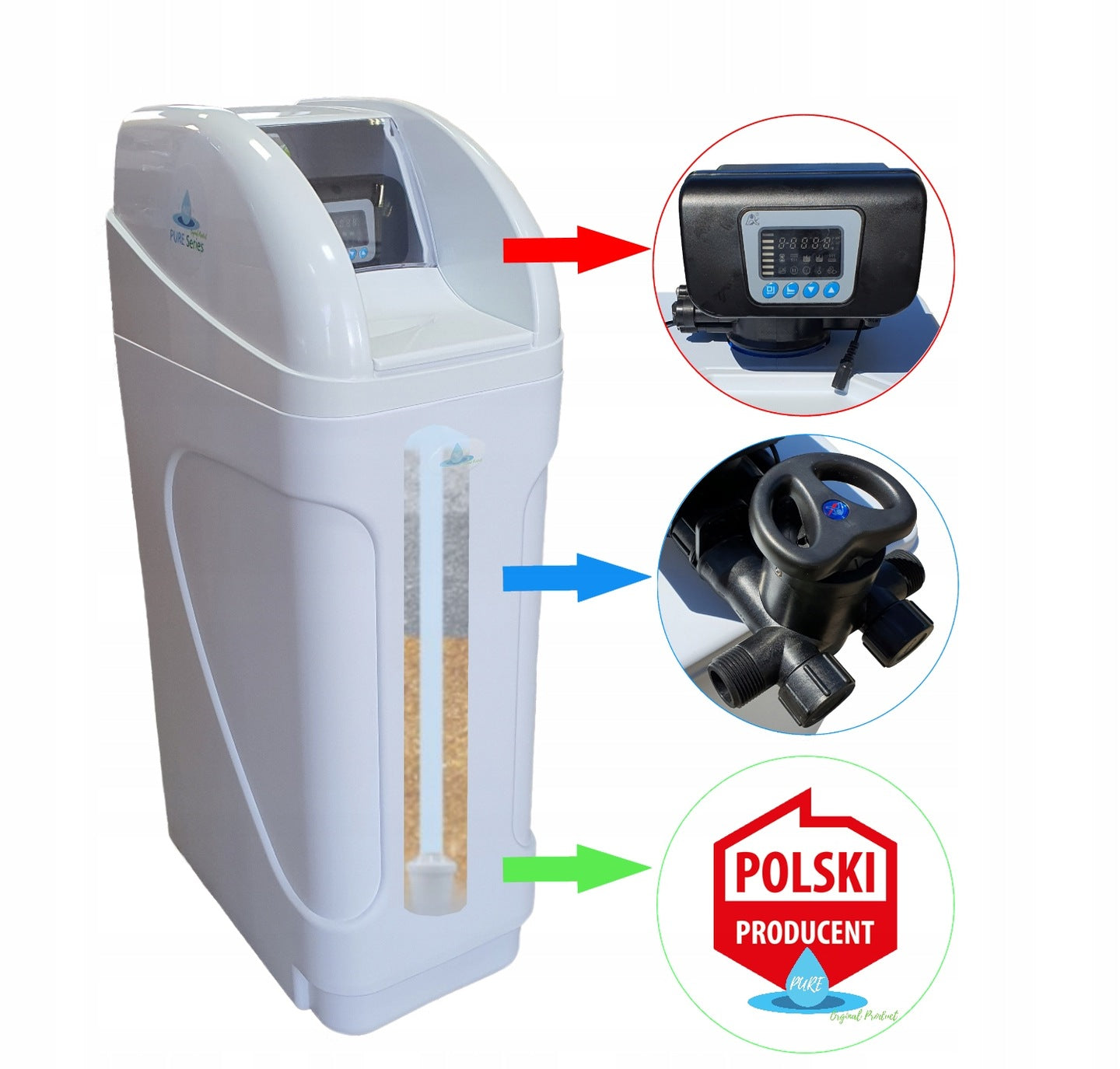

PURE 20+ is a modern, high-performance water softening device designed for households. PURE20+ is fully automatic and does not require user intervention in the water softening process. The system is equipped with an intelligent control valve and high-quality ion exchange resin. The capacity of 20 liters of deposit allows you to handle households with average family size (2 - 4 people), ensuring effective and economical operation of the device.

• Product of the Polish manufacturer: made in Poznań, using the highest quality materials.
• Extended manufacturer protection period, which includes*:
• 10 years for pressure cylinder and compact housing
• 7 years for a monospheric deposit,
• 4 years on the head,
• 3 years for float valve and power supply.

*in the case of a personal invoice, installation of a system for tap water and application in the form of mechanical filter protection. NOTE! FOR PROTECTION TO WORK, YOU DO NOT NEED TO CARRY OUT AN ANNUAL SERVICE.

Our device can be installed on its own, by any indicated plumber without losing warranty rights.

• assistance of a dedicated consultant of VILMART WATER SERVICE.
• selection of appropriate units based on your data on water consumption and hardness,
• assistance during the first commissioning of the station and during the period of use of the system.

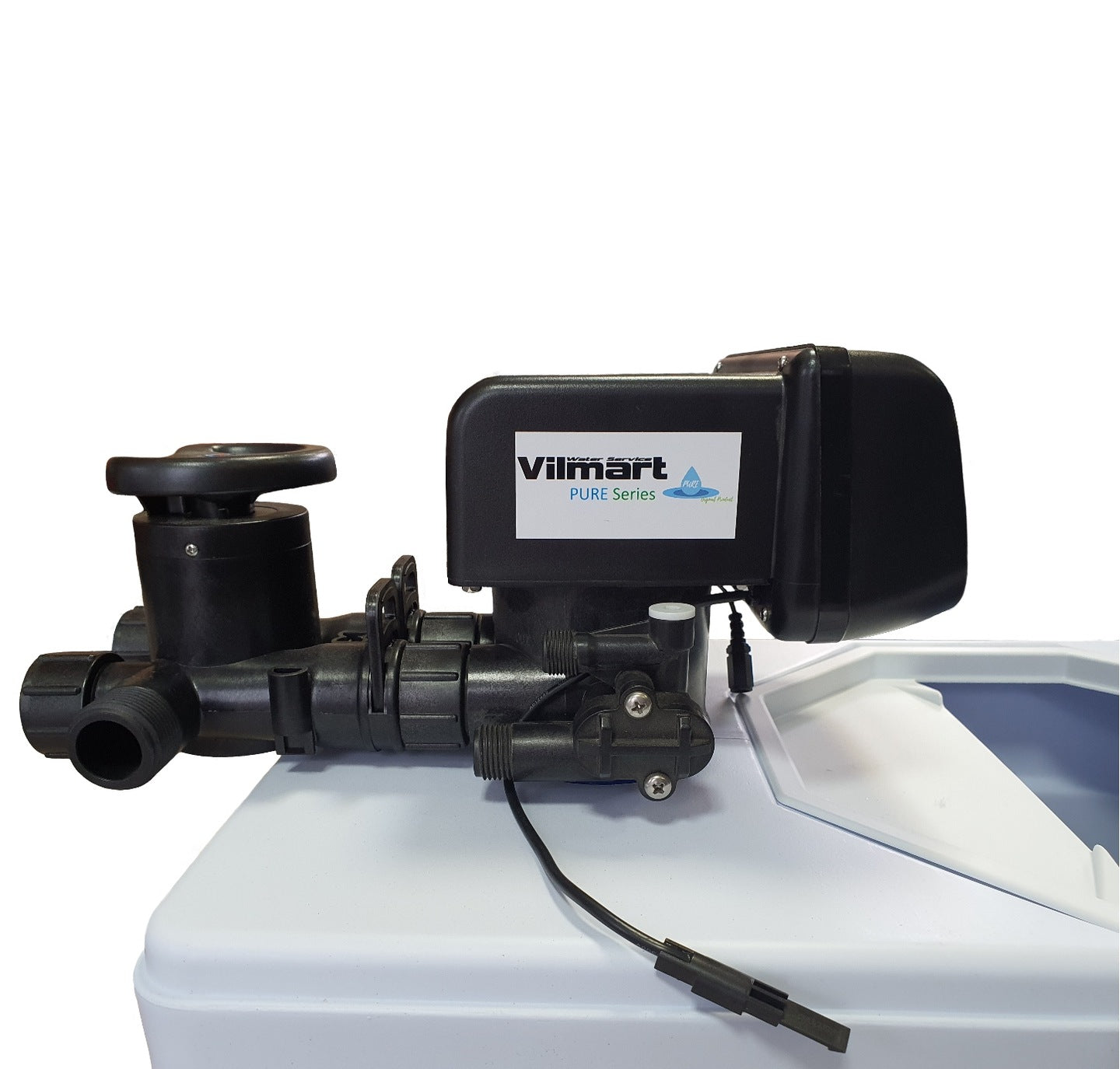

• High-quality control valve – the control head is made of high-quality materials resistant to pressure fluctuations, ensures stable operation of the entire device.
• Four bed regeneration modes – allow you to adjust the operation of the device to the individual needs of the user.
• IQ SOFT system – precise control of the hardness of treated water using a mixing valve.
• Excellent quality monospheric ion exchange resin: guaranteed service life of at least 10 years.
• High-quality compact housing, made in Italy – made of high-quality materials for long durability, resistant to corrosion.
• Original bypass valve (by-pass) – allows you to easily disconnect the device from the installation if necessary.
• The best, most efficient softening bed on the market with monospheric graining LEWATIT.
• Double anti-flood protection: The device as standard is equipped with a float valve that automatically shuts off the water supply to the brine tank and a "gravity" overflow line.
• Large salt tank opening: Convenient addition of salt tablets.

PURE20+ series, maximum water softening efficiency!

Meet the PURE20+ water treatment plant, is a modern solution for demanding users who expect reliability, savings and the highest quality soft water at home.

Thanks to the use of innovative monospheric bed, PURE station provides up to 4 m³ crystal soft water between regenerations (at a hardness of 15°dH). It’s a solution that combines performance, economy and durability in one device.

Why choose the LEWATIT monospheric bed.

• up to 10% more efficiency than traditional ion exchange deposits.
• 30% less salt and water consumption during the regeneration process, real savings every month.
• even flow of water and regenerate – a guarantee of constant quality of water softening.
• Exceptional chemical and mechanical resistance – longer life of the deposit and the entire device.

PURE+ is the choice for those who value comfort, economy and reliability in everyday use.

PZH Certificate: The water treatment stations of the PURE+ series have a hygienic certificate of the National Institute of Public Health PZH, which allows the product to come into contact with drinking water.

Only with us: free, lifetime technical support!

PURE+ series devices are created in Poland in a factory with 100% Polish capital. Each product before leaving the manufacturer’s factory is thoroughly tested and tested for possible leaks and technical defects. Each device is accompanied by:

• invoice: which is also a guarantee document,
• instruction manual,
• certificate with hologram: which confirms the originality of the product.
• instructions for assembly and commissioning of PURE devices.
• sticker on the side of the head with the manufacturer's name: confirming the origin of the head.
• hologram: is located on the opposite side of the head than the manufacturer's sticker.
• rated sticker: located at the top of the head with full distributor data.

Thanks to this, you can be sure that you are buying the original PURE20+ softener. Exactly the same hologram can be found on the control head.

Ladies and Gentlemen, below we present a table on the basis of which you should set the amount of water between regenerations. Just enter the amount of m3 into the head and the device will automatically set individual intervals without your interference.

• 10 OdH (179,00 CaCO3 mg/l) - 5,70 m3
• 11 OdH (196,90 CaCO3 mg/l) - 5,18 m3
• 12 OdH (214,80 CaCO3 mg/l) - 4,75 m3
• 13 OdH (232,70 CaCO3 mg/l) - 4,38 m3
• 14 OdH (250,60 CaCO3 mg/l) - 4,07 m3
• 15 OdH (268,50 CaCO3 mg/l) - 3,80 m3
• 16 OdH (286,40 CaCO3 mg/l) - 3,56 m3
• 17 OdH (304,30 CaCO3 mg/l) - 3,35 m3
• 18 OdH (322,20 CaCO3 mg/l) - 3,16 m3
• 19 OdH (340,10 CaCO3 mg/l) - 3,00 m3
• 20 OdH (358,00 CaCO3 mg/l) - 2,85 m3
• 21 OdH (375,90 CaCO3 mg/l) - 2,71 m3
• 22 OdH (393,80 CaCO3 mg/l) - 2,59 m3
• 23 OdH (411,70 CaCO3 mg/l) - 2,47 m3
• 24 OdH (429,60 CaCO3 mg/l) - 2,37 m3
• 25 OdH (447,50 CaCO3 mg/l) - 2,28 m3
• 26 OdH (465,40 CaCO3 mg/l) - 2,19 m3
• 27 OdH (483,30 CaCO3 mg/l) - 2,11 m3
• 28 OdH (501,20 CaCO3 mg/l) - 2,03 m3
• 29 OdH (519,10 CaCO3 mg/l) - 1,96 m3
• 30 OdH (537,00 CaCO3 mg/l) - 1,90 m3

• OdH - unit of water hardness degree expressed in German degrees.
• CaCO3 - unit of water hardness degree (most commonly found on the Polish market) expressed in mg/l.

TECHNICAL SPECIFICATION:

• Control head RX116A3+B
• Housing Type: MIDI, 10x30 inch cylinder
• Amount of softening resin: 20 liters of LEWATIT monospheric resin
• Dimensions of the device (width. x D. x H ): 320 x 520 x 1010 mm
• Inlet/outlet height(mm): 800
• Operating pressure min/max (bar): 1,5 / 6,0
• Operating temperature min/max (°C): 2 - 48 °C
• Electrical connector (V/Hz): 220-240/50-60
• Hydraulic connection (inch): 1” BSP
• Salt consumption for regeneration (kg): 3,5
• Recommended maximum working flow (m3/h): 1,7
• Control Type: Electronic - Volumetric
• BYPASS and Raw Water Mixing: YES
• Type of regenerator: Pastel salt
• Max. Salt storage capacity (kg): 80,0

Safe, FREE transport on pallet, delivery guarantee without damage.

When deciding to buy a water softener or other larger device, it is worth taking care of its safe delivery. That is why we ship our products on a pallet. This ensures that your equipment arrives intact.

During traditional courier shipping (e.g. in packages, the devices are repeatedly reloaded – from the car to the sorting room, from the conveyor belt to the next car, and along the way exposed to drops, bumps and crushing with other packages. This is when mechanical damage occurs most often.

• No multiple reloading – the pallet with the device is loaded and unloaded in its entirety, without the need to change or move.
• Stable protection – the product is immobilized, wrapped in stretch film and additionally protected against displacement.
• Protection against crushing – the device does not go to the conveyor belt or is laid under other packages.
• Professional service – pallet transport is treated as a size, so drivers and warehousemen handle them more carefully.

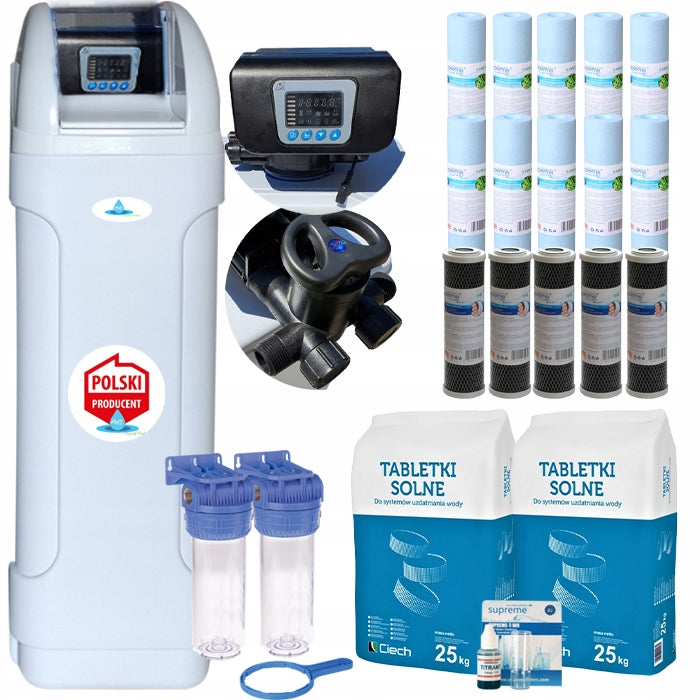

• 2 x pre-filter mounted in front of the station: In-line body with 3/4” or 1″ connection.
• 10 x foam cartridge, bacteriostatic SUPREME: Polypropylene fiber cartridge, is designed to reduce mechanical impurities, such as sand, fine suspensions, corrosion products, impurities washed out of the surface of hydraulic installations, fats. 10 pieces are enough for up to 5 years of use (depending on the quality of tap water - in the case of replacement of the cartridge every 6 months).
• 5 x SUPREME carbon cartridge: Carbon block made of the highest quality sintered activated carbon, which stops impurities such as chlorine, chlorinated compounds, organic compounds and other deposits without reducing water pressure. Improves the taste and smell of water. 5 pieces are enough for up to 2,5 years of use (depending on the quality of tap water - in the case of replacement of the cartridge every 6 months).
• 50 kg tableted salt (2 bags): The highest quality product designed for the regeneration of softening devices.
• 5 mb. flexible hose rinses: 5 mb. hose to power two drain lines.
• SUPREME water hardness tester: Professional droplet tester to test water hardness. The kit contains all the necessary elements to perform the test. It is used to confirm the correctness of the device or to adjust the hardness of the water. With one tester, you can perform several water tests.
