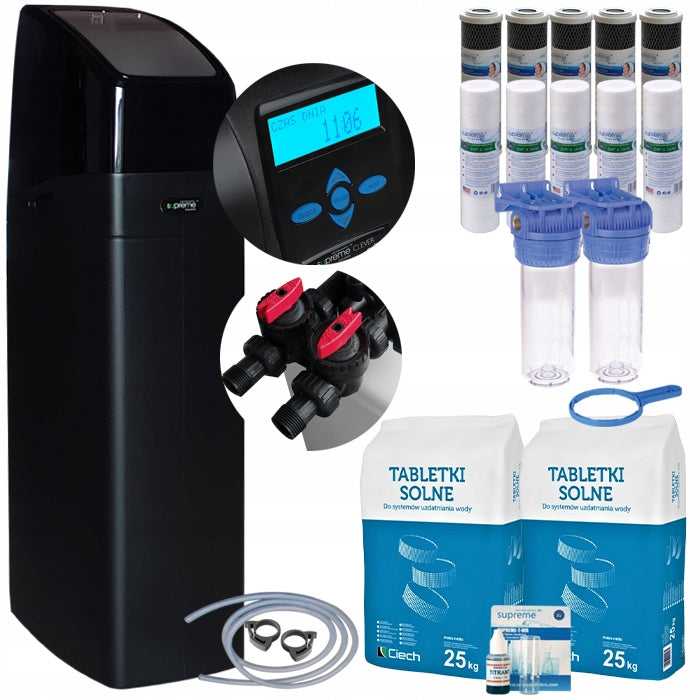

Vandens minkštiklis CLEVER 30K_MN, sausas bakas, up-flow, druskos signalas

Trumpai apie prekę

Prekė: Vandens minkštiklis CLEVER 30K_MN, sausas bakas, up-flow, druskos signalas. Kategorija: Vandens filtrai ir minkštikliai.

• Gamintojas: Supreme
• Modelis: SUPREME CLEVER 30K_MN
• Talpa: 30 l

The SUPREME CLEVER series water softeners are a modern line of devices that have been equipped with a professional and reliable control valve "CLACK WS1CK / USA" with the regeneration system "UPFLOW", dry tank function and in Polish.

Advantages:

• Extended manufacturer's warranty*:
• 10 years for pressure vessel, compact housing and top cover,
• 5 years for control valve and mechanical parts,
• 2 years for driver circuit board, power supply and brine float valve.

• High quality of workmanship,
• Professional, electronic, volumetric control valve "CLACK WS1CK" with regeneration system UP-FLOW and menu in Polish,
• High-performance monospheric resin PURE SOFT MONO by BWG Components,
• Mixing valve "MIXING",
• Dry tank function,
• High-quality pressure cylinders from BWG
• Internal NOVARAM memory, allowing you to maintain dynamic memory in the absence of power,
• BY-PASS valve,
• Low salt alarm,
• Efficient bottom basket distribution system equipped with a special deflector (DFLR),

*in the case of installation of a system for tap water and use in the form of mechanical filter protection and warranty service once a year, does not apply to companies.

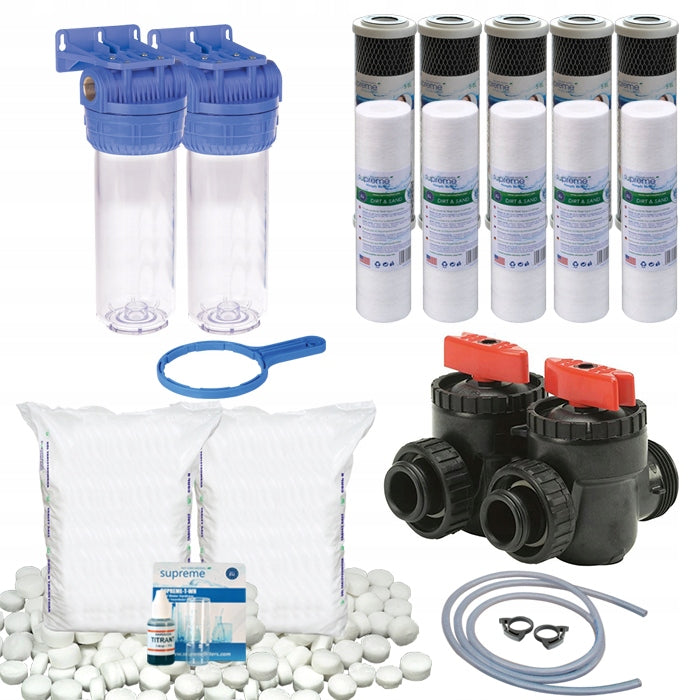

On sale offered in a set, with additional equipment:

• 2 in-line sets: in-line body with plate and key.
• original BY-PASS valve.
• additional 5 pcs. Supreme foam cartridges (stock for several years). Cartridges effectively remove, any mechanical impurities, solid parts often detached from old installations, suspension.
• 5 pcs. high quality carbon cartridges by Supreme. Cartridges effectively reduce chlorine, organic substances, pesticides while improving the taste and smell of water
• 1 pc. Branded, accurate, droplet water hardness tester by Supreme
• 50 kg (2 bags) tablet salt
• 5 mb. flexible hose for draining rinses
• 2 x Hose Mounting Clip.

The modern control head is made of stainless elements, resistant to UV radiation. The driver body is made of high-quality materials. The CLACK WS1CK control head has unique solutions that other controllers do not have, and which ensure safe operation of the head and the entire device. The CLACK WS1CK operating system is based on an innovative piston system.

The CLACK WS1CK controller is equipped with an internal NOVARAM memory that supports dynamic memory settings and a "MIXING" mixing valve with which you can set the hardness of the output water.

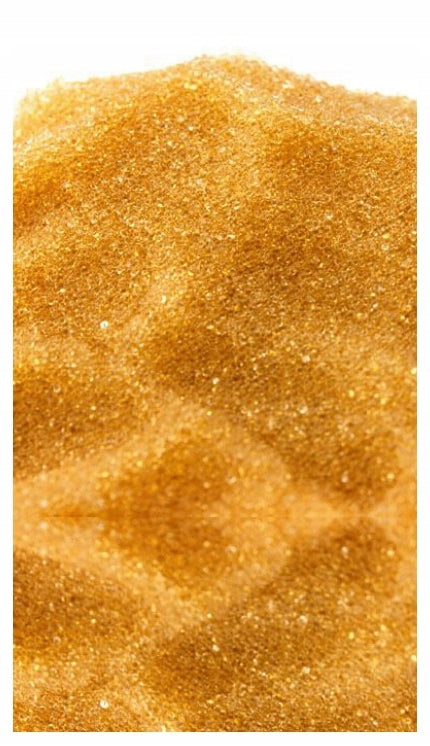

The SUPREME CLEVER series softeners use probably the best PURE SOFT MONO monospheric ion exchange resin on the market by BWG Components. PURE SOFT MONO exhibits much better, faster rinsing properties, which makes it wear out more slowly. During countercurrent regeneration “UP-FLOW”, brine solution is fed to the “bottom up” bed. At the bottom of the column there is mainly a deposit with a small amount of water, so there is no dilution of the brine solution. The brine solution is used slowly and evenly, regenerating the bed very thoroughly from the least to the most used.

SUPREME CLEVER series systems can be installed in homes, public utility institutions, industry and wherever water quality and its “hardness” matter.

Modern "UP-FLOW" regeneration system, deflector system (DLFR) causes SUPREME CLEVER series systems to consume small amounts of salt and water throughout the regeneration cycle.

The SUPREME CLEVER series operates in the mode i.e. "dry tank". This mode of operation ensures that the salt solution is prepared by the device in advance (before the regeneration of the deposit itself). This solution is aimed at eliminating the phenomenon of "salt clumping", and ensuring the highest possible standards of hygiene.

The SUPREME CLEVER systems use a modern, unique distribution system based on the operation of the deflector (DFLR). Thanks to the DFLR system, water flows through the entire surface of the deposit, increasing the efficiency of water softening and even use of the entire ion exchange resin.

The SUPREME-CLEVER series systems are equipped with a BY-PASS valve as standard. With the BY-PASS valve, maintenance work can be carried out without blocking the supply of raw water to the installation.

Technical specification:

• Type: COMPACT
• Bottle size: 10x35
• Bed volume: 30 dm3
• Working pressure min./max.: 2,0 bar / 8,0 bar
• Working temperature of water min./max.: 1°C - 38°C
• Ambient temperature min./max.: 4°C - 49°C
• Electrical connector: 230V - 50Hz
• Hydraulic connector inlet/outlet: external thread. 1” BSP
• Valve type: CLACK WS1CK
• BY-PASS valve: Yes
• Control type: Electronic
• Raw water mixing: Yes
• Recovery type (recommended): Volume delayed
• Recovery system: Countercurrent UP-FLOW
• Type of deposit: High-performance resin with monospheric graining
• Leaching water consumption for regeneration (at 4 bar): 185 l
• Nominal replacement capacity for polyspheric resin: 99 m³x°d
• Salt consumption for regeneration: 3,75 kg
• Type of regenerator: Tableted salt
• Memory retention: 8 hours
• approximate quantities, performance depends on operating conditions and water quality.

Dimensions:

• System dimensions (H x W x head) (mm): 1200 x 300 x 500
• Depth of system including bypass (mm)[3]: 550
• Inlet/outlet height (mm): 960
• Inlet/outlet height including bypass (mm): 960

*measurement error tolerance, +/- 20 mm.
