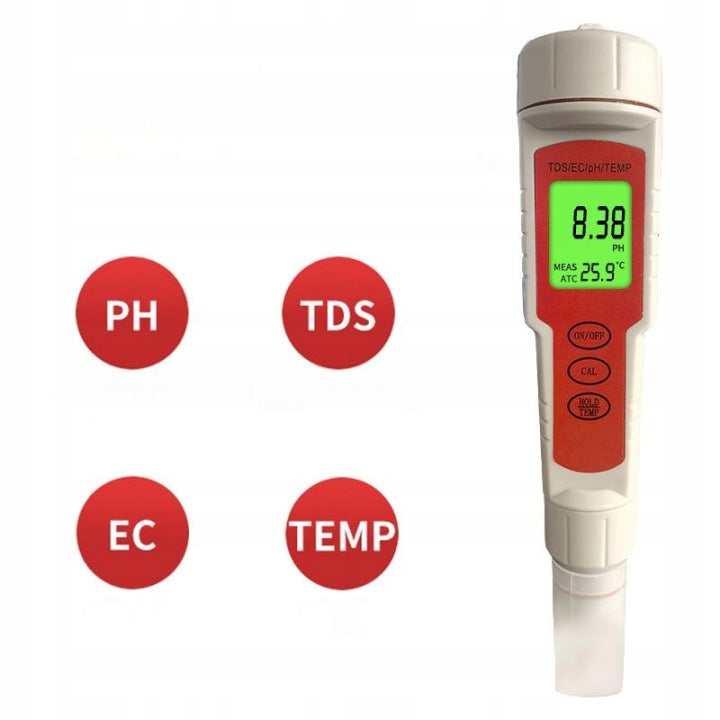

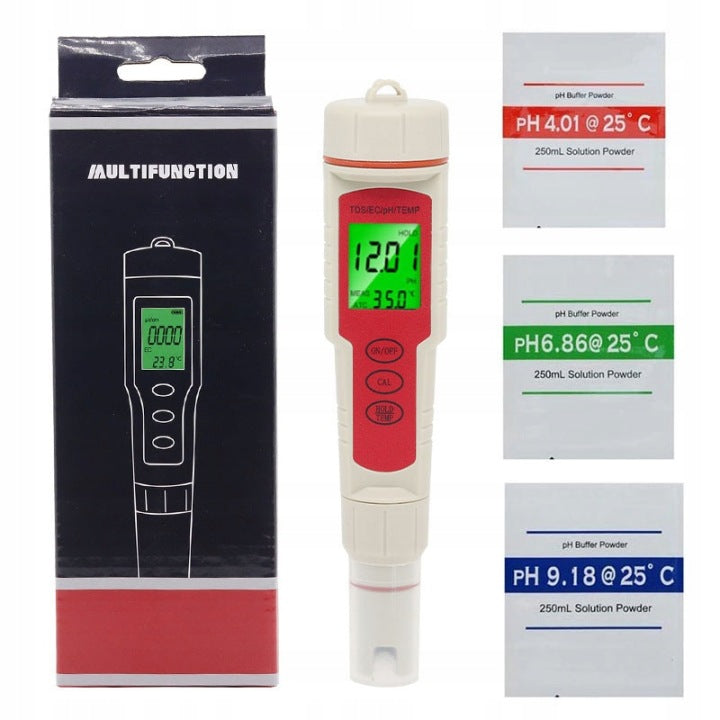

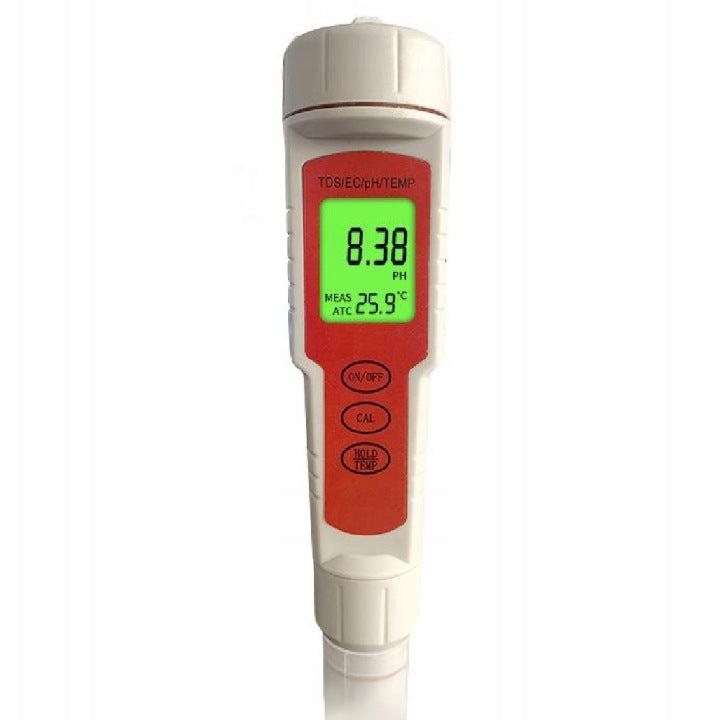

Vandens kokybės matuoklis PH, TDS, EC, temperatūra 4-in-1

Trumpai apie prekę

Prekė: Vandens kokybės matuoklis PH, TDS, EC, temperatūra 4-in-1. Kategorija: Atvirkštinio osmoso sistemos.

• Gamintojas: no brand
• Modelis: TPH01139A

Comprehensive analysis of water quality in one device:

✓ pH – acidity/alkalinity (range 0 to 14)

✓ TDS – total content of dissolved solids (ppm)

✓ EC – electrical conductivity (μS/cm)

✓ TEMP – water temperature (°C/°F)

One device replaces four separate testers. Fast, precise and in-depth control of water parameters – essential for aquarists, plant breeders, swimming pools and filtration systems.

PH——Analyze the pH of the water

TDS——analyze water purity

EC——analyze water salinity

TEMP——Analyze water temperature

• Press MODE/CAL to switch PH FDS EC
• Press HOLD/TEMP to switch temperature °C °F

📋 DRINKING WATER STANDARDS (at 25°C):

• pH: 7,0 – 8,5 (optimal, slightly alkaline)

• TDS: ≤300 ppm (acceptable up to 500 ppm)

• EC: 1 to 4 mS/cm (corresponds to low mineralization)

⚠ Reference measurements performed at 25°C.

Temperature fluctuations affect the values of all parameters.

IP67 waterproof, providing all-round protection, no need to worry about water getting into your device!

Clear, backlit large LCD screen, the reading is clear at a glance!

• 🔬 PROBE DESIGN:

  Multi-sensor measuring head integrates:

  • Hydrophobic glass pH electrode (Hygrogen-sensitive glass)

  • EC/TDS conductivity sensor (graphite)

  • Temperature thermistor (ATC)

  Design advantages:

  ✓ Electrochemical and mechanical stability

  ✓ High wear resistance (durability >2 years with proper operation)

  ✓ Accuracy confirmed by factory calibration

🎯 APPLICATIONS:

The device is intended for home and professional use in the following areas:

• 🐠 Aquaristics (freshwater and marine)
• 💧 Drinking water and filtration
• 🏊 Swimming pools and spa
• 🌱 Aquaponics and water plant breeding
• 🏭 Water processing (semi-industrial)

and other applications requiring control of water parameters.

⚖ WEIGHT AND DIMENSIONS:

Weight: 100 g (0,1 kg) – extremely light and portable

Ideal for field work, travel, and everyday use

⚠ IMPORTANT CALIBRATION INFORMATION:

📊 Automatic calibration:

• TDS, EC and temperature – factory calibration, brak need for user intervention

🔧 Manual calibration (ONLY pH):

• pH electrode requires periodic manual calibration – this is an industry standard

• Follow the step-by-step instructions (included)

🎥 Video support (Calibration guide with subtitles):

https://youtu.be/n63gHKBR_HU

⚠ SPECIAL NOTE ABOUT THE PROBE:

The pH probe is highly sensitive and responds immediately to changes in the environment.

When removed from the measuring water, it displays the value of the current environment –

This is the normal behavior of the electrode, not a defect of the device.

📊 TECHNICAL SPECIALIZATION:

• Color: red

⚠ New packaging may be slightly different from the presentation in the picture

📏 MEASURING RANGES:

• pH: 0,00 – 16,00

• TDS: 0 – 19 900 ppm

• EC: 0 – 19 990 μS/cm

• Temperature: 0,1 – 60,0°C / 32,0 – 140,0°F

🔍 RESOLUTION:

• pH: 0,01

• TDS: 1 ppm

• EC: 1 μS/cm

• Temperature: 0,1°C / 0,1°F

🎯 ACCURACY:

• pH: ±0,01

TDS/EC: ±2%

• Temperature: ±0,5°C

🔋 POWER SUPPLY:

• Batteries: 3× LR44 1,5 V (lozenge type)

• Includes: 3 pcs. battery (including 1 spare set)

• Note: In the absence of power after receiving the shipment, replace the batteries with spare batteries from the included set

⚙ FUNCTIONS:

• pH calibration: automatic three-point (buffers: 4,00 / 6,86 / 9,18)

• TDS/EC calibration: not required (factory)

• Temperature compensation: ATC (automatic)

• Automatic shutdown: after 5 minutes of inactivity

🌡 WORKING CONDITIONS:

• Ambient temperature: 0 to 60°C

📄 DOCUMENTATION:

• User Manual: English

Specifications
