Vandens filtro korpusas SUPREME Big Blue 10", 1" jungtis, plokštelė, raktas

Trumpai apie prekę

Prekė: Vandens filtro korpusas SUPREME Big Blue 10", 1" jungtis, plokštelė, raktas. Kategorija: Filtrai ir vandens minkštikliai.

• Gamintojas: Supreme
• Modelis: H103-10BB-SET1
• Talpa: 0 l

ADVANTAGES:

• Excellent build quality,
• Compatible with most cartridges: mechanical, carbon, specialized series 10 Big Blue, available on the market,
• Equipped with a vent valve that releases the accumulated air in the body after replacing the filter cartridge,

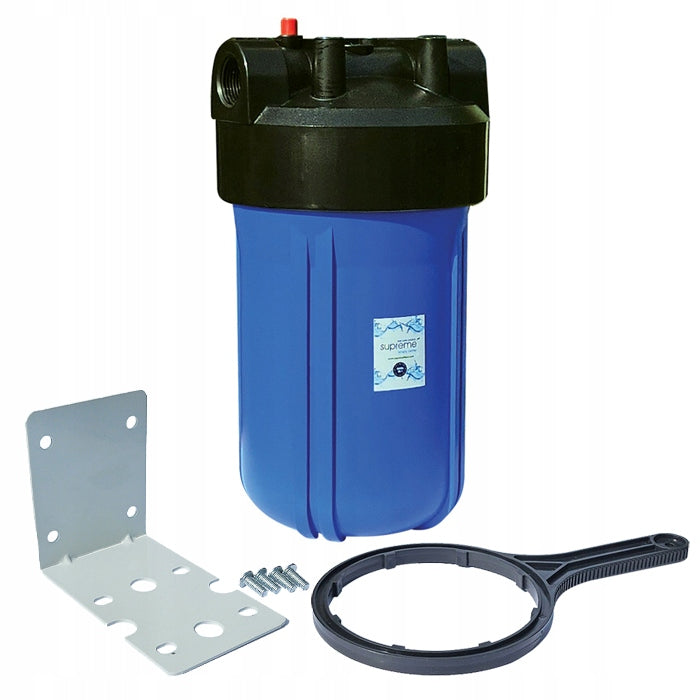

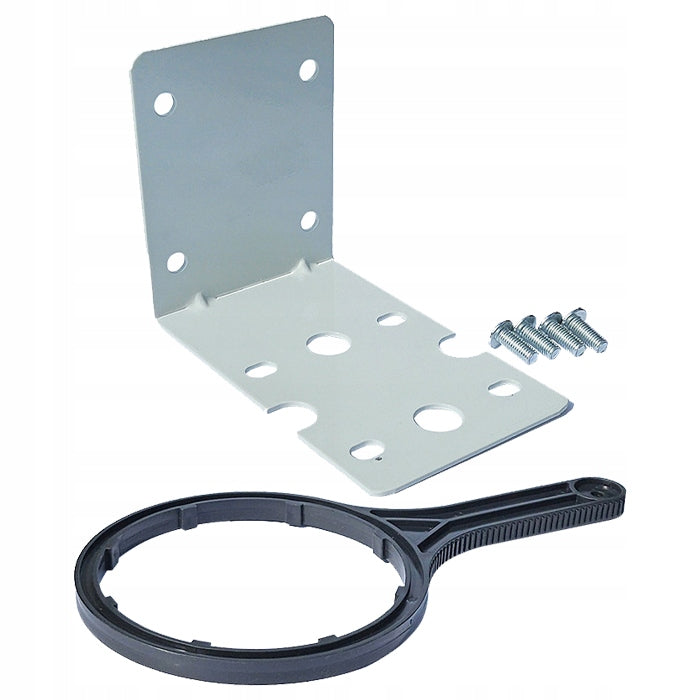

• Set includes: 10" Big Blue in-line body in black/blue key, mounting plate and screws,

H103-10BB-SET1: 10" in-line set type BIG BLUE, brand SUPREME. It consists of two parts of the lampshade and a head with a 1" thread. It is equipped with a vent valve that allows you to release the air stored in the filter after replacing the cartridge. The body can be mounted individually or connected in series. installed on a pipe supplying cold water to the house or apartment. H103-10BB-S01 is equipped with double O-ring sealing. The blue lampshade protects the cartridge from UV rays and from harmful photosynthesis processes.

H103-10BB-SET1 installed in front of the devices: softener, iron remover or boiler, perfectly protects them against the deposition of various types of contaminants, while increasing their service life.

Technical information:

• body material: polypropylene,
• head material: polypropylene,
• O-ring material: 2 x EPDM,
• max. working pressure: 6 bar,
• operating temperature: 2°C - 40°C,
• Thread diameter: 1",
• cartridge sizes: 9 7/8" x 4 1/2" (approximately 50,8 cm x 11,5 cm),
• dimensions (H) x W ): 347 mm x 182 mm
