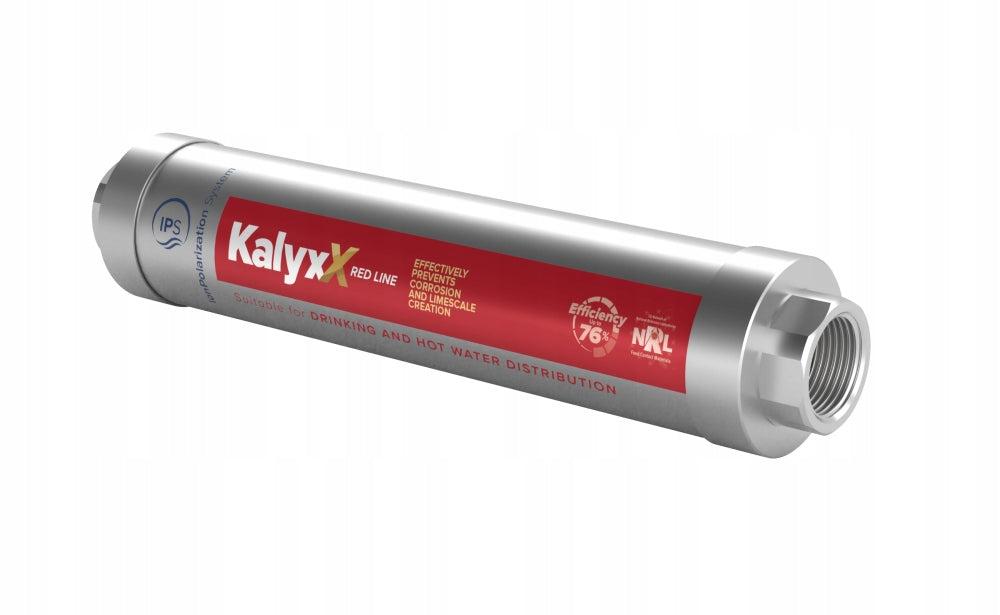

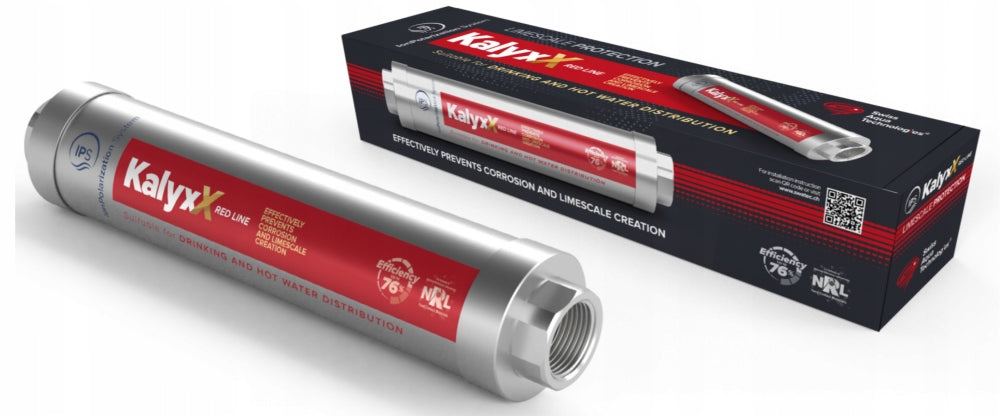

Vandens filtras Quadron Kalyxx IPS Red Line G 3/4" karšto vandens cirkuliacijai

Trumpai apie prekę

Prekė: Vandens filtras Quadron Kalyxx IPS Red Line G 3/4" karšto vandens cirkuliacijai. Kategorija: Filtrai ir vandens minkštikliai.

• Gamintojas: SWISS AQUA TECHNOLOGIES
• Modelis: Kalyxx Red Line G 3/4"
• Talpa: 99999 l

IPS (Ion Polarization System) is designed for physical-galvanic water treatment. It is a flow device with water input and output. Inside are specially designed electrodes (these are not magnets) made of two materials with different electrolytic conductivity.

This design forces spinning, turbulent water flow. The solution is based on the innovative patented TGP® (Turbulent Galvanic Polarization) technology, which changes the structure of minerals in water, preventing the formation of hard crystalline deposits (boiler stone). The device works WITHOUT chemicals and WITHOUT external energy.

The device is designed primarily for hot water circuits. Its main task is protection of heating boilers, water tanks and flow heaters against the harmful effects of boiler stone, which is deposited annually in hot water installations.

IPS KalyxX RedLine is designed for households, public facilities, restaurants, hotels, production and service plants. It reliably works when used before heat exchangers in heating and cooling systems (e.g. air conditioning).

IPS can be used both in new water circulation systems, as well as in old ones, where the device will systematically remove existing deposits.

• Proven effectiveness in reducing boiler stone - 76% (certified by IAPMO).
• The innovative patented TGP® (Turbulent Galvanic Polarization) technology.
• Action WITHOUT chemicals and WITHOUT external energy.
• Works with any type of water heater.
• Eliminates the need for descaling tankless heaters.
• Prolongs the life and efficiency of heating devices.
• Does not affect water pressure (verified hydraulic properties - TSI report).
• Simple installation and no maintenance required.
• Can be connected directly to copper and plastic installations (easily adapts to PEX pipes).
• Sturdy body (stainless steel 1.4301) and internal components - 5 years warranty.
• Certified for long contact with drinking water (NRL certificate, IAPMO certificate - lead-free NSF/ANSI 372, TÜV test).
• Environmentally friendly.

1. Water meter
2. Water valve
3. Mechanical filter
4. IPS KalyxX BlueLine, RedLine, GreenLine
5. Settlement of sludge
6. Circulation pump
7. Solenoid valve
8. Irrigation nozzles

When installing IPS it is necessary

Laying the device according to the direction of water flow (FLOW DIRECTION), which is marked with arrows on the IPS body.

Compliance with this condition affects the proper functioning and performance of the device.

In systems where KalyxX IPS is installed, built-in ion converters, electromagnetic systems or devices using external voltage must not be used.

IPS devices are classified for 1МРа (10 bar). Pressure losses are negligible.

IPS KаlуxX is an eco-friendly product. It works efficiently and reliably for about 10 years without:

• External energy source
• Services
• Operating costs
• Chemistry
• Magnets

Quadron Poland is a company established and created by enthusiasts – people with extensive market experience in the wet zone products industry in home kitchens. We are proud of our professional achievements so far, and we improve and develop all the best experiences, including product ones, in our daily work for the Quadron brand.

The daily pursuit of meeting customer expectations is not only our work, but the energy that drives each day.

We hope that the Quadron brand will also be present in your home!

Specifications
