Vamzdžių kantavimo įrankis MAGNUM, fi 40–120 mm

Trumpai apie prekę

Prekė: Vamzdžių kantavimo įrankis MAGNUM, fi 40–120 mm. Kategorija: Frezavimo staklės.

• Gamintojas: Magnum
• Modelis: ISY-120

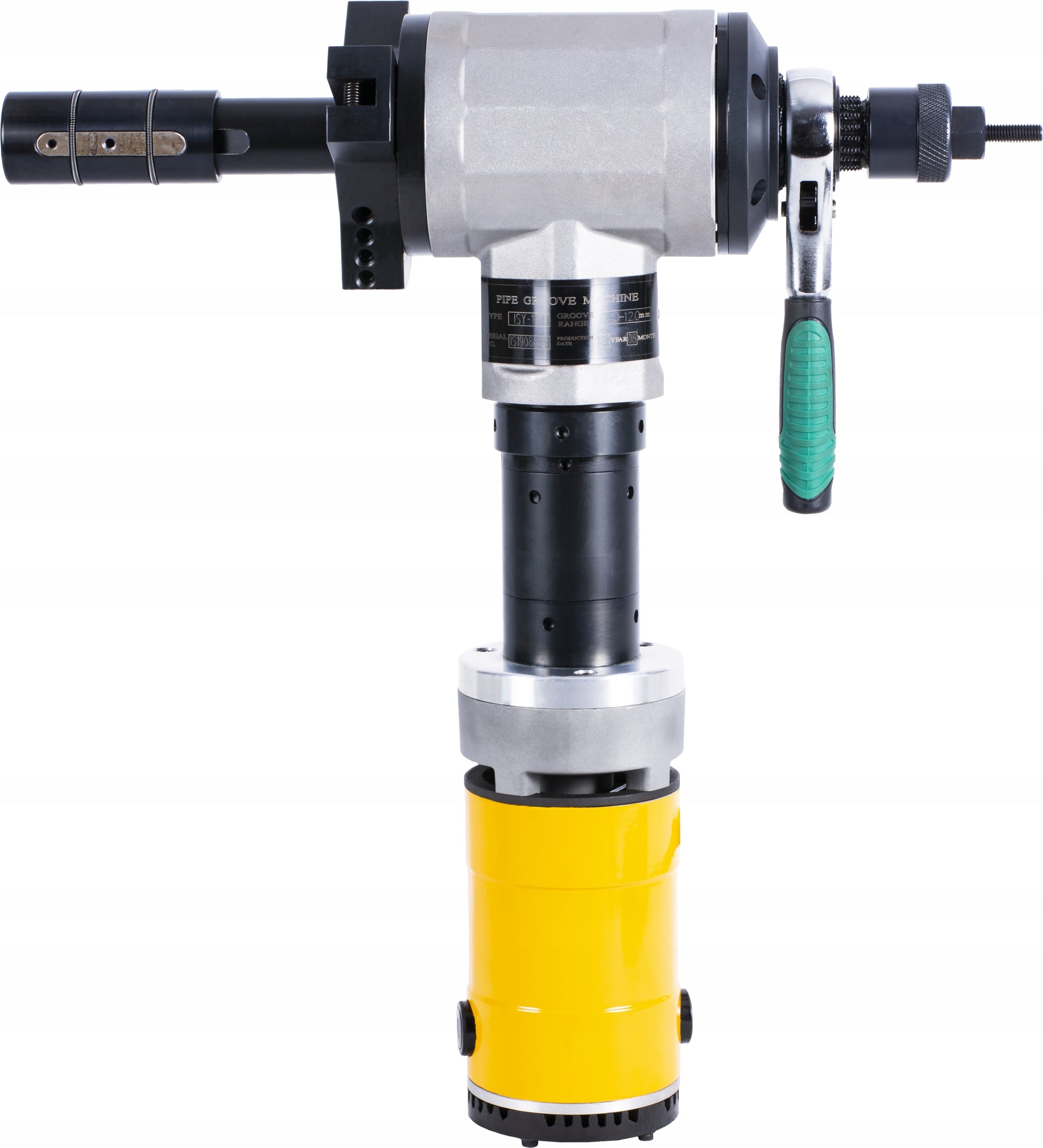

The MAGNUM ISY 120 beveller is a portable device powered by an 800W electric motor powered by a 230V mains. Designed for planning, beveling and calibrating pipe edges in order to prepare them for welding.

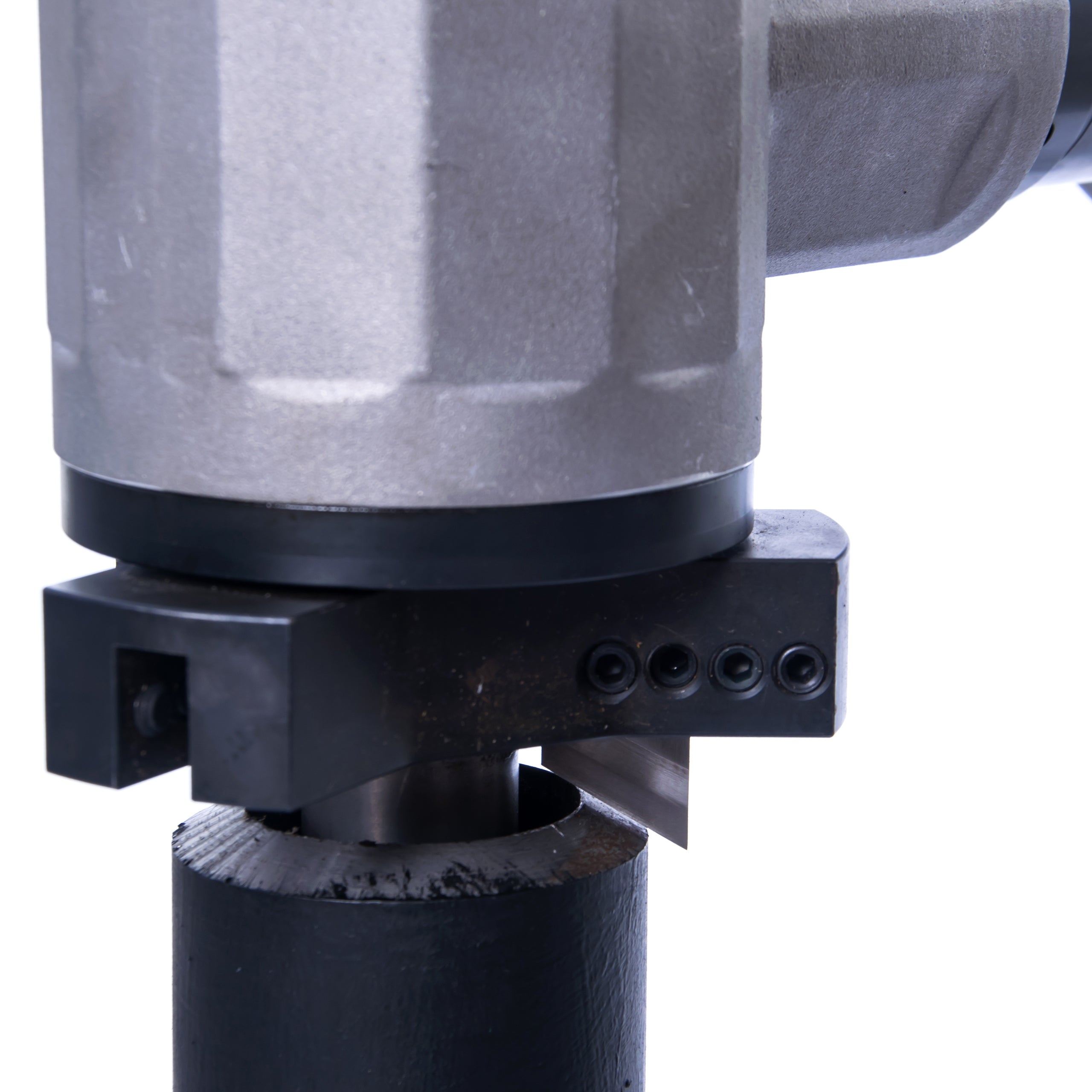

The operations listed above can be performed sequentially or simultaneously with knives made of HSS steel. The beveller is clamped inside the pipe to be machined by expanding jaws, which allow for a secure self-centering and coaxial fixation of the machine in the pipe. The mandrel of the device is equipped with replaceable jaws that adjust the clamping range to the inner diameter of the pipe. The jaws and adapter blocks allow the ISY 120 beveller to be mounted on pipes with an inside diameter of 40 to 120 mm .

RANGE OF PROCESSED MATERIALS:

• carbon steels,
• carbon-chrome,
• stainless steels,
• aluminum and copper alloys,

DEVICE FUNCTIONS:

• External chamfer
• Internal chamfering
• Edge planning

TECHNICAL DATA :

• Power supply: 230V AC 50/60 [Hz]
• Motor power: 800 [W]
• Rotation speed: 48 [rev. /min]
• Range of processed pipes, minimum internal: 40 - 120 [mm]
• max. wall thickness of processed pipes: 15 [mm]
• Weight: 15.5 [kg]

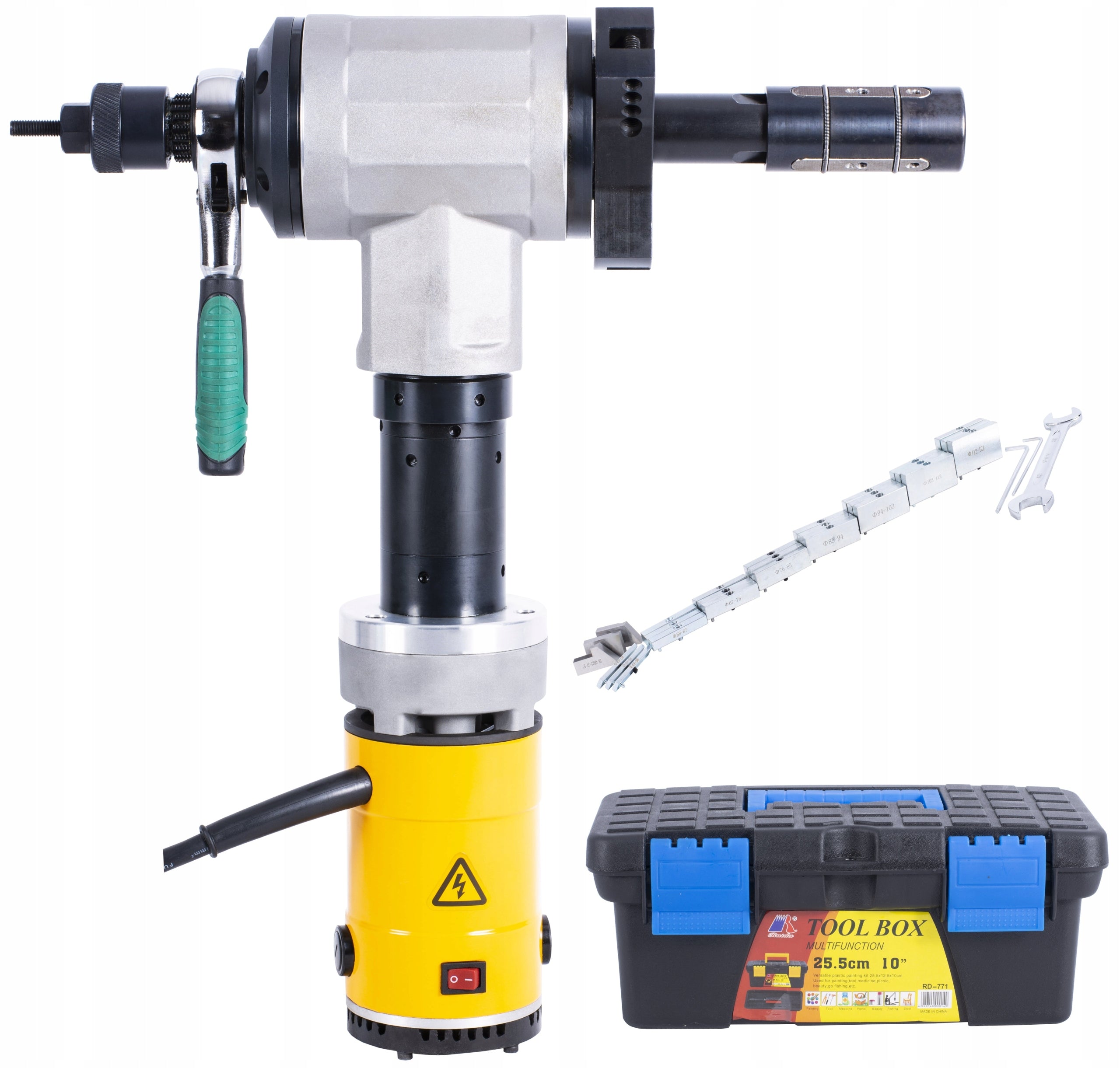

• Beveller: ISY-120
• Jaws: 8 sets
• Cutting knife for chamfering the outer edges: 30° x 1pc / 37° x 1pc
• Cutting knife for planning: 0° x 1 pc
• Flat wrench: 22 mm / 24 mm x 1 pc
• Allen key: 3 mm x 1 pc
• Allen key: 4 mm x 1 pc
• Manual user instructions
• warranty card

PRODUCT GALLERY :
