Valdymo pultas PTZ kamerai YRR-11DP

Trumpai apie prekę

Prekė: Valdymo pultas PTZ kamerai YRR-11DP. Kategorija: Vaizdo konferencijų rinkiniai ir kameros.

• Gamintojas: Alio
• Modelis: YRR11D

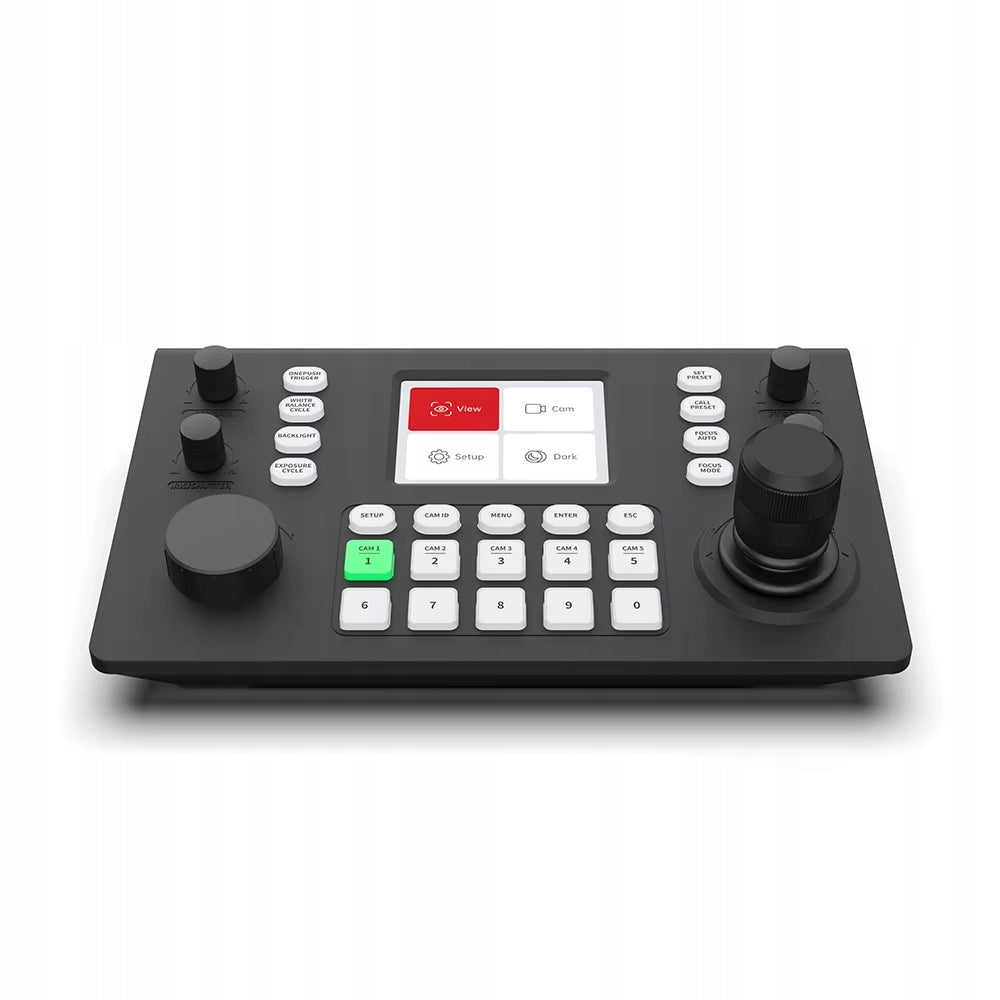

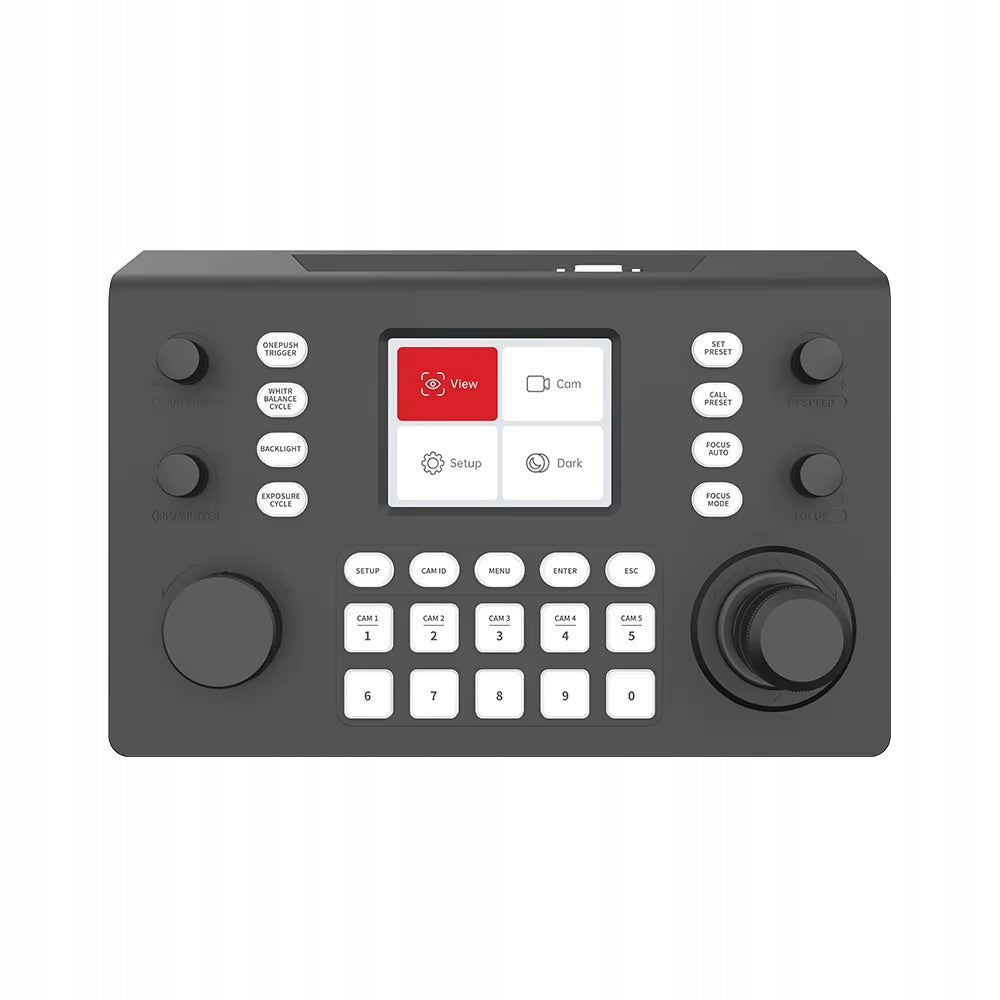

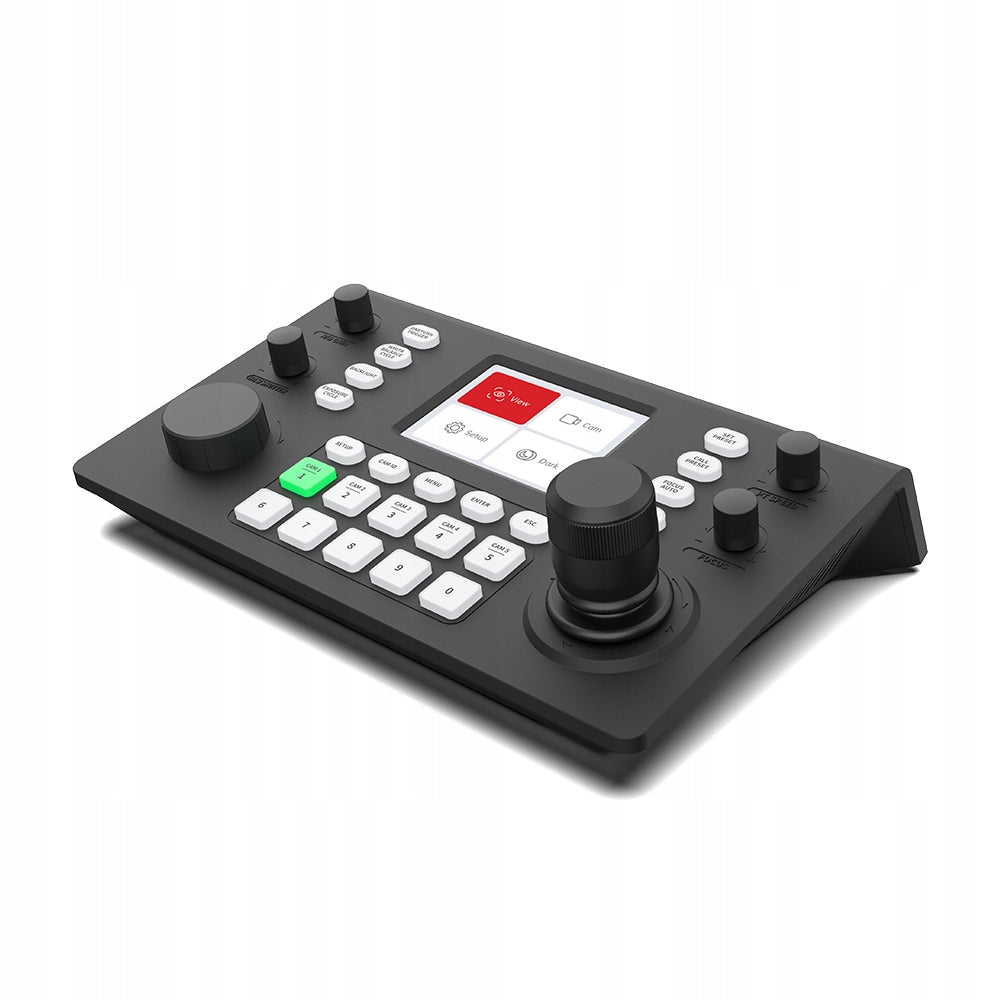

The YRR-11DP camera controller is an advanced control keyboard with 4D-joystick. The device is used for precise operation and management of PTZ cameras (rotation, tilt, zoom) in video conferencing and television systems.

The controller works like a TV remote, but much more advanced. Joystick allows the operator to smoothly rotate the camera and zoom in on the image during live streaming. The screen allows you to see what the camera is seeing without having to look at a separate monitor.

• LCD screen: It has a built-in 3.5 inch screen, which is used to preview the image and decode the video in real time.
• Motion control (Joystick): The smooth 4-dimensional joystick allows you to control camera movements and zoom speed (zoom).
• NDI support: Supports modern IP network protocols (including NDI), making it easy to connect with a single Alibaba internet cable.
• Ports: Offers RS485, RS232 and RJ45 connectors

• large 3.49”, easy to read LCD display
• Full control of 5 Pan/Tilt/Zoom cameras with 4D joystick
• IP protocol support: Visca over IP, Sony Visca, ONVIF v2.42, NDI v5.5
• Support for analogue protocols: VISCA, PELCO-P, PELCO-D
• configuration from the controller or via the web interface
• Interfaces: RS-232, RS-485, RS-422, RJ-45
• POE power supply or via power supply
• zoom knob
• adjustment by speed knob P/T/Z
• Precise adjustment with white balance knob
• Enabling one-button automatic white balance mode

• Precise adjustment with the exposure knob
• Enabling the one-button automatic exposure option
• Precise adjustment with focus knob
• Enabling the one-button auto focus option
• Rear backlight on/off button
• 5 buttons from CAM1 to CAM5 for lightning-fast switching between cameras
• handling of prests
• Support up to 254 cameras on the network
• import/export settings over the network
