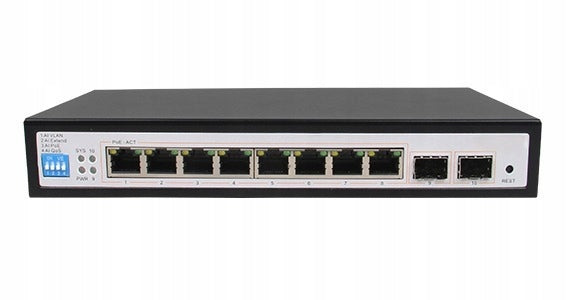

Valdomas tinklo komutatorius PoE 8+2 SFP SPEM008A-2F

Trumpai apie prekę

Prekė: Valdomas tinklo komutatorius PoE 8+2 SFP SPEM008A-2F. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: SPEM008A-2F

SPEM008A-2F is a specialized, managed Layer 2 switch for indoor applications, designed to support monitoring systems and other network systems. It provides 8 PoE ports with 10/100/1000 Mbps bandwidth and 2 SFP uplink ports with 1Gbps bandwidth. Switch SPEM008A-2F offers five operating modes: default, VLAN, extended, AI PoE and QoS, the selection of which is made via the switch located on the front panel. The device has a management panel accessible through the browser.

• managed by a web panel
• 8 PoE ports 10/100/1000 Mbps
• 2 uplink 1Gbps SFP ports
• Total power 96W
• Operating Modes: Standard, VLAN, Extend, AI PoE, QoS

Technical data:

Ports

• Number of PoE ports: 8
• Number of SFP ports: 2
• Number of priority ports: 8
• Number of VLAN ports: 8
• Number of Extend ports: 8
• Max speed: 1000 Mbps

Standard

• Transmission standard: IEEE802.3, IEEE802.3ab, IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE 802.3ad, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s
• Transmission type: Store-and-Forward
• PoE standard: IEEE802.3 af, IEEE802.3 at
• Package forwarding rate: 14.88 Mpps

POE

• Power per port: ≤ 30W
• Total power: ≤ 96W
• PoE standard: End-span 1/2(+), 3/6(-)

Working modes:

• Standard Mode: Up to 100m on each PoE port at 1000Mbps, ensured communication between all ports, 1Gbps on SFP ports
• V-LAN mode: Up to 100m on each PoE port at 1000Mbps, 1Gbps on SFP ports, separated PoE ports, communication only via SFP ports
• Extend Mode: Up to 250m on 1-8 ports at 10Mbps, 1Gbps on SFP ports, communication only via SFP ports
• QoS mode: Sets the priority of video data transmission over other data.
• AI PoE Mode: Detects a malfunctioning PoE device and automatically restarts it.

General

• AC/DC power supply: 48 – 56 VDC
• Power Supply: External
• Working temperature: 0°C ÷ 45°C
• Ambient humidity: 10 ÷ 90%
• Fan: No
• Dimensions: 225 x 120 x 35mm
• Elements included: Power cord, DC power supply

The remaining

• Net weight: 0,65 kg
