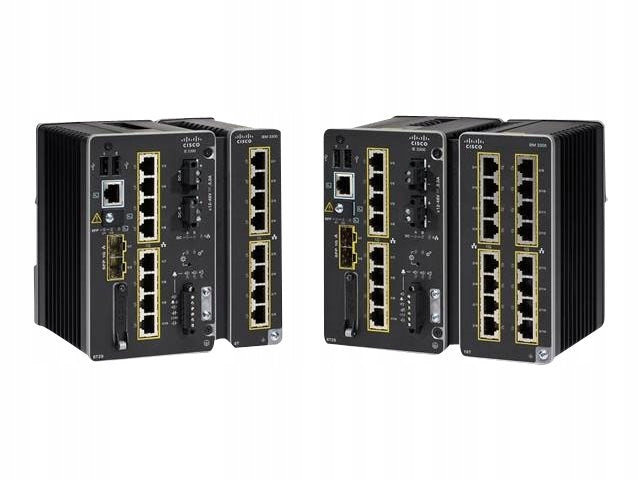

Valdomas tinklo komutatorius Catalyst IE3300, 8x10G RJ-45

Trumpai apie prekę

Prekė: Valdomas tinklo komutatorius Catalyst IE3300, 8x10G RJ-45. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Cisco
• Modelis: IE-3300-8P2S-E

Catalyst IE3300 L2 Managed Switch 8x10G RJ-45

CISCO

No description

• Quality of Service (QoS) support: Yes
• Switch layer: L2
• Switch type: Managed
• MIB support: 802.1X MIB, CISCO-DHCP-SNOOPING-MIB,CISCO-UDLDP-MIB, CISCO-ENVMON-MIB,CISCO-PRIVATE-VLAN-MIB,CISCO-PAE-MIB, Cisco-Port-QoS-MIB,CISCO-ERR-DISABLE-MIB,CISCO- PROCESS-MIB,LLDP-MIB, CiscoMACNotification-MIB, CISCO-CONFIG-COPY-MIB,LLDP-MED-MIB, Bridge-MIB, CISCO-CAR-MIB,CISCO-LAG-MIB, CISCO-SYSLOG-MIB,CISCO-FTP-CLIENT-MIB,CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB,CISCO-VLAN-MEMBERSHIP-MIB,Cisco-REP-MIB, CISCO-PORT-STORM-CONTROL-MIB,CISCO-CDP-MIB, CISCO-IP-STAT-MIB,CISCO-LICENSE-MGMT-MIB,CISCO-STP-EXTN-MIB,CISCO-VTP-MIB, IEEE8023-LAG-MIB,SMON-MIB, CISCO-ACCESS-ENVMON-MIB,CISCO-CALLHOME-MIB,CISCO-CONFIG-MAN-MIB,CISCO-FLASH-MIB, CISCO-ENTITY-SENSOR-MIB,IP-MIB, CISCO-PAGP-MIB
• ARP inspection: Yes
• Event log: Yes
• Console port: RJ-45
• Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
• Basic switching RJ-45 Ethernet ports quantity: 8
• Power connector: AC-in jack
• Networking standards: IEEE 1588,IEEE 802.11ac,IEEE 802.11n,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3x
• Link aggregation: Yes
• Spanning tree protocol: Yes
• Broadcast storm control: Yes
• MAC address table: 8000 entries
• Number of queues: 8
• Security algorithms: 802.1x RADIUS
• Access Control List (ACL): Yes
• MAC address filtering: Yes
• IGMP snooping: Yes
• DHCP features: DHCP snooping
• BPDU filtering/protection: Yes
• Authentication: Guest VLAN
• IGMP entries: 1000
• Access Control List (ACL) IPv4 entries: 2000
• Access Control List (ACL) IPv6 entries: 512
• Multicast support: Yes
• Management protocols: IEEE 802.1, 802.3 standard, NTP, UDLD, CDP, LLDP, unicast MAC filter, PAgP, LACP VTPv2, VTPv3, EtherChannel, voice VLAN, PVST+, MSTP, and RSTP
• Switching protocols: IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier
• Product colour: Black
• LED indicators: Yes
• Certification: UL, BSMI CNS 13438 Class A, CISPR 24, cUL, EN55022, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, NOM, VCCI Class A ITE, IEC 60950, EN55
• Rack mounting: Yes
• International Protection (IP) code: IP20
• DIN rail mounting: Yes
• Internal memory: 4000 MB
• Flash memory: 1500 MB
• Mean time between failures (MTBF): 3041040 h
• AC input frequency: 50 - 60 Hz
• Power consumption (typical): 6 W
• Input current: 6.3 A
• AC input voltage: 120 - 230 V
• Power supply included: Yes
• DC input voltage: 9.6 - 60 V
• Power over Ethernet (PoE): No
• Operating temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 5 - 95 %
• Storage temperature (T-T): -40 - 85 °C
• Non-operating altitude: 0 - 4572 m
• Width: 152.4 mm
• Height: 50.8 mm
• Depth: 127 mm
• Cables included: AC
• Manual: Yes
• User guide: Yes
• Harmonized System (HS) code: 85176990

Specifications
