Valdomas PoE jungiklis SPEM016B-2F, 16 portų + 2 SFP

Trumpai apie prekę

Prekė: Valdomas PoE jungiklis SPEM016B-2F, 16 portų + 2 SFP. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: SPEM016B-2F

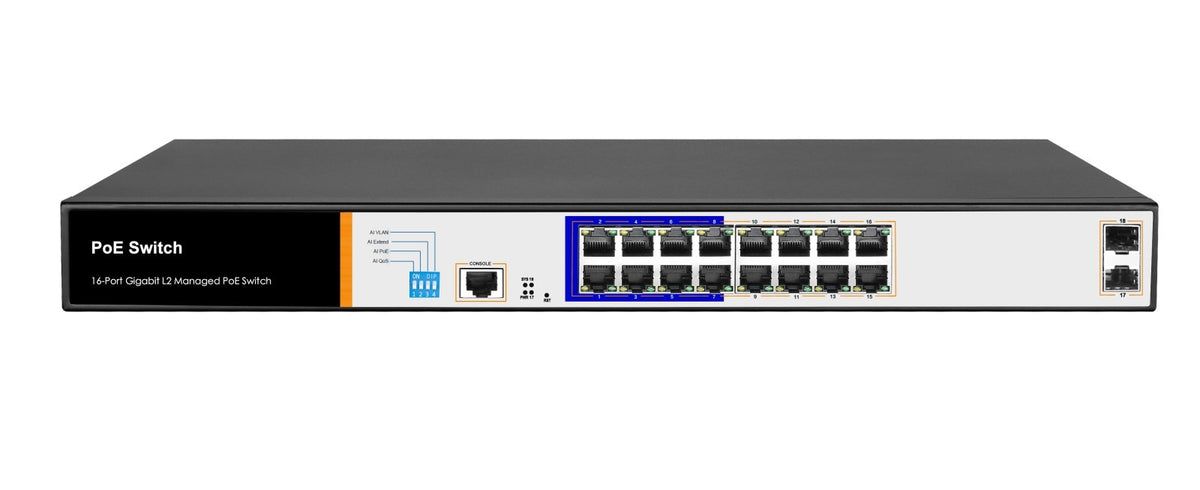

SPEM016B-2F is a specialized, managed Layer 2 switch for internal applications, designed to support monitoring systems and other network systems. It provides 16 PoE ports with 10/100/1000 Mbps bandwidth and 2 SFP uplink ports with 1Gbps bandwidth. Switch SPEM016B-2F offers five modes of operation: default, VLAN, extended, AI PoE and QoS, the selection of which is made via a switch located on the front panel. The device has a management panel accessible through the browser.

• managed by a web panel
• 16 PoE ports 10/100/1000 Mbps
• 2 uplink 1Gbps SFP ports
• Total power 150W
• Operating Modes: Standard, VLAN, Extend, AI PoE, QoS

Technical data:

Ports

• Number of PoE ports: 16
• Number of SFP ports: 2
• Number of priority ports: 8
• Number of VLAN ports: 16
• Number of Extend ports: 8
• Max speed: 1000 Mbps

Standard

• Transmission standard: IEEE802.3, IEEE802.3ab, IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE 802.3ad, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s
• Transmission type: Store-and-Forward
• PoE standard: IEEE802.3 af, IEEE802.3 at
• Package forwarding rate: 23.8 Mpps

POE

• Power per port: ≤ 30W
• Total power: ≤ 150W
• PoE standard: End-span 1/2(+), 3/6(-)

Working modes:

• Standard Mode: Up to 100m on each PoE port at 1000Mbps, ensured communication between all ports, 1Gbps on SFP ports
• V-LAN mode: Up to 100m on each PoE port at 1000Mbps, 1Gbps on SFP ports, separated PoE ports, communication only via SFP ports
• Extend Mode: Up to 250m on ports 1-8 at 10Mbps, 1Gbps on ports 9 and higher, 1Gbps on SFP ports, communication only via ports 9 and higher and SFP
• QoS mode: Sets the priority of video data transmission over other data.
• AI PoE Mode: Detects a malfunctioning PoE device and automatically restarts it.

General

• AC/DC power supply: 110 – 240 VAC
• Power Supply: Built-in
• Working temperature: 0°C ÷ 40°C
• Ambient humidity: 10 ÷ 90%
• Fan: Yes
• Dimensions: 440 x 180 x 44mm
• Elements included: Power cord, Rack holders

The remaining

• Net weight: 2,3 kg
