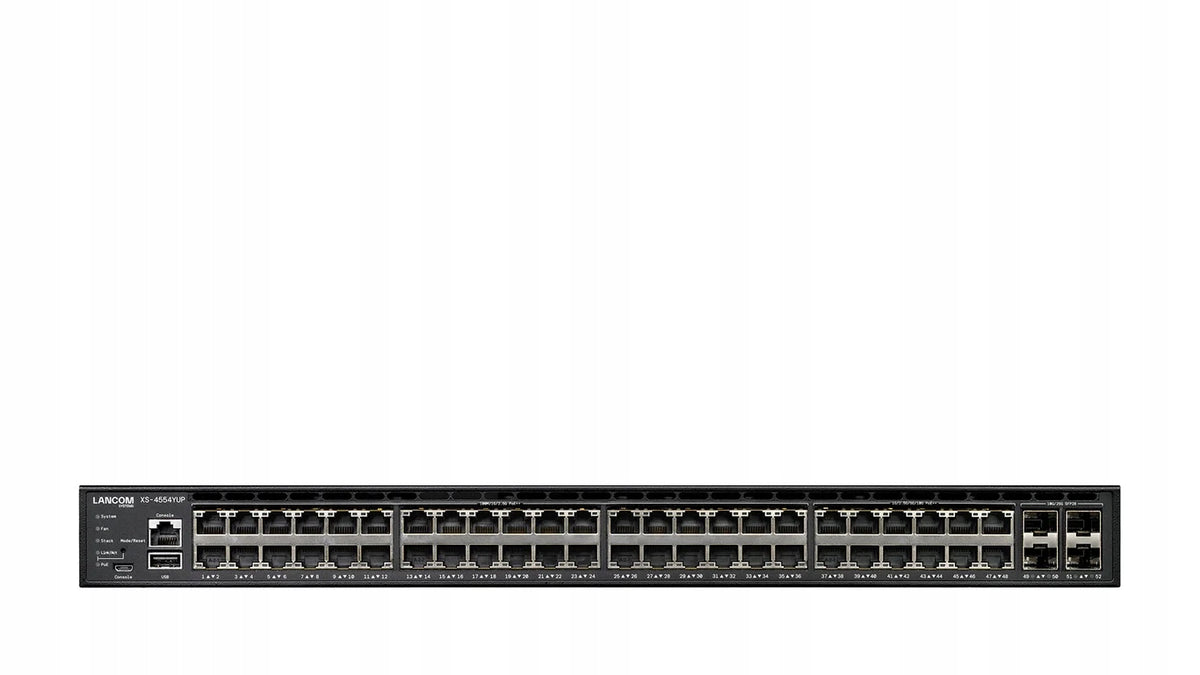

Valdomas L3 10G Ethernet jungiklis LANCOM XS-4554YUP

Trumpai apie prekę

Prekė: Valdomas L3 10G Ethernet jungiklis LANCOM XS-4554YUP. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: 487477

LANCOM XS-4554YUP. Switch Type: Managed, Switch Layer: L3. Basic RJ-45 Ethernet Switching Ports Type: 10G Ethernet (100/1000/10000), Basic RJ-45 Switching Number of Ethernet Ports: 48, Console Port: RJ-45/Micro-USB. Address table size: 32000 inputs, Routing/switching throughput: 1020 Gbit/s. Communication standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1ad,... Power connector: AC input socket. PoE support. Rack Mount Capabilities, Layout: 1U

✏ The most important technical parameters:

• Design - Stackable Product: Yes
• Design - Number of fans: 2 went.
• Design - Colour of product: Black
• Design - Layout: 1U
• Construction - Housing material: Metal
• Construction - Railings: Yes
• Construction - DIN mounting on rail: Yes
• Data transfer - Routing/switching bandwidth: 1020 Gbit/s
• Data transfer - Bandwidth: 758 Mpps
• Data transfer - Address table size: 32000 inputs
• Data transfer - Store-and-forward: Yes
• Data transfer - Static route: Yes
• Data transfer - Number of static routes: 16000
• Data transfer - Compatible with Jumbo Frames: Yes
• Data transfer - Jumbo Frames extension: 12288
• Data transfer - Packet buffer memory: 8 MB
• Multicast Features - Multicast Support: Yes
• Multicast Features - Multicast Listener Discovery (MLD) snooping: Yes
• Power over Ethernet (PoE) - Number of Power over Ethernet 4PPoE (PoE++) ports: 48
• Power supply via Ethernet (PoE) - Power supply via Ethernet (PoE) power supply per port: 90 W
• Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget: 720 W
• Network - 10G support: Yes
• Network - Port duplication: Yes
• Network - Flow control support: Yes
• Network - Connection aggregator: Yes
• Network - Traffic increase control: Yes
• Network - Spanning tree protocol: Yes
• Network - Cable length measurement: Yes
• Network - VLAN support: Yes
• Network - Virtual LAN functions: IP subnet-based VLAN, MAC address-based VLAN, MVRP, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, VLAN Identifier (VLAN ID), Voice VLAN
• Network - Number of VLANs: 4093
• Ports and interfaces - Console port: RJ-45/Micro-USB
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 48
• Ports and interfaces - Basic RJ-45 Ethernet switching ports type: 10G Ethernet (100/1000/10000)
• Ports and interfaces - Number of ports 2,5G Ethernet (copper): 36
• Ports and interfaces - Number of 10G Ethernet ports (copper): 12
• Ports and interfaces - Number of management ports: 1 pc.
• Ports and interfaces - Number of QSFP28 ports: 2
• Ports and interfaces - Number of SFP28 ports: 4
• Ports and interfaces - Power connector: AC input socket
• Features - Communication standards: IEEE 802.1AX,IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1Qbb,IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ak, IEEE 802.1as,IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w,IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac,IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ak,IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba,IEEE 802.3bj, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Features - PoE Support: Yes
• Features - Noise level: 60 dB
• Working conditions - Temperature range (operation): 0 - 40 °C
• Working conditions - Heat emission: 715 BTU/h
• Working conditions - Relative humidity range: 10 - 90%
• Performance - Number of USB Type-A ports: 1
• Technical details - Rack mounting options: Yes
• Technical details - Website management: Yes
• Power - Power supply included: Yes
• Power - Power Source: AC/PoE
• Power - AC input voltage: 100 - 240 V
• Power - AC input frequency: 50/60 Hz
• Power - Maximum power consumption: 1650 W
• Protection - DHCP functions: DHCP client, DHCP relay, DHCP server, DHCP snooping
• Protection - IGMP snooping: Yes
• Protection - supports SSH/SSL: Yes
• Protection - Authentication type: IEEE 802.1x, RADIUS, TACACS+
• Protection - Authentication: Guest VLAN
• Protection - Access Control List (ACL): Yes
• Weight and sizes - Product width: 442 mm
• Weight and sizes - Product depth: 440 mm
• Weight and sizes - Product height: 44 mm
• Weight and sizes - Product weight: 7 kg
• Packaging data - Package width: 630 mm
• Packaging data - Package depth: 590 mm
• Packaging data - Package height: 130 mm
• Packaging data - Weight including packaging: 6,7 kg
• Certificates - Certificates of conformity: CE, Federal Communications Commission (FCC)
• Wireless LAN functions - IGMP proxy: Yes
• Management Features - Switch Type: Managed
• Management features - Switch layer: L3
• Management Features - Service Quality Support (QoS): Yes
• Management Features - ARP Inspection: Yes
• Management Features - Configuring Location Settings (CLI): Yes
• Management Features - Device Software Updates: Yes
• Protocols - Road Selection Protocol: BGP4, OSPFv2, OSPFv3, VRRP
• Protocols - GARP VLAN Registration Protocol (GVRP): Yes
• Protocols - IP Source Protection (IPSG): Yes
• Other functions - Customs product code (TARIC): 85176200
• Content of the package - Quick Start Guide: Yes
• Package Contents - Cables: AC, Micro-USB, Serial
• Logistics data - Country of origin: Taiwan
• Package Contents - Mounting brackets included: Yes
• Classification - Manufacturer code: 61886
• Classification - EAN: 4044144618864
• Classification - Product ID: 121101856
