Valdiklis CUE controlCUE-enocean-d CS0458

Trumpai apie prekę

Prekė: Valdiklis CUE controlCUE-enocean-d CS0458. Kategorija: Vaizdo konferencijų rinkiniai ir kameros.

• Gamintojas: no brand
• Modelis: CS0458

Ethernet IP-enabled controller with EnOcean® interface

Product code: CS0458

Main features

• Wired LAN 10/100 BaseT
• 1x
• IP control port
• 1x
• EnOcean Port
• , external antenna
• 1x
• Bidirectional RS-232/485 port
• 4x
• Versatile port
• ARM® Processor Platform
• Internal RAM LPDDR 64 MB, flash 256 MB
• Built-in real-time clock
• IR code capture sensor
• Indicators on the front panel
• 24 VDC or Power over Ethernet power supply
• Plastic housing for DIN rail, width 4 modules
• Network server and administrative network for configuration

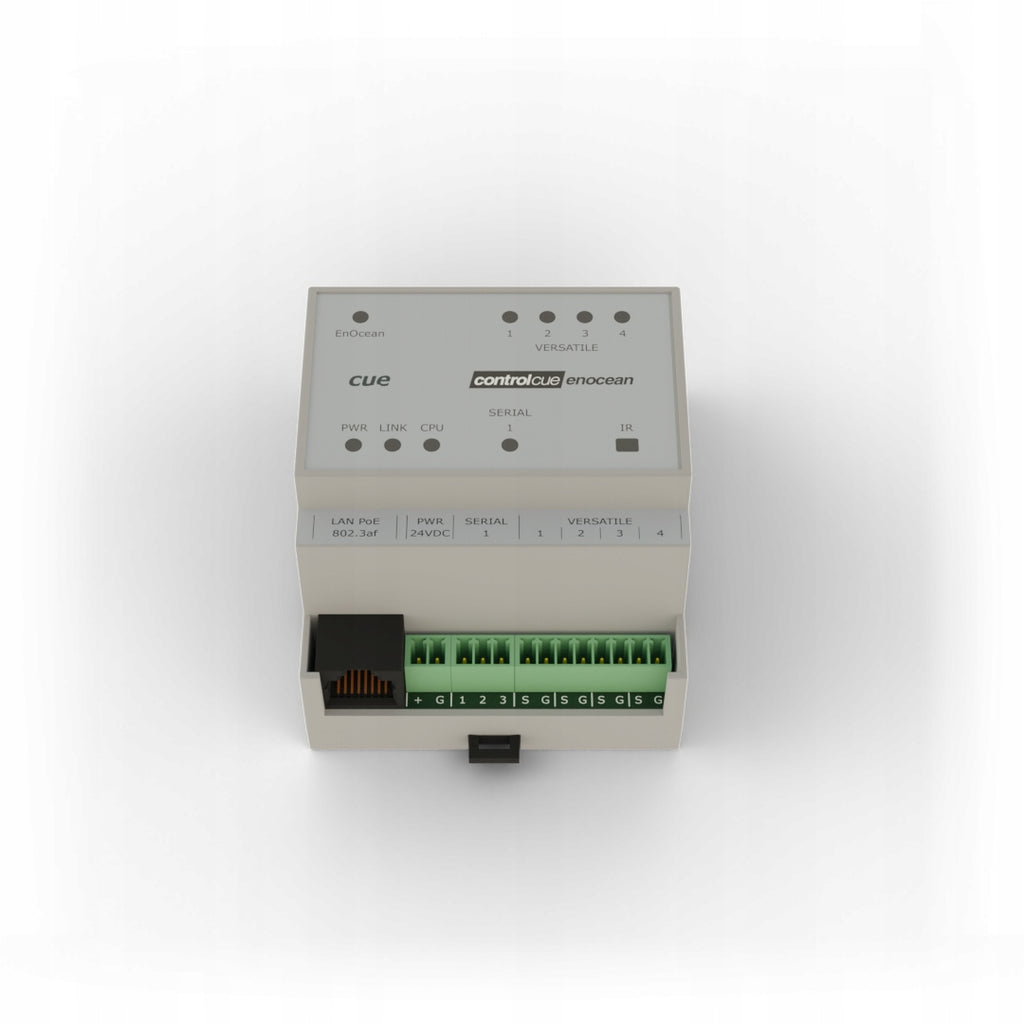

controlCUE-enocean-d is a full-featured IP controller with EnOcean® 868 MHz wireless radio interface, one two-way RS-232/485 port and four universal ports. Fully compatible with CUE touch panels and mobile applications, this controller provides two-way communication between Cue System and EnOcean® and can work as a standalone device.

This controller comes complete with a web server and allows configuration through a standard web browser. Unit programming is based on the standard CUE Cue Visual Composer development tool.

Single-cable Ethernet connection provides easy integration into your network. The controller is equipped with Power over Ethernet (PoE) technology, which allows you to transfer data and power using an Ethernet network cable.

The controller can be easily mounted on a DIN rail or wall.

Control ports

• 1x

  IP control port

• 1x

  EnOcean port

  , external antenna with magnetic base, cable length 2.5 m

• 1x

  Bi-directional RS-232/485 port

• 4x

  Versatile port

Internal IR sensor

• IR code capture

LED indicators

• Blue Power - indicates power is presented and the unit is ready.
• Green Link - indicates network link and activity.
• Yellow CPU - confirms the system default function is performed.
• Green / Red KNX - indicates KNX port send/receive.
• Green Serial - indicates serial data is being transmitted.
• Red Serial - indicates serial data is being received.
• Green Versatile - indicates the output is closed.
• Yellow Versatile - indicates IR or serial data is being transmitted.

Button

• System Default sets the default IP address and password.

Real-time and date

• RTC with battery backup

memories

• Internal RAM LPDDR 64 MB
• Internal non-volatile flash 256 MB

Software technologies

• Web Admin
• XPL2 runtime

Communication system

• 10/100 BaseT Ethernet, RJ-45 connector

Power supply

• 24 VDC (+/-20%), 3 W, 2-pin 3.5 mm connector
• Power over Ethernet (PoE), IEEE 802.3af compatible

Physical

• DIN rail plastic enclosure compatible with DIN EN 50022
• Width 4 modules
• Dimensions 70 x 90 x 58 mm / 2.8” x 3.5” x 2.3”
• Weight 0.2 kg / 0.5 lb

Environment conditions

• Operating temperature 10° to 40° C
• Storage temperature 0° to 60° C
• Relative humidity 10% to 90% non-condensing

• Controller controlCUE-enocean-d
• External antenna with magnetic base incl. cable
• Connector set
• Ethernet cable
• DIN rail compatible power supply 24 VDC / 15 W
• QuickStart

Specifications
