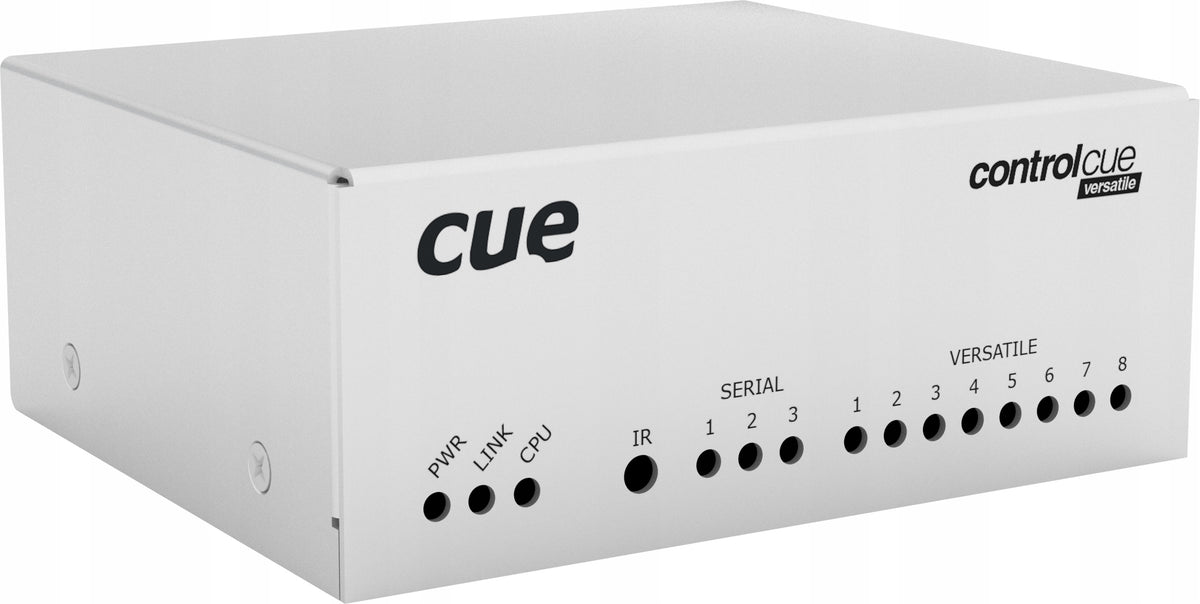

Valdiklis CUE Control CUE-versatile CS0475

Trumpai apie prekę

Prekė: Valdiklis CUE Control CUE-versatile CS0475. Kategorija: Vaizdo konferencijų rinkiniai ir kameros.

• Gamintojas: no brand
• Modelis: CS0475

Product code: CS0475

• Wired LAN 10/100 BaseT
• IP control port
• 3x

  Two-way RS-232/485

  port
• 8x

  Comprehensive port

• ARM® Processor Platform
• Internal RAM LPDDR 256 MB, flash 256 MB
• Built-in real-time clock
• IR code capture sensor
• Indicators on the front panel
• 24 VDC or Power over Ethernet power supply
• Compact aluminum housing for desktops and 19” stands.
• Web server and administrator websites for configuration

ControlCUE-versatile is a full-featured IP controller with eight universal ports and three two-way RS-232/485 control ports. Fully compatible with CUE touch panels, this controller can work as a standalone device. A universal port is a flexible type of control port and, depending on the application, each universal port can be used as an input or output.

The controller stores the date and time using the built-in real-time clock (RTC), thus enabling a wide range of distributed planning applications. Single-cable Ethernet connection provides easy integration into your network.

The controller is equipped with Power over Ethernet (PoE) technology, which allows you to transfer data and power using an Ethernet network cable. The controller can be easily installed on a table or in a 19-inch cabinet.

This controller is equipped with a web server and allows configuration through a standard web browser. Unit programming is based on the standard CUE Cue Visual Composer development tool.

Control ports

• IP control port
• 3x

  Bi-directional RS-232/485 port

• 8x

  Versatile port

Internal IR sensor

• IR code capture

LED indicators

• Blue Power - indicates power is presented and unit is ready.
• Green Link - indicates network link and activity.
• Yellow CPU - confirms the system default function is performed.
• Green Versatile - indicates output is closed.
• Yellow Versatile - indicates IR or serial data is being transmitted.
• Green Serial - indicates serial data is being transmitted.
• Red Serial - indicates serial data is being received.

Button

• System Default sets default IP address and password.

Real time and date

• RTC with battery backup

memories

• Internal RAM LPDDR 256 MB
• Internal non-volatile flash 256 MB

Software technologies

• Web Admin
• XPL2 runtime

Communication system

• 10/100 BaseT Ethernet, RJ-45 connector
• 802.1X authentication mechanism and Proxy server support Connector - RJ-45

Power supply

• 24 VDC (+/-20%), 3 W, 2-pin 3.5 mm connector
• Power over Ethernet, 802.3af compatible

Physical

• Compact aluminum enclosure
• Dimensions 105 x 43.5 x 92 mm / 4.14” x 1.7” x 3.6”
• 1/4 rack space, 1 U
• Weight 0.3 kg / 0.7 lb

Environment conditions

• Operating temperature 10° to 40° C
• Storage temperature 0° to 60° C
• Relative humidity 10% to 90% non-condensing

• Controller controlCUE-versatile
• Connector set
• Ethernet cable
• Power supply 24 VDC / 24 W
• QuickStart
