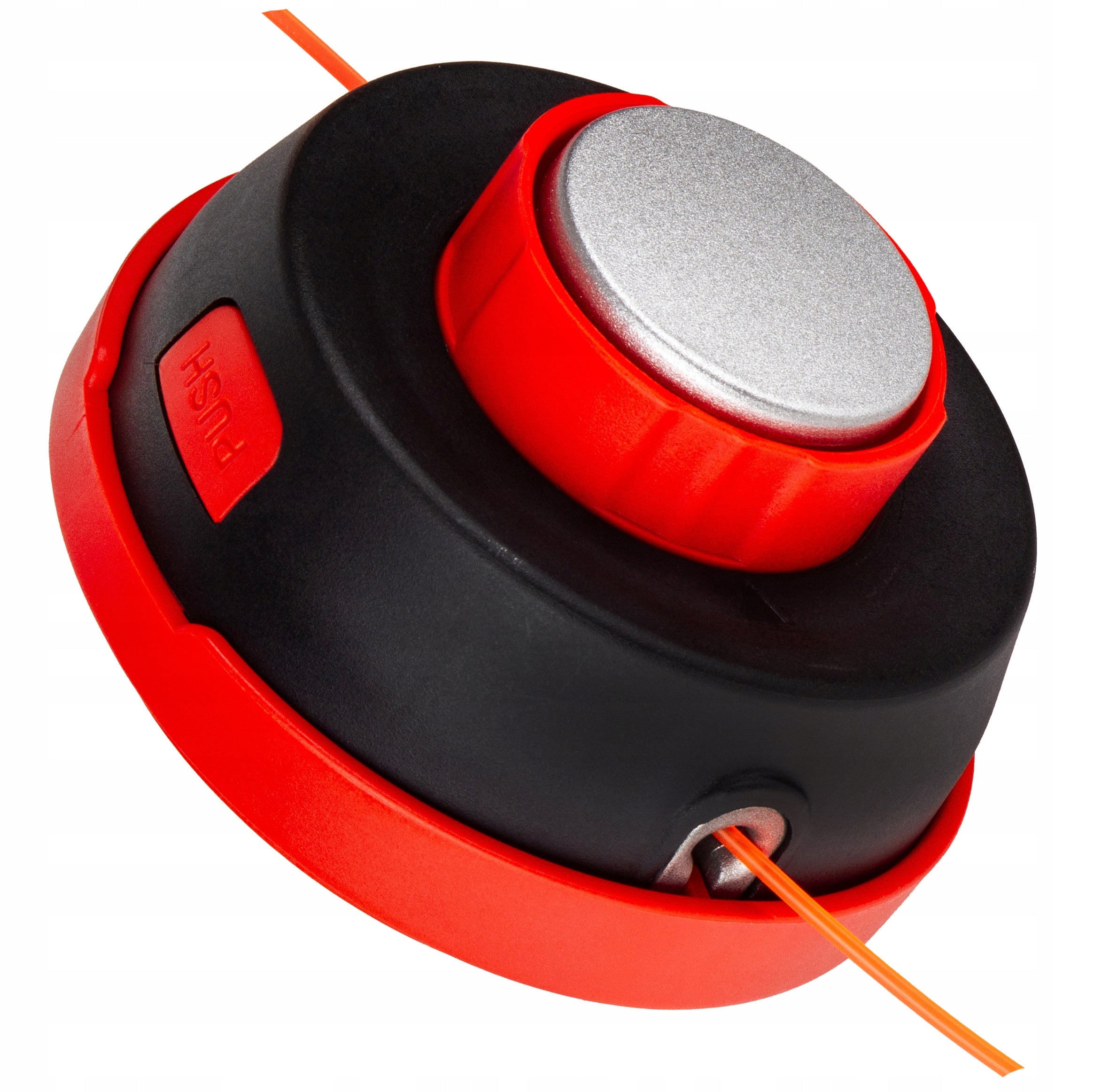

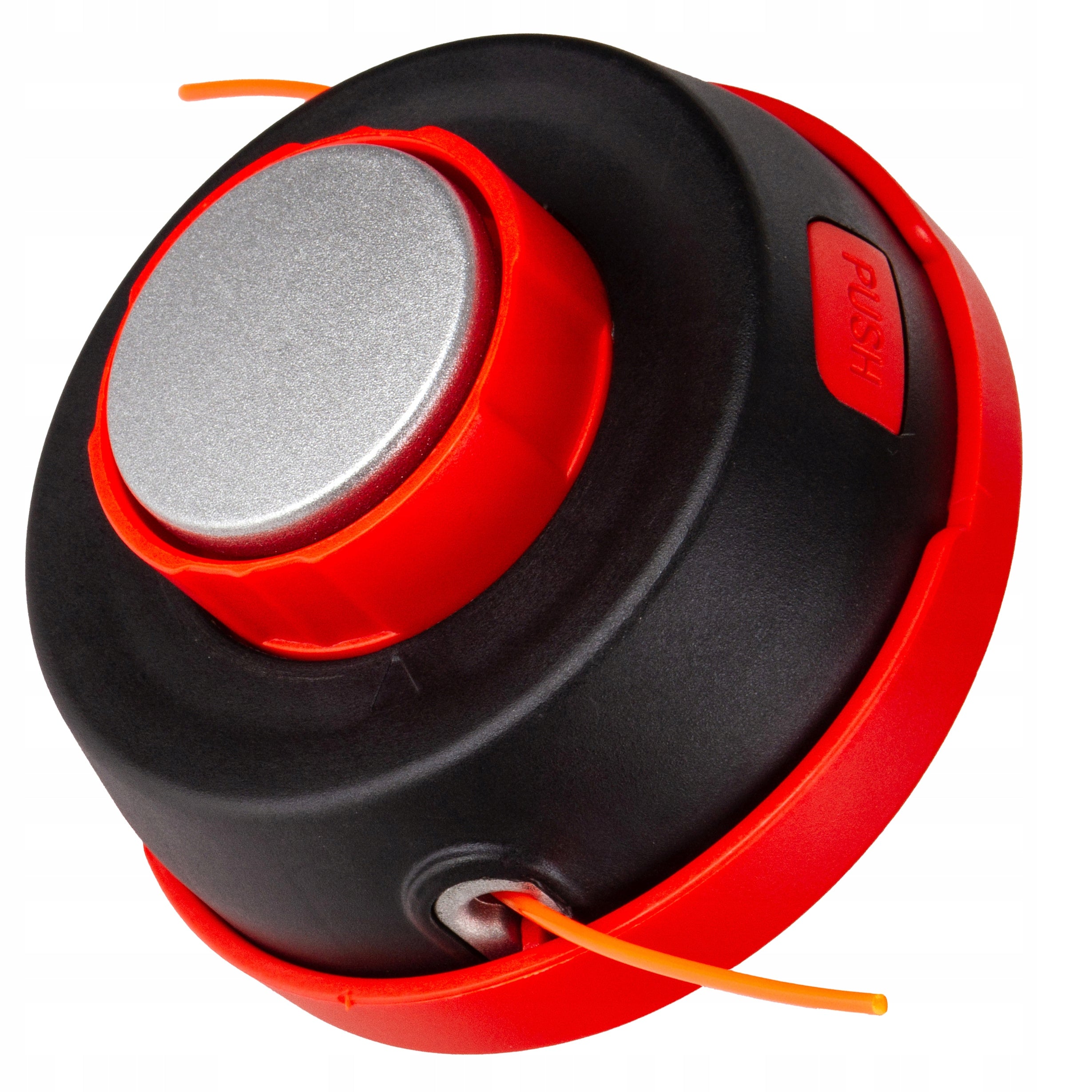

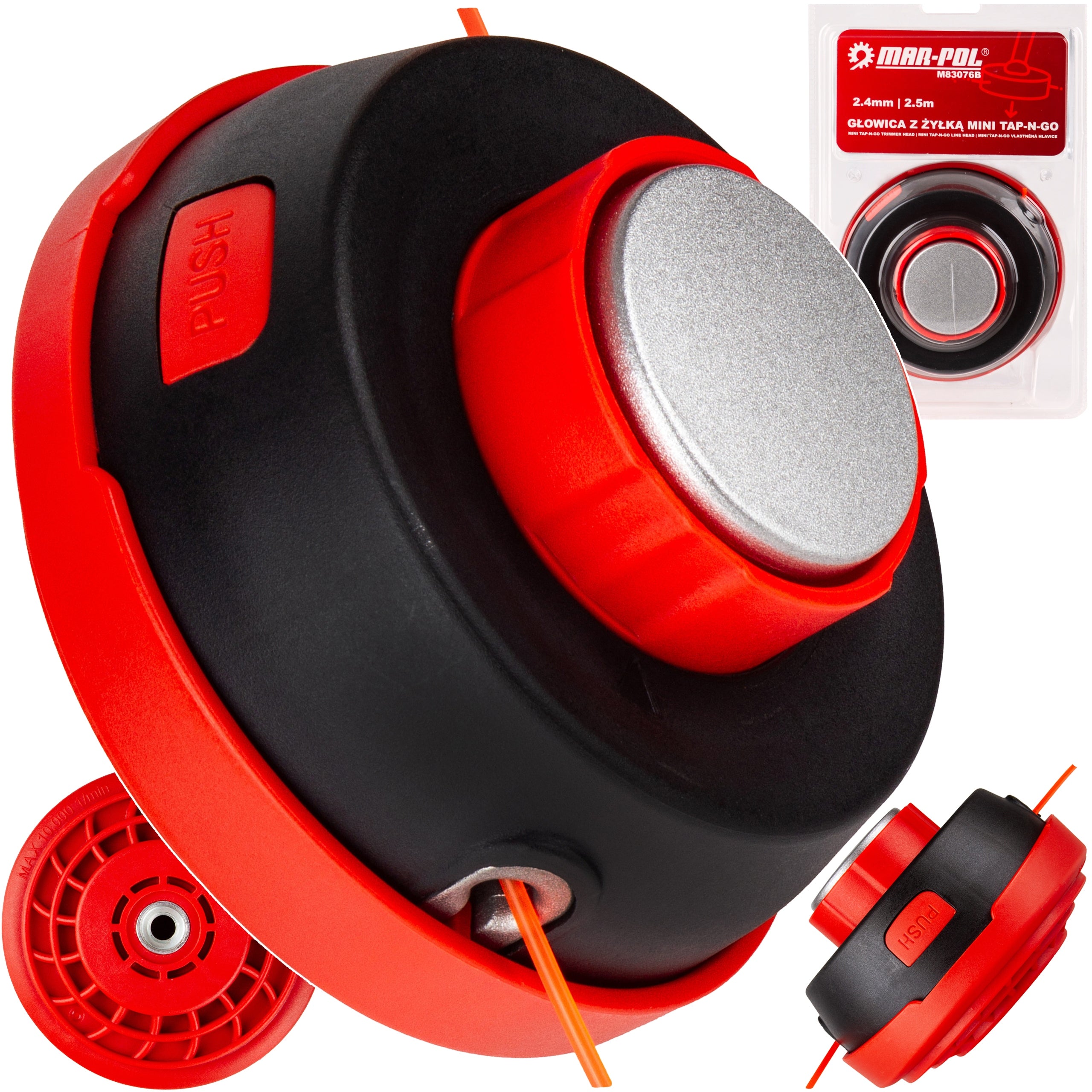

Valas žoliapjovei DEMON su guoliu

Trumpai apie prekę

Prekė: Valas žoliapjovei DEMON su guoliu. Kategorija: Pakeičiamos galvutės.

• Gamintojas: Mar-Pol
• Modelis: M83076B
• Skersmuo: 118 mm
• Ilgis: 0 m

PRODUCT FEATURES:

• Professional grass cutting head designed for combustion scythes. It is used in both light and stronger mechanical scythes.
• Semi-automatic head i.e. extending the line after hitting the head on the ground. The button is perfectly tensioned and never pulls out the line without needing to.
• Easy-load system is easy to change the line without having to disassemble the head,
• The drum is characterized by a very strong housing, strong thread and strong plastic-rubber hooks do not allow it to detach during operation.
• The upper part is metal-rotating on the bearing which reduces the abrasion of the head when hitting the ground

🟧Fits scythes:

• DEMON RQ415 / RQ430 / RQ508 / RQ508 PRO / RQ580 / RQ580T / RQ680
• AL-KO BC301
• Castorama SPS02-43BC
• Dolmar MS25 / 30 / 340
• Echo SRM 2305 / 250 / 330 / 350 / 4000 / 5000
• Harder PNBC 260 - 1T / 415 - 2T
• Honda UMK425 / 431 / 435
• Husqvarna 323L / 325LD / 232R / 322R / 326R;
• Kawasaki KBH27 / 34 / 43 / 48
• Leader GKS 28 / GKS 300 / TMK52 / TMK521 / VKS 517
• Makita DBC250 / 290 / 300 / 340
• NAC - CG33N / CG260 / CG260B / CG330 / CG330B /CG360N / BCG430 / BCG260 / NCG330 / CG430N / CG430B /WLBC260B2ZXU / WLBC260-2ZTU / WLBC-520 B / WLBC580E2ZXU /BP254-10 / BP254-10-V / BP427-17-V / BP427-17B-V / BP427CA-T /BP427-16MU-T / BP427-17KA-T / BP52LMT / BP517-20-TS /BP517-20B-V / BP520 / BP520-27-T / BP520-30KA-T / BP54 /BP540-30B-V / BP540-32B-V / BC580V-2 / BP620-36-T /BP620-38KA-T / MEX540-K30 / MEX620-K38A / Ru 425
• Nax 800B
• TEXAS BC300 / BC320 / CG260 / CG330 / CG430B
• VICTUS BC26 / BC32 / BC36 / BC43 / BC301

and also :

• BASS, CG-430, CG-520, Falon-Tech, John Gardner, Garden, Gardenic , Handy, Kraft&Delle, March-Power, Mastiff, Mitshubishi, Parkside , PowerMat, Verto, and many more

🟠Usable Line Diameters:

Approximate line capacity +/-

• 1.6 mm - L max 11.0 m
• 2.0 mm - L max 6.5 m
• 2.4 mm - L max 5.5 m
• 2.7 mm - L max 4.2 m
• 3.0 - L max 3.1 m  EasyFeed Rapid Line Reload System - Gently tap the head on the ground to automatically advance the line.? Semi-automatic head: tap the head button on the ground to release the line.? Innovative Line Reload System - Reloading takes only seconds.

🟠Specifications:

• Mounting Thread - M10LHx1.25 mm
• Line Diameter - 1.5 mm to 3.0 mm
• Head Height - 7.9 cm
• Head Diameter - 11.8 cm
• Max. RPM - 10,000 RPM
• Weight - 442 g

Picture of the black and orange head at the auction buy you black and blue

✅Step by step

1. Turn the blue knob so that the triangular arrows on the housing and the knobs are in line (visible through holes).
2. Slide one end of the line into the side hole. It should go through the entire head and exit with a second hole.
3. Adjust the length Drag the line so that there are sections of the same length on both sides of the head.
4. Grab the blue knob securely and start turning it (clockwise).
5. Make sure that the line enters at an angle close to 90°, which prevents it from getting tangled inside the drum.
6. Continue spinning the knob until only the desired line length remains outside (approx. 10-15 cm per side).
7. Check that the line is tight and evenly extended. Your trimmer is ready to go!
