Vaizdo stebėjimo rinkinys 4x IPCAM-B6-30DL, 1x NVR-4CH-5MP/4P, 6 Mpx

Trumpai apie prekę

Prekė: Vaizdo stebėjimo rinkinys 4x IPCAM-B6-30DL, 1x NVR-4CH-5MP/4P, 6 Mpx. Kategorija: IP kameros.

• Gamintojas: HiLook
• Modelis: NVR-4CH-5MP/4P 1TB + IPCAM-B6-30DL x4

Monitoring kit 4x IPCAM-B6-30DL 1x NVR-4CH-5MP/4P 6Mpx

HiLook by Hikvision

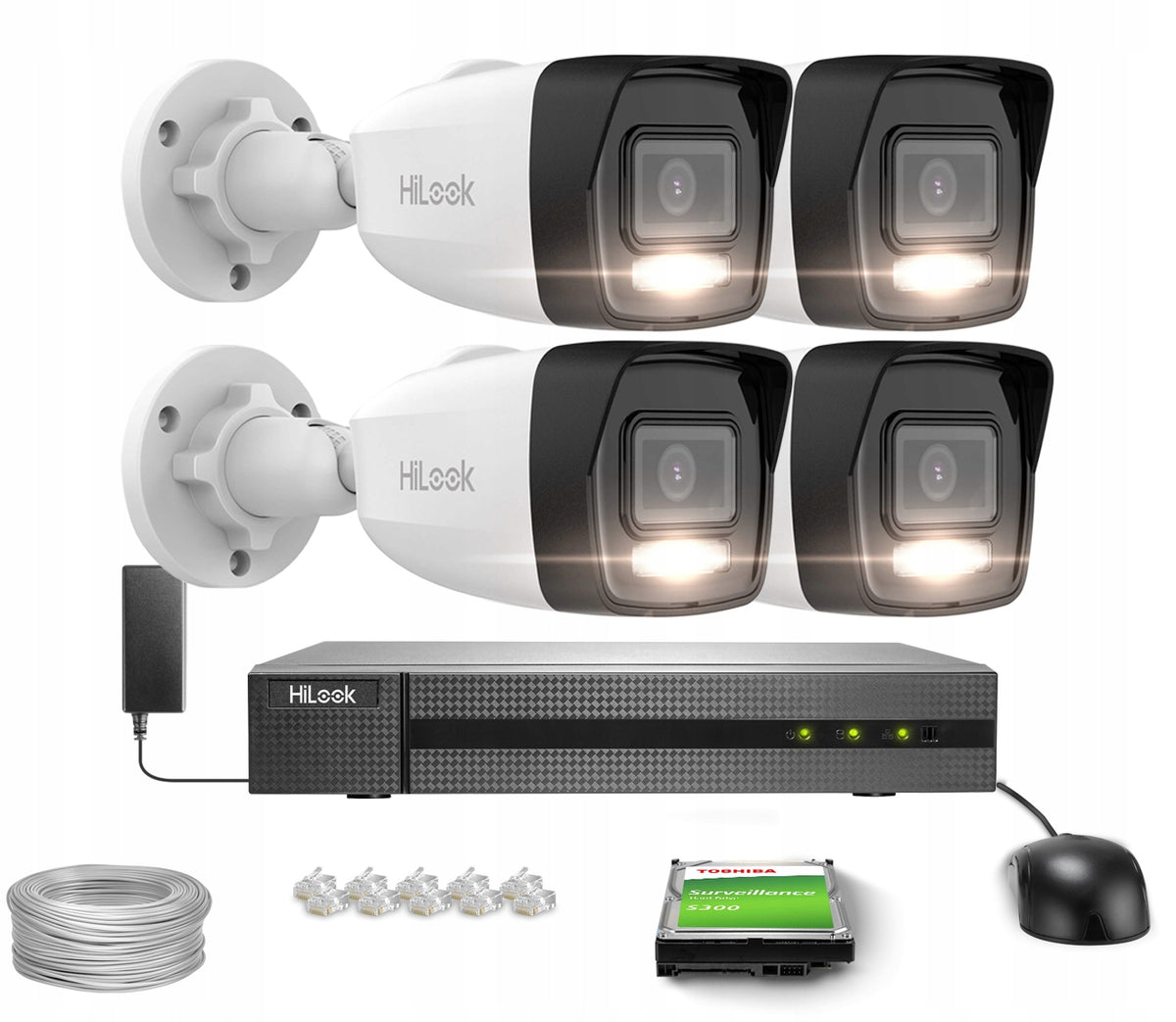

Contents of the set:

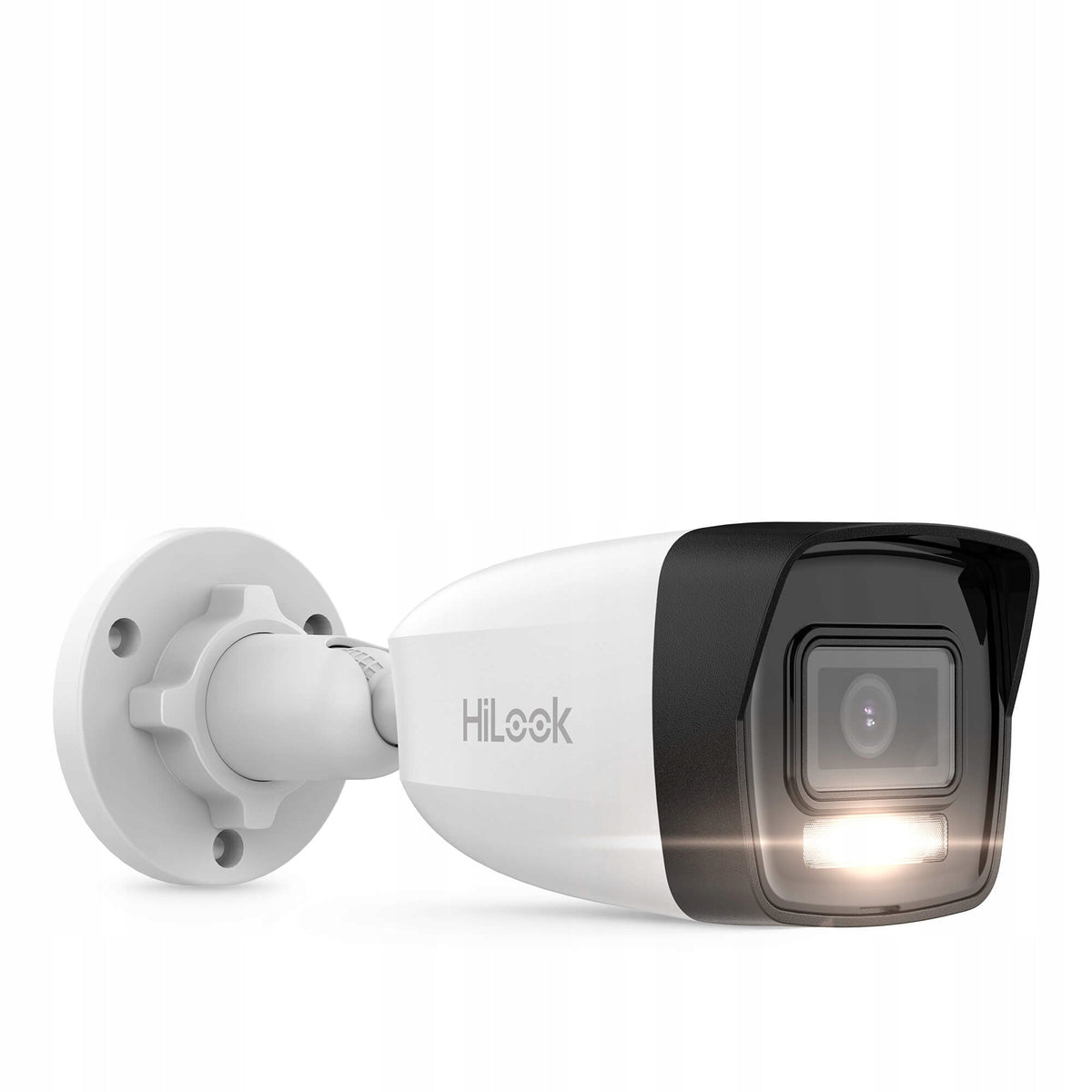

• 4x 6Mpx horn camera - HiLook by Hikvision IPCAM-B6-30DL
• 1x Network DVR NVR-4CH-5MP/4P
• 1x Toshiba S300 hard drive with 1TB capacity from the Surveillance series, dedicated to CCTV solutions
• 20 meters UTP cat.5e cable
• Set of signal connectors
• Sticker "ATTENTION MONITORED OBJECT"

Main features of the set:

• Powerful H.265+ compression technology
• High-quality image with 6Mpx resolution
• Support for detection of people and vehicles
• Smart Dual-Light: Intelligent white and infrared light illumination
• Built-in microphone
• Water and dust resistance (IP66)
• Recorder with built-in 4-port PoE switch
• H.265+ codec to optimize hard drive wear
• IP67 rated cameras, ideal for outdoor installation
• Free Hik-Connect app for monitoring management

Remote access from phone and desktop

IPCAM-B6-30DL enables configuration, control and preview using the Hik-Connect and iVMS-4200 applications, which will provide you with constant access to monitoring from anywhere on earth with Internet access. The above programs allow you to:

• Access video previews and play back saved footage
• Save fragments of the film to the memory of the smartphone
• Configure time frames for motion detection
• Receive notifications from motion detection or other events
• Share your devices on other smartphones with the mobile app, e.g. family members or employees

Hik-Connect - Free app for iOS and Android smartphones

iVMS-4200 - Free desktop application

P2P function

In IPCAM-B6-30DL is a technology that enables direct communication between the camera and the end device (such as a smartphone or computer) without the need for an external server. Here are the main features and principles of this function:

• Direct Connection: P2P allows for a direct connection between the camera and the user's device. This means that video data can be transmitted directly without having to go through an intermediary server.
• Ease of Setup: One of the main advantages of P2P is its ease of setup. The user often only needs to scan the QR code or enter the camera ID to make a call.
• Remote Access: The user can access the camera image from anywhere in the world, provided that both the camera and the end device have access to the Internet.

Power Over Ethernet (PoE)

Power over Ethernet (PoE) in IPCAM-B6-30DL cameras is a technology that allows data and electrical power to be transmitted to a network device using a single Ethernet cable. Thanks to this solution, cameras can be installed in places where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, PoE-based surveillance systems are easier to scale, as adding a new camera only requires connecting it to the PoE network. This increases the flexibility and cost-effectiveness of monitoring systems.

Top image quality and high detail saturation

The high resolution of 6Mpx in the IPCAM-B6-30DL provides exceptional image clarity, allowing you to identify fine details and features, which is crucial when analyzing evidence. It allows for greater coverage without sacrificing quality, reducing the number of cameras needed to monitor large areas. In addition, better image quality facilitates facial recognition and vehicle identification, which increases the effectiveness of preventive and investigative actions.

Detection of people and vehicles

Motion detection with recognition of the silhouettes of people and vehicles in surveillance cameras is an advanced feature that allows you to increase the precision and efficiency of surveillance systems. Thanks to it, the camera has the ability to classify notifications depending on the type of detected figure. At the same time, providing more detailed information, but also completely filtering those irrelevant such as: Moving trees and shrubs.

Color image in total darkness

Hybrid illumination in the IPCAM-B6-30DL combines the advantages of LED and infrared lighting, which allows for effective monitoring both day and night. Thanks to this technology, cameras can capture clear images at low lighting levels without visible light sources, which minimizes the risk of detection by intruders. In addition, hybrid lighting enables color recognition, which is crucial when identifying details such as the color of the car or the clothes of the intruder, increasing the efficiency and reliability of the monitoring system.

Video and audio register

The audio recording function in the IPCAM-B6-30DL allows you to record sounds along with the video image, which significantly increases the capabilities and efficiency of surveillance systems. The most important advantages of this solution are: Comprehensive surveillance: Audio recording allows you to collect more detailed information about the monitored environment, which can be helpful in analyzing events or identifying people. Situation Analysis: Sound can provide additional information that is not visible in the image, such as conversations, background noises, or other sounds, which may be important for understanding the context of the event. Increased monitoring efficiency: Integrating audio into your visual monitoring system enhances the overall performance of your system, enabling you to respond to events faster and more accurately.

Main features of the HiLook recorder:

• Up to 4 IP camera inputs
• Video formats H.265+/H.265/H.264+/H.264
• Ability to decode up to 1 channel @8 MP/3 channels @4 MP/6 channels @1080p
• Inbound bandwidth up to 40 Mbps
• Simultaneous HDMI and VGA outputs
• HDMI video output with up to 4K resolution
• 1 SATA interface for connecting a hard drive (capacity up to 8 TB per hard drive)
• Intelligent search/smart playback for improved playback efficiency
• Motion detection 2.0 on 1 channel
• Support for multiple VCA events (Video Content Analytics)
• Customizable special smart camera functions such as VCA detection (movement, line crossing, intrusion, etc. )

Main features of Toshiba drive:

• Capacity: 1TB
• Drive Type: HDD (Hard Drive)
• Format: 3.5 inch
• Interface: SATA III (6 Gbps)
• Rotation speed: 5700 RPM
• Cache: 64 MB
• 24/7 Continuous Operation: The drive is designed to operate continuously, which is important in surveillance systems where video recording takes place continuously.
• Support up to 64 cameras: The drive can simultaneously support recording from up to 64 video cameras.
• Performance: The drive provides stability and reliability in situations that require heavy write/read data loads.

Technical Specifications:

IPCAM-B6-30DL Camera Image sensor 1/2,4" CMOS with progressive scanning Max. Resolution 3200 x 1800 Minimum Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Shutter Time 1/3 s to 1/100,000 s Day & Night IR Cut Filter Adjustment Angle Pan: 0° to 360°, Tilt: 0° to 90°, Roll: 0° to 360° Lens Lens Type Fixed 2.8mm Focal Length and Field of View 2.8 mm, Horizontal Field of View 105°, Vertical Field of View 55°, Diagonal 127° Lens Mount M12 Aperture Type Fixed Aperture F1.6 DORI DORI 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m Backlight IR Spot Light Type, White light Additional light range Up to 30m Intelligent backlight Yes IR wavelength 850nm Video Main stream 50 Hz: 20 fps (3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720)

60 Hz: 20 fps (3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720)

50 Hz substream: 20 fps (1280 x 720, 640 x 480, 640 x 360)

60 Hz: 20 fps (1280 x 720, 640 x 480, 640 x 360)

Video Compression Main Stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG Video Bitrate 32 Kbps to 16 Mbps H.264 Type Baseline Profile, Main Profile, High Profile H.265 Type Main Profile Bitrate Control CBR, VBR Scalable H.264 Video Compression and H.265 Encoding Region of Interest (ROI) 1 fixed region for main stream Audio Audio Type Mono Ambient Noise Filtering Yes Sampling Rate 8 kHz/16 kHz Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC Audio Bitrate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) Network Security Password protection, Complex password, Watermark, Basic and Complex authentication for HTTP, WSSE and Complex authentication for Open Network Video Interface, Security audit log, Host authentication (MAC address) Simultaneous Live View Up to 6 channels API Open Network Video Interface (Profile S, Profile T), ISAPI, SDK Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP User/Host Up to 32 users User levels Administrator, operator, user Hik-Connect client, iVMS-4200 Web browser Plug-in required for live view: IE 10, IE 11, local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ Wide Dynamic Range (WDR) Image

120 dB SNR ≥ 52 dB Day/Night Switch Day, Night, Auto, Schedule Image Improvement BLC, HLC, 3D DNR Image Settings Rotation Mode, Saturation, Brightness, Contrast, Focus, Gain, White Balance, Adjustable by Client Software or Web Browser Privacy Mask 4 Programmable Polygon Masks Interface Ethernet Interface

1 x 10M/100M RJ45 port with self-adaptive Built-in microphone Yes Events Basic Events Motion detection (Support specific target types - human and vehicle to trigger alarm), tamper alarm, exception Connection FTP upload, email sending, monitoring center notification, capture General Power Supply 12 VDC ±25%, 0.41 A, max. 5 W, Ø5,5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W Material Metal and plastic Dimensions Ø112 mm × 82 mm (Ø4.41" × 3.23") Package dimensions 150 mm × 150 mm × 141 mm Weight Approx. 270 g (0.6 lb.) Weight with package Approx. 481 g (1.1 lb.) Storage conditions -30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing) Operating and operating conditions -30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing) Language Polish General Features Heartbeat,anti-banding, mirror, password protection, password reset by email Approval EMC CE-EMC:EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021,EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32:2015, IC: ICES-003: Issue 7 CB Security: IEC 62368-1: 2014+A11, CE-LVD:EN 62368-1:2014/A11: 2017 CE-RoHS environment: 2011/65/EU,WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 Protection IP67: IEC 60529-2013

NVR-4CH-5MP/4P Recorder IP Video Inputs, 4 Channels, Resolution up to 8 MP Network Input Bandwidth

40 Mbps Output bandwidth 60 Mbps Video output Recording resolution

4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF HDMI/VGA 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz Decoding Decoding format

H.265/H.265+/H.265/ H.264+/H.264 Preview/Playback Resolution 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback 4 Channels Decodeable 1 Channel @ 4 MP/2 Channels @ 1080p Hard Drive SATA Interface

1 SATA interface Capacity Up to 6 TB capacity per drive Network management Network protocols

TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™ Network Interface 1, RJ-45 10/100 Mbps, self-adaptive Ethernet interface USB Interface 2 × USB 2.0 PoE Interface 4, RJ-45 10/100 Mbps, self-adaptive Ethernet interface Power ≤ 36 W Standard IEEE 802.3 af/at General Power

48 VDC Consumption (without hard drive and PoE off) ≤ 10 W Operating temperature -10 to +55º C (+14 to +131º F) Operating humidity 10% to 90% Housing 1U Dimensions (W. × Head. × H. ) 260 × 225 × 48 mm (10.2" × 8.9" × 1.9") Weight (without hard drive) ≤ 1 kg (2.2 lb)

• :
• Housing color: White
• Connectivity: Cable
• Housing: Tubular
• Number of cameras: 4
• Resolution: 6Mpx
• Technology: IP

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	4 kg
Parametry	EAN (GTIN)	5906667301267
Parametry	Manufacturer code	NVR-4CH-5MP/4P 1TB + IPCAM-B6-30DL x4
Parametry	Brand	HiLook
Parametry	Model	NVR-4CH-5MP/4P 1TB + IPCAM-B6-30DL x4
Parametry	Kind	internal,external
