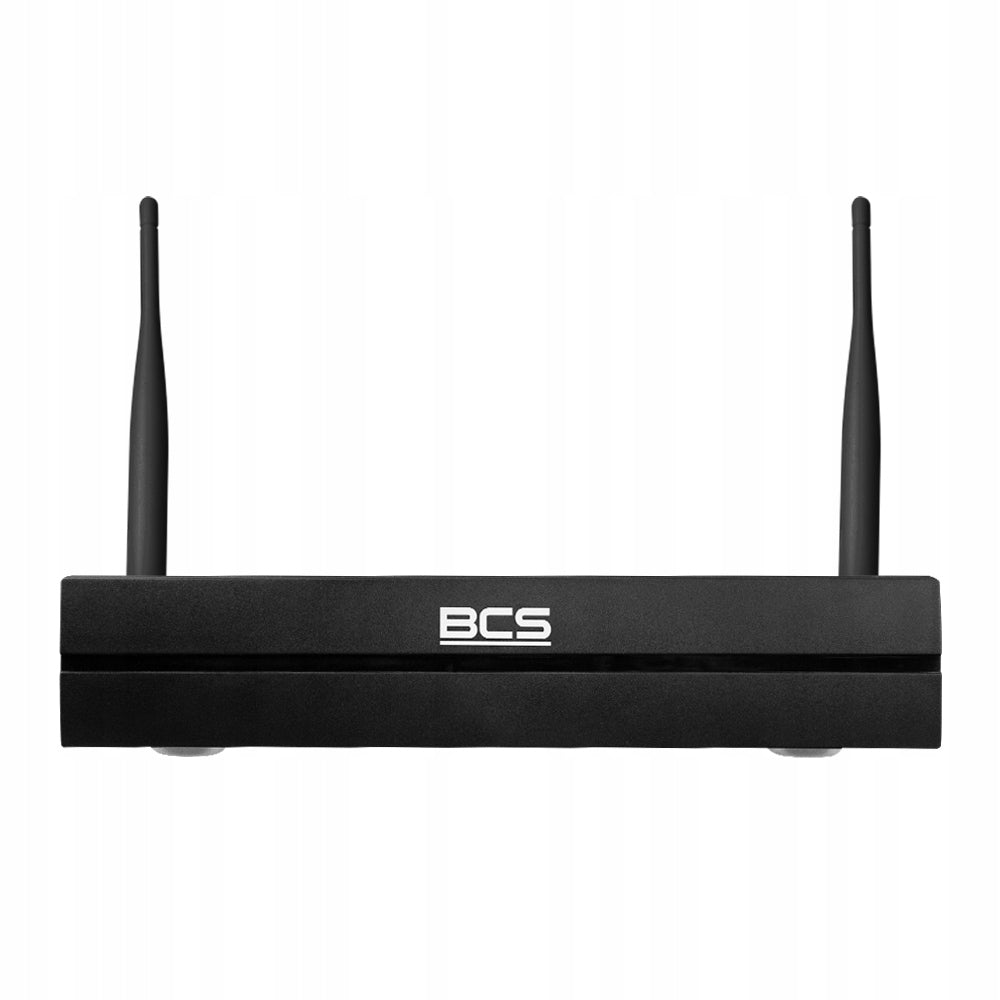

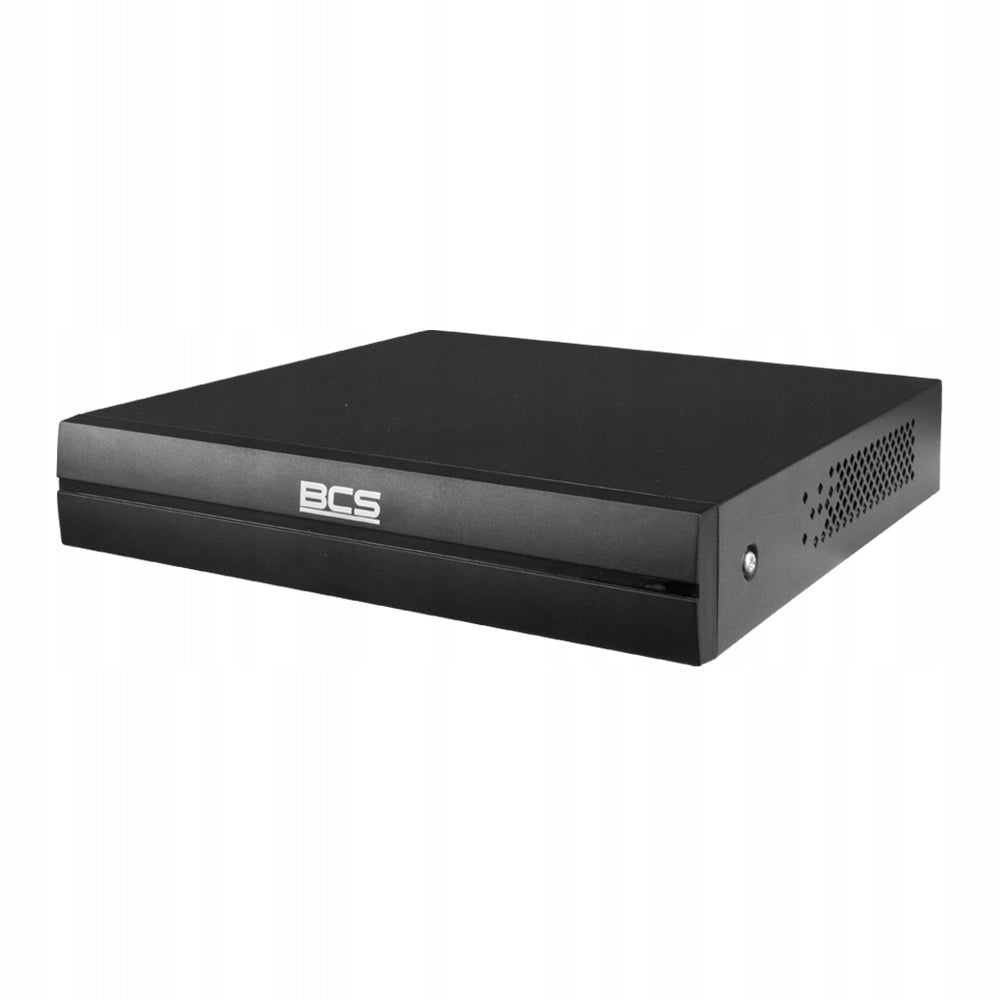

Vaizdo stebėjimo įrašymo įrenginys BCS-L-NVR0801-4KE-W(2L), 8 kanalų, IP, WiFi

Trumpai apie prekę

Prekė: Vaizdo stebėjimo įrašymo įrenginys BCS-L-NVR0801-4KE-W(2L), 8 kanalų, IP, WiFi. Kategorija: IP kameros.

• Gamintojas: BCS
• Modelis: BCS-L-NVR0801-4KE-W(2L)

⭐8-channel IP recorder

BCS-L-NVR0801-4KE-W(2L) is a 8 channel WIFI IP recorder designed for display, playback and recording of images transmitted by cameras in monitoring systems.

Archiving of recordings takes place on a continuous disk with a maximum capacity of 20TB, mounted inside the recorder housing. (must be purchased separately)

The recorder supports the ONVIF standard, thanks to which will work with cameras from other manufacturers, e.g. Dahua, Hikvision

⭐Has everything you need:

✔ Max. recording resolution: 16 Mpix for IP cameras

✔ Supports up to 8 cameras

✔ Support for third-party cameras with ONVIF

✔ Wi-Fi Module 6 802.11b/g/n/a/ac/ax 2.4/5GHz

✔ Built-in smart functions

✔ H265+ data compression with better encoding will save up to 80% of HDD space

✔ Hard disk space max. 16 TB

✔ Intuitive menu

✔ Mobile application BCS

⭐Mobile application BCS

The BCS Basic Manager application is a program designed to preview the image from cameras via mobile devices. The program allows remote operation of devices, image preview up to 4 channels at the same time, remote PTZ control (cameras with high-speed heads), audio support, taking photos (snapshot - image dumps).

In addition, the application allows you to add lists of devices and favorite channels, has the ability to remotely play recordings and the function of notifications about alarm events "PushAlarm" and eMAP

⭐AKOM official distributor of the BCS brand

BCS is a polish brand created in 2008, which is currently one of the most recognizable brand in the CCTV industry. We know what a high-quality product should be, while maintaining a competitive price and providing technical support at the highest level. We choose the best solutions from the market, we suggest improvements, thus making BCS a unique product.

Technical data:

• Model: BCS-L-NVR0801-4KE-W(2L)
• Product line: BCS LINE
• System Type: IP
• Pentaplex function: live view / recording / playback / archiving / remote access
• Number of Channels: 8
• Disk Support: 1× HDD
• Maximum disk capacity: 20 TB
• Recording Modes: Continuous / Manual / Alarm / Motion Detection / Schedule / AI
• Max. recording resolution: 16 Mpx
• Input bandwidth: 80 Mbps
• Output bandwidth: 80 Mbps (60 Mbps AI)
• Recording bandwidth: 80 Mbps
• Display performance: 1×16M@30fps / 2×8M@30fps / 3×6M@30fps / 4×5M@30fps / 5×4M@30fps / 6×3M@30fps / 8×2M@30fps
• AI display performance: 1×12M@30fps / 2×6M@30fps / 3×4M@30fps / 4×3M@30fps / 6×2M@30fps / 8×720p@30fps
• Supported recording resolutions: 16M / 12M / 8M / 6M / 5M / 4M / 3M / 2M / 1.3M / 720P / D1 / CIF / QCIF
• Video compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• HDMI Output: HDMI 4K
• VGA Output: Yes
• HDMI Resolution: 3840×2160 / 1920×1080 / 1280×1024 / 1280×720
• VGA Resolution: 1920×1080 / 1280×1024 / 1280×720
• Simultaneous playback: 1 / 4 / 8 / 9 channels
• Archiving: USB FLASH / USB HDD
• Max. Number of users: 128
• USB Ports: 2× USB 2.0
• Audio Compression: G.711A / G.711U / G.726 / PCM
• System support: local / Web Service / CMS BCS Manager (Windows, Linux, Mac) / iOS and Android mobile app
• Network port: RJ-45 10/100 Mbps
• Wi-Fi Connectivity: Wi-Fi 6 (802.11 b/g/n/a/ac/ax), 2.4 GHz / 5 GHz
• Compatibility: ONVIF (S/G/T)
• Supported protocols: HTTP / HTTPS / TCP/IP / IPv4 / IPv6 / UDP / NTP / DHCP / DNS / SMTP / IP Filter / DDNS / IP Search / P2P / Auto Registration
• Power Supply: 12V DC
• Power consumption (without disk): max. 6 IN
• Operating temperature: -10°C to +45°C
• Operating humidity: up to 93% RH
• Housing: 1U
• Dimensions: 197 × 234 × 41,5 mm
• Weight (without disk): 0,57 kg
• DVR AI Features: SMD Plus
• AI functions from cameras: perimeter / SMD protection
• AI perimeter protection: up to 8 channels from cameras
• Intelligent SMD motion detection: 4 channels from DVR (person/vehicle) or 8 channels from cameras
• AI Recognition: Person/Mechanical Vehicle
• Application: IP monitoring, CCTV systems, remote video surveillance
