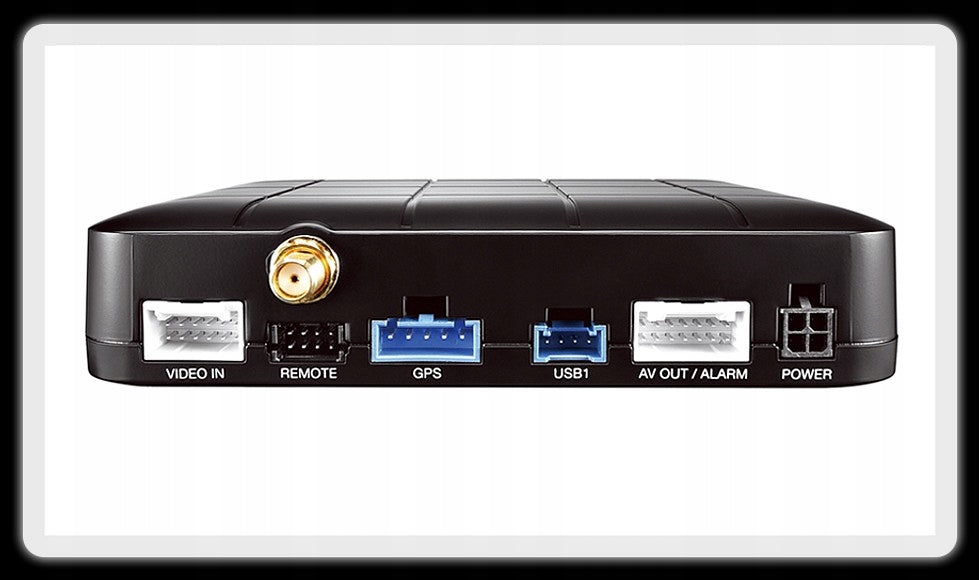

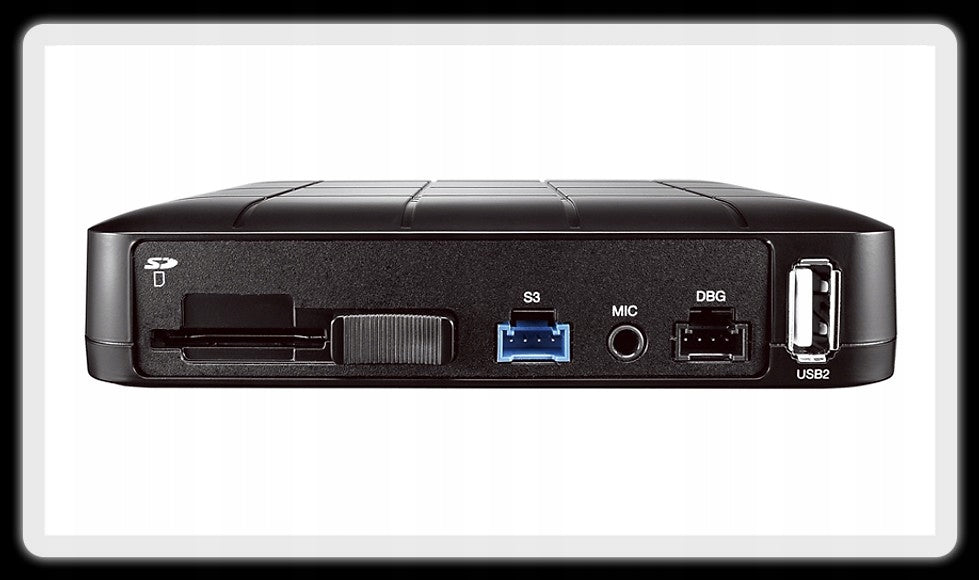

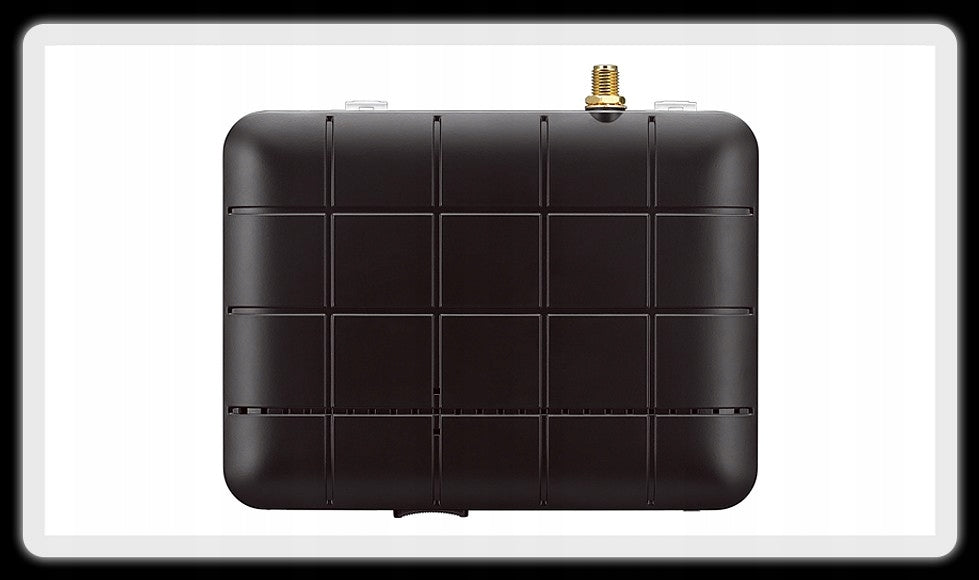

Vaizdo registratorius D-TEG SMARTY TX4000 Black Box

Trumpai apie prekę

Prekė: Vaizdo registratorius D-TEG SMARTY TX4000 Black Box. Kategorija: Vaizdo registratoriai.

• Gamintojas: no brand
• Modelis: TX4000

Vehicle route recording "black box" - GPS module, video recorder, overload sensor and the ability to connect four cameras, data synchronization via 3G/LTE/WIFI module Great device for all types of vehicles! Designed to provide visual evidence of an event or record of a route. The D-TEG recorder can be treated as a “Black Box” of the vehicle in which the most important data is stored. By using an SD card instead of a traditional hard drive, the device provides high reliability and is also perfect for monitoring the fleet without incurring additional costs associated with GSM telephony. All this can be achieved with the help of a mobile Smarty recorder. The recorder has the ability to record images from four cameras in resolution up to 1920x1080 (FullHD), 1280x720 (HD) or 720x480. The minimum illumination for the camera is 1.0 lux, which gives good image quality even in a lot of darkness, although in reality the passing lights or street lamps provide sufficient visibility for the camera. In addition, the software allows you to manually adjust the contrast and brightness of the image. The small size of the device allows for simple and non-invasive installation. The built-in 3-axis G overload sensor not only activates the event record on the card, but also shows data indicating sudden accelerations, braking, sharp turns, etc. As a result, this allows for an overall assessment of the driver’s driving style.

Registration takes place in continuous mode or is activated by an overload sensor according to the defined sensitivity. If the device operates in event mode, the recorder buffers the so-called pre-alarm, from which it is recorded from 0 to 20 seconds before and after the event when the sensor is activated.

It is possible to use SDHC/SDXC cards with a capacity of up to 128GB. which provides constant video recording for up to 63 hours with four cameras in the configuration:

first camera 1920x1080, 10fps, quality: normal, second camera: 1280x720, 10fps, quality: normal, third camera 1280x720, 10fps, quality: normal, fourth camera: 720x480, 10fps, quality: normal,

This is determined by the defined resolution and frame rate. If the card is full depending on the configuration, the device can start overwriting the oldest data. D-TEG analysis software allows for easy and quick configuration of the device and provides options such as:

• GPS logs (up to 31 days of recording)
• Playback of recordings
• Exporting recordings
• Generating reports
• Checking GPS speed and position
• Viewing the route on Google Maps

Software and instructions are available only in English.

The set includes:

• TX4000 recorder
• 64GB SD card with software
• set of cable clasps
• power cable - 12/24V
• video bundle
• 4x S-Video to RCA+DC adapter for connecting cameras
• remote
• gps antenna
• 3G/LTE antenna
• instruction manual

Technical specification:

• TV System: PAL/NTSC (Auto)
• Power Consumption: 8,3W
• Weight: 166,5g
• Camera Options: Remote Control, Built-in Image Divider for 4 Cameras, Memory Card, Video Output
• Operating Temperature: -10 ~ +55'C
• Dimensions: 90mm x 120mm x 28mm
• Power Supply: DC 12~24V
• Resolution: 720x576 / 1280x720 / 1920x1080 (PAL) or 720x480 / 1280x720 / 1920x1080 (NTSC)



Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Model	TX4000
Parametry	Power supply	rechargeable battery
Parametry	Memory card included	64 GB
Parametry	EAN (GTIN)	5904063112326
Parametry	Manufacturer code	TX4000
Parametry	Recording quality	HD (1280 x 720),Full HD (1920 x 1080)
Parametry	Ports	AV,memory card reader
Parametry	Communications	GPS,Wi-Fi
Parametry	Additional features	automatic start,motion sensor,shock sensor,H.264 codec,sound recording
