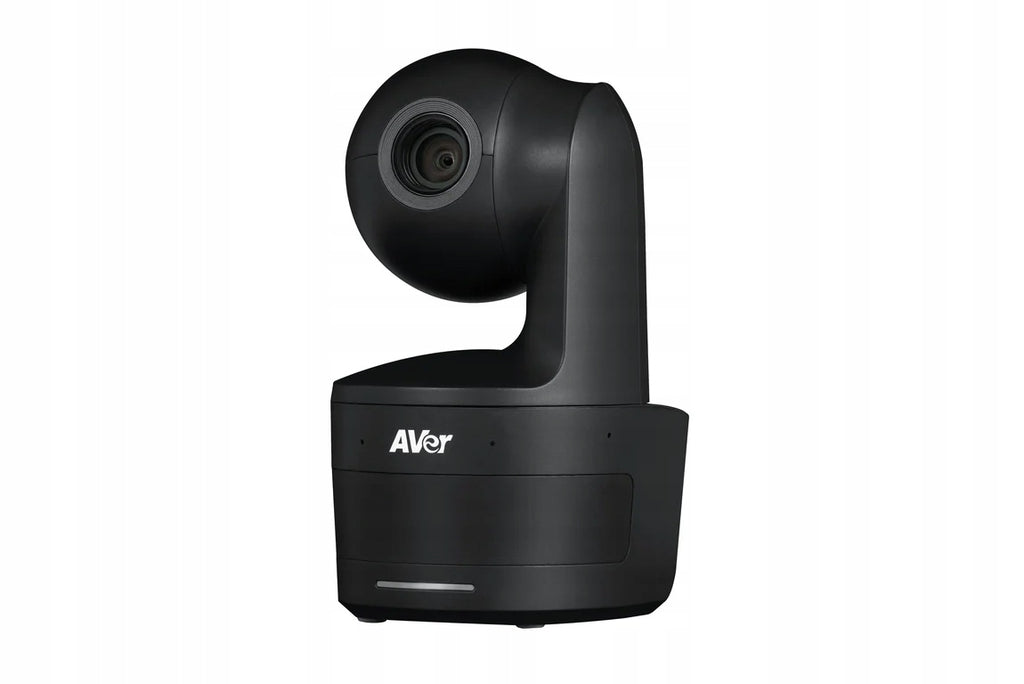

Vaizdo kamera AVer DL10

Trumpai apie prekę

Prekė: Vaizdo kamera AVer DL10. Kategorija: Vaizdo konferencijų rinkiniai ir kameros.

• Gamintojas: AVer
• Modelis: 61S9000000AD

Tracking camera for distance learning

Featuring high portability and lightweight design, any teacher can use the DL10 to directly connect to their laptop via USB port to start distance learning anywhere. Featuring Full HD 1080p resolution and a 2 megapixel camera, the DL10 delivers the highest picture quality. With three modes of automatic AI tracking and intuitive DL10 gesture control, teachers can easily configure different modes to create perfect classes. With built-in noise-canceling microphones, the DL10 actively detects teacher speech and eliminates disturbing background sounds. After class, teachers can really turn off thanks to the DL10 sleep mode feature, where the device automatically turns off when online classes are over.

• Portable and lightweight
• 3 AI Tracking Modes
• Gesture control
• Built-in microphone
• IP and USB outputs
• 2 megapixels
• 6x total zoom
• Sleep mode
• Willingness to learn from a distance
• Ideal for hybrid learning

Lightweight and portable

The DL10 weighs just 760g, giving teachers the freedom to take their work anywhere — just place the DL10 directly on your desk or on the included tripod. USB plug-and-play functionality allows teachers to start distance learning anytime, anywhere.

Automatic AI tracking

Equipped with industry-leading automatic AI tracking algorithms, the DL10 can share every teacher’s move with students. The AI DL10 does all the tracking work without the need for any annoying additional sensors or devices. No more worrying about getting out of the frame or losing focus, remote students can see you on screen wherever you are.

Sustainable magnification ratio

The DL10 is ideal for schools because the 3x optical zoom provides clear details, and the 6x total magnification ratio is great for online or hybrid learning in standard K-12 classes or at home.

Noise Cancelling Microphones

The DL10's advanced noise-canceling technology detects teacher speech while silencing ambient noises such as keyboard, mouse, and book sounds for clearer sound quality and a superior audio-visual experience.

Sleep mode for privacy

Simply turn off your laptop or software when you’re done teaching, and the DL10 will go into sleep mode and turn off all features within 10 seconds. When it’s time to start teaching again, the DL10 will resume working exactly where you left off, with tracking and other unchanged settings. DL10 makes privacy protection what it should be: easy.

Innovative gesture control

Gesture control allows the teacher to use intuitive gestures to turn tracking on and off, adjust recording angles to individual bodies, etc. without touching the screen or using the keyboard, mouse or remote control.

The most important technical parameters:

Camera - Camera/Camera Type: Single Lens

Camera - Megapixels: 2 MP

Camera - Min. Lighting: 0,5 lx

Camera - Digital zoom: 2x

Camera - Connected zoom: 6x

Camera - Field of View (FOV): 90°

Camera - Field of view (wide): 82°

Camera - Lens Range: 2 - 3,7

Camera - Lowest focal distance: 0,5 m

Camera - Predefined tilt speed: 200°/s

Camera - Pre-speed: 200 °/s

Photosensitive matrix - CCD sensor size: 25,4 / 2,8 mm (1 / 2.8")

Photosensitive sensor - Image sensor type: CMOS

Lens system - Optical zoom: 3x

Lens system - Focal length: 3.3 - 9.7 mm

Video - Maximum frame rate: 60 fps

Video - Resolution at capture speed: 1920x1080@60fps

Video - Supported video file formats: H.264, M-JPEG

Display - HD Type: Full HD

Display - Supported graphics resolutions: 1920 x 1080 (HD 1080)

Display - Supported video modes: 1080p

Audio - Built-in Microphone: Yes

Audio - Number of microphones: 2

Audio - Audio codecs: AAC-LC (48, 32, 16, 8K), PCM (48K)

Audio - Microphone Selection Area: 5 m

Audio - Audio Channels: 2

Audio - Supported sample rates: 48 kHz

Design - Sliding range: -170 - 170°

Performance - Maximum film resolution: 1920 x 1080 px

Performance - Product Color: Black

Efficiency - PTZ: Yes

Power - Input Current: 2 A

Power - Power Consumption: 11 W

Power - AC input frequency: 100 - 240 Hz

Power - DC input voltage: 12 V

Ports and interfaces - Number of Ethernet LAN ports (RJ-45): 1

Ports and Interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Number of Type B Ports: 1

Ports and Interfaces - DC Output Socket: Yes

Ports and Interfaces - Line Input: Yes

Microphone - Microphone sensitivity: -33 dB

Network - Network configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS

Ergonomics - Tilt angle range: -90 - 90°

Mounting - Mounting Type: Stand

Weight and sizes - Product weight: 745 g

Weight and sizes - Product width: 92,4 mm

Weight and sizes - Product depth: 94,4 mm

Weight and sizes - Product height: 164 mm

Packaging Data - Assembly Kit: Yes

Package Contents - AC Adapter: Yes

Package Contents - Remote Control Included: Yes

Package Contents - Number of Screws: 3

Package Contents - Screws Included: Yes

Package Contents - Cables: USB

Package Contents - Number of Cable Ties: 4

Package Contents - Cable Ties Included: Yes

Features - Type of power supply: DC

Operating conditions - Temperature range (operation): 0 - 40 °C

Operating conditions - Relative humidity range: 20 - 80%

Operating conditions - Temperature range (storage): -20 - 60 °C

Operating conditions - Permissible relative humidity: 20 - 95%

Logistics data - Harmonised System Code (HS): 85258900

Other Features - Quick Start Guide: Yes
