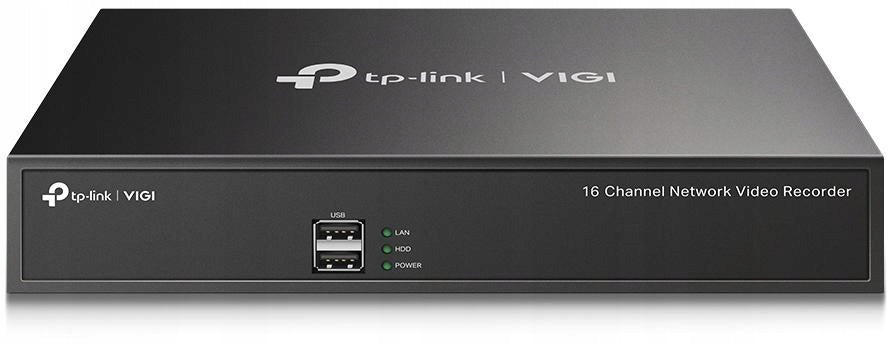

Vaizdo įrašymo įrenginys TP-LINK VIGI NVR1016H, 16 kamerų, iki 8 Mpx, ONVIF

Trumpai apie prekę

Prekė: Vaizdo įrašymo įrenginys TP-LINK VIGI NVR1016H, 16 kamerų, iki 8 Mpx, ONVIF. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: Tp-Link
• Modelis: VIGI NVR1016H

TP-LINK VIGI NVR1016H DVR

TP-LINK

TP-LINK VIGI NVR1016H DVR

• Model: NVR1016H

• :

16-channel VIGI network video recorder

• 24/7 recording: The footage obtained from the connected cameras automatically saves to disk (up to 10 TB), making access to recordings quick and convenient.
• 16-channel live view: Up to 8 Mpx resolution and support for up to 16 channels will allow you to capture all the details from different perspectives.
• Quick preview and playback: Easily access the snippets you’re looking for by filtering by dates, events, and keywords. Variable speed playback allows you to quickly view recordings.
• Remote monitoring: The VIGI app is a convenient and easy-to-use application that provides access to remote monitoring.
• H.265+: The camera does not have to over-use network bandwidth – the device transmits compressed video to save disk space and reduce network load.
• ONVIF*: The design of the device is fully compliant with ONVIF standards, so connecting VIGI cameras or third-party cameras is not a problem and allows you to create a powerful and diverse network.
• 1 HDD interface (up to 10 TB)†: Up to 10 TB (720 days△ ) of video can be stored on a SATA-enabled hard drive, ensuring the security of local data storage.
• Two-way audio transmission: With intercom support, you can make two-way calls from anywhere while seeing the camera image.

Audio and Video

• IP Video Input: 16-Channel
• Inbound bandwidth: 80 Mbps
• Outgoing bandwidth: 60 Mbps
• HDMI Output Resolution: 1 Channel, Resolution: 3840 × 2160/30Hz, 1920 × 1080/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA output resolution: 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode: HDMI/VGA Simultaneous Output
• Multi-view display: 1/4/6/8/9/16

DECODING

• Audio Compression: G.711A/G.711U/G.726
• Compression: H.265+/H.265/ H.264+/H.264
• Video compression: H.265+/H.265/ H.264+/H.264
• Recording resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Live preview/recording resolution: 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Simultaneous playback: 16-Channel
• Performance: 1 channel @ 8 MP, 2 channels @ 4 MP, 4 channels @ 2 MP
• Recording management

Recording mode

• Manual Recording

• Scheduling Recording

• Motion Detection Recording

Playback mode

• Instant Playback

• Regular Playback

• Tag Playback

• Event Playback

Backup mode

• Regular backup

• Video Clip Backup

Playback functions

• Play

• Pause

• Stop

• Fast Forward

• Fast Backward

• Play By Frame

• Full Screen

• Video Clip

• Export Clip

• Digital Zoom

• Lock Recording

• Audio On/Off

NETWORK

• Supported protocols: TCP/IP, DHCP, DNS, NTP, UPnP
• Access from the app: Android, iOS
• Bandwidth for incoming traffic: 80 Mbps
• Bandwidth for outbound traffic: 60 Mbps
• Browser: Chrome (57+), Firefox (52+), Edge (91+)
• Compatibility: ONVIF, CGI

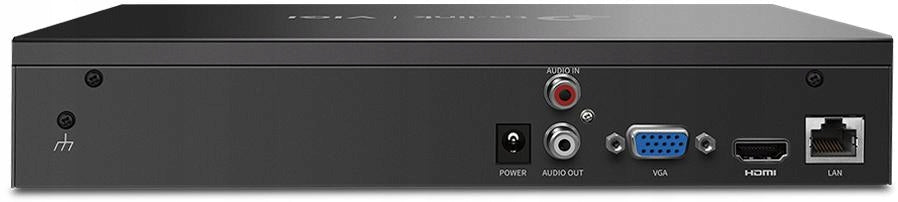

External interfaces

• Network: 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
• USB: 2× USB 2.0
• Audio: 1, Audio In; 1, Audio Out
• Input/Output Alarm: N/A
• Serial Port: N/A
• Power Supply: 1× DC Jack
• Reset button: 1
• Speaker: N/A
• eSATA: N/A
• HDMI: 1
• VGA: 1

SUPPORTED HARD DRIVE

• SATA: Capacity
• 1 SATA interface: Up to 10 TB

General alarm

• Motion Detection

• Video Tampering

• Line-Crossing Detection

• Intrusion Detection

• Entering Detection Region

• Exiting Detection Region

Object Abandoned/Removal Detection

• Vehicle Detection

• Human Detection

Alarm of an unexpected event

• Video Loss

• Offline and IP Conflict

Disk Exception

• Login Exception

Alarm binding

• Recording

• White Light Alarm

• Buzzer

• Log

• Audible Alarm

PORTS

• Network ports: USB ports
• 1 RJ-45 10/100 Mbps port: 2× USB 2.0

GENERAL INFORMATION

• Permissible operating temperature
• -10 TO 55 °C
• Permissible storage temperature
• -40 TO 70 °C
• Permissible storage humidity
• 10%~90% RH Non-Condensing
• Weight: 578.5 g
• Package Contents: VIGI Network Video Recorder, Power Supply, HDD Screws, Mouse, Quick Installation Guide
• Permissible temperature during operation
• • NVR: -10 TO 55 °C
• • Power Adapter: 0 to 40 °C
• Permissible humidity during operation: 10%~90% RH Non-Condensing
• Dimensions (S x G x W): 246.2 × 148.2 × 45 mm
• Power Supply: 12V DC/1.5 A
• Net weight: 0.6 Kg
• Gross weight: 1.06 Kg
• Power consumption: 4.25 W (without disk), 13.10 W (with disk)
• Certificates: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, IC, HDMI

VIDEO/IMAGE

• Video input: 16 channels IP video, resolution up to 8 MP
• Video output: Recording resolutions: 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• HDMI/VGA: Output Resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz

Specifications
