Trumpai apie prekę
Prekė: Užspaudimo replės Knipex movoms. Kategorija: Replės, žirklės, žnyplės.
- Gamintojas: Knipex
- Modelis: 975309
- Ilgis: 190 mm
Manufacturer: Knipex / Product number: 814497 / Product weight: 0.51kg / EAN: 4003773044550

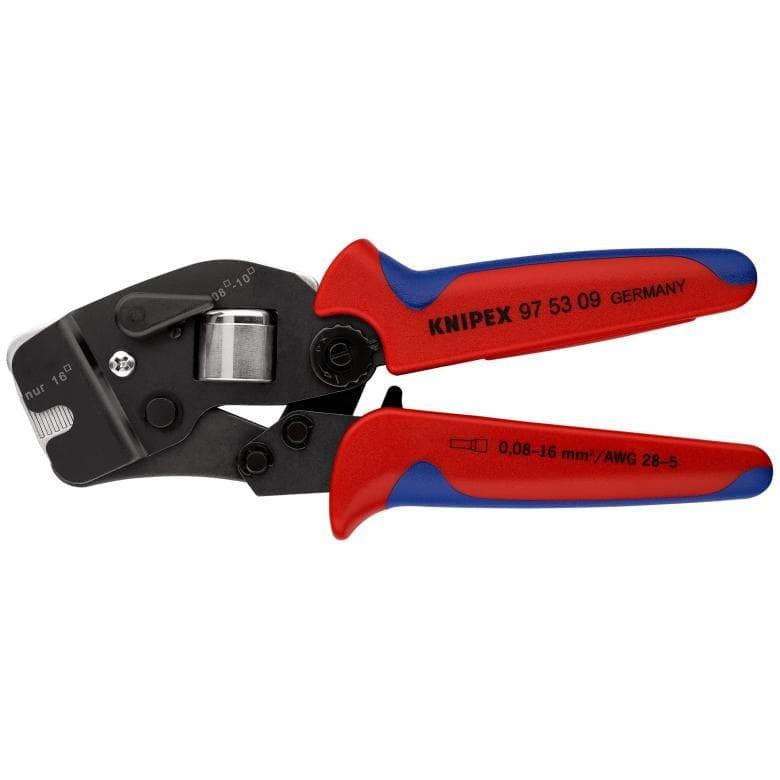

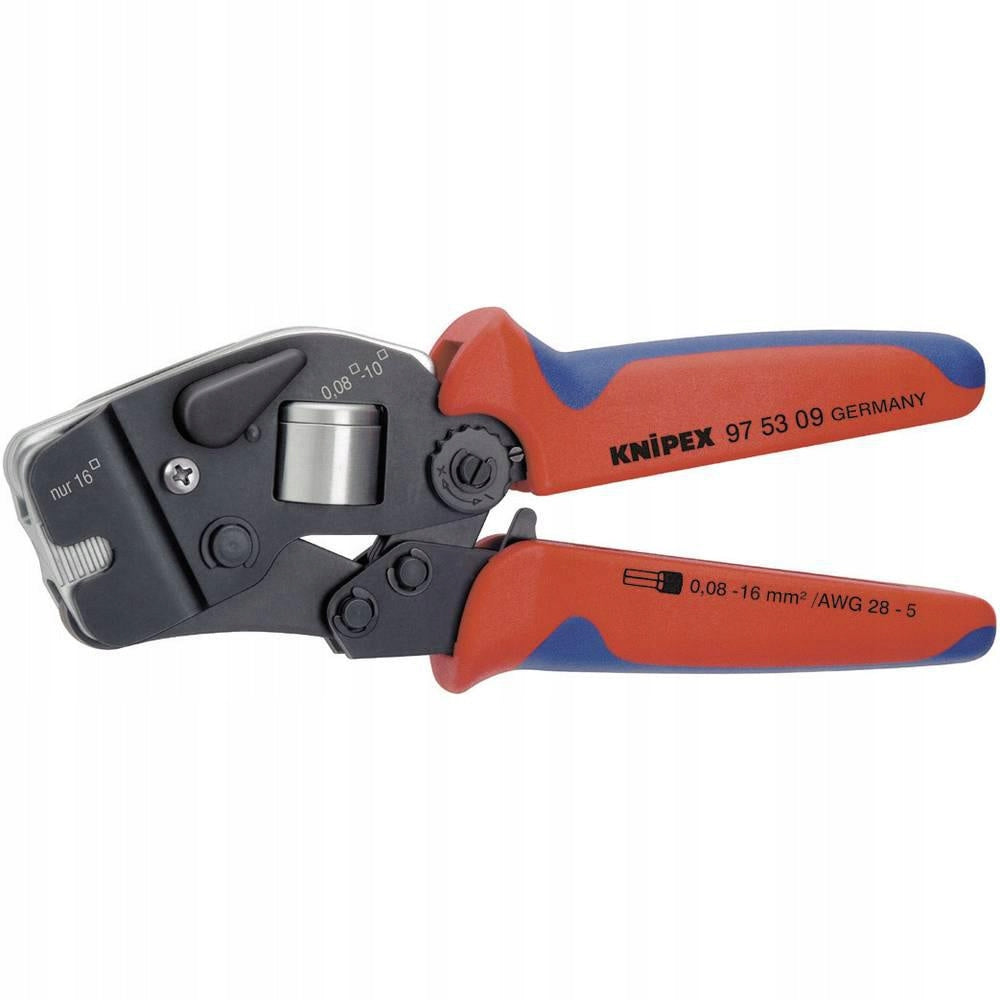

Self-aligning crimping machine for cable bushings KNIPEX
Crimping from 0,08 to 10,0 mm² and 16,0 mm² in one profile. With lever for setting the clamping range from 0,08 to 10 or 16,0 mm². Especially suitable for all double cable bushings up to 2 x 6 mm² or 2 x AWG 8. For crimping bushings according to DIN 46228 parts 1 + 4. For unsoldered electrical connections. The leading introduction of end sleeves into the tool. Easy operation thanks to self-adjustment to the sleeve size. With a square clamp for optimal contact surface in the clamping connection. The highest quality of crimping thanks to the precise die and lock (removable) Factory precisely set pressure (calibration) lever transmission strengthens the force action and the work does not tire Easy to use thanks to the handy design and light weight. Improved chrome vanadium electric steel, oil-hardened
Special features

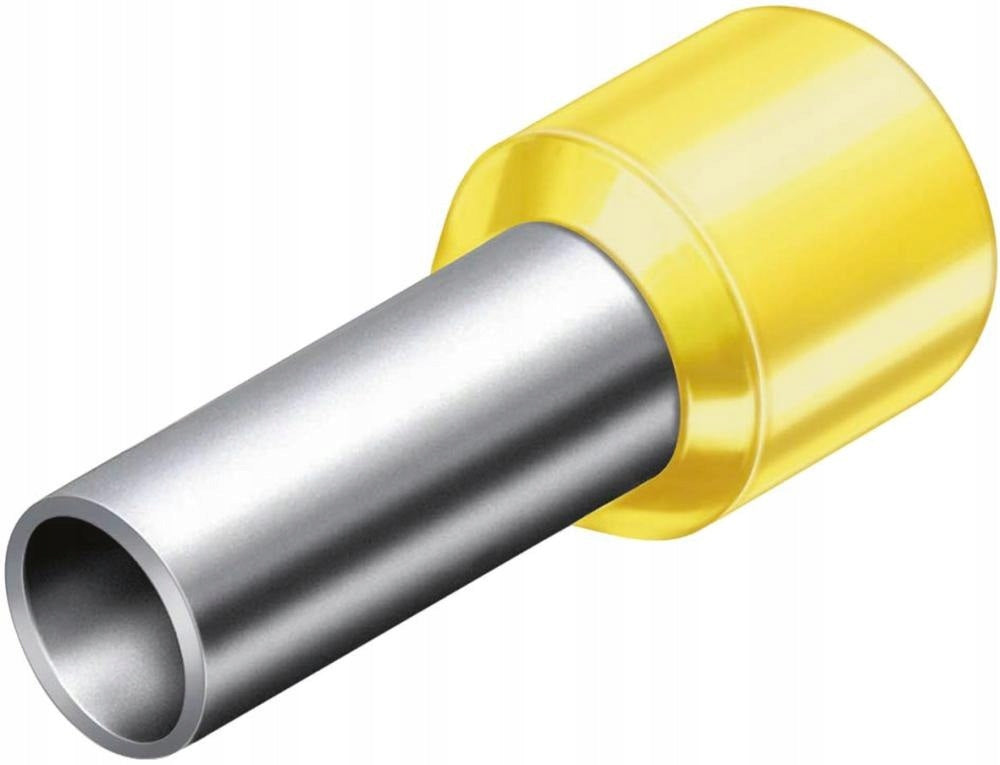

- For crimping bushings according to DIN 46228 parts 1 + 4.
- Self-adjusting fit to the desired wire tip size: no crimping errors caused by using the wrong clamp insert
- Leading introduction of end sleeves into the tool
- Highest crimping quality thanks to precise die and lock (removable)
- The pressure has been factory precisely adjusted (calibrated), adjustable
Characteristic
- With frontal exit
- Crimping four edges with one profile
- Forced lock for efficient crimping, the ability to disable the lock
- Material: all loaded parts made of specially improved steel.
Technical data
- Product Length: 190 mm
- Maximum cross-section of the crimped element: 16 mm²
- Maximum cross-section of crimped element (AWG standard): 5
- Material: chrome vanadium electrotechnical steel
- Minimum cross-section of crimped element: 0.08 mm²
- Minimum cross-section of crimped element (AWG standard): 28
- Material specification: oxidized, tempered
- Weight: 486 g
- Application: Cable Tips
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Knipex |
| Parametry | Kind | locking pliers |
| Parametry | Length | 190 mm |
| Parametry | Additional information | hardened jaws |
| Parametry | Product weight with unit packaging | 0.49 kg |
| Parametry | Manufacturer code | 975309 |
| Parametry | EAN (GTIN) | 4003773044550 |
