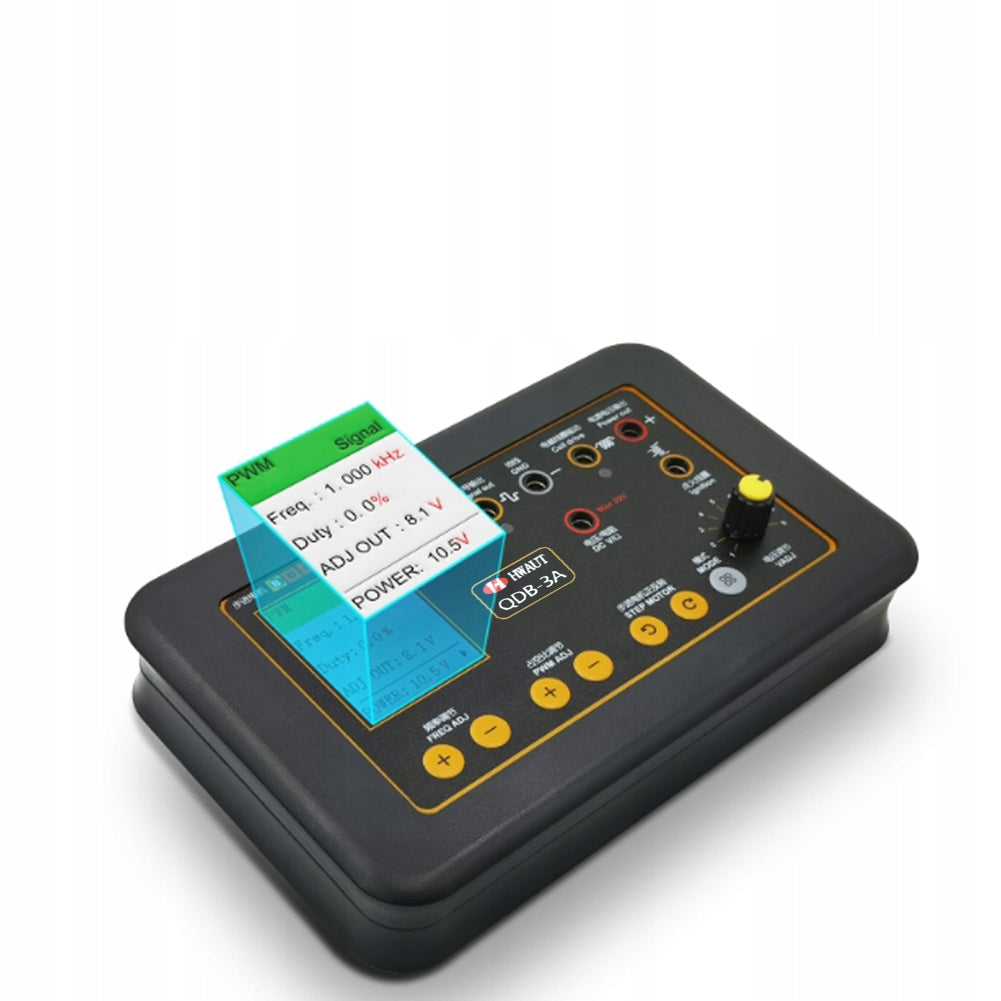

Uždegimo ritės testeris QDB-3A automobiliams

Trumpai apie prekę

Prekė: Uždegimo ritės testeris QDB-3A automobiliams. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: no brand
• Modelis: QDB-3A

The Ignition Coil Tester is a device designed for vehicle maintenance, featuring ease of use, rich features, and easy-to-use diagnostic tools that allow you to quickly identify faults. Main functions include PWM control output, stepper motor control, PWM signal output, voltage and resistance measurement.

Characteristics:

【Comprehensive Testing Capabilities】: This product can control and test various parts including ignition coils, fuel injectors, solenoid valves, fuel dispensing valves, idle stepper motors, instrument stepper motors, headlight tracking system stepper motors and urea pump motors, meeting the testing needs of different vehicles, making it suitable for different vehicles.

【High Simulation Precision】: Hall signal with adjustable output frequency, amplitude and fill factor can precisely simulate various duty cycle sensors such as air conditioning pressure sensors and air flow meters. 【Expanded safety functions】: The supply voltage is from 12 to 24 V. Reverse connection and overcurrent protection ensure the safety of the device during use.

【Wide adjustment range】: The electromagnetic coil control current is from 0 to 3,5 A, the output frequency is from 1 Hz to 100 kHz, the fill factor is from 1% to 100%, and the adjustable voltage is from 1,25 V to 11,5 V, which allows the device to be adapted to different test requirements.

【Easy to use】: Easy to operate, all parameters are adjustable, making it easy to operate even for people without specialized knowledge.

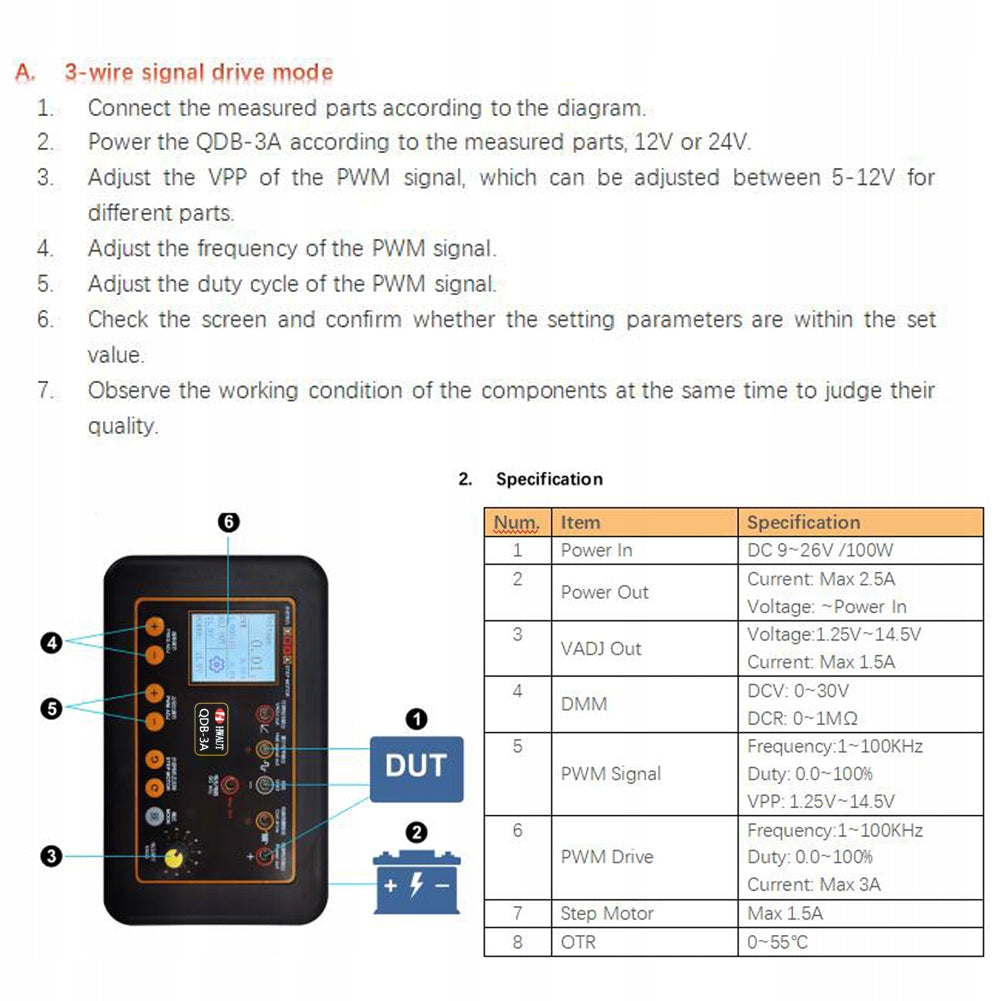

Specification:

Name: Ignition Coil Tester

Material: ABS

PWM Drive: Electromagnetic Valves/Ignition Coil/Electromagnetic Injector

Stepper motor drive: Idle motor, dashboard motor/Urea pump stepper motor

PWM Signal Drive: 3-wire Ignition Coil/3-wire urea pump motor/Electronic fan

Output signal simulation: Air conditioning pressure sensor/Rail pressure sensors/Flow sensors

Multimeter Function: Resistance Measurement/Voltage Measurement

Input power: 9-26 V/100 W

Output Power: Max. current 2,5 A

VADJ output: 1,25-14,5 V, max. current 1,5 A

PWM drive: Frequency 1-100 kHz/Filling 0-100%/Max. current 3 A

PWM signal: Frequency 1-100 kHz/Filling 0-100%/1,25-14,5 VPP

Stepper motor: max. 1,5 A

OTR: 0-55°C

Product Dimensions: 165 * 96 * 26 mm / 6,50 * 3,78 * 1,02 inch

Package Dimensions: 150 * 100 * 60 mm / 5,91 * 3,94 * 2,36 inch

Package Weight: 550 g / 1,21 lb

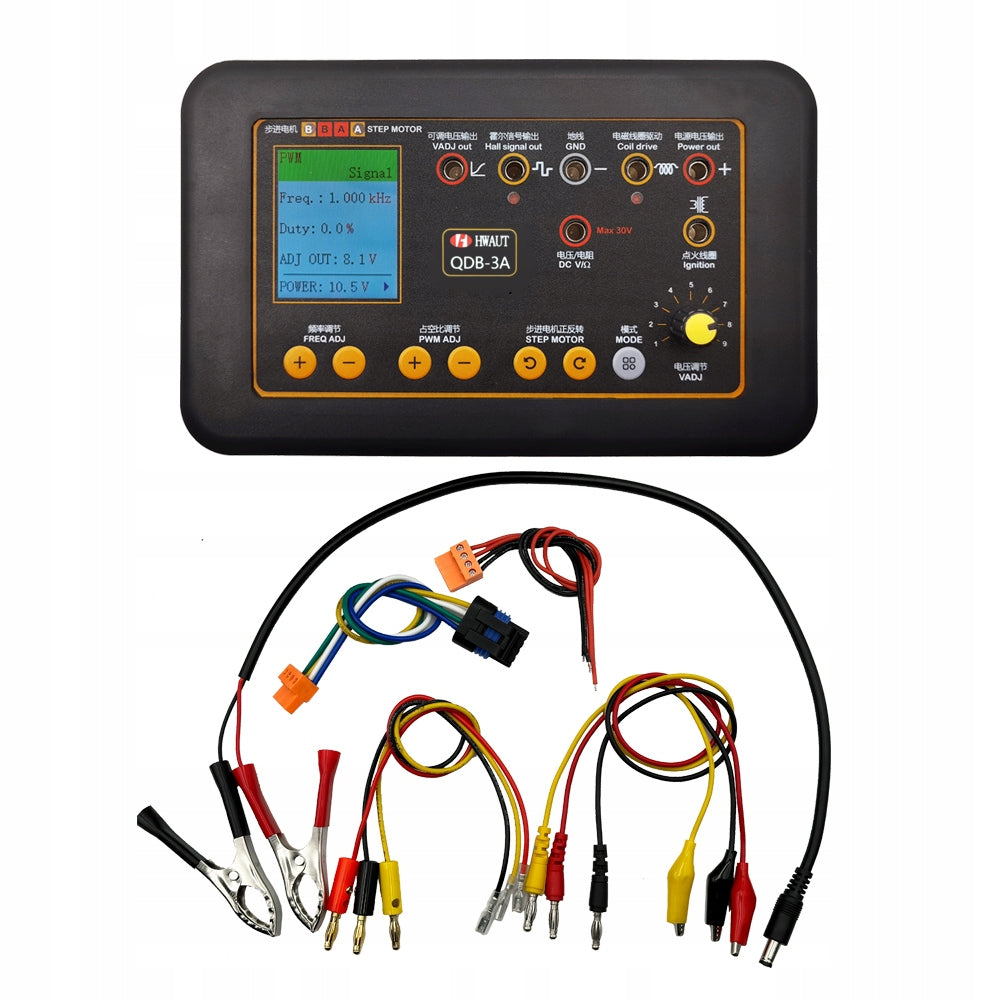

List of contents of the package:

1 * QDB-A3 Ignition Coil Tester

1 * Power Cable

3 * Test Connection Cables

3 * Single Plugs

1 * Idle Stepper Motor Plug

1 * Stepper Motor Welding Cable

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	EAN (GTIN)	750749405764
Parametry	Manufacturer code	QDB-3A
Parametry	Batteries included	no
