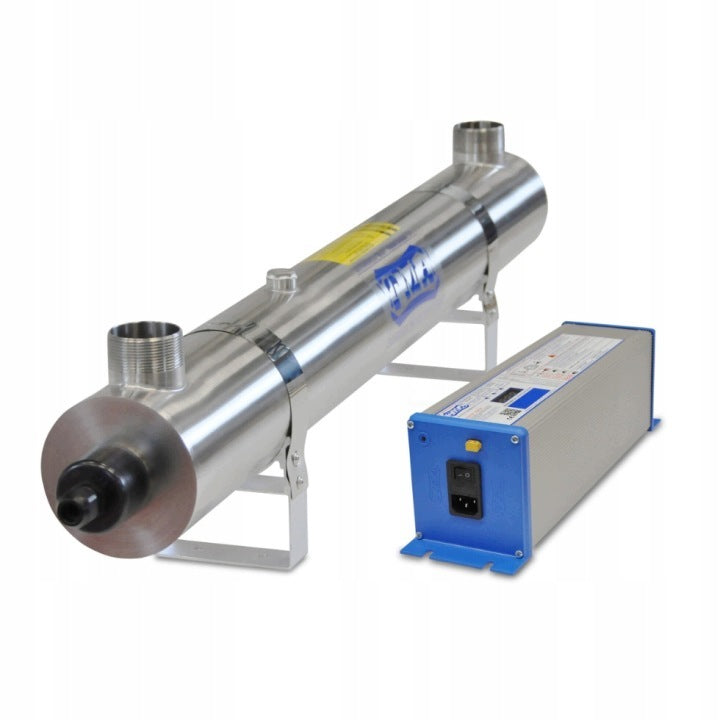

UV vandens sterilizatorius TMA TM0, 16,60 m³/val.

Trumpai apie prekę

Prekė: UV vandens sterilizatorius TMA TM0, 16,60 m³/val.. Kategorija: Filtrai ir vandens minkštikliai.

• Gamintojas: TMA
• Modelis: TM0
• Talpa: 1 l

➡️ Nominal Flow Rate 16.60 m3/h (276 l/min) at 400 J/m2

➡️ Annual Electricity Cost for Continuous Heater Operation: 1839.60 kWh = ~1910 PLN

The TMA TM0 water sterilizer is a specialized bactericidal lamp that removes 99.9% of microorganisms.

• Nominal flow rate: 16,60 m³/h
• Heater power: 210 W
• Connection diameter: DN50 (R2”)

The lamp is made of very durable materials. The body of the device is acid-resistant steel, which has low reactivity to chemicals. Radiator casing pipe made of pure quartz ensures high transmittance of UV radiation.

The TM 0 sterilizer is the perfect solution for disinfecting water in medium-sized water installations, e.g. multi-family houses, holiday homes (up to 7-9 bathrooms), industrial plants, ponds, jacuzzi baths.

How does a water sterilizer work?

UV radiation damages the DNA of microorganisms, such as viruses and bacteria, effectively preventing them from multiplying and making them harmless. This method of disinfecting water does not use any chemicals, nor does change the taste of water.

The UV TMATM lamp disinfects 16,60 cubic meters of water per hour. The sterilizer removes bacteria and other microorganisms with an accuracy of 99,9%. This is possible thanks to the properly selected fluorescent lamp power. The original Philips radiator with a power of 210 W works in the TMA D16 sterilizer. The radiator is designed to work efficiently for 16 000 hours. After about 2 years from commissioning, the device should be replaced with a new one.

Each shutdown and re-activation of the radiator shortens its service life. We recommend that you do not turn off the working sterilizer, even during a short absence from home.

The device is ready to work and connect.

Key features and benefits

✅ The optical operating indicator of the UV lamp allows precise monitoring of the operating status of the device by the user, which allows for ongoing control of its performance and quick response to possible problems.

✅ The body made of acid-resistant stainless steel provides exceptional durability and high corrosion resistance, which prolongs the life of the device even in demanding environmental conditions.

✅ All components of the sterilizer are certified for contact with drinking water, which guarantees safety and compliance with sanitary standards.

✅ Compact design allows installation in confined spaces, increasing installation flexibility and allowing the device to be used in various spatial configurations.

✅ The device can be set in both vertical, diagonal and horizontal orientation, which increases adaptability and facilitates integration with existing systems. All connections must be directed upwards.

✅ The ability to work in the absence of water flow extends the range of applications of the sterilizer.

✅ Withstands operating pressures up to 10 bar (1,0 MPa), which ensures compatibility with various water systems and increases operational safety.

✅ Tool-free installation simplifies installation and maintenance, allowing replacement of the UV radiator without the need for tools and unsealing of the system, which minimizes downtime and reduces operating costs.

✅ Protective pipe made of pure quartz ensures optimal UV light transmission, maximizing the efficiency of the sterilization process due to minimal radiation loss.

✅ Safe and tight insulation of the radiator supply in the sterilizer body (protection class IP 66) guarantees a high level of protection against moisture and dust, which ensures reliability and operational safety of the device in various environmental conditions.

✅ The product is certified by the National Institute of Hygiene (PZH), which confirms its compliance with the highest standards of quality and safety in contact with drinking water.

Equipment

• Acid-resistant steel sterilizer body.
• Power supply system with alarm system.
• Philips radiator with a power of 210 W.
• Cover pipe made of the purest quartz.
• Glowing muff – optical indicator of damage / operation of the UV radiator.
• Thermal elongation compensator
• Turbolizer
• Curtain pipe guide
• Drain system
• Set of brackets made of acid-resistant steel for installation at any angle (0-180°)

Parameters of UV lamp

• Nominal flow rate: 16,60 m3/h (with T transmission 10= 95%, dose 400 J/m2)
• Connection diameter: DN50 (R2")
• Number and power of radiators: 1 x 210 W
• Radiator life: 16000 h (about 666 days)
• Material: acid-resistant steel
• Finish: satin (Ra< 0,8µm)
• Length: 112,5 cm
• Diameter: 13 cm
• Weight with control system: 13 kg

Technical data of the control system

• Power supply: 220V – 240V 50/60Hz
• Connection power: 153 W
• Protection class: IP 40
• Material: Aluminum / ABS
• Dimensions: 400x109x115 mm
• Alarm system: is
• Remote on/off: none
• Sound indicator of UV radiator damage: is
• Optical sterilizer operating indicator: is
• Optical Radiator Damage Indicator: is
• Working time counter: is
• Number of inclusions: is
• Remaining working time counter: is
• Output to solenoid valve: is
• Emergency signal output: is

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	TMA
Parametry	Kind	other
Parametry	Capacity	1 l
Parametry	Manufacturer code	TM0
Parametry	EAN (GTIN)	5907413390092
Parametry	Packaging status	original
Parametry	Model	TM0
