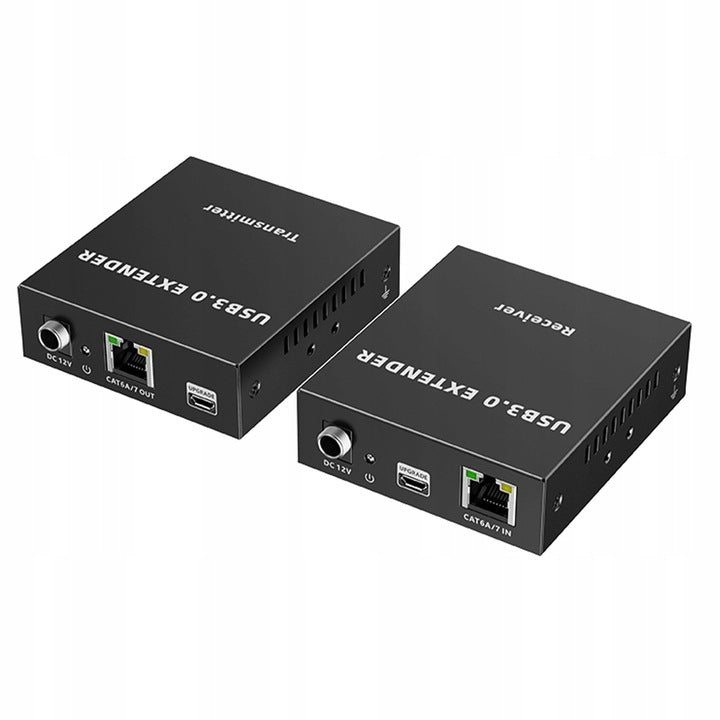

USB tinklo ilginimo adapteris Spacetronik SPU-EX02, 3.0

Trumpai apie prekę

Prekė: USB tinklo ilginimo adapteris Spacetronik SPU-EX02, 3.0. Kategorija: USB šakotuvai.

• Gamintojas: Spacetronik
• Modelis: SPH-MC01-TX

USB Extender with LAN SPU-EX02

SPACETRONIK

• Height: 20,00
• Width: 15,00
• Depth: 8,00
• Mass: 0,40

SKU: SPU-EX02

Key features of the SPU-EX02

☑ Transmitter + receiver set (TX + RX) – professional solution for USB 3.0 extension

☑ Long-distance transmission – up to 100 m after Cat6A/7 twisted pair with full speed

☑ 5Gbps lag-free speed – ideal for VR, gaming, conferencing and USB cameras

☑ Multi-device support – printers, cameras, scanners, memory, consoles, VR and touch screens

☑ Built-in 4-port USB 3.0 HUB – the ability to connect several devices at the same time

☑ Power over Cable (PoC) – receiver-only power supply, simpler installation and greater flexibility

☑ RS-232 and Frame Sync – synchronization of camera systems and video transmission

☑ ESD, surge and storm protection – stable and safe operation in all conditions

☑ Full compatibility – Windows, Linux, Mac OS; backward compatibility with USB 2.0/1.1/1.0

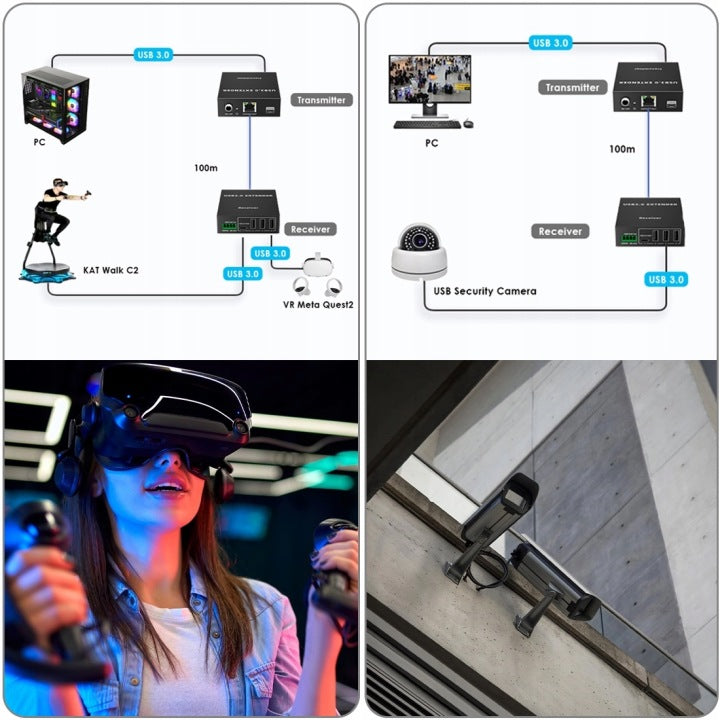

USB without borders – professional extension up to 100 meters

Standard USB cables have a range of only a few meters, which can be large in many applications

limitation.

Spacetronik SPU-EX02 eliminates this problem by transmitting USB 3.0 signal at speeds up to 5

Gbps over a distance of up to 100 meters on a Cat6A/7 cable. This allows you to use freely

from cameras, printers, VR or industrial equipment where you really need them.

Video conferencing and office work

The SPU-EX02 is a reliable solution for meeting rooms and offices. It allows you to connect a USB 3.0 camera, microphone, keyboard or mouse, ensuring stable operation during online meetings, presentations and remote tasks.

✔ Seamless communication without disruption

✔ Full compatibility with Windows, Linux and Mac OS

✔ Ideal for teamwork and individual work

Zero latency – ideal for VR and gaming

Experience virtual reality without interruptions or lags. USB 3.0 extension system

SPU-EX02 provides USB 3.0 signal transmission at 5 Gbps and zero latency, thanks to

which is ideal for VR headsets, simulators and games requiring precision and

immediate reaction.

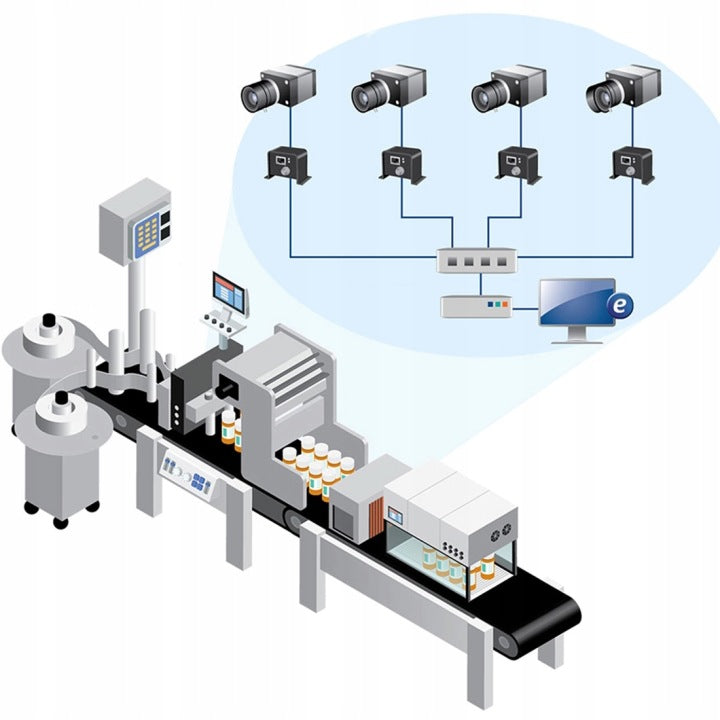

Monitoring and safety at a distance

With the SPU-EX02, you can place USB cameras up to 100 m away from your computer, creating a reliable surveillance system. The device allows you to easily connect cameras to a DVR or PC – without loss of quality and without additional drivers.

✔ Long range – up to 100 m

✔ Stable image transmission without delay

✔ Simple Plug & Play installation

More ports with built-in USB 3.0 HUB

The Spacetronik SPU-EX02 receiver is equipped with four USB 3.0 ports, allowing you to

connect multiple peripherals at the same time – from an external drive, through a keyboard and mouse, to

webcam, printer or game console. If you need even more sockets, you can additionally

use a USB hub and get full flexibility in work and entertainment.

Wide compatibility and easy connection

The Spacetronik SPU-EX02 extender works with popular operating systems such as

Windows, Linux and Mac OS. Supports USB 3.0, USB 3.2 Gen1x1 and USB 3.1 Gen1 standards, as well as backwards

USB 2.0, 1.1 and 1.0. This allows you to easily connect both modern and older devices

peripheral and enjoy stable operation in any environment.

Specification of SPU-EX02

USB and compatibility

• Transmitter: USB 3.0 (USB 3.2 Gen1x1, USB 3.1 Gen1 compatible)
• Receiver: USB 3.0 (compatible with USB 2.0 / 1.1 / 1.0)
• System Support: Windows, Linux, Mac OS

Transmission range

• CAT6: up to 50 m
• CAT6A/7: up to 100 m
• Zero Latency – No noticeable delays

Supported USB devices

• Printers, cameras, scanners, USB sticks
• Keyboards, mice, touch screens, consoles, VR
• Expandable via USB 3.0 hub

USB ports

• Input (TX): 3 × USB-A 3.0, 1 × USB-C 3.0
• Output (RX): 1 × USB-C 3.0
• Hot-Plug: supported

Power supply and power consumption

• Receiver: DC 12V/3A
• PoC function: cable-transmitted power supply – only RX power supply is needed
• Power consumption (TX + RX): ≤ 8 W

Working conditions

• Operating temperature: −20°C ~ +60°C
• Storage temperature: −30°C ~ +70°C
• Humidity: 0 to 90% (non-condensing)

Design and dimensions

• Housing: steel, black
• Dimensions: 85 × 76 × 25 mm
• Weight: transmitter 172 g, receiver 182 g

Security

• ESD Protection:
• Contact: ±4 kV (level 2)
• Air: ±8 kV (level 3)
• Standard: IEC 61000-4-2
• Additionally: surge and storm protection
