Trumpai apie prekę
Prekė: USB 3.2 Gen1 su 3x USB ir 1x Gigabit Ethernet HUB išplėtimo modulis. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: 20472

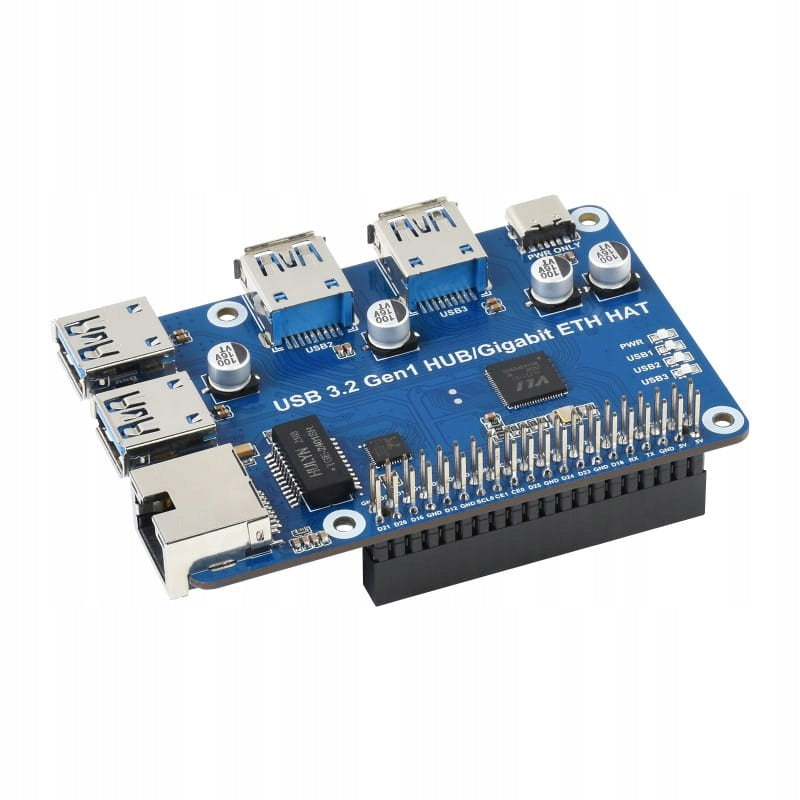

3xUSB 3.2 Gen1 1xETH Gigabit HAT HUB Expansion Module for Raspberry Pi
⭐ USB 3.2 Gen1 Hub with Gigabit Ethernet HAT is a practical solution for those looking for an easy way to add USB ports and Ethernet port to their device. The module is compatible with Raspberry Pi 4B, 3B, 3B+, and its power supply is via USB port. With this solution, users can easily connect multiple devices at once and get a stable connection to the Ethernet network. The product has 3 USB 3.2 Gen1 ports, 1 Ethernet port with a speed of 10/100/1000 Mbps and is equipped with protection against short circuits and surges, which ensures safety of use.
✅ Module specification:
- Power Supply: USB-C 5 V DC
- USB: 3.2 Gen1 x3
- Ethernet: RJ45 gigabit Ethernet x1
- Power indicator: 3 USB port indicators and one RJ45
- USB transmission speed: up to 5 Gbps
- Specially designed for Raspberry Pi 4, also compatible with other versions of Raspberry Pi 3
- Dimensions: 85 x 56,5 mm
▶ Possibility of cooperation with different peripheries:
▶ Examples of applications:
- The Raspberry Pi shown in the pictures is not part of the kit and must be purchased separately!
▶ Construction of the system:
- GPIO Raspberry Pi socket
- Input - USB 3.2 Gen1 HUB connects to Raspberry Pi USB port
- USB 3.2 Gen1 USB1~USB3
- Gigabit Ethernet Gigabit port
- USB-C 5V DC Power Port
- USB VL817-Q7
- RTL8153B converter
- TGE-2401SR
- Gigabit Ethernet transformer
- PWR Power Indicator
- USB1~USB3 Indicator
- MX25L512EOI-10G flash chip
▶ Dimensions:
✅ Set includes:
- HUB USB 3.2 Gen1 Gigabit ETH HAT x1
- USB 3.0 x1 adapter
- Cable with dual USB 3.0 plug ~60cm x1
- Set of screws x1
▶ We invite you to our blog for more interesting solutions and articles. We also invite you to like our Facebook page to stay up to date with electronics.
ELTY electronics and you
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 20472 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 4300917175911 |
