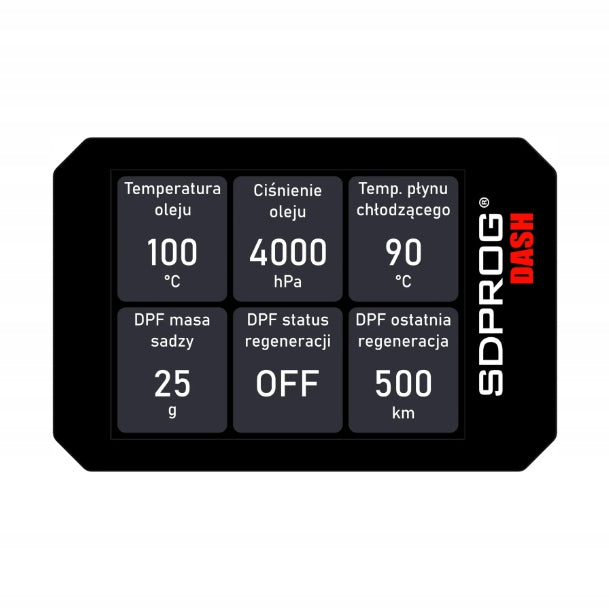

Universalus SDPROG DASH transporto priemonių monitorius DPF, alyva, apsukos, temperatūra

Trumpai apie prekę

Prekė: Universalus SDPROG DASH transporto priemonių monitorius DPF, alyva, apsukos, temperatūra. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: SDPROG
• Modelis: SDDASHPL

universal and extremely innovative vehicle monitor

SD PROG DASH - modern OBDII data display in real time:

• Any configuration of displayed parameters:

✔ Choice of 2, 4 or 6 values for monitoring

✔ Personalization of the screen layout and presentation of data

✔ Support a wide range of OBD-II parameters, m.in.:

- Engine speed (RPM)

- Vehicle speed

- Engine temperature

- Recharge pressure

- Fuel consumption

- Battery voltage

• RACE mode - optimal gear changes:

✔ Intelligent hints on the best gear shifting torque for dynamic driving

✔ Improved performance and optimal use of engine power

• Precise real-time monitoring:

✔ Fast data reading without delay

✔ Constant preview of key parameters while driving

✔ Intuitive, easy-to-read interface

• Simple setup via Windows app:

✔ Self-personalization of the device by the user

✔ Selection of make and model of the car and display parameters

✔ Operation via Windows application

• Bluetooth 4.0 LE connectivity:

✔ Stable connection to the vehicle

✔ Low power consumption for long operation of the device

Why choose SDPROG DASH?

• Full personalization - you choose what data is most important to you
• Dynamic ride - RACE mode for easy sporty handling
• Quick and simple configuration - intuitive operation through the application
• Convenient monitoring of vehicle parameters in real time

SUPPORTED CARS:

Audi, Seat, Skoda, Volkswagen

CFC, CFC, CFC, CLFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC,

Opel

Z18XE, Z18XER, Z16XER, Z22YH, Z16XEP, Z16XE1, Z20NET, A16XER, A18XER, A10XEP, A14XEL, A14XER, A14NEL, A16LET, A18XEL, Z17DTH, Z17DTL, Z19DT, Z19DTL, Z19DTH, Z20DM, Z20DMH, Z28NEH, Z28NEL, Z28NET, Z32SE, A20DT, A20DTC, A20DTH, A20DTJ, A20DTL, A20DTR, A13DTE,2.0 VCDI LNP, B16DTH, B16DTE, B20DTH, A17DT.

BMW, Mini

216d B37C15U0, 216d B37C15U0, 1.5 D B37C15U0, 1.5 D B37C15U0,330d M57D30O1,330xd M57D30O1, 335d M57D30T2, 325d M57D30U2, 325d M57D30U2,330d M57D30O2, 330d M57D30O2, 330xd M57D30O2, 330xd M57D30O2,525xd M57D30U2, 525xd M57D30U2, 530d M57D30O1, 530d M57D30O1,530xd M57D30O2, 530xd M57D30O2, 535d M57D30T1, 635d M57D30T2,730d M57D30O1, 730Ld M57D30O2, 3.0d M57D30O2, 3.0d M57D30O1,3.0sd M57D30T2, xDrive35d M57D30T2, 3.0d M57D30O1, xDrive30d M57D30T1,xDrive30d M57D30O2, 1.6 D N47C16U1,

118d N47D20U1, 118d N47D20U1, 218d N47D20U1, 218d N47D20U1,318d N47D20U1, 318d N47D20U1, 318d xDrive N47D20U1,418d N47D20U1, 418d N47D20U1, 518d N47D20U1, 518d N47D20U1,120d N47D20O0, 120d N47D20O0, 116d N47D20K1, 116d N47D20K1,118d N47D20U0, 118d N47D20U0, 123d N47D20T0, 123d N47D20T0,125d N47D20T1, 125d N47D20T1, 120d N47D20O1, 120d N47D20O1,116d N47D20K0, 118d N47D20U0, 316d N47D20U1, 316d N47D20U1,316d N47D20U1, 318d N47D20U1, 318d N47D20U1, 318d N47D20U1,320d N47D20U1, 320d N47D20U1, 320d N47D20U1, 320d N47D20U1,320d N47D20U1, 320d N47D20U1, 518d N47D20U1, 518d N47D20U1,518d N47D20U1, 520d N47D20U1, 520d N47D20U1, 520d N47D20U1,520d N47D20U1, 520d N47D20U1, 520d N47D20U1, 316d N47D20O1,316d N47D20O1, 316d N47D20O1, 318d N47D20O1, 318d N47D20O1,318d N47D20O1, 320d N47D20O1, 320d N47D20O1, 320d N47D20O1,320d N47D20O1, 320d N47D20O1, 320d N47D20O1, 518d N47D20O1,518d N47D20O1, 518d N47D20O1, 520d N47D20O1, 520d N47D20O1,520d N47D20O1, 520d N47D20O1, 520d N47D20O1, 520d N47D20O1,316d N47D20K1, 316d N47D20O1, 316d N47D20O1, 318d N47D20O1,318d N47D20O1, 318d N47D20O1, 320d N47D20O1, 320d N47D20O1,320d N47D20O1, 320d N47D20O1, 320d N47D20O1, 320d N47D20O1,518d N47D20O1, 518d N47D20O1, 518d N47D20O1, 520d N47D20O1,520d N47D20O1, 520d N47D20O1, 520d N47D20O1, 520d N47D20O1,520d N47D20O1, xDrive40d N57.

Renault, Dacia, Nissan

1.5 dCi, 2.0 dCi, M9T 702, M9T 700, M9T 704, 2.3 dCi, 2.5 dCi, 3.0 dCi.

KIA, Hyundai

1.7 CDTI, 1.6 TCI, 2.2 TCI, 1.7 16v CDTI 2WD, 1.6 TCI, 2.0 CRDI, 1.4 CDTI,

1.6 16v CDTI (D4FB);1.6 16v CDTI VGT (D4FB);1.1 TCI-U2, 1.6 16v CDTI (D4FB, D4FB-L)

1.5 MPI, 1.5 TCI, 1.5 G T-GDI KAPPA PE, 1.5 G T-GDI KAPPA PE MHEV, 1.0 T-GDI KAPPA PE,

1.6 TCI-NEW U, 1.6 TCI NEW U MHEV, 1.6

1.7 16v (D4FD).

Ford

2.0 TDCi 6MT (G6DG, UKDA) 2.0 TDCi 6MT (QXW, UFWA, UKWA, AZWA), 2.0 TDCi 6MT (YNF, YMF, YLF), 2.0 TDCi (G6DG, G6DD, G6DB, G6DA, IXDA), 2.0 TDCi 6AT (KLBA, AZBA, QXBA, UFBA, TYBA, LPBA);2.0 TDCi 6MT (KLBA, UFBA, QXBA, TYBA, LPBA), 1.6 Duratorq TDCI, 3.5 V6 6AT, 3.7 V6 6AT, 2.7 6AT,

1.6 TDCi (T1B);1.6 TDCI, 1.5 TDCi EcoBlue, 2.0 TDCi EcoBlue.

Mazda

2.0 MZR-CD 6MT.

Peugeot, Citroen, DS

1.6 HDi 9HP;1.6 HDI 9HP DV6DTED, 2.0 HDI, 1.5 BlueHDi, 1.6 BlueHDI, 2.0 BlueHDi.

Alfa Romeo, Fiat, Lancia, Jeep, Dodge, Chrysler

1.3 Multijet,1.6 Multijet, 1.6 JTDm, 2.0 JTDm, 2.0 Multijet, 2.2 MultiJet, 2.9 V6 24V TwinTurbo, 1.4 Turbo 16V, 1.2, 2.3 Multijet, 3.0 Multijet.

Honda, Acura

2.0 16v i-VTEC R20A, 2.0 16v i-VTEC R20A1, R20A2, 2.0 i-VTEC 4WD R20A, 2.0 16v i-VTEC K20Z3, 2.2 i-DTEC N22B1, 2.2 i-DTEC N22A2, 2.2 i-DTEC N22A2, 2.2 16v i-DTEC N22B2, 2.2 16v i-DTEC N22B4, 2.2 16v i-DTEC N22B3, N22B4.

Volvo

D5244T4, D5244T5, D5244T6, D5244T7, D5244T8, D5244T9, D4204T, D4204T2, D4204T8, B8444S, D5244T16, D4204T4, D4204T14.

Mercedes

2.1.

Example readings include:

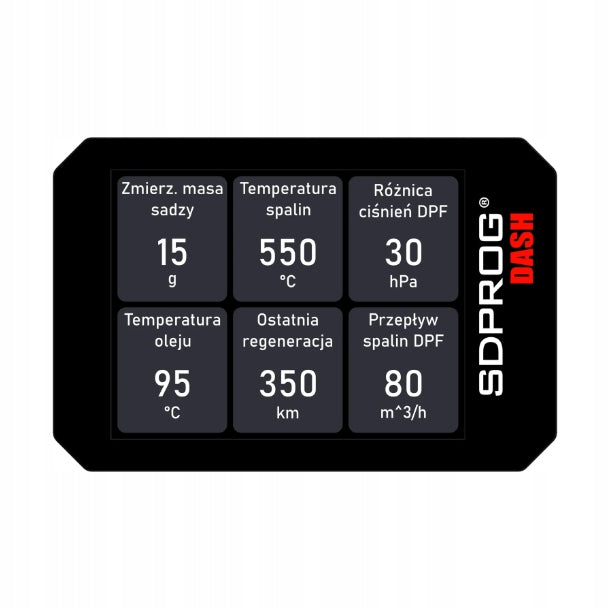

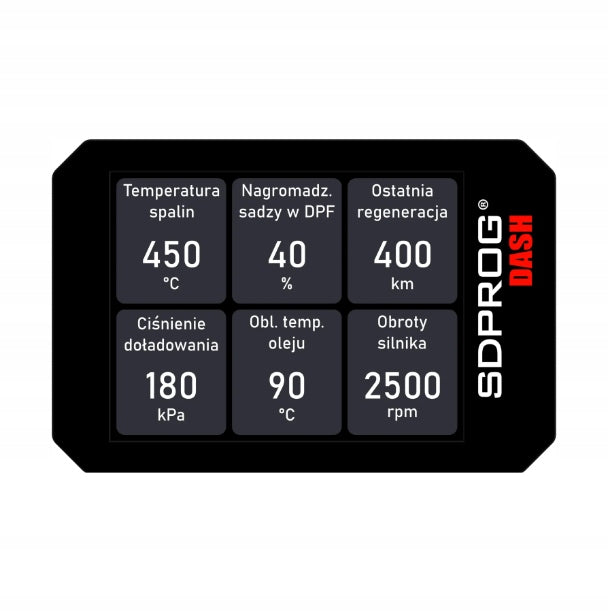

• monitoring of DPF status and its effectiveness (recovery status, last regeneration, soot mass, exhaust flow, soot accumulation, etc. )
• OBDII diagnostic connector reading (turbo boost pressure, engine speed (RPM), vehicle speed and battery voltage, etc. )
• temperature control to prevent overheating (engine, oil and coolant temperature)

SDPROG DASH – Full personalization and maximum functionality:

• any configuration – adjust the device to your needs, choosing the displayed data and how they are presented.
• individual selection of parameters – decide whether you want to monitor 2, 4 or 6 values, matching them to your driving style.
• RACE mode – dynamic driving thanks to the function indicating the optimal moment of shifting.

Easy to set up in Windows

After purchasing SDPROG DASH, the user independently configures the device by selecting:

✔ Make and model of vehicle

✔ Preferred display parameters

System requirements:

✔ Windows computer

✔ Bluetooth 4.0 LE module

SDPROG DASH provides full personalization, maximum functionality and convenience of use!

Specification:

• display: high resolution LCD screen 2.8″
• operating temperature range: 0°C to +40°C
• DC input: USB Type-C connector
• Power Supply: 5V
• interfaces: OBD-II, CAN
• Dimensions: 86mm x 58mm x 17mm

Content of shipment from Konektor store:

• SDPROG DASH
• diagnostic interface SDPROG OBD
• instructions
