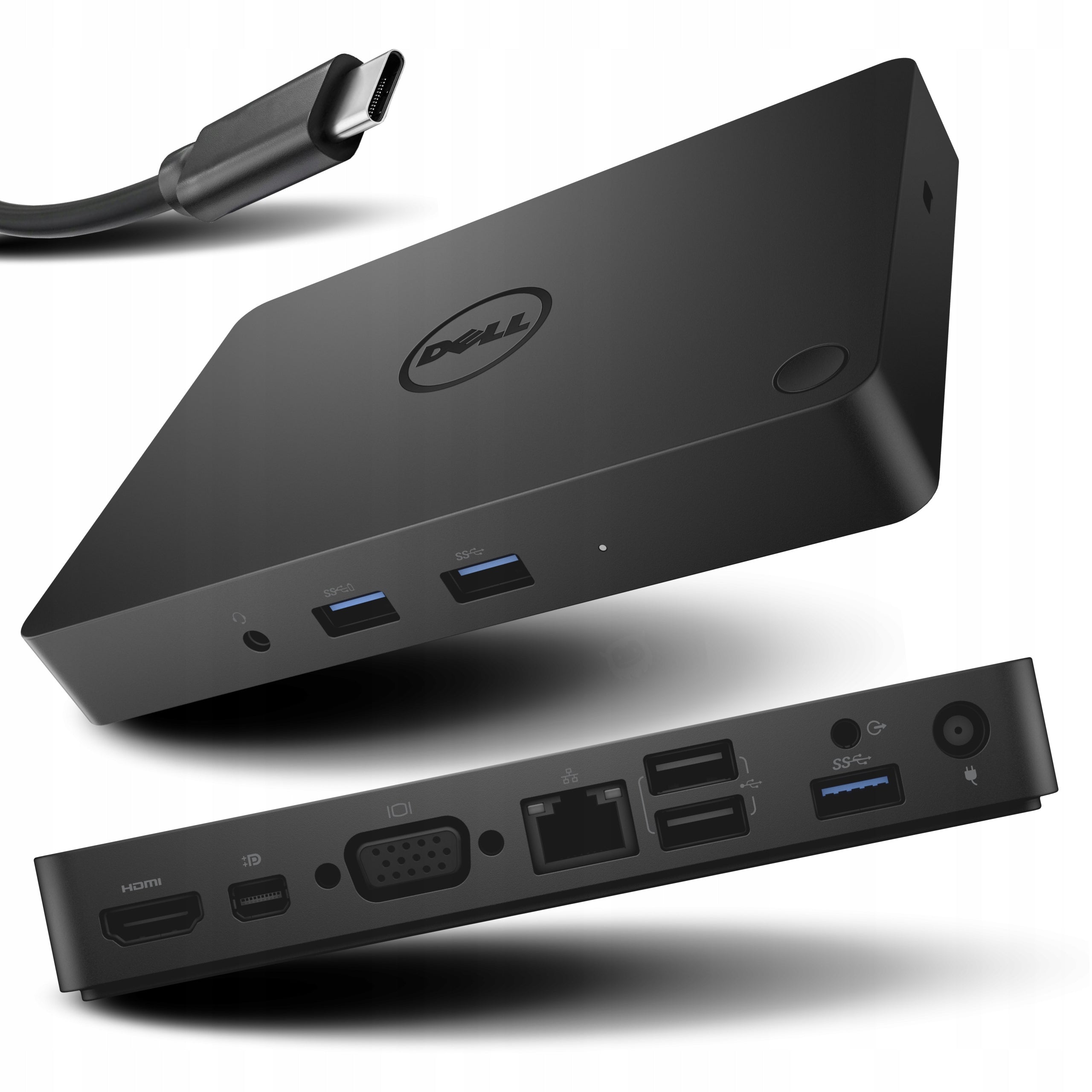

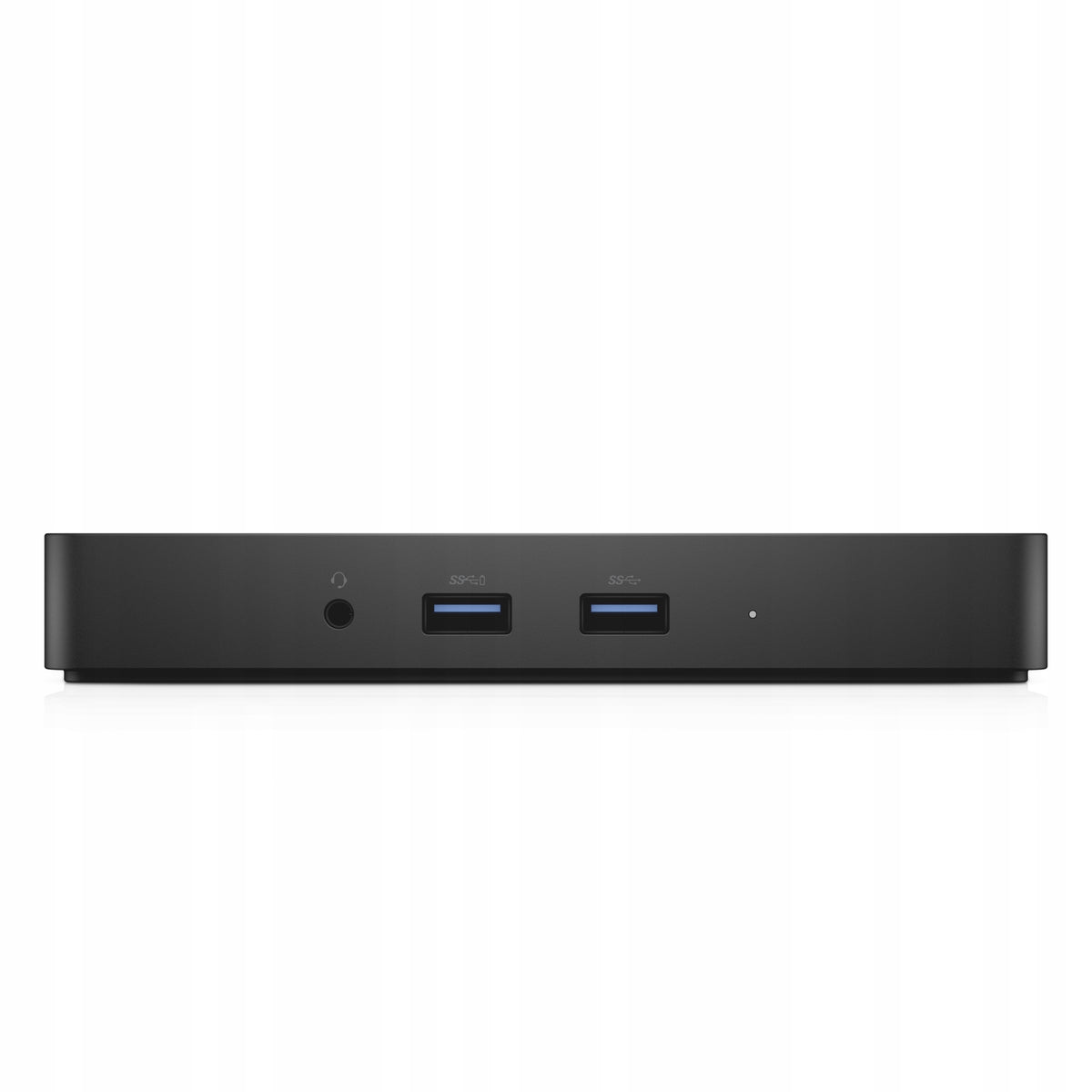

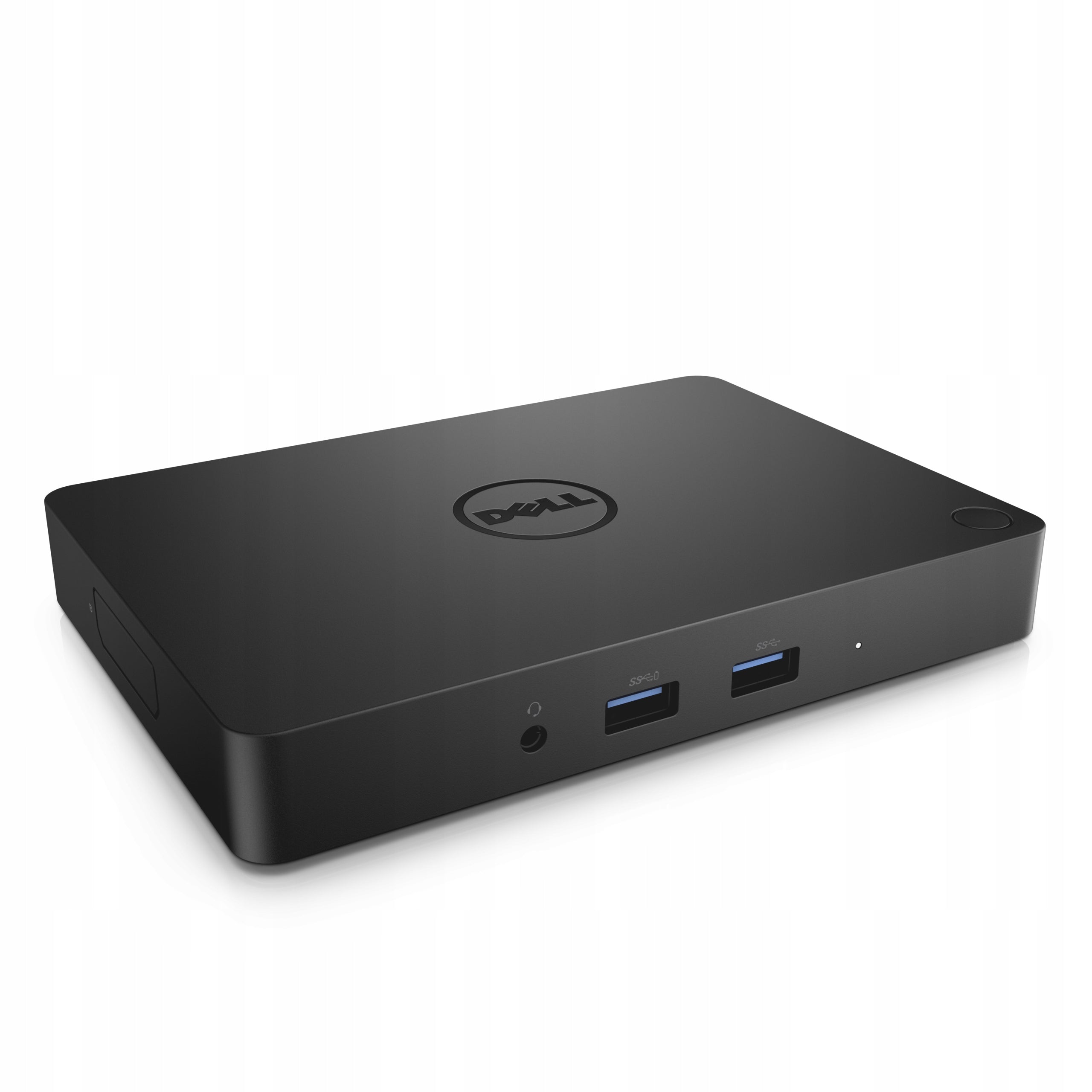

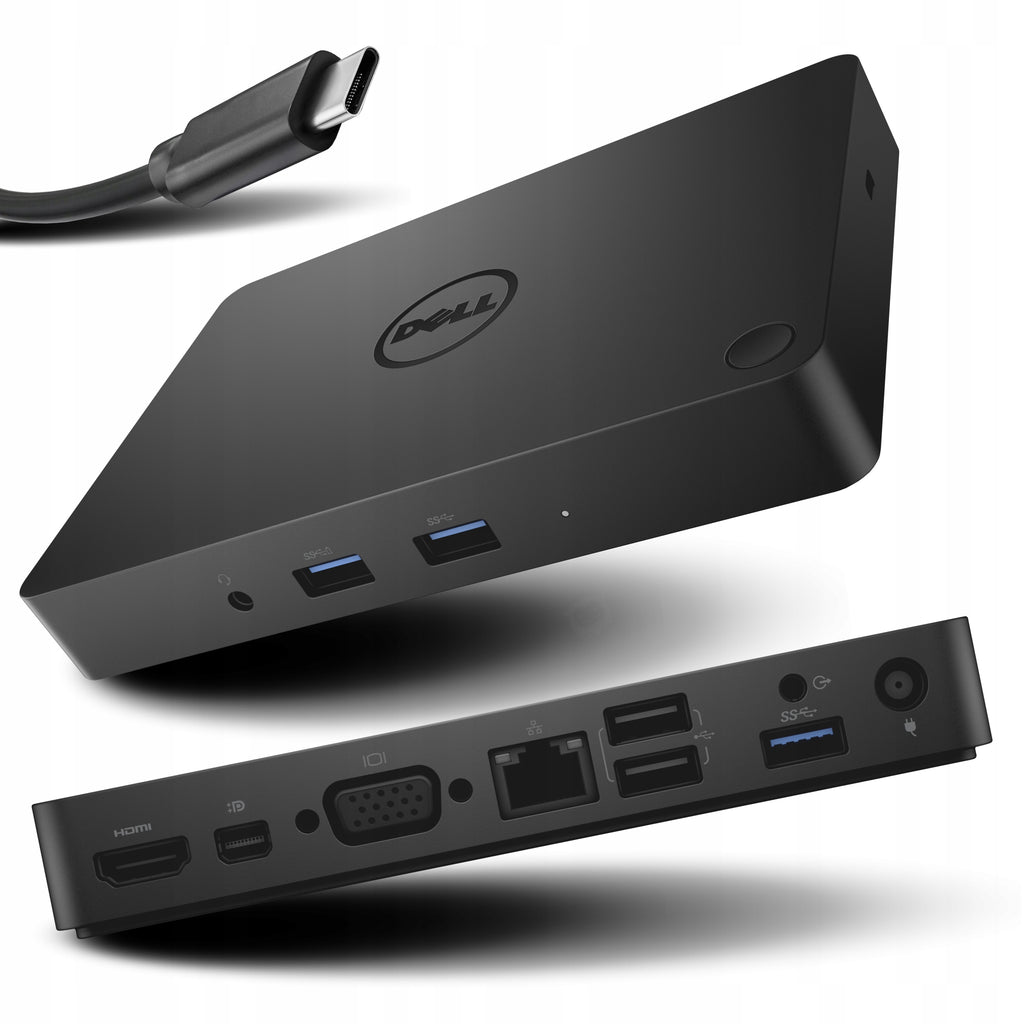

Universalus Dell WD15 USB-C dokas, 2 monitoriai, HDMI, DisplayPort, LAN RJ-45

Trumpai apie prekę

Prekė: Universalus Dell WD15 USB-C dokas, 2 monitoriai, HDMI, DisplayPort, LAN RJ-45. Kategorija: Dokavimo stotelės.

• Gamintojas: Dell
• Modelis: 0PC7MY

Dell WD15 Docking Station · Universal · USB-C · 3× USB 3.0 + 2× USB 2.0 | HDMI 1.4 + mini DisplayPort 1.2 + VGA | Gigabit Ethernet | audio in/out | up to 2 FHD monitors (or 1× 4K@30 Hz) | laptop charging up to 130 W 🔸ᵉˣᵖʳᵉˢˢ²⁴

Dell PRO WD15 | Professional, universal station - the laptop brand does not matter.

If you have a laptop and external accessories, a docking station will eliminate 80% of the frustration of daily connections. Are you connecting a monitor? Probably also an external keyboard, mouse, printer, USB headphones or Ethernet cable - WD15 combines it all into one USB-C cable - order and convenience.

Finally a tidy desk, no tangled wires and... . extra ports.

💬You didn't know you needed it either? :)

Thoughtful design, high quality workmanship, compact size.

Compatible with any laptop that supports USB-C DP Alt Mode. It doesn't have to be "business" - it has to have a USB-C port that can transfer the image.

✅ One USB-C cable - no more tangles under and on the desk

✅ Up to 2 FHD 60 Hz monitors (or 1× 4K@30 Hz via HDMI/mDP)

✅ Laptop charging up to 130 W (with 180 W power supply) - without a second power cable

✅ Gigabit Ethernet + audio + 5 USB ports - complete workstation

💬 There is no RJ-45 (LAN) in your laptop, or there are too few ports?

💬Do you want to have a professional, inspiring position?

💬 Looking for a USB-C docking station that can handle 2 monitors and charge your laptop with a single cable?

💎 Condition: Brand new

New · pre-packaged ✓ CE and RoHS certification ✓ Compatibility confirmed with laptops with USB-C DP Alt Mode ✓

Included: 📦 Docking Station 📦 Original USB-C Dell Cable Permanently Included

⚠ No power supply included.

Dell sells stations without a power supply so that you can choose the power for your laptop - this is the standard in this category.

• 130W power supply - charges laptop up to 90W (most business laptops 13-16")
• 180 W power supply - charges laptop with power up to 130 W (stronger working 15", mobile graphics stations)

We have power supplies in a separate offer - order in one shipment.

What laptops it works with

Key condition: The laptop must have a USB-C port that supports DisplayPort Alt Mode.

This is standard on virtually every laptop, but not every USB-C supports it. Check the specification of your model.

How to check compatibility:

1. DisplayPort symbol ("D" in square) next to the USB-C port on the laptop or in the specification: "DisplayPort Alt Mode" / "DP over USB-C" / "Video output"
2. If your laptop charges via USB-C - Power Delivery works too
3. If in doubt, we will help - we will confirm your model.

💡It happens that the USB-C port has no markings, even though it has this function.

Verified Purchase:

• Dell Latitude, XPS, Precision, Inspiron with USB-C
• Lenovo ThinkPad T/X/P, IdeaPad Slim, Yoga with USB-C DP Alt Mode
• Third-party business and consumer laptops that support USB-C DP Alt Mode
• Microsoft Surface Laptop and Surface Pro with USB-C port
• MacBook Pro and MacBook Air with USB-C (note below)

💬 Precision 7000 under load requires a 240 W power supply - you connect the Precision Dell power supply next to the station, WD15 then only docks.

💬 MacBook - macOS limitation: charging works, Ethernet works, USB ports work, but video via DP Alt Mode only supports 1 external monitor (not 2 as in Windows). For a two-monitor setup with a MacBook, you need a Thunderbolt station.

Ready · 🛡 Brand new - zero risk · CLICK! and after a while you have one problem out of your mind!

• Producer: Dell
• Model: WD15 (K17A)
• Catalog number: 452-BCCW
• Color: Black
• Interface with laptop: USB Type-C DP Alt Mode · USB-C cable permanently attached (~50 cm)
• Video Outputs: HDMI 1.4 · Mini DisplayPort 1.2 · VGA
• Configurations: 2× FHD@60 Hz or 1× 4K@30 Hz or 3× SXGA
• USB ports: 3× USB 3.0 type A (5 Gbps, 1× PowerShare) + 2× USB 2.0 type A
• Network: Gigabit Ethernet RJ-45 (10/100/1000 Mbps)
• Audio: 3,5 mm combo jack (front) + 3,5 mm line-out (rear)
• Laptop charging: up to 90 W (130 W power supply), up to 130 W (180 W power supply)
• Power station: Dell power-jack 7,4 mm connector
• Security: Kensington Lock Slot
• Weight: 2 kg with packaging
• Certificates: CE · RoHS
• Working Mode: Plug-and-play on Windows 10/11 and macOS

1. Audio jack

2. USB 3.0 (PowerShare)

3. USB 3.0

4. On button

5. Kensington Castle

6. HDMI

7. Mini DisplayPort

8. VGA

9. RJ-45

10. USB 2.0

11. USB 3.0

12. Audio Output

13. Power Input

No surprises in fine print - details for those who like to read (~3 min)

Scenarios · FAQ · Images

Work scenarios

🏠 Home office with one 4K monitor

You plug in one USB-C cable - you get a 4K@30Hz monitor, gigabit internet, keyboard, mouse, headphones and laptop charging. Comfortable for office work, sheets, browsing, video conferencing. For 4K@60 Hz you need a Thunderbolt station.

🏢 Office with two FHD monitors

Classics: HDMI to monitor No. 1, mDP to monitor No. 2 (via mDP-DP cable). Both at 1920×1080@60 Hz. Sheet on one, browser and messenger on the other.

🎓 Student with one laptop and monitor

A 14" laptop is convenient in a bag, but writing a thesis on a small screen is a nightmare. Station + 24" monitor + external keyboard = full home station. You come back from college, you plug in the cable - you have a desktop computer. You go out - laptop in backpack.

👨 👩 👧 Family with one laptop

Parents work during the day. In the evening, the station goes into "children's station" mode - the same monitor, the same keyboard, now connected to the child's laptop. One position, many users.

✈ Hot-desking (passing office)

You leave the WD15 on your desk in the office with monitors, keyboard and mouse. You come in, you plug in one USB-C cable - you have a station ready. A colleague after you plugs in his laptop and has the same configuration.

FAQ - Frequently Asked Questions

❓ Is WD15 a Thunderbolt?

No. WD15 is a USB-C (USB 3.1 Gen 1 with DP Alt Mode) station. The label "Thunderbolt" on some WD15 offers on Allegro is a mistake - K17A 452-BCCW does not have Thunderbolt. Max video bandwidth = DisplayPort 1.2. Just up to 2× FHD@60 Hz or 1× 4K@30 Hz.

❓ I have a market laptop (not a business laptop). Will it work?

Probably yes - provided the laptop has USB-C with DisplayPort Alt Mode support. This is standard in newer generation laptops also in the consumer segment. Check the specification: it should be "USB-C with DisplayPort" or "USB-C DP Alt Mode" or DP symbol next to the port. If the laptop charges via USB-C - Power Delivery works too. If in doubt, write.

❓ Why is there no power supply included?

Because Dell WD15 exists in two power variants: 130 W and 180 W. Dell sells stations without a power supply so that the customer can choose the power for his laptop. We have 180 W Dell power supplies in a separate offer - it is a safe option for every business laptop.

❓ What resolution will the monitors reach?

• 1× 4K monitor (3840×2160) @ 30 Hz - HDMI or mDP
• 2× FHD (1920×1080) @ 60 Hz monitors - most common configuration
• 1× QHD (2560×1440) @ 60 Hz + 1× FHD @ 60 Hz
• 3× SXGA (1280×1024) @ 60 Hz - rare but possible

For 4K@60 Hz you need a Thunderbolt station.

❓ Does WD15 work with MacBook?

Partially. Charging and Ethernet work. USB ports work. But video: macOS only supports 1 external monitor (not 2 as in Windows) through this station. For a dual-monitor MacBook, you need a Thunderbolt station.

❓ USB-C cable - permanent or replaceable?

Permanently. The cable comes out of the bottom of the station, about 50 cm long. It cannot be replaced - if you need more coverage, use the USB-C 3.1 Gen 1 extension cable up to 1-2 meters in addition.

❓ Do I need drivers?

Not on Windows 10/11 and macOS 11+. Plug-and-play. It is only worth checking in Dell Update if there is no newer version of the station firmware - 5 minutes of update, improves the stability of video in mixed modes. It works on Linux (kernel 5.4+), but some laptops require USB-C DP Alt Mode to be manually enabled in the BIOS.

Review photos:

A docking station can be a great gift idea. The mass of people do not know what it is, so they do not know that they need it... After a few days with her, it will quickly become an indispensable companion. I say this with full responsibility, supported by several years of experience :)
