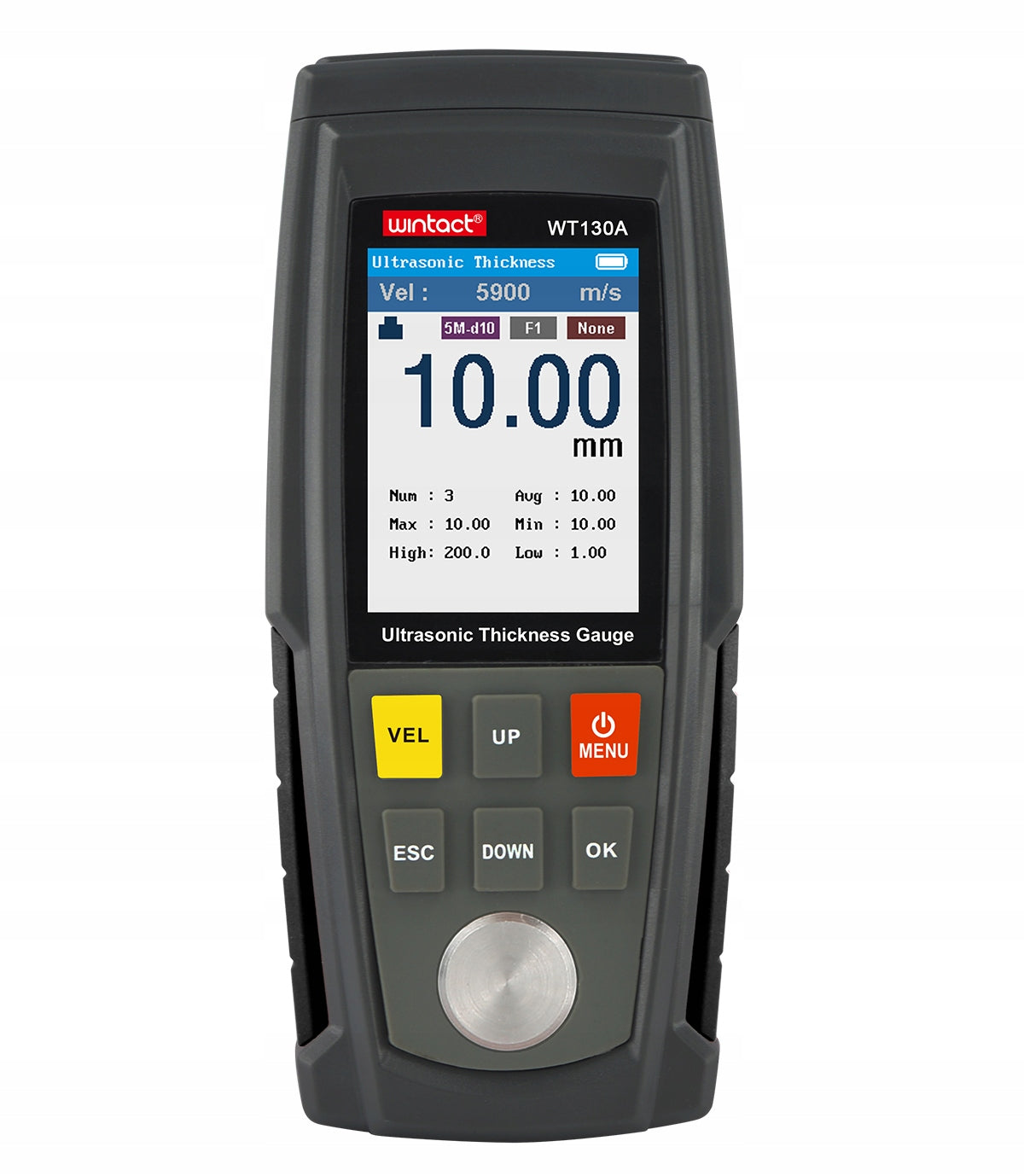

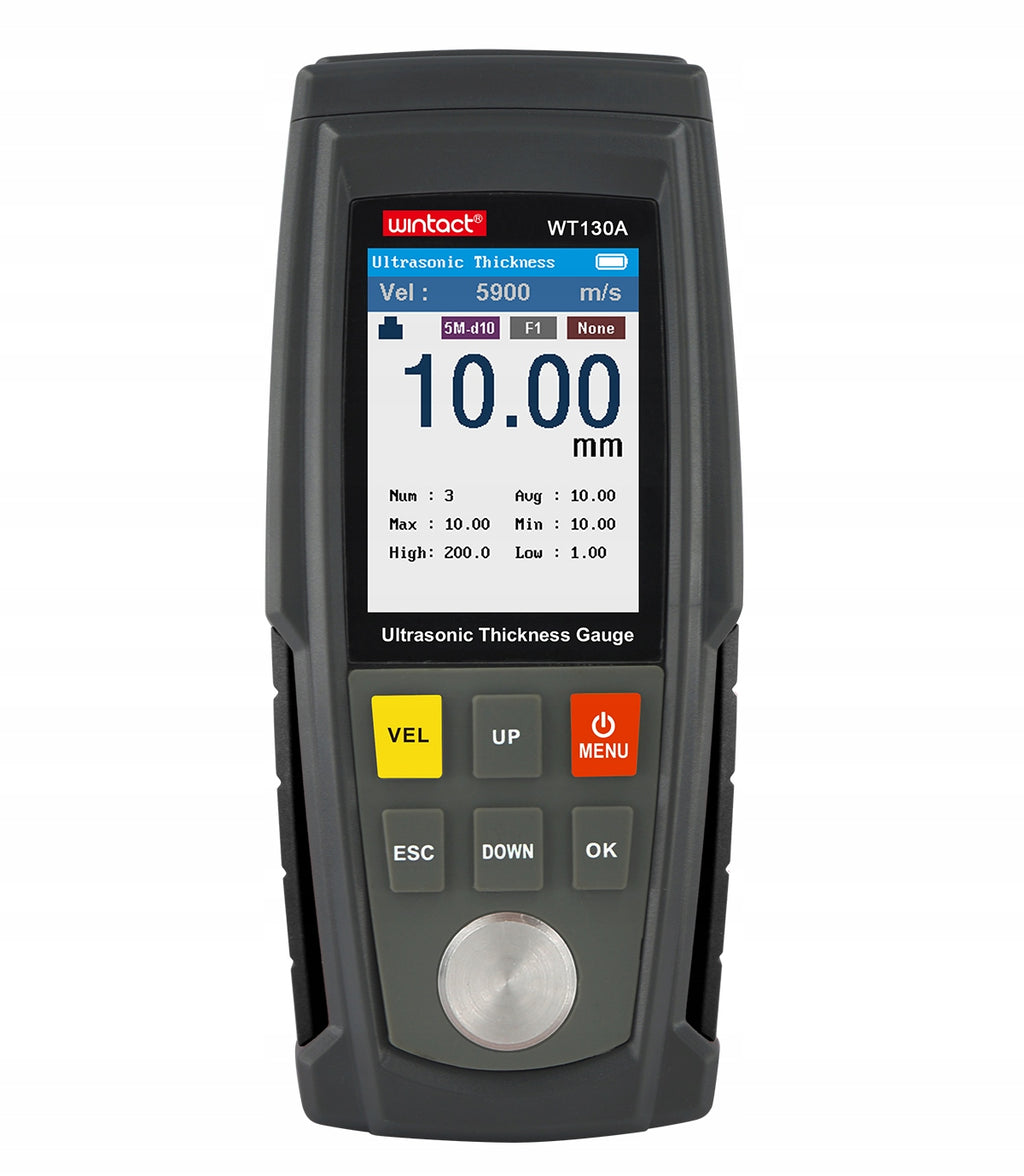

Ultragarsinis dažų ir dangos storio matuoklis su zondų

Trumpai apie prekę

Prekė: Ultragarsinis dažų ir dangos storio matuoklis su zondų. Kategorija: Dažų storio matuokliai.

• Gamintojas: Wintact
• Modelis: WT130A

⭐⭐⭐⭐⭐

EQUIPPED WITH TWO MEASURING PROBES INCLUDED (choose the probe to suit your needs)

This gauge features a microprocessor for fast and non-destructive measurement of material thickness and sound velocity.

This modern and user-friendly ultrasonic thickness gauge is equipped with a microprocessor for fast and non-destructive measurement of material thickness and sound velocity.

The device is used for accurate thickness measurement of various materials or components in the manufacturing industry. The instrument is ideal for maintaining pipelines and pressure vessels. It is useful in production, metal processing, quality control of goods, and other inspection areas. Suitable for any material that allows ultrasonic waves to be transmitted at a constant speed and which can be distinguished from waves reflected from the back side.

⭐⭐⭐⭐⭐

The instrument can measure the thickness of any material that conducts ultrasonic waves well and whose upper and lower surfaces are parallel, such as metal, plastic, ceramics and glass, aluminum, copper, gold, resin, water, glycerin, etc., except for cast iron, whose particles are too large.

⭐⭐⭐⭐⭐

• Two measuring probes included!
• Wide measuring range: 1 - 300 mm
• Data logging: up to 1500 data groups
• Large and clear screen - color display
• Data graphs - clear data graphs can be generated directly on the device screen for analysis.

⭐⭐⭐⭐⭐

• Item Type: Thickness Gauge
• Material: ABS
• Purpose: Used to measure the thickness of metal, glass and other materials.
• Measuring Range: 1.00-300.00 mm
• Data Storage: 1500
• Probe: Yes
• Working Frequency: 5MHz/2.5MHz
• Measurement Error: ±(0.5%H + 0.05)Mm
• Minimum Pipe Measurement: Ф20x3mm (steel)
• Sound Velocity Adjustment: 1000-9999m/s
• Operating Temperature Range: 0~40°C
• Battery: 3 x 1.2V AAA batteries (battery not included)
• Probe Application:
• 5Md10: 1.0-300.0mm
• 5Md6: 1.0-100.0 mm
• 25M: 1.2-300.0mm
• High temperature: 1.2-300.0 mm

Two probes are included in the set:

• 5PΦ10 - "5" is the frequency in megahertz (5 MHz). This is a standard value that provides good sensitivity while maintaining adequate material penetration (e.g. steel). "P" indicates a straight (contact) probe. "Φ10" indicates the diameter of the piezoelectric transducer (10 mm).
• 5MHz 6.0 - "5MHz" is a standard, universal frequency. It is a compromise between resolution (ability to detect small defects) and penetration (depth to which the wave can penetrate the material). "6.0" is the transducer diameter, which facilitates measurements on curved surfaces (e.g. small diameter pipes) and in hard-to-reach places where a larger probe would not adhere perfectly to the material.

⭐⭐⭐⭐⭐

• Larger data storage capacity
• Wider measuring range
• Second probe, for adjustment according to material thickness.

⭐⭐⭐⭐⭐

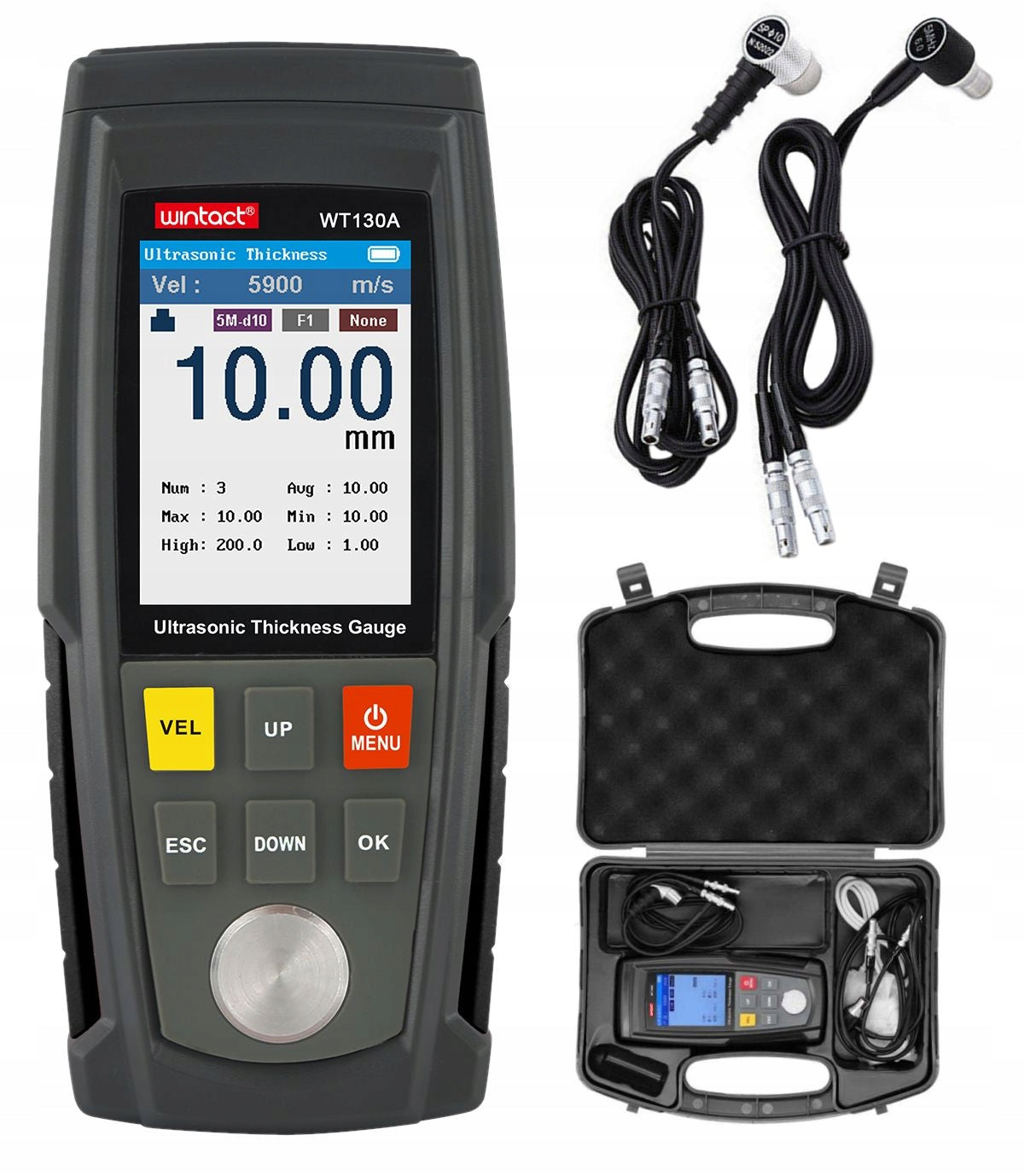

• Thickness gauge
• User manual in Polish
• Carrying case
• USB cable
• Two measuring probes (5MHz 6.0/5PΦ10)
• USB charger
• Original manufacturer's packaging

⭐⭐⭐⭐⭐

1. Measurement mode selection
2. Measurement records
3. Setting value limits
4. Probe
5. Settings
6. Data graphs

⭐⭐⭐⭐⭐

1. Header
2. Sound velocity
3. Coupling icon
4. Selected probe
5. Measured value
6. Battery level
7. Currently selected data logging method (Hand.S - manual logging)
8. Unit
9. Detailed measurement information

⭐⭐⭐⭐⭐

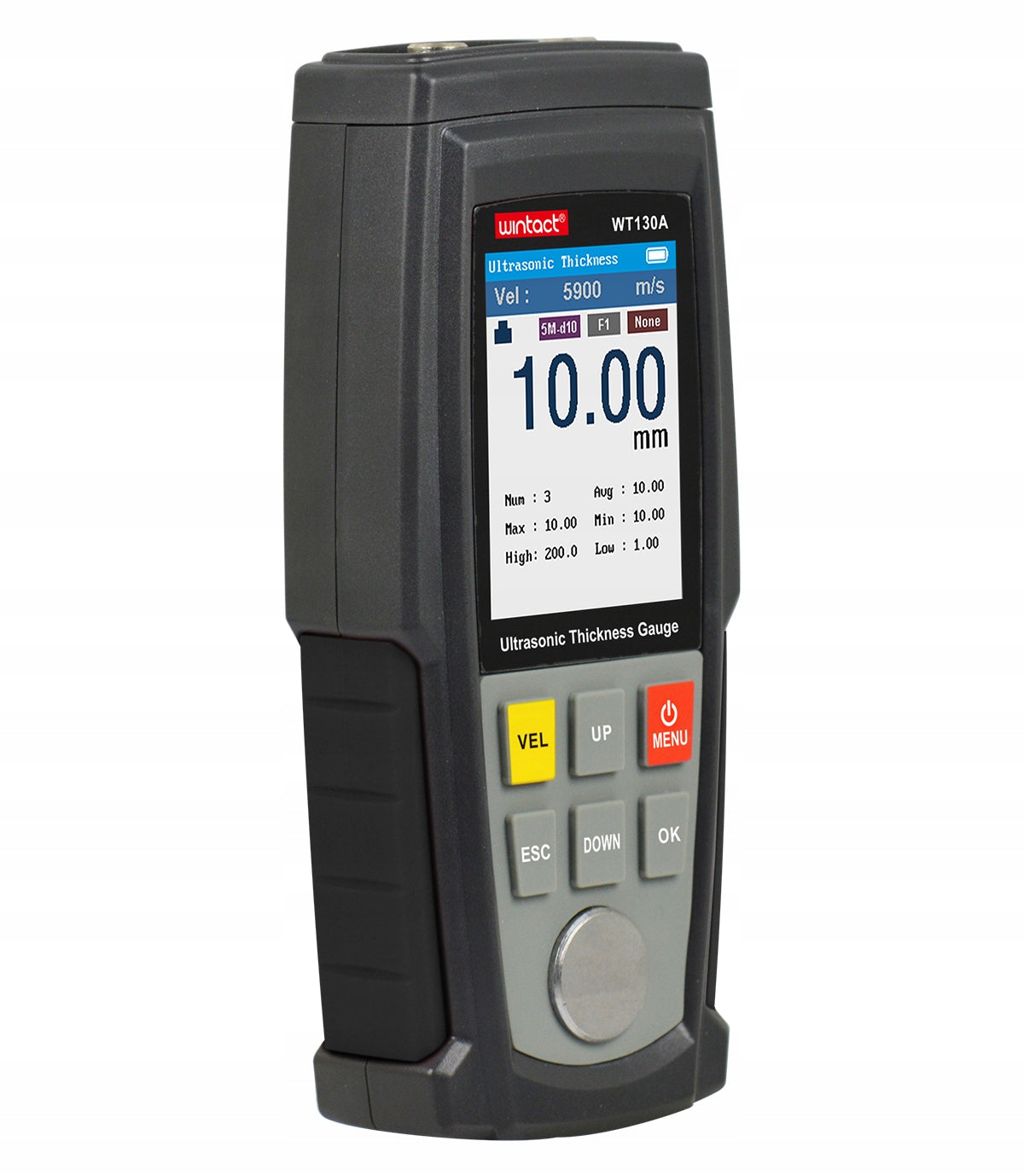

1. Receiving port
2. Transmission connector
3. Display
4. Housing
5. Function buttons
6. Measuring probe
7. Built-in calibration plate

BENETECH is a manufacturer of advanced measuring and control equipment. A specialized supplier of professional digital measuring tools, as well as other electronic devices.

BENETECH POLAND is an authorized and direct distributor of this brand in Poland and Europe.

In the brand catalog you will find m.in:

• pyrometers and thermal imaging cameras,
• anemometers (wind meters),
• humidity meters and hygrometers,
• detectors and meters of gases and air quality,
• sonometers (decibel meters) and lux meters (light meters),
• laser rangefinders and tachometers,
• thermometers and pressure gauges,
• thickness and vibration meters (vibrometers),
• tools for electricians and cable detectors,
• electromagnetic radiation meter,
• home and industrial electronics equipment.

Directive EMC 2014/30/EU and RoHS 2011/65/EU

At the customer’s request, we attach a calibration report from the manufacturer translated into English. We receive the document electronically a few days later. In order to avoid delay in the execution of the order, we send the calibration report within about 7 working days to the e-mail provided in the order or assigned to the account.

The product meets European standards and directives as evidenced by the CE certificate, at the customer's request this document is also attached.

The manufacturer’s calibration report and declaration of conformity (CE) is a free, optional document and therefore is not sold in this offer.
