TV laikiklis sieninis, pasukamas, 32"-65", universalus

Trumpai apie prekę

Prekė: TV laikiklis sieninis, pasukamas, 32"-65", universalus. Kategorija: Rankenos.

• Gamintojas: LTC
• Modelis: EXTRA MOCNY UCHWYT DO TELEWIZORA TV

✅ STRONG WALL MOUNT POLISH BRAND "LTC" WITH ADJUSTABLE ANGLE OF INCLINATION AND ROTATION

➡ PREMIUM QUALITY LTC SERIES

➡ HUGE LIFTING CAPACITY UP TO 32KG

➡ POLISH MANUFACTURER "LTC"

➡ MOVABLE ARM SYSTEM

➡ DISTANCE FROM THE WALL FROM 50 TO 500 MM

➡ 180 DEGREE ROTATION ANGLE

➡ UP/DOWN ADJUSTMENT

➡ VESA 400 X 400

➡ UNIVERSAL USE UP TO 65 INCHES

➡ STRONG JOINTS

➡ POWDER COATED

➡ MOUNTING ACCESSORIES INCLUDED

The LTC wall mount is a sturdy and versatile solution designed for a wide range of TV models. The design of the mount allows the installation of TVs with a diagonal screen from 32 to 65 inches, however, thanks to high strength parameters, it is also possible to mount larger models

✅ PERMISSIBLE LOAD

The key parameter determining the safety of installation is the maximum load capacity of the handle, which in the case of this model is 32 kg. Before installation, make sure that the weight of the TV does not exceed this value.

Adjustable distance from the wall – functionality and aesthetics in one

Thanks to its well-thought-out design, the "LTC" wall mount allows you to adjust the distance of the TV from the wall in the range from 50 mm (when folded) to 500 mm (when fully extended). This solution combines aesthetic and practical values:

• The minimum distance of 50 mm provides a slim, elegant installation profile – the screen adheres close to the wall, which gives the interior a modern and orderly look, perfectly blending with minimalist or loft-style arrangements.
• The maximum distance of 500 mm allows the TV to tilt or rotate freely, making it easier to access ports and cables on the back of the device, and also allows you to precisely position the screen relative to the viewer's position.

The "LTC" wall mount is equipped with a built-in cable organization system, which allows aesthetic and safe routing of power, HDMI, optical, antenna or signal cables directly along the arms of the holder.

Order and aesthetics: Thanks to the use of special handles or clips fixed on the arms of the structure, the wires can be guided along the frame, eliminating the tangle of cables visible around the TV. This provides a neat, minimalist look and blends better with modern interior design.

Cable protection: Integrated guides protect cables from accidental mechanical damage (e.g. crushing when folding/sliding the arms) and before removing or wiping them on sharp edges.

Better ergonomics and easier access: Leading cables in the arms of the holder makes it easier to keep them in the right position when adjusting the position of the TV – even when the screen is rotated or extended frequently. Cables do not drag loosely and do not restrict movement.

Adjustable distance from the wall – functionality and aesthetics in one

Thanks to its well-thought-out design, the "LTC" wall mount allows you to adjust the distance of the TV from the wall in the range from 50 mm (when folded) to 500 mm (when fully extended). This solution combines aesthetic and practical values:

• The minimum distance of 50 mm provides a slim, elegant installation profile – the screen adheres close to the wall, which gives the interior a modern and orderly look, perfectly blending with minimalist or loft-style arrangements.
• The maximum distance of 500 mm allows the TV to tilt or rotate freely, making it easier to access ports and cables on the back of the device, and also allows you to precisely position the screen relative to the viewer's position.

The wall mount "LTC" is equipped with a very solid, fold-out frame, which allows not only to adjust the distance of the TV from the wall (from 50 mm to 500 mm), but also precise positioning of the screen in the horizontal plane - that is, rotation to the sides.

• Increased range of motion: The design of the arm allows the TV to be significantly extended from the wall and thus to be easier to maneuver in different directions. This is ideal when the screen is to be visible from different zones of the room.
• Side rotation (right/left): the handle allows to adjust the angle of rotation of the screen horizontally – usually in the range of up to ±90° (the exact range depends on the size and width of a specific TV model). Thanks to this, you can point the screen towards the viewer without having to move the entire furniture or change the seating position.
• Increased stability and durability: the construction based on a very solid arm provides high resistance to overloads and fluctuations.

Tilt angle adjustment – comfortable image in any position

The "LTC" wall mount is equipped with the function of adjusting the angle of the screen in the range of + 4° / - 10° (up / down), which allows precise adjustment of the TV position to the conditions in the room and individual preferences of the user.

Main advantages of tilt adjustment:

• Optimal viewing angle: the ability to change the tilt allows you to adjust the screen to a sitting, lying or standing position, which improves viewing comfort in various situations – e.g. during a movie screening, playing on the console or browsing content from bed.
• Reduction of glare: changing the angle of inclination allows the elimination of light reflections that may arise on the surface of the screen as a result of natural or artificial lighting. This is especially important in bright rooms with lots of windows or light points.
• Increased ergonomics: tilting the TV down can reduce strain on the neck and eyes, especially when the screen is mounted high on the wall, e.g. above the fireplace or in the conference room.

The universal TV wall mount is made of high-quality, reinforced metal alloy, which provides exceptional structural strength and long product life. Its robust design allows it to securely mount TVs weighing up to 32 kg, making it a suitable solution for large and heavy TV models as well.

• Capacity up to 32 kg: The mount meets strict strength standards, ensuring that heavy TVs, including those with a large diagonal, are securely maintained.
• High mechanical resistance: the materials used are characterized by increased resistance to deformation, cracks and other mechanical damage, even under heavy use.
• Assembly stability: The massive, rigid design minimizes the risk of the TV wobbling or loosening the mount over time, which is important especially when adjusting the screen position frequently.
• Wear and corrosion resistance: the protective coating protects steel components from moisture and oxidation, which further extends the durability of the handle – especially important in rooms with changing conditions (e.g. kitchens, fitness rooms, commercial spaces).

• Fits TVs: from 32 to 65 inches
• Maximum load: up to 32 kg
• Distance from wall: 55 mm
• Vertical adjustment: + 4° / - 10° (up / down)
• Moving arms: Yes
• Color: Black Powder Coated
• Built-in level: Yes
• Mounting parts included: Yes
• Standard VESA: YES, 400x400 mm

To choose the right wall mount for your TV, measure the distance between the mounting holes on the back of the device. The measurement is performed in two axes: horizontally (width) and vertically (height). These dimensions are expressed in millimetres and specify the so-called. VESA standard (Video Electronics Standards Association), which informs about the spacing of holes for mounting screws. Based on these dimensions, a mount is selected that will fit a specific TV model.

• 🔲 White colour: VESA 200 x 200 mm
• 🟥 Red colour: VESA 400 x 200 mm
• 🟨 Yellow colour: VESA 400 x 400 mm
• 🟦 Blue: VESA 600 x 400 mm

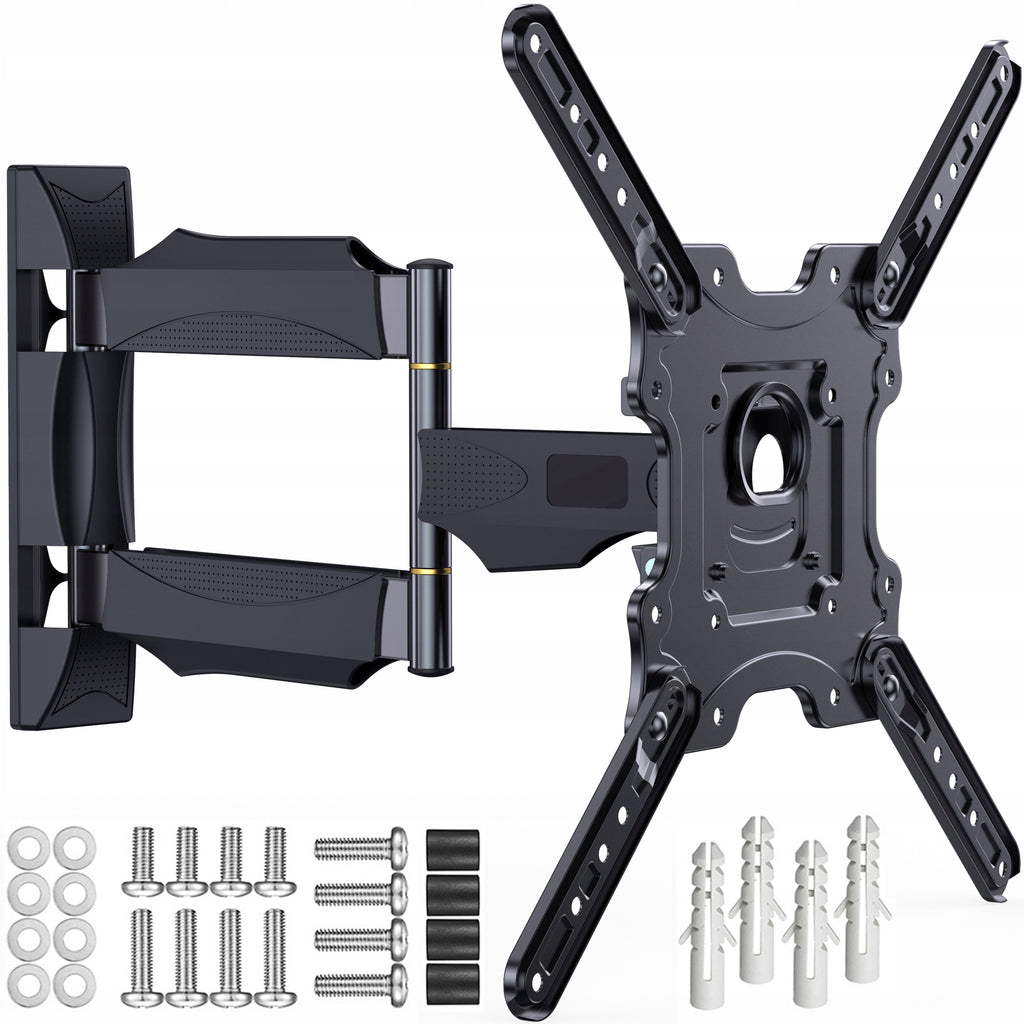

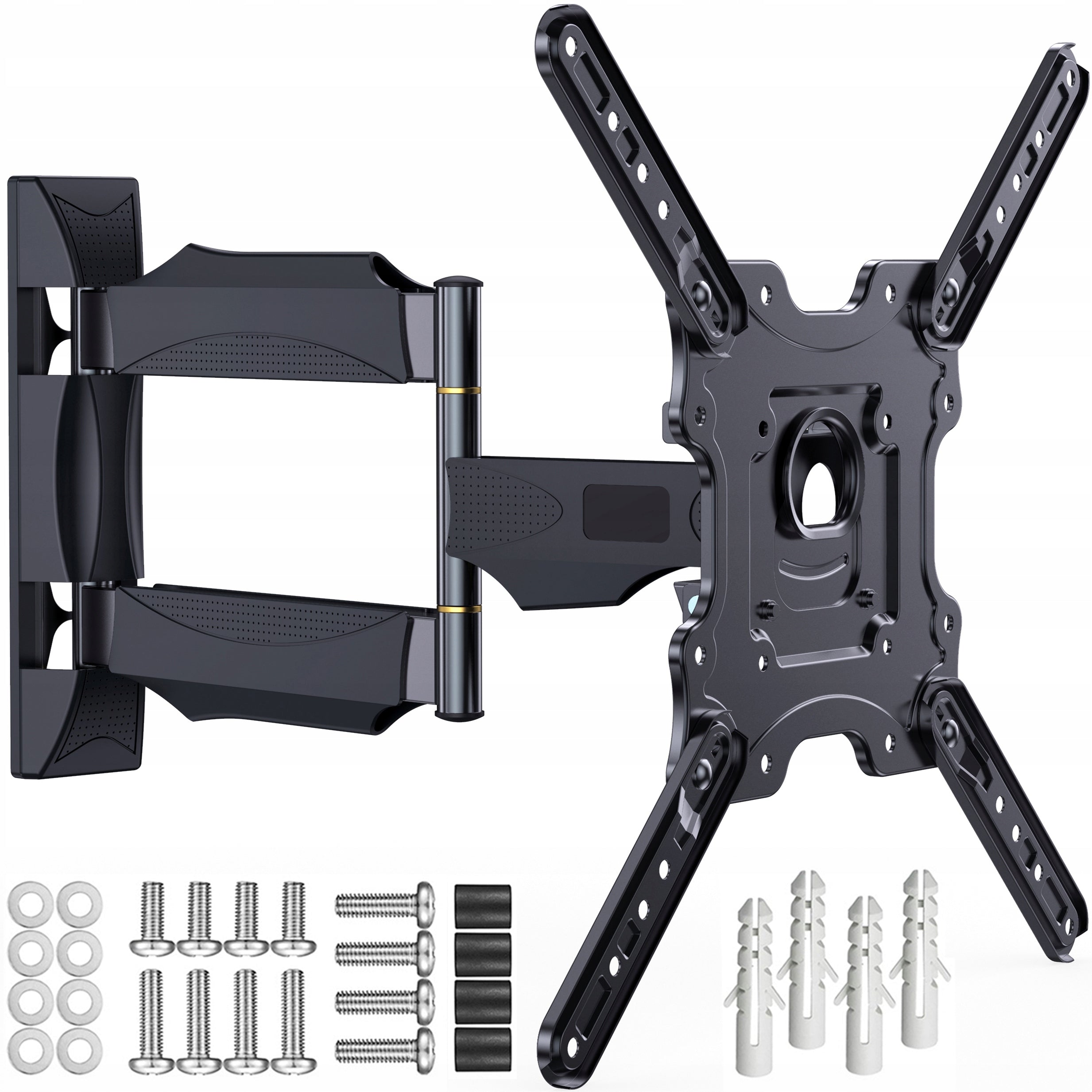

Comes with a mount you get universal mounting accessories that should be suitable for most mounted TVs. It is good to take one of the attached elements with you as a pattern to choose the right parameters.

The manufacturer recommends that expansion pins properly selected for the type of substrate on which the holder will be installed be used to mount the bracket on the wall. The pegs included in the set are universal and may not be optimal for all types of walls – especially those with an unusual design.

In the case of walls made of materials with an empty structure – such as gypsum board, partition walls made of ceramic blocks or cell blocks – especially recommended are: wing pins (molly), expansion pins with decomposing arms or chemical anchor systems (in the case of very heavy loads).

• Handle
• Simple, intuitive assembly instructions
• Set of screws and nuts needed for installation
• Warranty card

If we are already sure about the decision to mount the TV on the wall, then in the first step we should choose the right (matching) hanger for it.

• Standard VESA (Video Electronics Standards Association) - This is a mounting standard that tells you what mounting hole spacing the hanger on which you want to hang the TV must have. The type of holes is very easy to check: it is described in the instructions. If this information is not available, you can measure the distance between the mounting holes located on the back of the TV yourself. The most common are VESA 200 x 200, VESA 100 x 100, VESA 300 x 300, VESA 400 x 400, VESA 600 x 400, where the first number determines the spacing between the left and right holes in the same row (horizontal) and the second between the lower and upper (horizontal).

• Weight of mounted TV - This is one of the key information. Check the weight of the manufacturer in the instructions. Importantly, however, you need to take into account the value that does not take into account the base of the TV. Obviously, the weight of the TV must be lower than the maximum lifting capacity of the mount. In this way, we will be sure that the entire structure will withstand, and our equipment will not land with a bang on the floor.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	WIESZAK DO TV Z SYSTEMEM PROWADZENIA KABLI
Parametry	Model	EXTRA MOCNY UCHWYT DO TELEWIZORA TV
Parametry	Maximum TV size	65"
Parametry	Brand	LTC
Parametry	Maximum load	32 kg
Parametry	Mounting location	wall
Parametry	Additional information	desk bracket
Parametry	EAN (GTIN)	5906449353514
Parametry	Certificates of conformity	CE
Parametry	Kind	rotating,retractable
Parametry	VESA Standard	75 x 75,100 x 100,150 x 100,200 x 100,200 x 150,200 x 200,200 x 300,300 x 200,300 x 300,300 x 400,400 x 200,400 x 400
