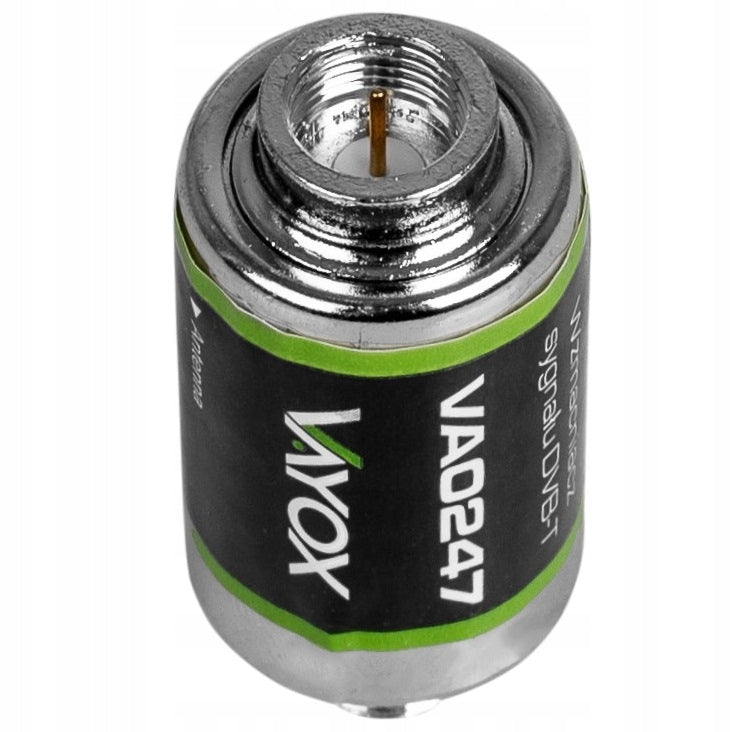

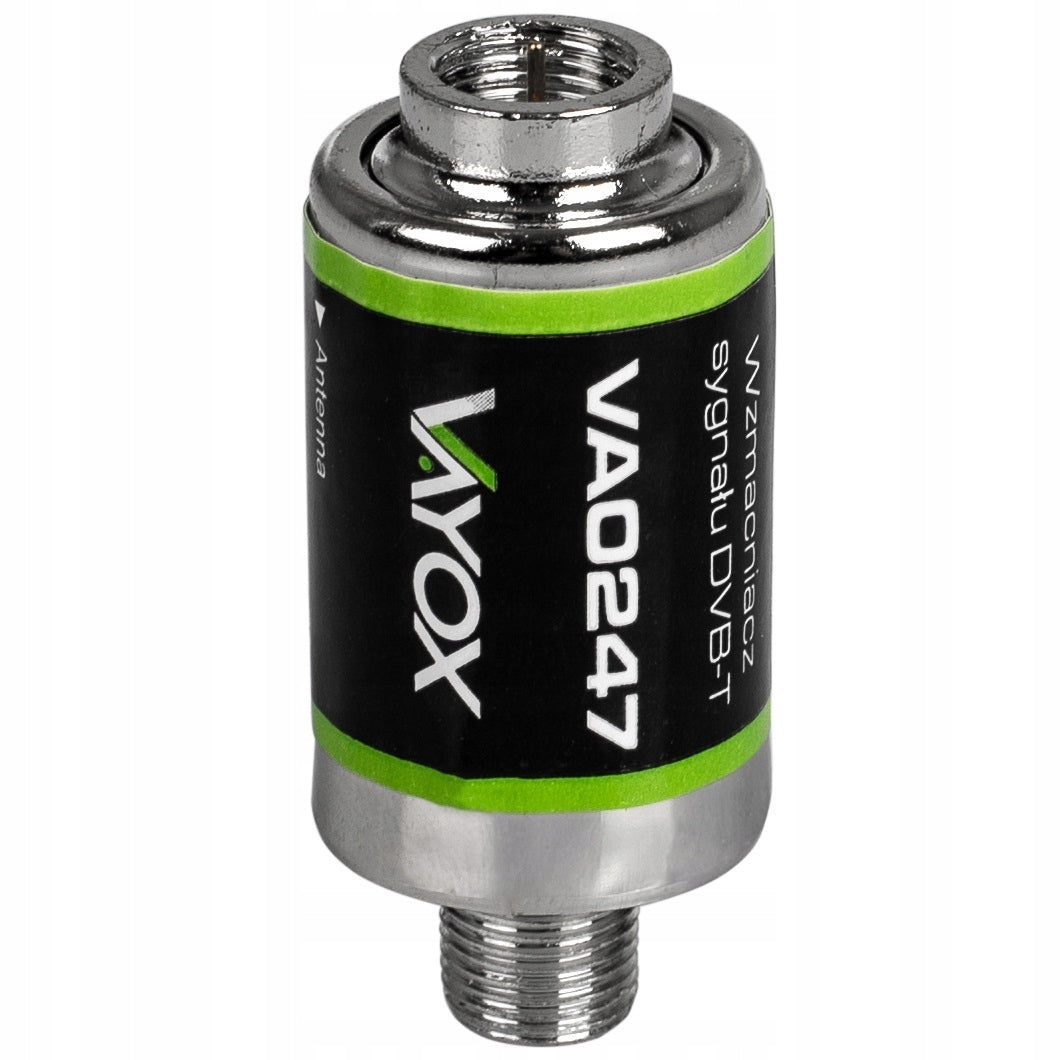

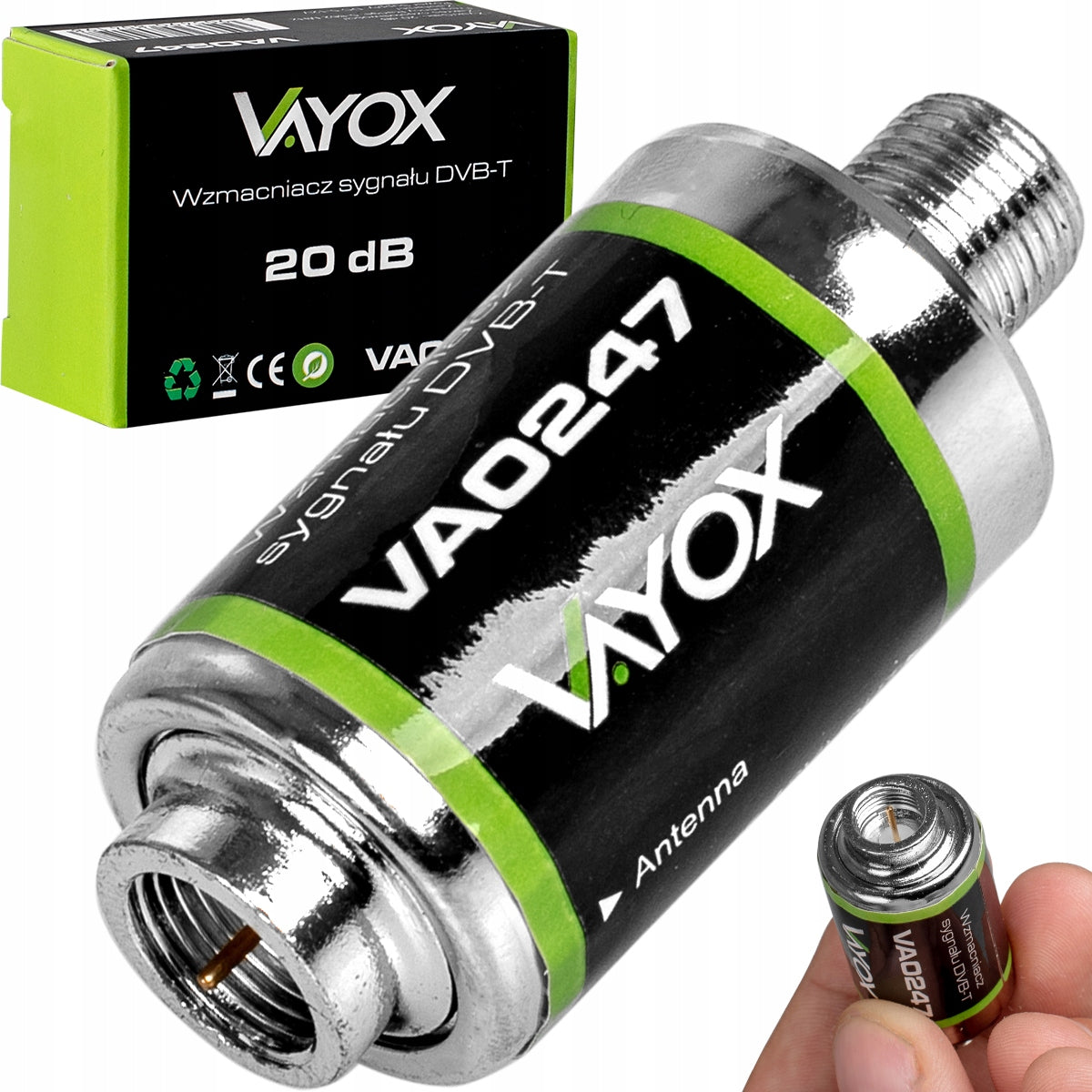

TV antenos stiprintuvas VAYOX DVB-T2, 12V, 20dB

Trumpai apie prekę

Prekė: TV antenos stiprintuvas VAYOX DVB-T2, 12V, 20dB. Kategorija: Stiprintuvai.

• Gamintojas: Vayox
• Modelis: VA0247

Attention! A 5-12V power supply is also needed for the amplifier to work properly

• Robust aluminium housing
• Does not transmit voltage to the antenna
• Power amplifier 20db
• Impedance 75 Ohms
• Connectors type F
• Suitable for all directional antennas with F-socket symmetrizer
• Hermetic housing
• Very easy to install (just screw into the F socket at the antenna)
• Supports VHF and UHF frequency

Power supply 5-12V

• 5V power amplifier can be powered by DVB-T tuner
• Power supply 12 amplifier is powered by antenna power supply

This amplifier is best screwed to the socket in the dipole can. Then there are the smallest losses of signal reaching the tuner head.

The amplifier is dedicated to directional antennas, among others, to:

• VAYOX VA0084
• VAYOX VA0092
• VAYOX VA2000
• LIBOX LB1600 COMBO
• LIBOX LB1600
• LIBOX LB-900
• LIBOX LB-1000
• LIBOX LB-2000
• OPTICUM AX1000
• SPARTA COMBO
• OPTICUM AX1000+ LTE COMBO
• OPTICUM AX900+ LTE COMBO
• AX GALAXY COMBO
• OLYMPIA BX1000+ LTE COMBO RED EAGLE
• VIVA BX900+ LTE COMBO

And all other antennas with built-in F socket

The pass-through amplifier VAYOX is used wherever the signal from an external antenna (not equipped with an amplifier) reaching the receiver is too weak, which is manifested by jamming or fading of the image.

The cause of such symptoms is usually: too long distance of the antenna from the transmitter, natural obstacles (elevations, trees), tall buildings between the transmitter and the antenna, division of the signal from the antenna into several TV sets.

The amplifier is designed for use with external directional antennas with a symmetrizer terminated with an F socket.

The amplifier should be screwed directly into the symmetrizer socket at the antenna and given a voltage of 5-12 V from the receiver or power supply.

Specifications
