Traktoriaus variklis AL-KO T22, 708 cm³, 22 AG, V2, Lc2p77f, R9005

Trumpai apie prekę

Prekė: Traktoriaus variklis AL-KO T22, 708 cm³, 22 AG, V2, Lc2p77f, R9005. Kategorija: Varikliai.

• Gamintojas: AL-KO
• Modelis: 476858
• Talpa: 708 l

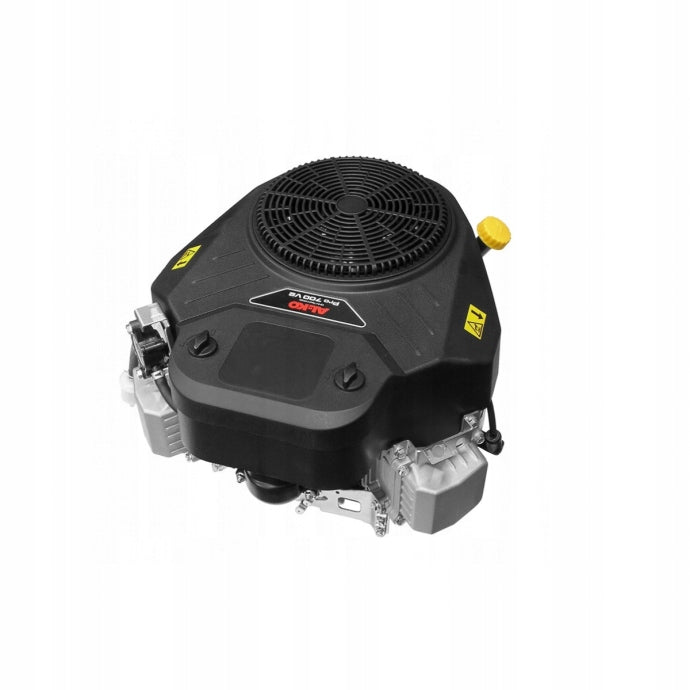

Original two-cylinder engine from AL-KO PRO 700 22HP, electric starter, without fuel tank and silencer.

V2 engine - two-cylinder forklift.

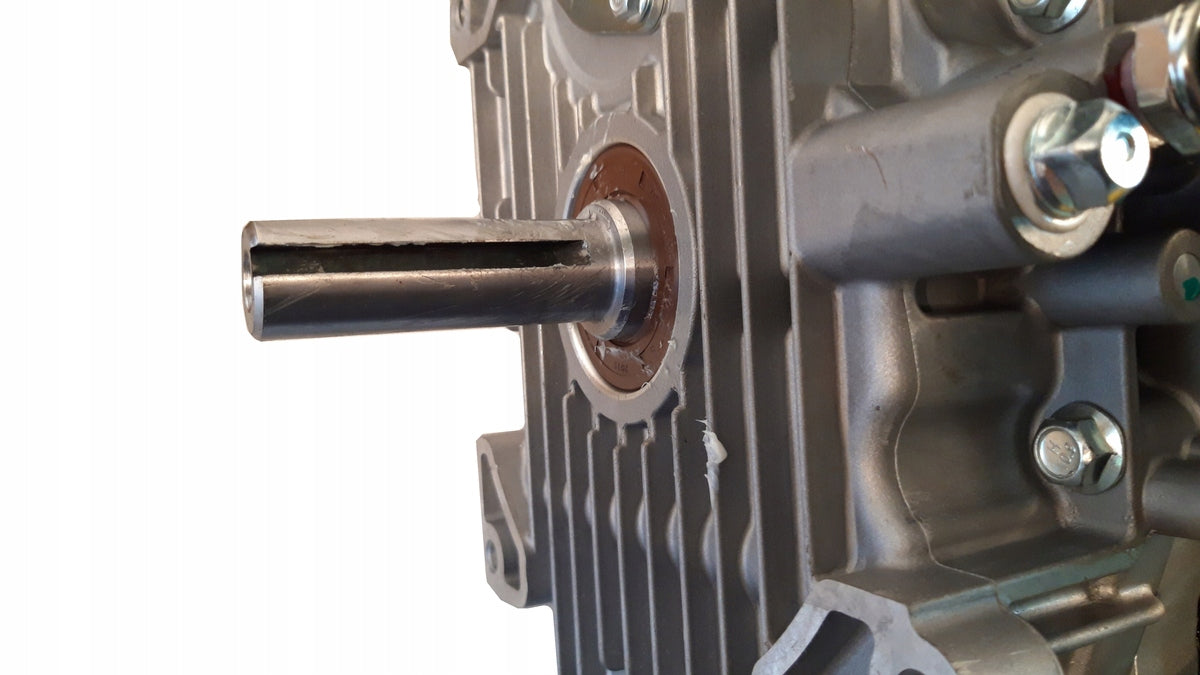

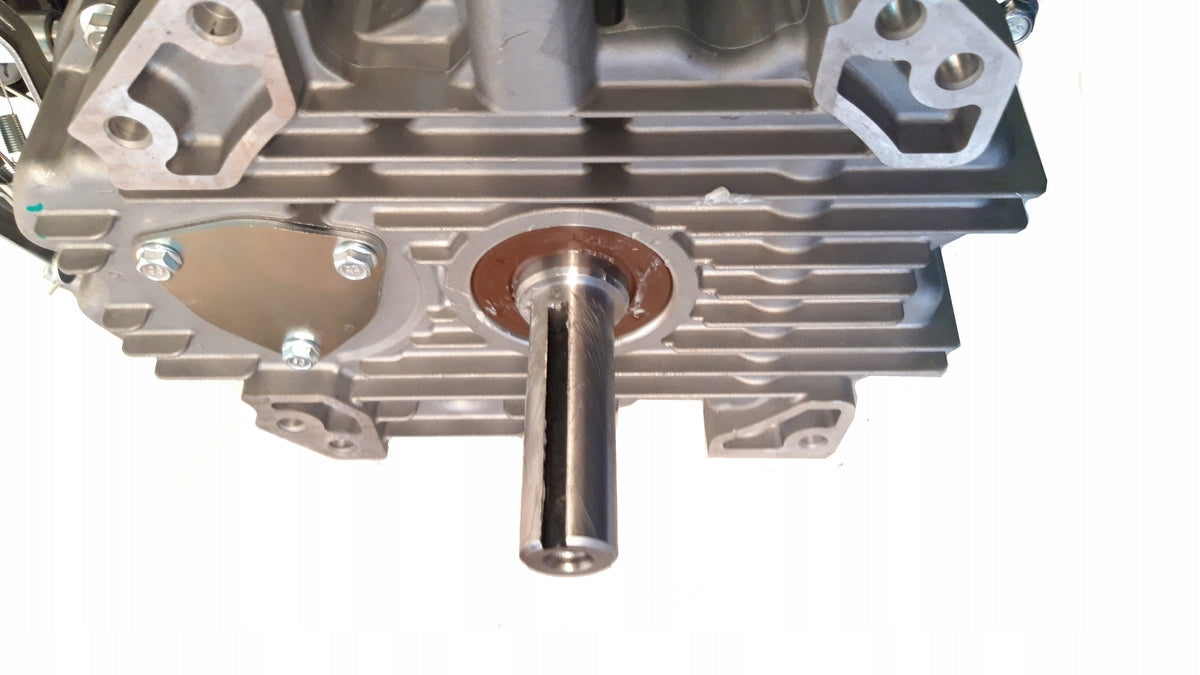

Shaft length - 80mm, shaft diameter - 25,4mm.

Engine power 22HP.

Candle suitable for engine - Husqvarna HQT-7, NGK BPR6ES.

Air filter - 418110.

Oil filter - 418138

The engine is mounted on AL-KO tractors :

• 127692
• TRACTOR T 22-103.3 HD-A V2 COMFORT

  127445

  TRACTOR T 22-111.7 HDS-A V2 COMFORT

  127575

  TRACTOR T 22-110.0 HDH-A V2 PREMIUM

  127621

  TRACTOR T 22-105.1 HD-A V2 PREMIUM

• Cedrus Starjet UJ 102/22H

Technical data:

• V-Twin Cylinder
• Electronic ignition
• Efficient splash lubrication
• Air filter with paper cartridge and pre-filter
• Mechanical speed controller
• Optimized balance and vibration reduction system affect more stable operation.
• Overhead valve (OHV) provides lower engine temperature
• An additional oil filtration system enables better lubrication of the engine, reduces engine wear and prolongs service life.
• Cast iron body makes the engine more wear-resistant
• Metal cams and forged crankshaft make the engine more reliable and durable
• engine: V-Twin, 4-stroke
• Max. power: 12,8 kW
• max torque: 47.5 Nm / 2400 rpm
• Engine capacity: 708 cm3
• Oil bowl capacity: 2 l
• Wed. cylinder x piston stroke: 77 x 76 mm
• compression ratio: 8,7:1
• Shaft diameter: 25,4 mm
• Shaft length: 80 mm (86 mm for sealant)
• Wedge: 6mm
• lubrication system: splash
• starter: electric
• engine cooling: air
• air filter: double semi-dry
• free spins: 1650 rpm
• dimensions: 466x480x356 mm
• Net weight: 42 kg

Application:

• tillers
• riders
• lawn mowers
• Garden tractors
• combustion vacuum cleaners
• water pumps
