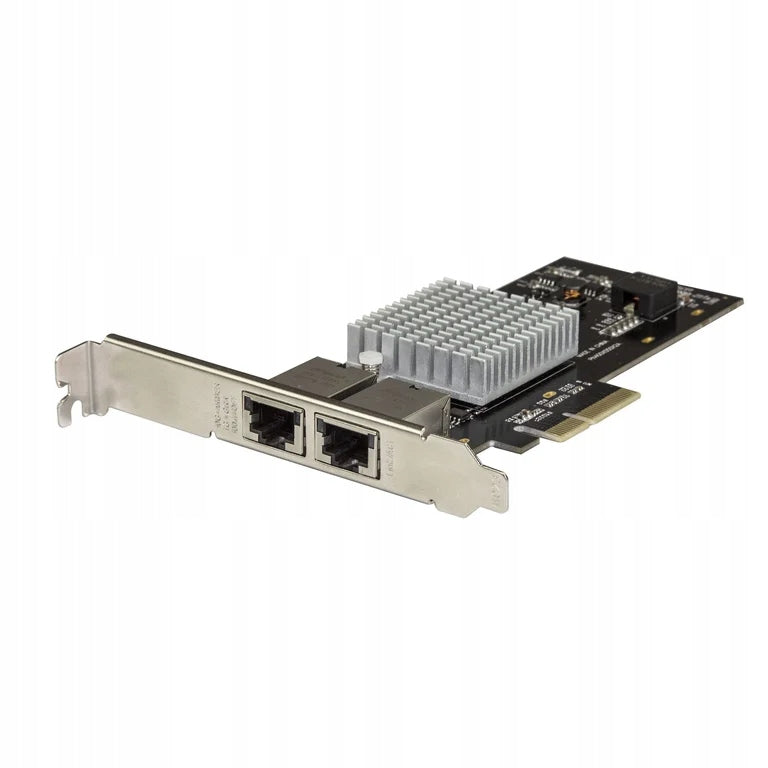

Tinklo plokštė StarTech ST10GPEXNDPI, vidinė, 10000 Mbit/s Ethernet

Trumpai apie prekę

Prekė: Tinklo plokštė StarTech ST10GPEXNDPI, vidinė, 10000 Mbit/s Ethernet. Kategorija: Tinklo plokštės.

• Gamintojas: StarTech
• Modelis: EAN-0065030879538

StarTech ST10GPEXNDPI. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Colour of product: Black

✏ The most important technical parameters:

• Data transfer - Compatible with Jumbo Frames: Yes
• Data transfer - Jumbo Frames extension: 9000
• Design - Internal: Yes
• Ports and interfaces - Connectivity technology: Wired
• Ports and interfaces - Host interface: PCI Express
• Ports and interfaces - Number of Ethernet LAN ports (RJ-45): 2
• Ports and interfaces - PCI version: 3.0
• Network - Wired LAN: Yes
• Network - Data transfer speed over Ethernet LAN: 10,100,1000,2500,5000,10000 Mbit/s
• Network - Wiring technology: 10GBase-T
• Network - Communication standards: IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x
• Network - iSCSI support: Yes
• Network - Automatic MDIX IEEE: Yes
• Network - Flow control support: Yes
• Network - VLAN tagging: Yes
• Features - Interface: Ethernet
• Features - Full duplex: Yes
• Features - LEDs: Operation, Link, Speed
• Performance - Maximum data transfer rate: 10000 Mbit/s
• Performance - Colour of product: Black
• Certificates - Certificates: CE, FCC, REACH
• Weight and sizes - Product height: 132 mm
• Weight and sizes - Product width: 15 mm
• Weight and sizes - Product depth: 228 mm
• Weight and sizes - Product weight: 98 g
• Packaging data - Weight including packaging: 199 g
• Packaging data - Low profile rail: Yes
• Packaging data - Package width: 144 mm
• Packaging data - Package depth: 210 mm
• Packaging data - Package height: 41 mm
• Content of the package - Quick Start Guide: Yes
• Sustainability - Certificates of conformity: RoHS
• System requirements - Supported Windows operating systems: Windows 10,Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise,Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64,Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64,Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 HomeWindows 7 Home Premium x64, Windows 7 Professional,Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64,Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64,Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64,Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8 x64, WindowsWindows 8.1 Enterprise, Windows 8.1 Enterprise x64,Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
• System requirements - Supported Linux operating systems: Yes
• System requirements - Supported server operating systems: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
• Working conditions - Relative humidity range: 20 - 80%
• Working conditions - Temperature range (storage): -20 - 60 °C
• Working conditions - Temperature range (operation): 5 - 50 °C
• Other Features - Chipset: Intel X550AT
• Logistics data - Height of reference box (external): 316 mm
• Logistics data - Width of bulk box (external): 420 mm
• Logistics data - Length of main box (external): 436 mm
• Logistics data - Products in main box (external): 40 pcs.
• Logistics data - Harmonised system code (HS): 85176990
• Classification - Manufacturer code: ST10GPEXNDPI
• Classification - EAN: 065030879538
• Classification - Product ID: 37960359
