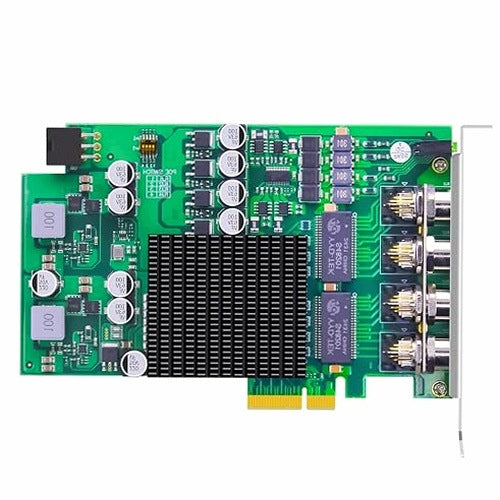

Tinklo plokštė POE+ M12, 4 jungtys, pramoniniams robotams

Trumpai apie prekę

Prekė: Tinklo plokštė POE+ M12, 4 jungtys, pramoniniams robotams. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: SWC5908807132137

MATERIAL AND WORKMANSHIP

➡ PoE+ network card compliant with the IEEE 802.3at standard provides maximum output power 30 W for each port, ideal for powering voice devices, communication systems, video surveillance cameras and IoT devices. The design based on the Intel I350-T4 controller guarantees reliable operation in demanding industrial environments.

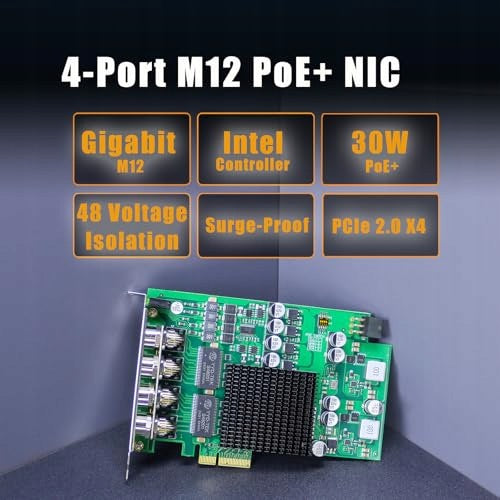

➡ A distinctive feature of the card are 4 M12 ports, which are standard in industrial automation, robotics and sensor networks. The PCIe 2.0 x4 interface enables fast data communication, and the standard mounting bracket allows installation in ATX enclosures. M12 connectors provide strength and reliability in harsh environments.

APPLICATION

➡️ The card features voltage isolation to protect both personnel safety and equipment integrity, as the standard PoE supply voltage is 48 V, exceeding safe voltage levels. Resistance to surges and voltage fluctuations makes the device ideal for outdoor installation and in environments exposed to weather conditions.

➡️ The card is powered by a 4-pin 12 V power connector, which should be used when the power consumption of individual PoE devices exceeds 15 W. Using an external power supply ensures stable card operation and eliminates power shortages when powering devices with high power demands.

Product specification

✅ Compatibility: PCIe 2.1 x4, Intel I350-T4

✅ Mounting type: ATX standard

✅ Number of items: 4 pcs.

✅ Purpose: industrial automation, robotics, sensor networks, video surveillance, IoT

✅ Voltage: 48 V

✅ Power: 30 W

✅ Special Features: voltage insulation, surge protection, M12 ports for outdoor installation
